PASO – Mod. A6

(45° asymmetric optics)

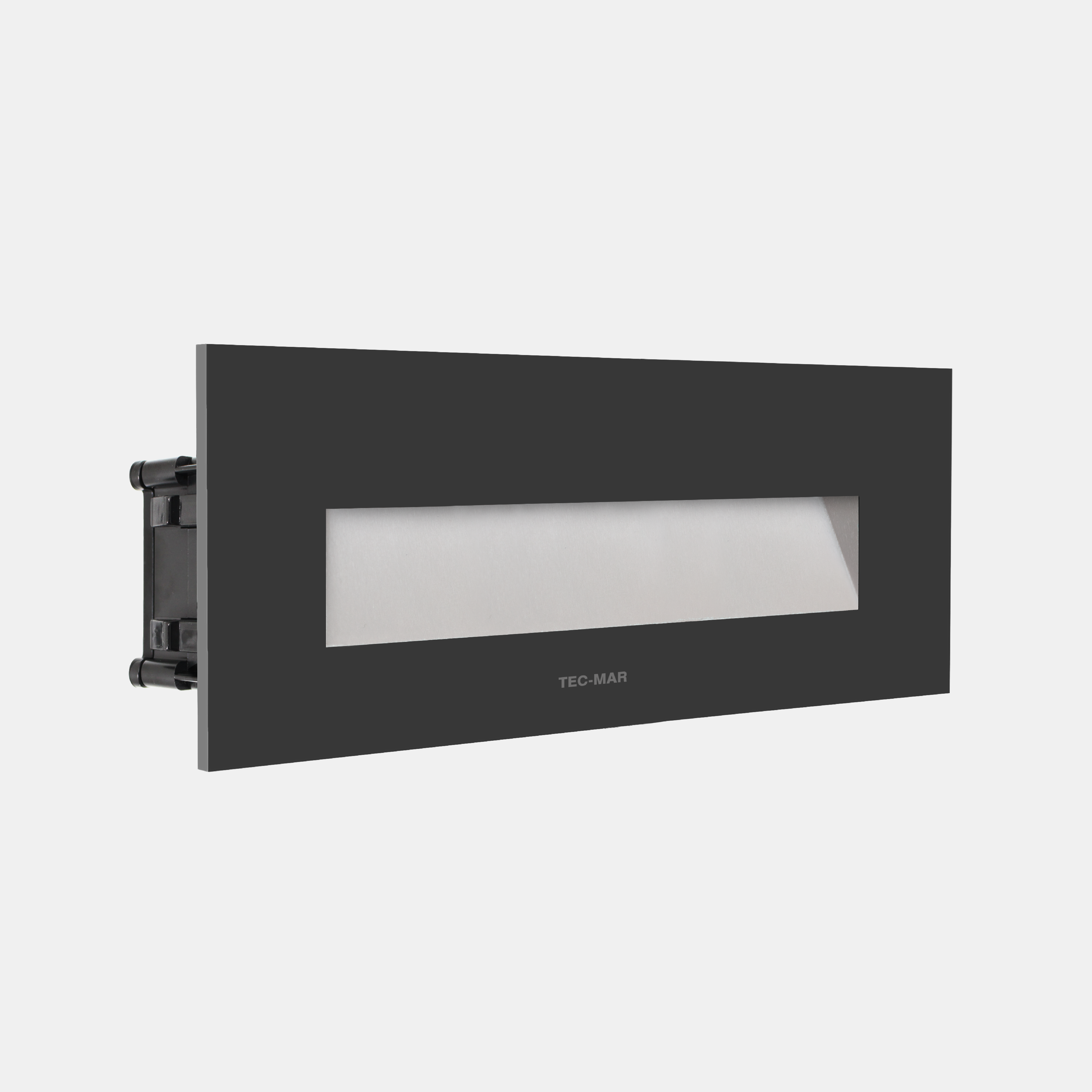

Recessed wall-mounted LED downlight, for outdoor and indoor use, suitable for installation in standard 503 recessed box. Body made of self-extinguishing injection-molded anti-UV polycarbonate, diffuser made of extra-clear tempered and sandblasted flat glass 4 mm thick, screen printing in anthracite. Optics with satin aluminum reflector, asymmetrical 45°. The luminaire is fitted as standard for through-wiring.

Categories: Led, PASO, Architectural Outdoor, PASO, PASO

Models: 6

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1001	A6	27	= 2700°K (CRI>80)	06	NL	= on/off
		30	= 3000°K (CRI>80)	09
		40	= 4000°K (CRI>80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1001A64006NL	6	-	4000°K - CRI ≥80	on/off	352	59	194	83	46	-	-
1001A64009NL	9	-	4000°K - CRI ≥80	on/off	507	56	194	83	46	-	-
1001A63006NL	6	-	3000°K - CRI ≥80	on/off	334	56	194	83	46	-	-
1001A63009NL	9	-	3000°K - CRI ≥80	on/off	481	53	194	83	46	-	-
1001A62706NL	6	-	2700°K - CRI ≥80	on/off	324	54	194	83	46	-	-
1001A62709NL	9	-	2700°K - CRI ≥80	on/off	466	52	194	83	46	-	-
