PASO/AR

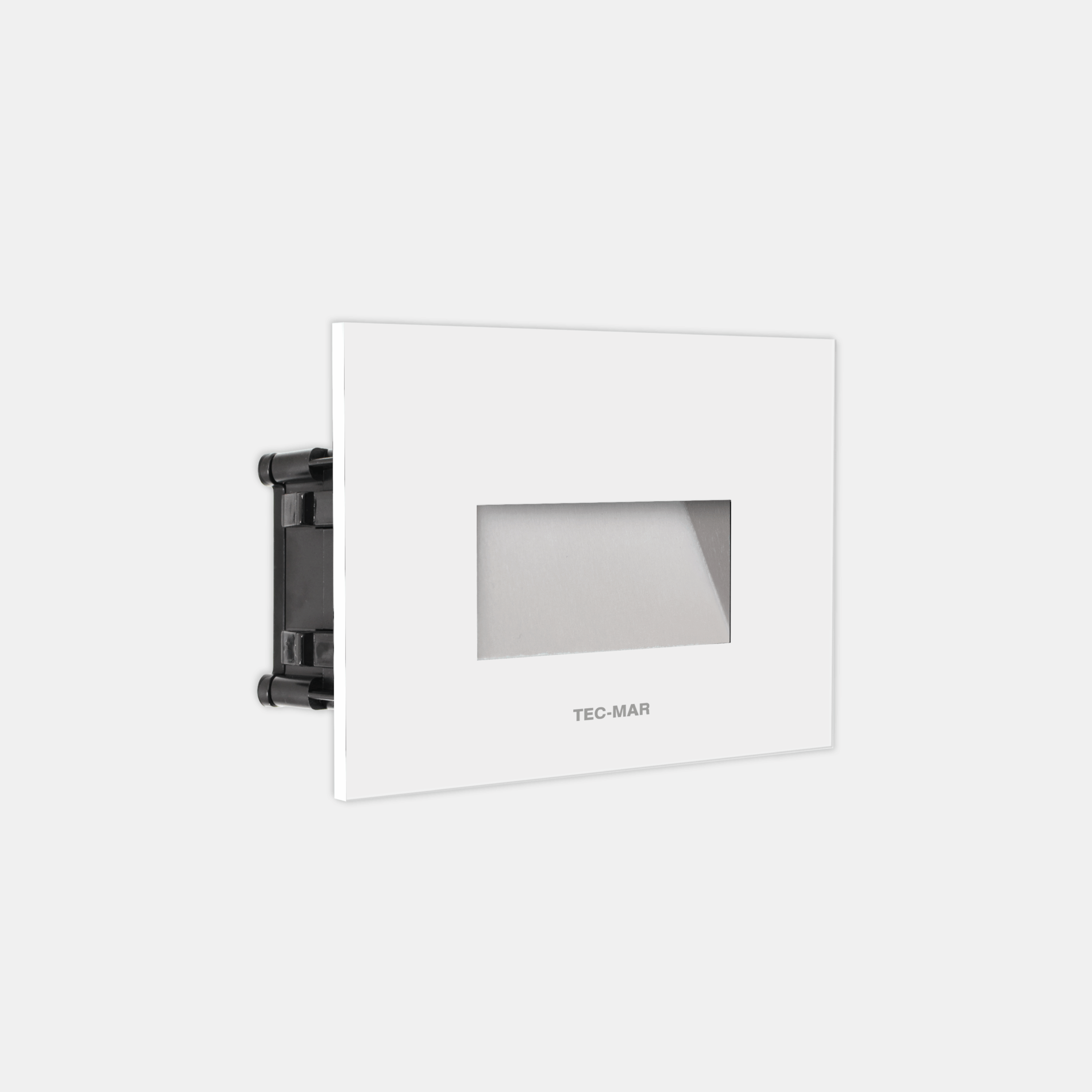

Recessed wall-mounted LED downlight, for outdoor and indoor use, suitable for installation in standard 503 recessed box. Body made of self-extinguishing injection-molded anti-UV polycarbonate, diffuser made of extra-clear tempered and sandblasted flat glass 4 mm thick, screen printing in white. Optics with satin aluminum reflector, asymmetrical 45° and symmetrical 120°. The luminaire is fitted as standard for through-wiring.
Categories: Led, PASO - 1001, art. 1001 Paso, Architectural Outdoor, art. 1001 Paso
Models: 6
Color: Matt white
Catalogue abstract
Installation instructions

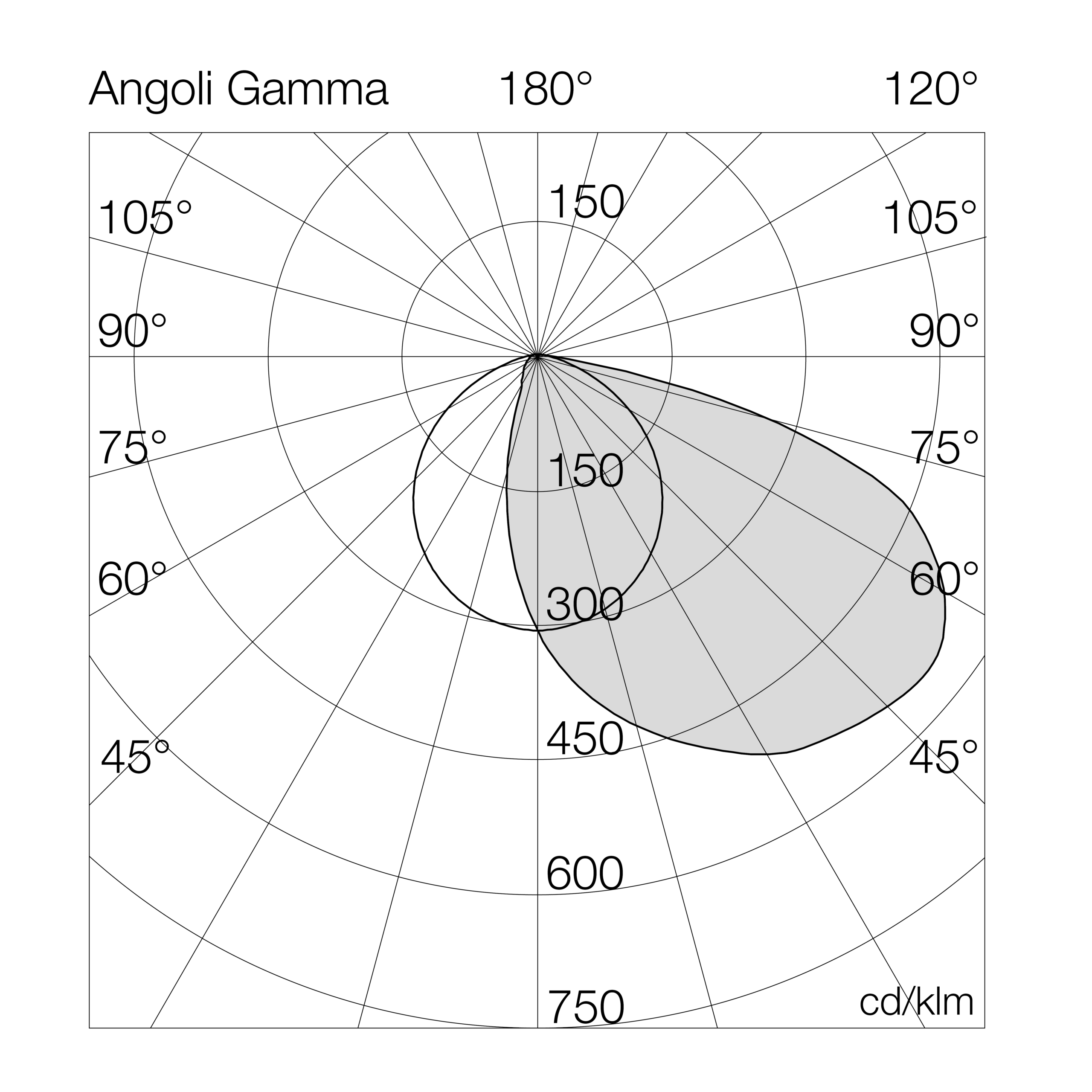

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1001AR27= 2700°K (CRI>80)03BL= on/off
30= 3000°K (CRI>80)04
40= 4000°K (CRI>80)

Models

W tot.
°K - CRI
Options

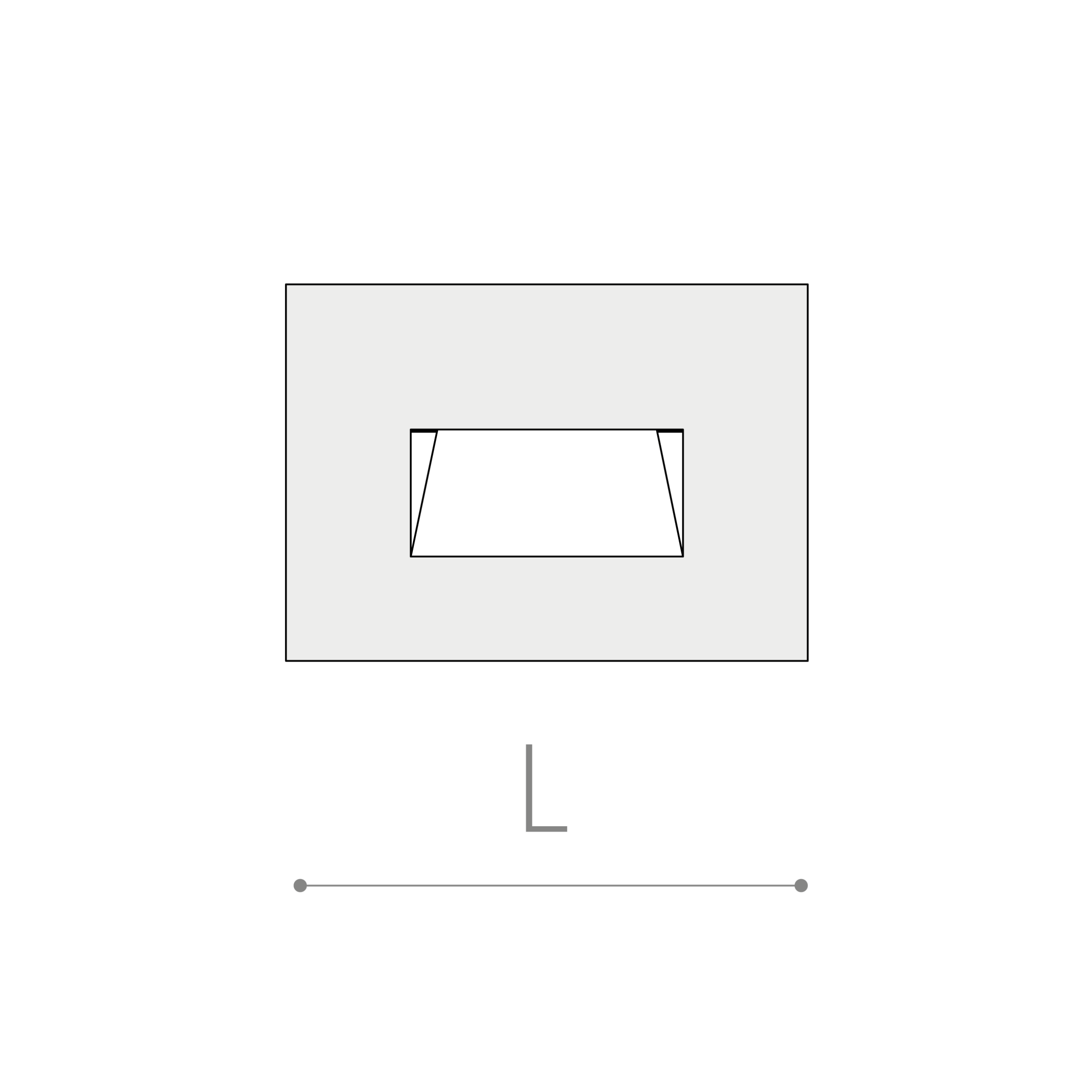

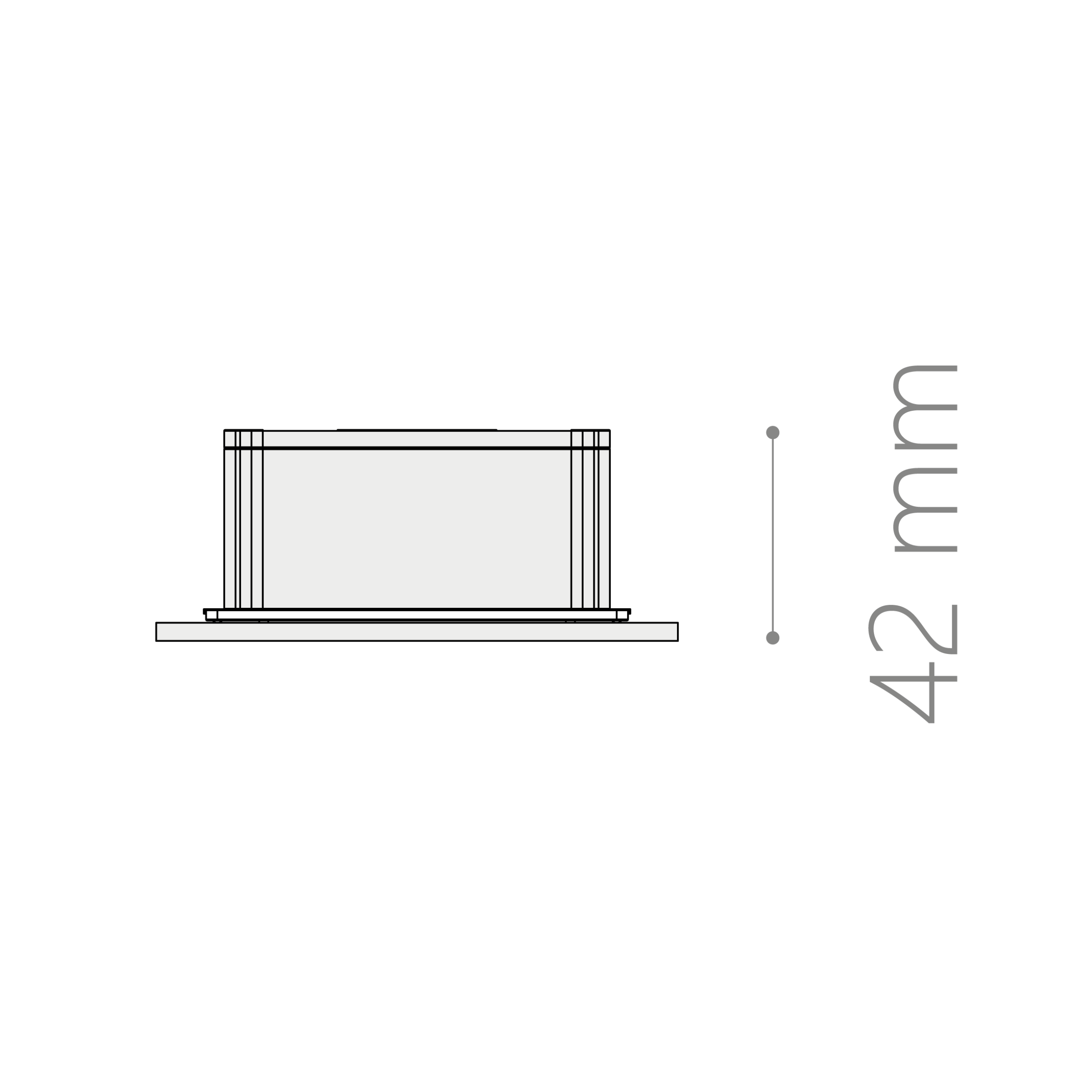

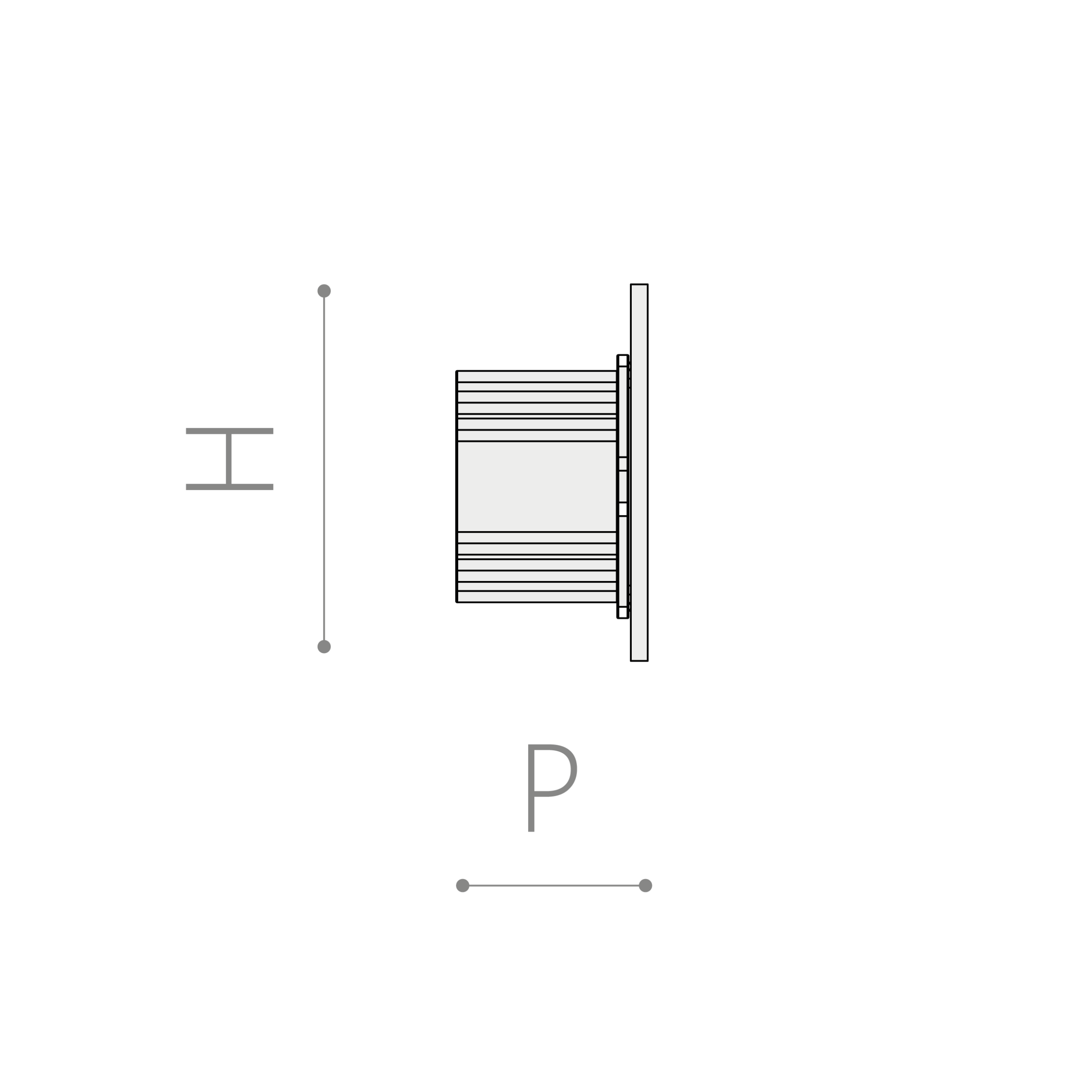

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1001AR4003BL3-4000°K - CRI>80on/off156521158346-0.4
1001AR4004BL4.5-4000°K - CRI>80on/off225601158346-0.4
1001AR3003BL3-3000°K - CRI>80on/off148491158346-0.4
1001AR3004BL4.5-3000°K - CRI>80on/off213471158346-0.4
1001AR2703BL3-2700°K - CRI>80on/off143481158346-0.4
1001AR2704BL4.5-2700°K - CRI>80on/off207461158346-0.4

Accessories
