PASO – Mod. AR

(45° asymmetric optics)

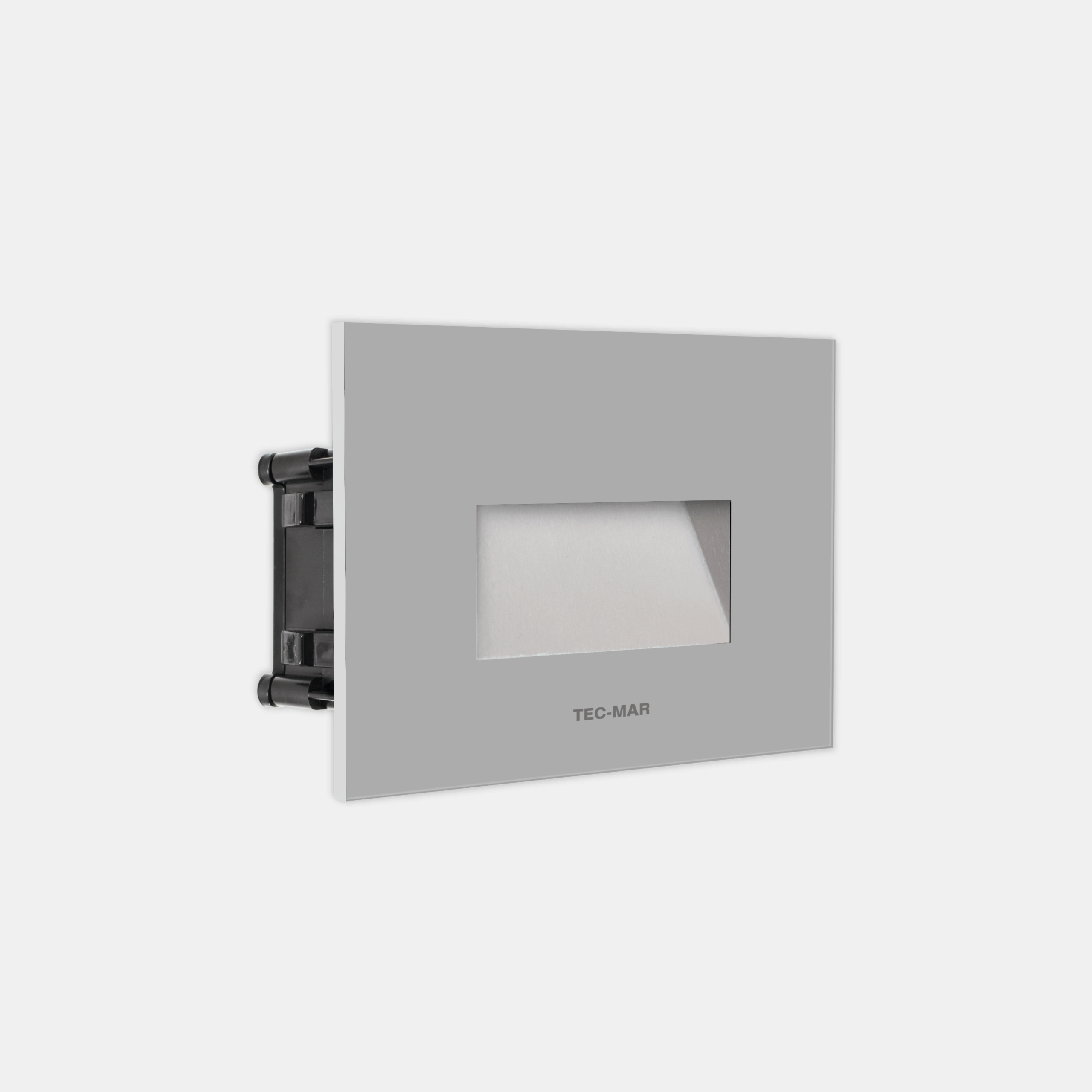

Recessed wall-mounted LED downlight, for outdoor and indoor use, suitable for installation in standard 503 recessed box. Body made of self-extinguishing injection-molded anti-UV polycarbonate, diffuser made of extra-clear tempered and sandblasted flat glass 4 mm thick, screen printing in grey. Optics with satin aluminum reflector, asymmetrical 45°. The luminaire is fitted as standard for through-wiring.
Categories: Led, PASO, PASO - 1001, Architectural Outdoor, PASO
Models: 6
Color: Matt grey
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1001AR27= 2700°K (CRI>80)03GL= on/off
30= 3000°K (CRI>80)04
40= 4000°K (CRI>80)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1001AR4003GL3-4000°K - CRI>80on/off156521158346-0.4
1001AR4004GL4.5-4000°K - CRI>80on/off225601158346-0.4
1001AR3003GL3-3000°K - CRI>80on/off148491158346-0.4
1001AR3004GL4.5-3000°K - CRI>80on/off213471158346-0.4
1001AR2703GL3-2700°K - CRI>80on/off143481158346-0.4
1001AR2704GL4.5-2700°K - CRI>80on/off207461158346-0.4

Accessories
