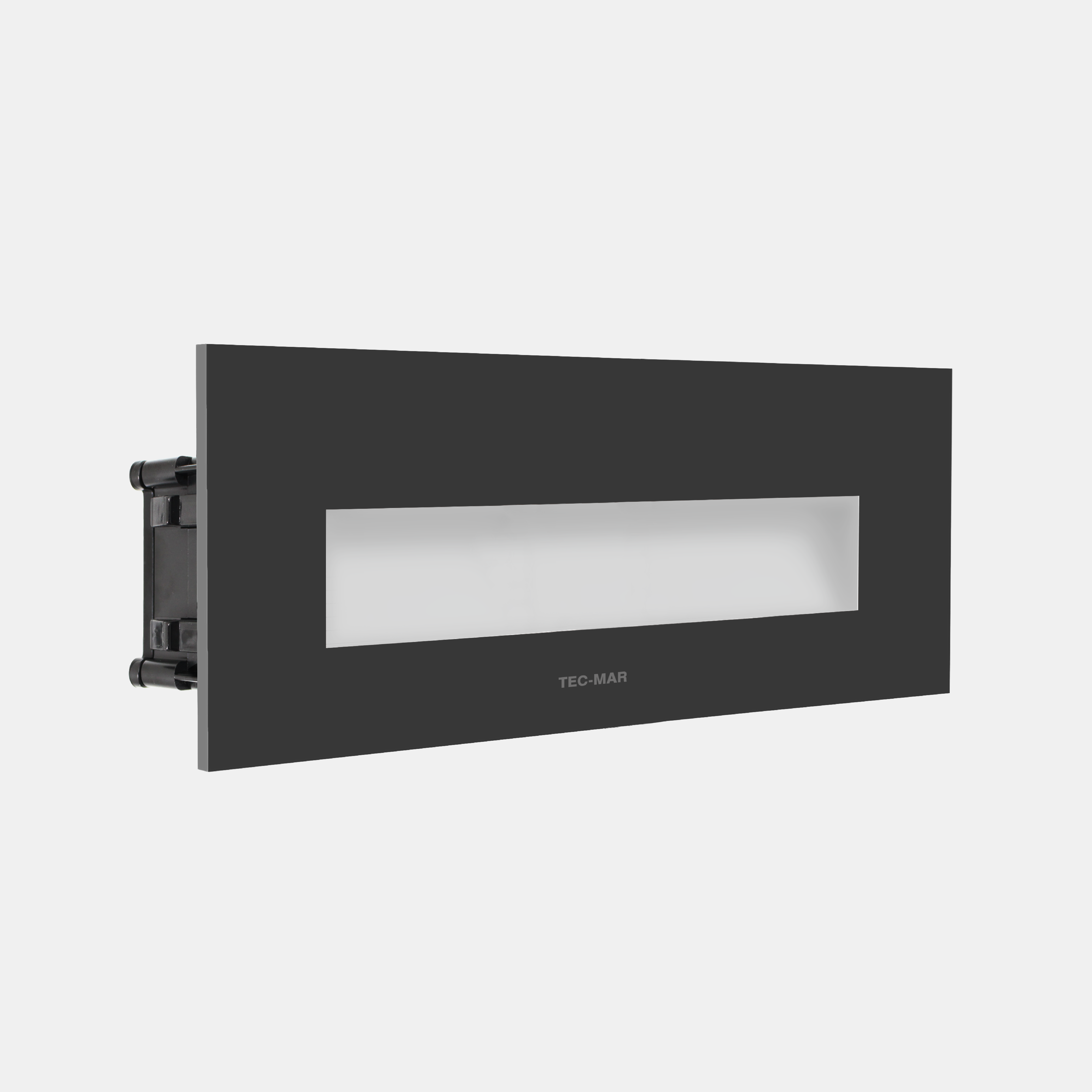

PASO – Mod. S6

(120° symmetrical diffusing optics)

Recessed wall-mounted LED downlight, for outdoor and indoor use, suitable for installation in standard 503 recessed box. Body made of self-extinguishing injection-molded anti-UV polycarbonate, diffuser made of extra-clear tempered and sandblasted flat glass 4 mm thick, screen printing in anthracite. Optics with satin aluminum reflector, symmetrical 120°. The luminaire is fitted as standard for through-wiring.

Categories: Led, PASO, Architectural Outdoor, PASO, PASO

Models: 6

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1001	S6	27	= 2700°K (CRI>80)	06	NL	= on/off
		30	= 3000°K (CRI>80)	09
		40	= 4000°K (CRI>80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1001SM4003NL	3	-	4000°K - CRI ≥80	on/off	112	37	115	83	46	-	0.4
1001SM4004NL	4.5	-	4000°K - CRI ≥80	on/off	161	36	115	83	46	-	0.4
1001SM3003NL	3	-	3000°K - CRI ≥80	on/off	106	35	115	83	46	-	0.4
1001SM3004NL	4.5	-	3000°K - CRI ≥80	on/off	153	34	115	83	46	-	0.4
1001SM2703NL	3	-	2700°K - CRI ≥80	on/off	103	34	115	83	46	-	0.4
1001SM2704NL	4.5	-	2700°K - CRI ≥80	on/off	148	33	115	83	46	-	0.4
