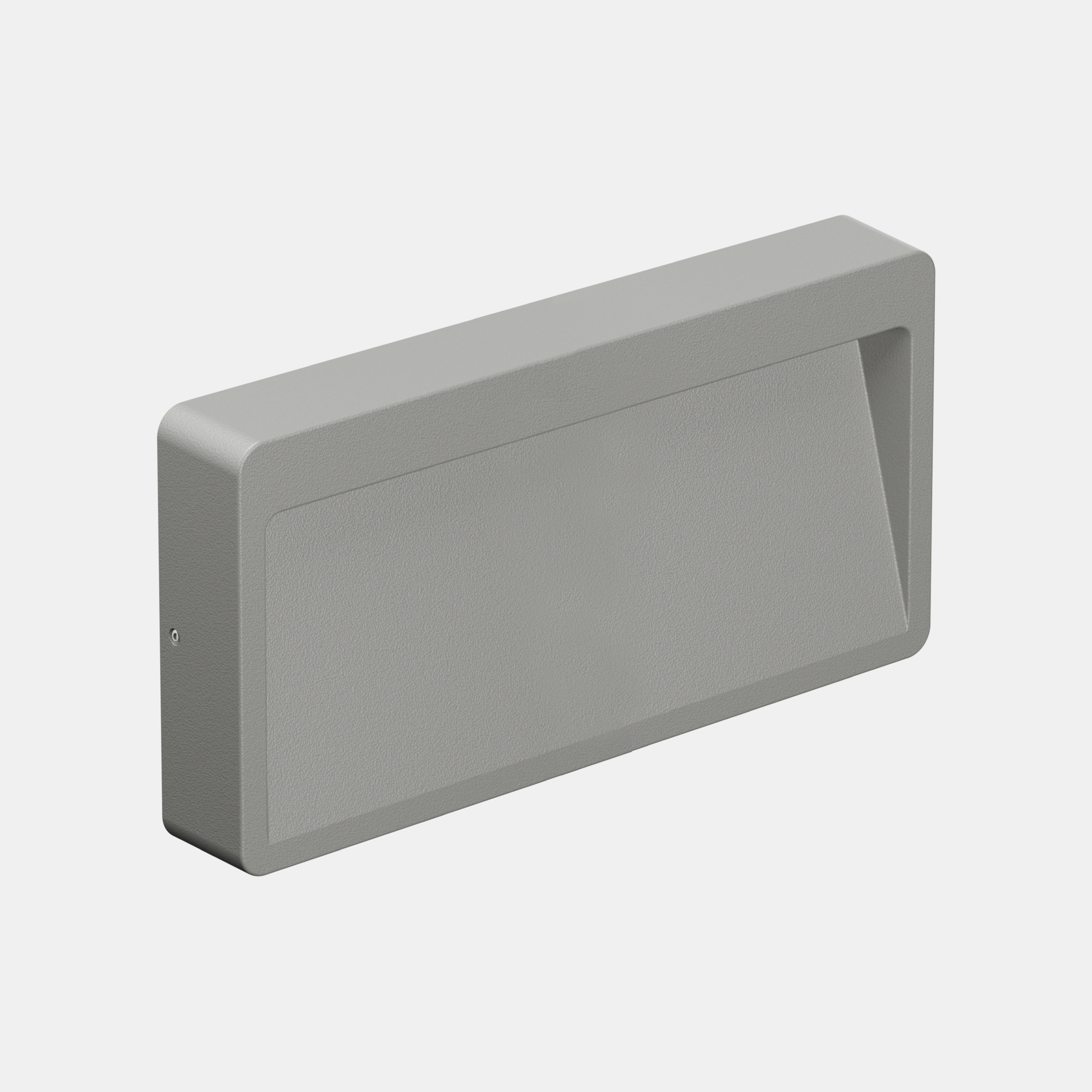

PIXEL – Mod. A6

(45° asymmetric optics)

LED surface marker for outdoor and indoor use. Die-cast aluminum body, painted with anticorrosion polyester thermosetting powders, color grey. Flat sandblasted tempered glass diffuser, 45° asymmetrical optics. The luminaire is fitted as standard for through-wiring.

Categories: Led, PIXEL, Architectural Outdoor, PIXEL, PIXEL

Models: 6

Color: Grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1002	A6	27	= 2700°K (CRI>80)	04	GL	= on/off
		30	= 3000°K (CRI>80)	06
		40	= 4000°K (CRI>80)	09

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1002A64007GL	7	-	4000°K - CRI ≥80	on/off	597	85	215	120	35	-	-
1002A64014GL	14	-	4000°K - CRI ≥80	on/off	1135	81	215	120	35	-	-
1002A63007GL	7	-	3000°K - CRI ≥80	on/off	566	81	215	120	35	-	-
1002A63014GL	14	-	3000°K - CRI ≥80	on/off	1077	77	215	120	35	-	-
1002A62707GL	7	-	2700°K - CRI ≥80	on/off	549	78	215	120	35	-	-
1002A62714GL	14	-	2700°K - CRI ≥80	on/off	1043	75	215	120	35	-	-
