PIXEL/AR

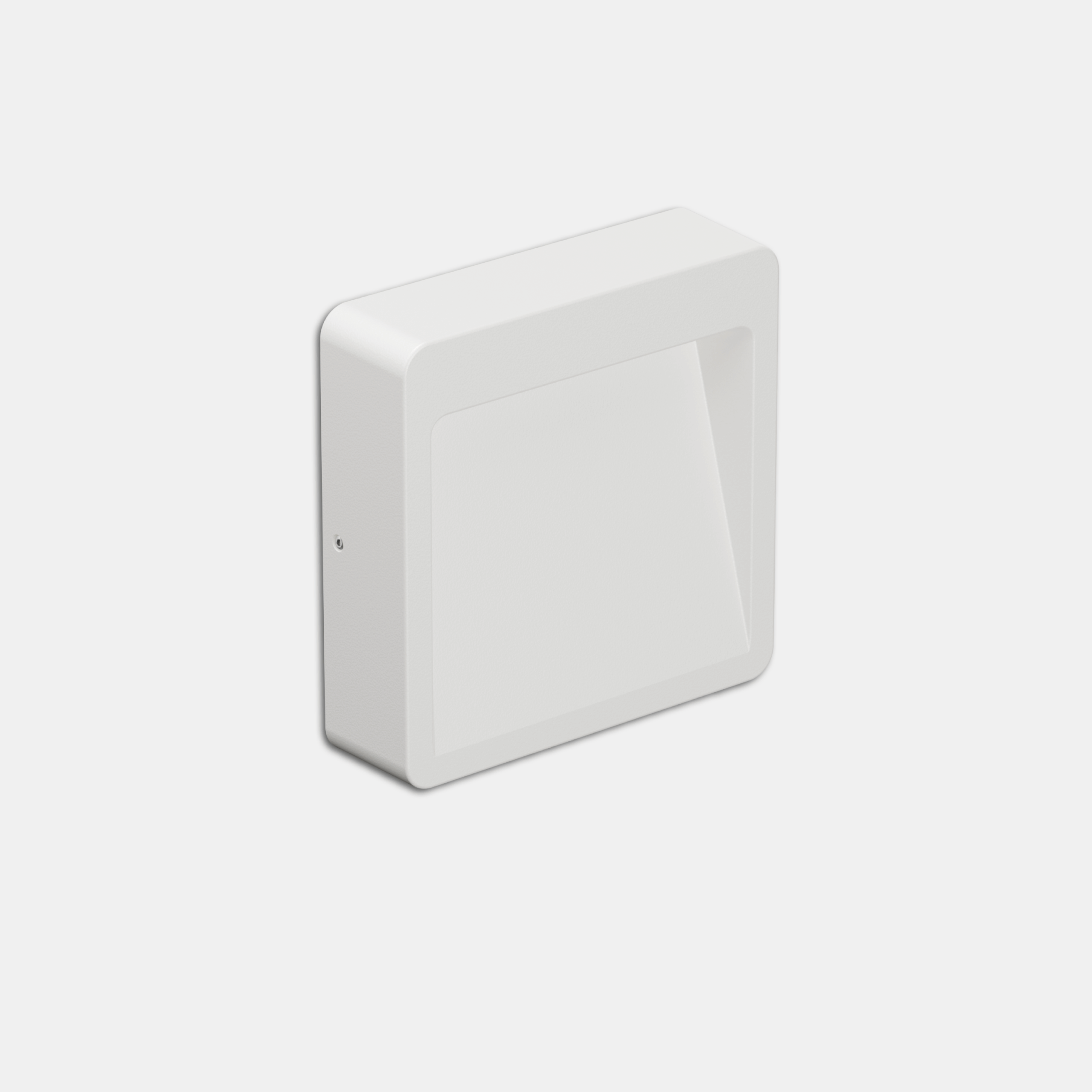

LED surface marker for outdoor and indoor use. Die-cast aluminum body, painted with anticorrosion polyester thermosetting powders, color white. Flat sandblasted tempered glass diffuser, 45° asymmetrical optics. The luminaire is fitted as standard for through-wiring.
Categories: Led, PIXEL - 1002, art. 1002 Pixel, Architectural Outdoor, art. 1002 Pixel
Models: 9
Color: Matt white
Catalogue abstract
Installation instructions

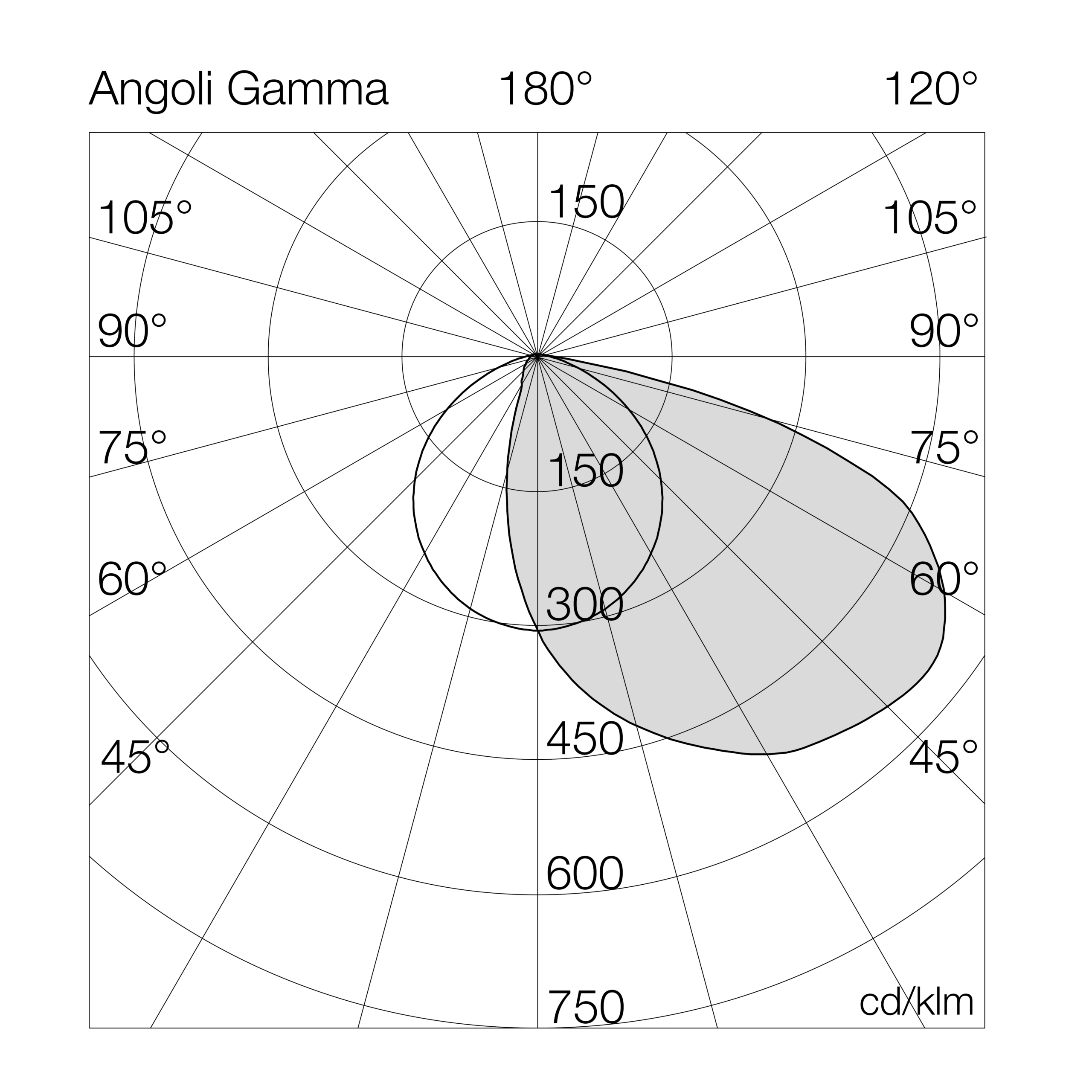

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1002AR27= 2700°K (CRI>80)04BL= on/off
30= 3000°K (CRI>80)06
40= 4000°K (CRI>80)09

Models

W tot.
°K - CRI
Options

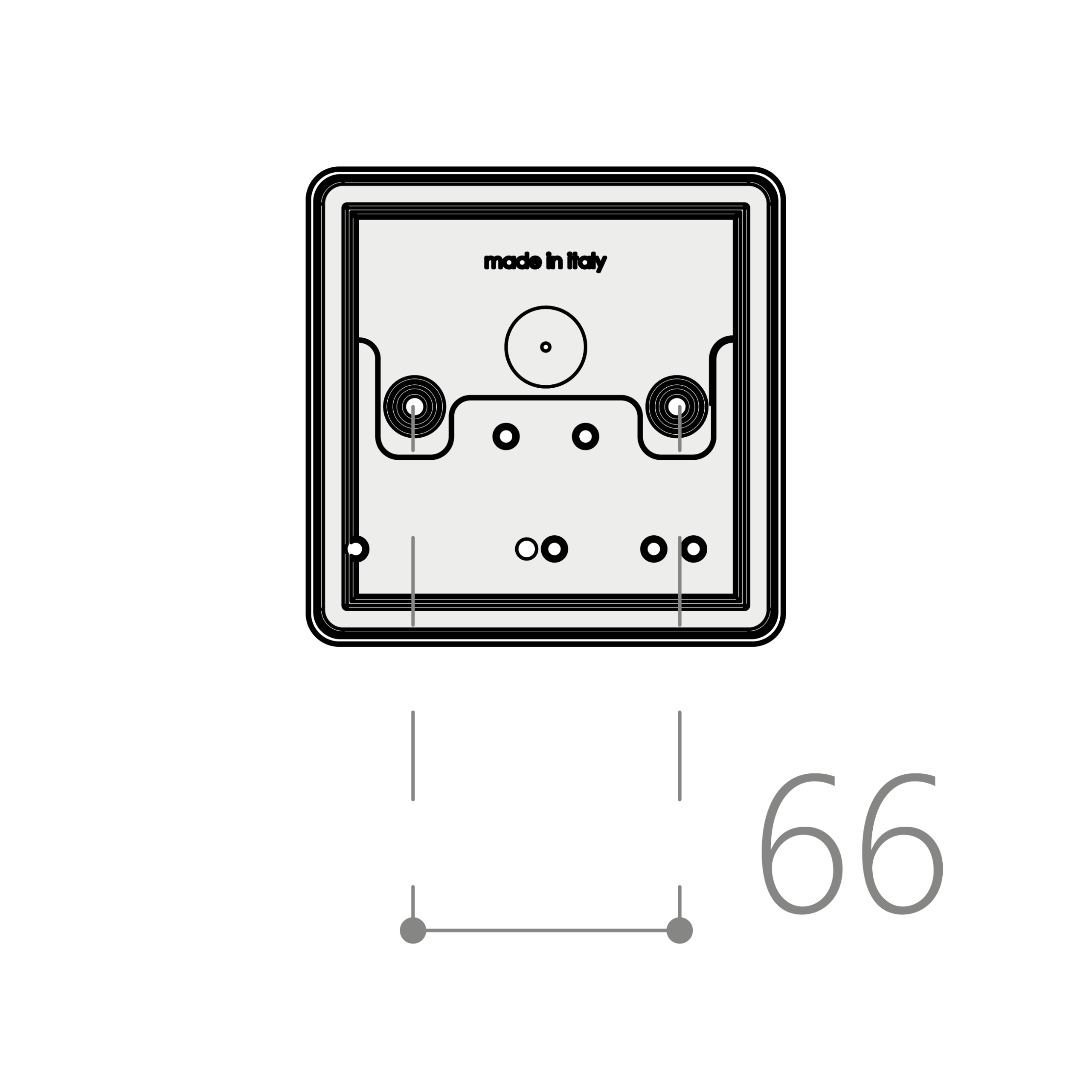

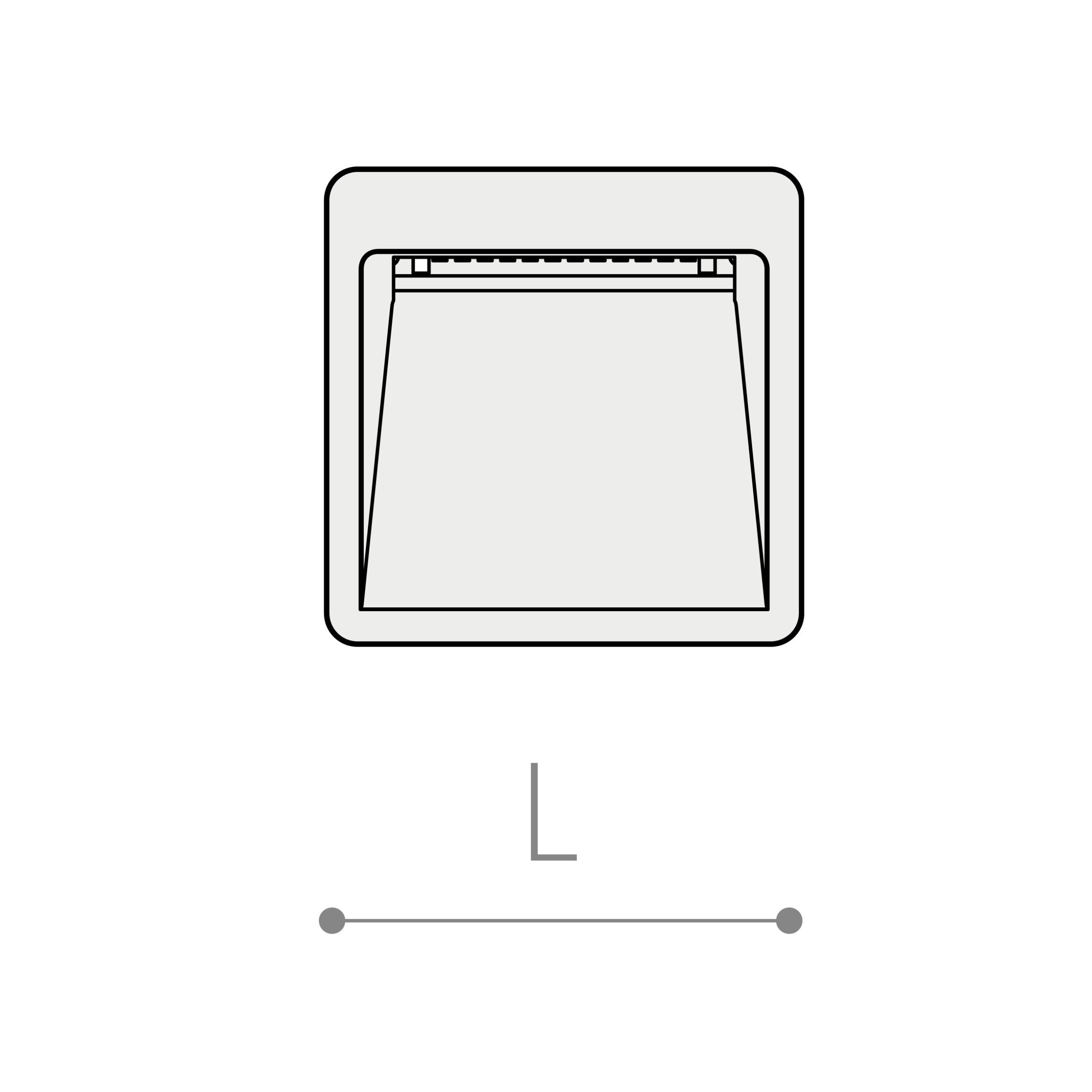

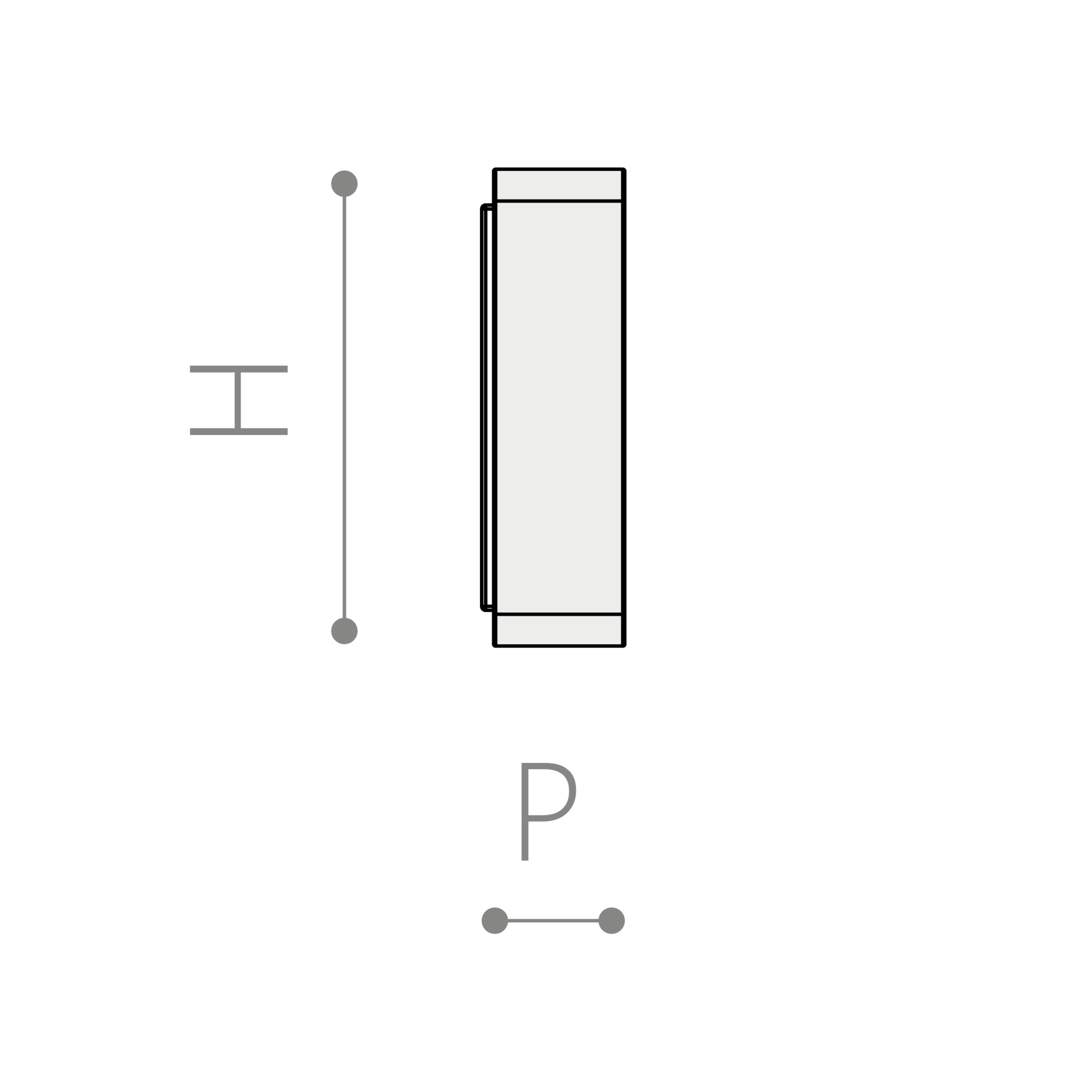

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1002AR4004BL4-4000°K - CRI>80on/off42010512012035-0.5
1002AR4006BL6-4000°K - CRI>80on/off4637712012035-0.5
1002AR4009BL9-4000°K - CRI>80on/off7658512012035-0.5
1002AR3004BL4-3000°K - CRI>80on/off39810012012035-0.5
1002AR3006BL6-3000°K - CRI>80on/off4397312012035-0.5
1002AR3009BL9-3000°K - CRI>80on/off7268112012035-0.5
1002AR2704BL4-2700°K - CRI>80on/off3869712012035-0.5
1002AR2706BL6-2700°K - CRI>80on/off4267112012035-0.5
1002AR2709BL9-2700°K - CRI>80on/off7037812012035-0.5
