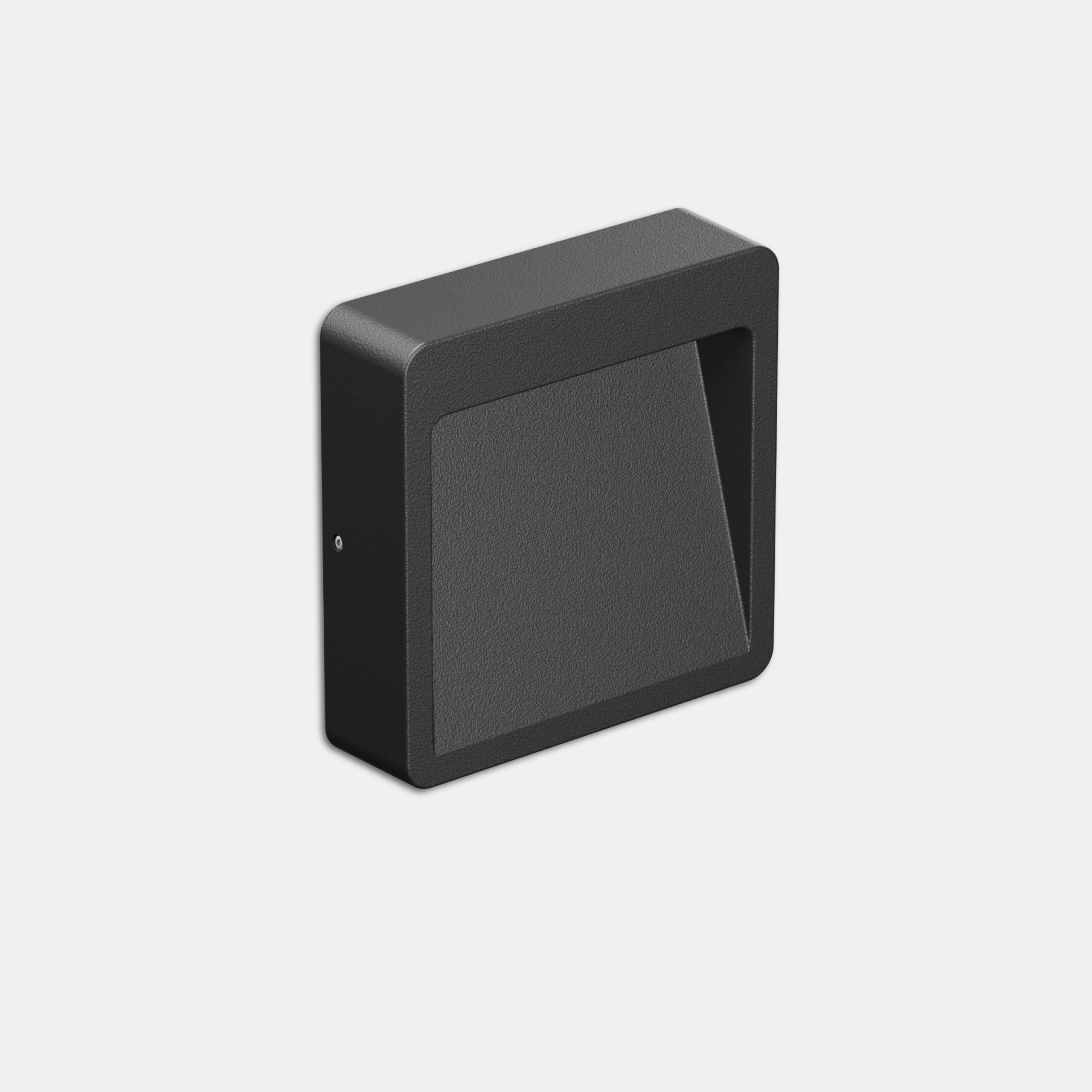

PIXEL/AR

LED surface marker for outdoor and indoor use. Die-cast aluminum body, painted with anticorrosion polyester thermosetting powders, color anthracite. Flat sandblasted tempered glass diffuser, 45° asymmetrical optics. The luminaire is fitted as standard for through-wiring.
Categories: Led, PIXEL - 1002, art. 1002 Pixel, Architectural Outdoor, art. 1002 Pixel
Models: 9
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1002AR27= 2700°K (CRI>80)04NL= on/off
30= 3000°K (CRI>80)06
40= 4000°K (CRI>80)09

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1002AR4004NL4-4000°K - CRI>80on/off42010512012035-0.5
1002AR4006NL6-4000°K - CRI>80on/off4637712012035-0.5
1002AR4009NL9-4000°K - CRI>80on/off7658512012035-0.5
1002AR3004NL4-3000°K - CRI>80on/off39810012012035-0.5
1002AR3006NL6-3000°K - CRI>80on/off4397312012035-0.5
1002AR3009NL9-3000°K - CRI>80on/off7268112012035-0.5
1002AR2704NL4-2700°K - CRI>80on/off3869712012035-0.5
1002AR2706NL6-2700°K - CRI>80on/off4267112012035-0.5
1002AR2709NL9-2700°K - CRI>80on/off7037812012035-0.5
