VERONA – Mod. 2R

(UGR<16)

DIRECT BACKLIGHT led panel for recessed installation in false ceiling panels with hidden structure. Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, VERONA - 1110, Office, VERONA
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
11102R03= 3000°K (CRI >80)15EL= on/off
04= 4000°K (CRI >80)33LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)42D1= dali 2 + em.1h
48E1= em. 1h
60E3= em. 3h
66
72
75

Models

W tot.
°K - CRI
Options

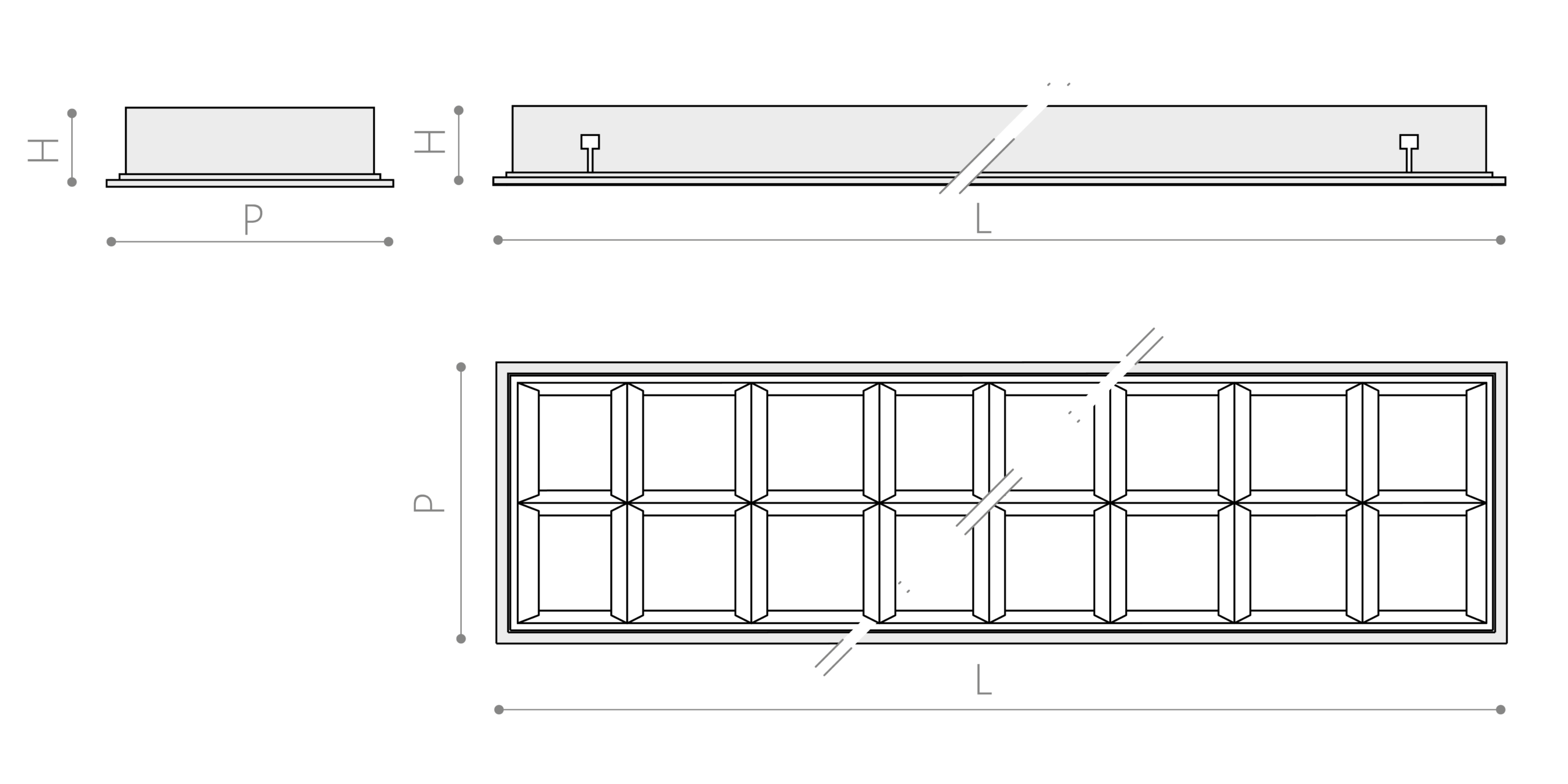

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
11102R0415EL15-4000°K - CRI>80on/off177811929859885-3.0
11102R0433EL33-4000°K - CRI>80on/off3809115298119885-5.0
11102R0442EL42-4000°K - CRI>80on/off4781114298119885-5.0
11102R0448EL48-4000°K - CRI>80on/off5052105298119885-5.0
11102R0460EL60-4000°K - CRI>80on/off6315105298149885-5.5
11102R0466EL66-4000°K - CRI>80on/off7618115598119885-10.0
11102R0472EL72-4000°K - CRI>80on/off8120113298119885-5.0
11102R0475EL75-4000°K - CRI>80on/off8619115598119885-10.0
11102R0415LD15-4000°K - CRI>80dali 2 / dali 2 push177811929859885-3.0
11102R0433LD33-4000°K - CRI>80dali 2 / dali 2 push3809115298119885-5.0
11102R0442LD42-4000°K - CRI>80dali 2 / dali 2 push4781114298119885-5.0
11102R0448LD48-4000°K - CRI>80dali 2 / dali 2 push5052105298119885-5.0
11102R0460LD60-4000°K - CRI>80dali 2 / dali 2 push6315105298149885-5.5
11102R0466LD66-4000°K - CRI>80dali 2 / dali 2 push7618115598119885-10.0
11102R0472LD72-4000°K - CRI>80dali 2 / dali 2 push8120113298119885-5.0
11102R0475LD75-4000°K - CRI>80dali 2 / dali 2 push8619115598119885-10.0
11102R0415D115-4000°K - CRI>80dali 2 + em. 1h177811929859885-3.0
11102R0433D133-4000°K - CRI>80dali 2 + em. 1h3809115298119885-5.0
11102R0442D142-4000°K - CRI>80dali 2 + em. 1h4781114298119885-5.0
11102R0448D148-4000°K - CRI>80dali 2 + em. 1h5052105298119885-5.0
