art.-1110-verona-qp

VERONA – Mod. QP

(UGR<19)

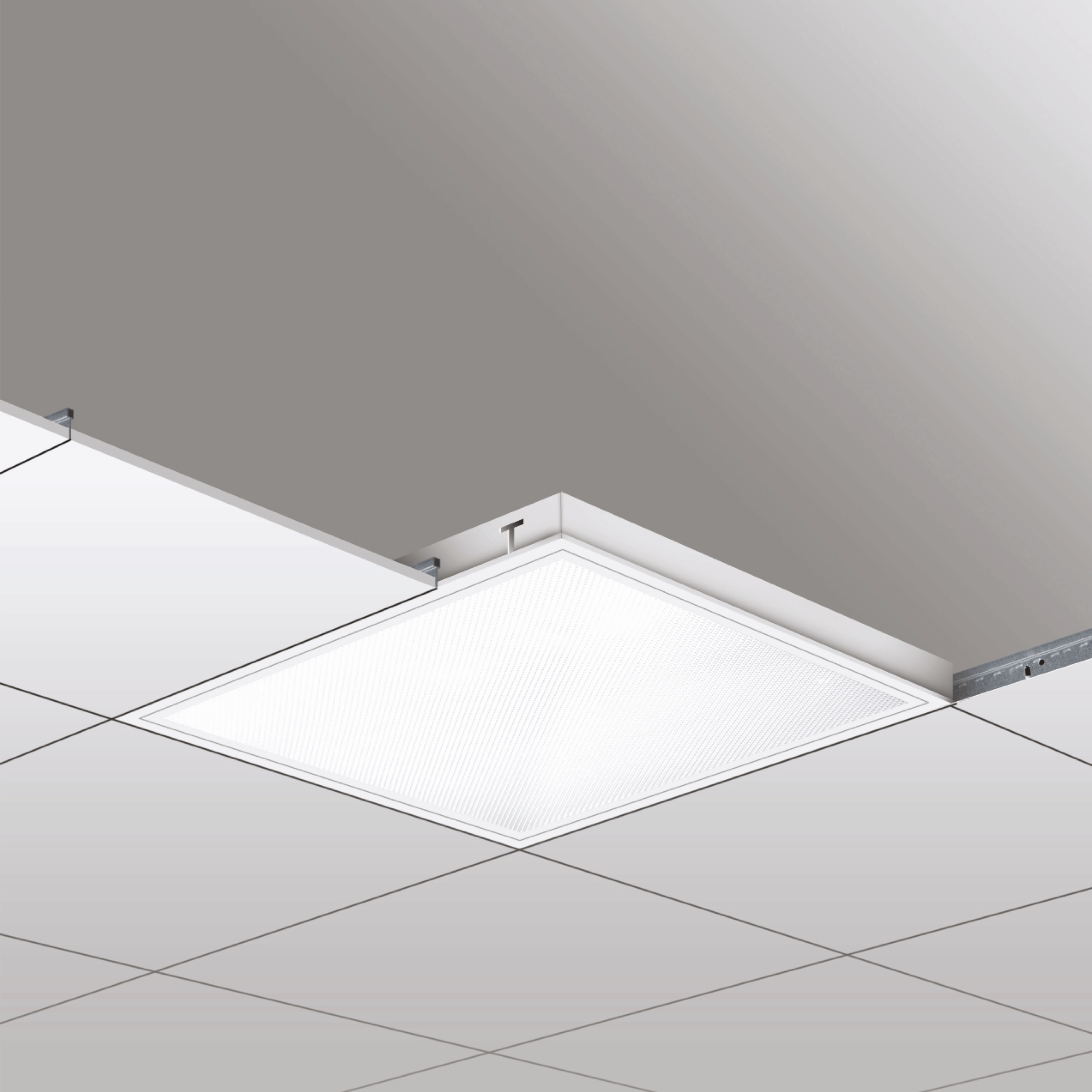

DIRECT BACKLIGHT led panel for recessed installation in false ceiling panels with hidden structure. Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, VERONA - 1110, Office, VERONA
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1110QP03= 3000°K (CRI >80)22EL= on/off
04= 4000°K (CRI >80)27LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)32D1= dali 2 + em.1h
36E1= em. 1h
38E3= em. 3h
42

Models

W tot.
°K - CRI
Options

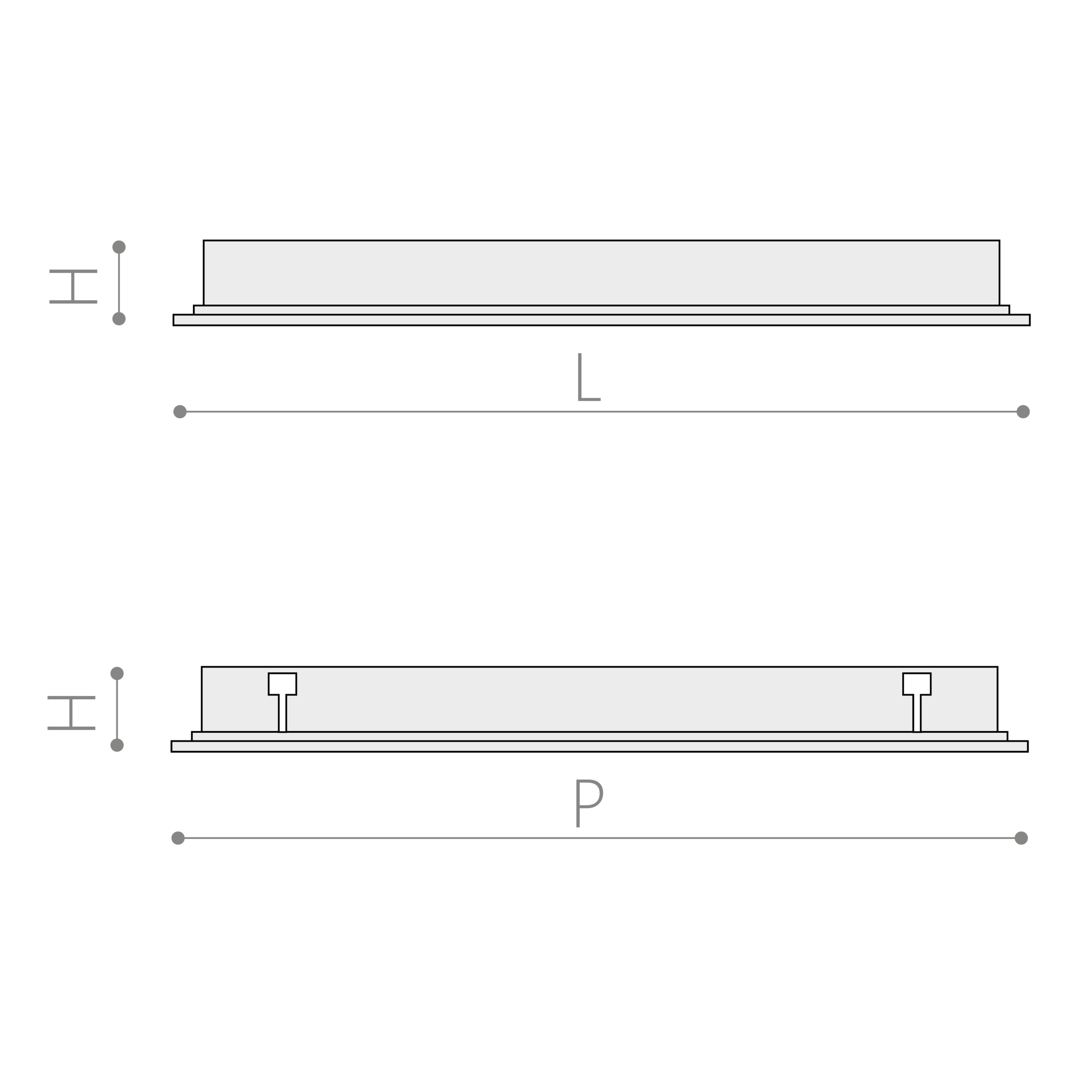

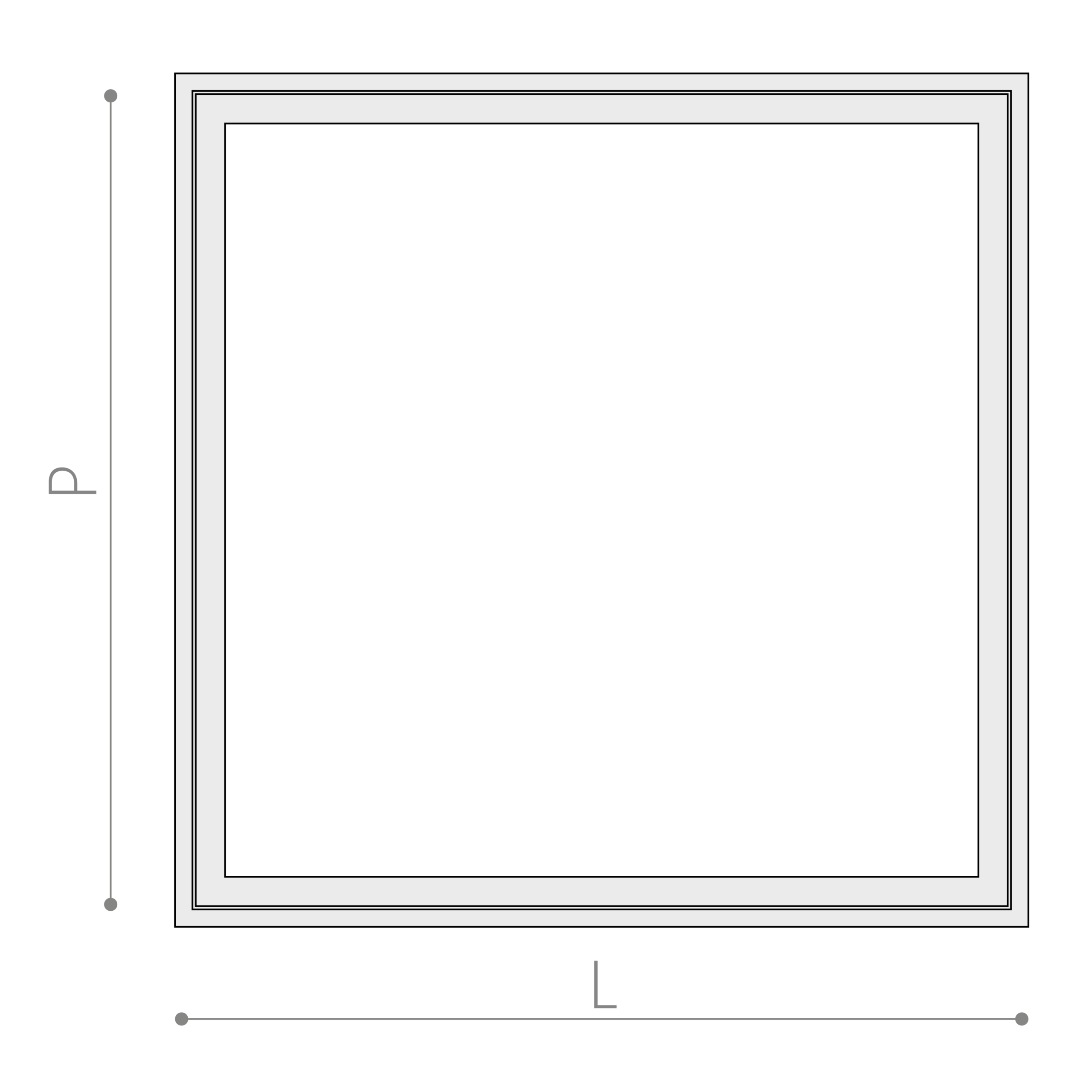

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1110QP0422EL22-4000°K - CRI>80on/off283412959859860-5.0
1110QP0427EL27-4000°K - CRI>80on/off344612859859860-5.0
1110QP0432EL32-4000°K - CRI>80on/off384612059859860-5.0
1110QP0436EL36-4000°K - CRI>80on/off423911859859860-5.0
1110QP0438EL38-4000°K - CRI>80on/off443411759859860-5.0
1110QP0442EL42-4000°K - CRI>80on/off481811559859860-5.0
1110QP0422LD22-4000°K - CRI>80dali 2 / dali 2 push283412959859860-5.0
1110QP0427LD27-4000°K - CRI>80dali 2 / dali 2 push344612859859860-5.0
1110QP0432LD32-4000°K - CRI>80dali 2 / dali 2 push384612059859860-5.0
1110QP0436LD36-4000°K - CRI>80dali 2 / dali 2 push423911859859860-5.0
1110QP0438LD38-4000°K - CRI>80dali 2 / dali 2 push443411759859860-5.0
1110QP0442LD42-4000°K - CRI>80dali 2 / dali 2 push481811559859860-5.0
1110QP0422D122-4000°K - CRI>80dali 2 + em. 1h283412959859860-5.0
1110QP0427D127-4000°K - CRI>80dali 2 + em. 1h344612859859860-5.0
1110QP0432D132-4000°K - CRI>80dali 2 + em. 1h384612059859860-5.0
1110QP0436D136-4000°K - CRI>80dali 2 + em. 1h423911859859860-5.0
1110QP0438D138-4000°K - CRI>80dali 2 + em. 1h443411759859860-5.0
1110QP0442D142-4000°K - CRI>80dali 2 + em. 1h481811559859860-5.0
1110QP0422E122-4000°K - CRI>80em. 1h283412959859860-5.0
1110QP0427E127-4000°K - CRI>80em. 1h344612859859860-5.0

Accessories
