VERONA – Mod. RP

(UGR<19)

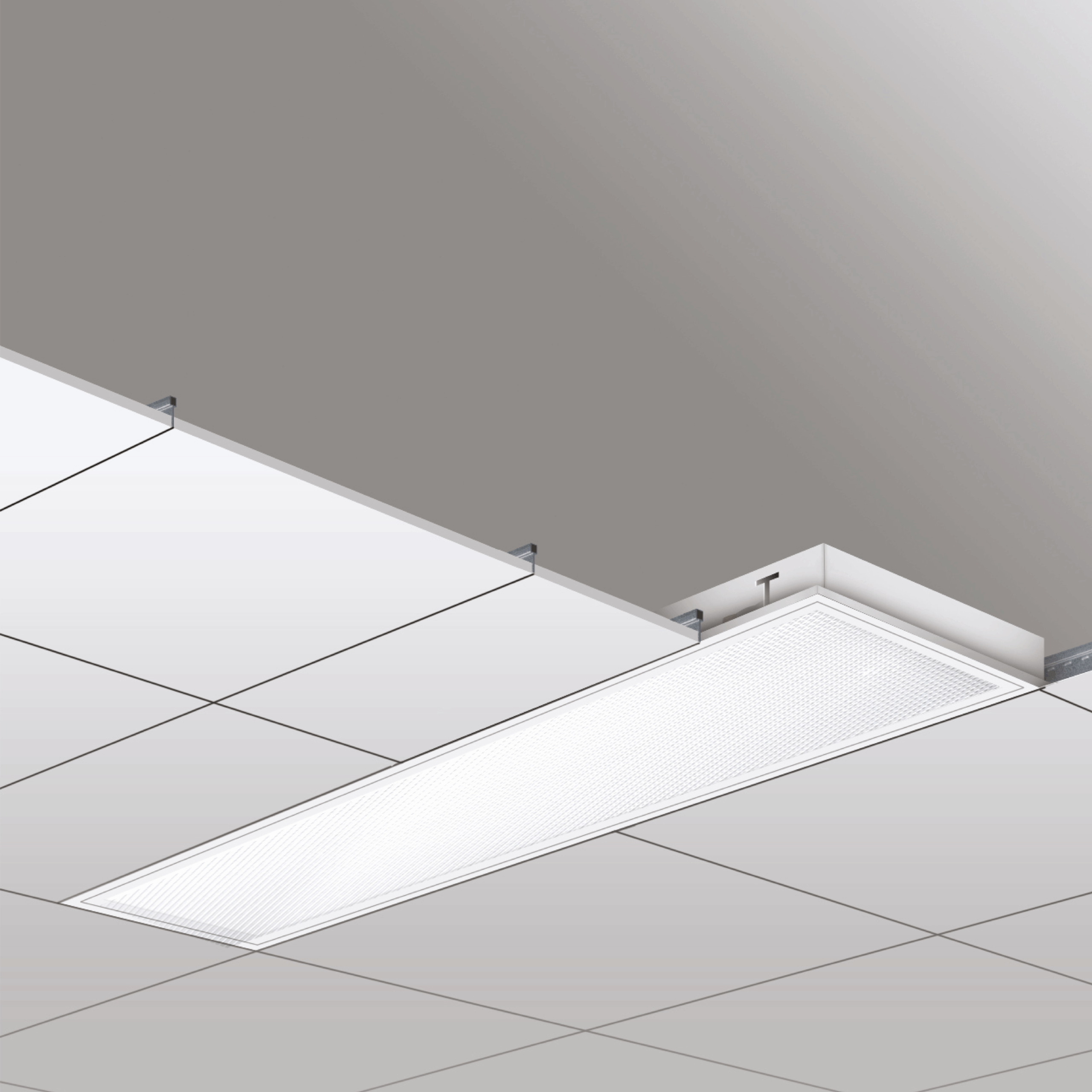

DIRECT BACKLIGHT led panel for recessed installation in false ceiling panels with hidden structure. Installation with brackets (included). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, VERONA - 1110, Office, VERONA
Models: 135
Color: Matt white
Catalogue abstract
Installation instructions

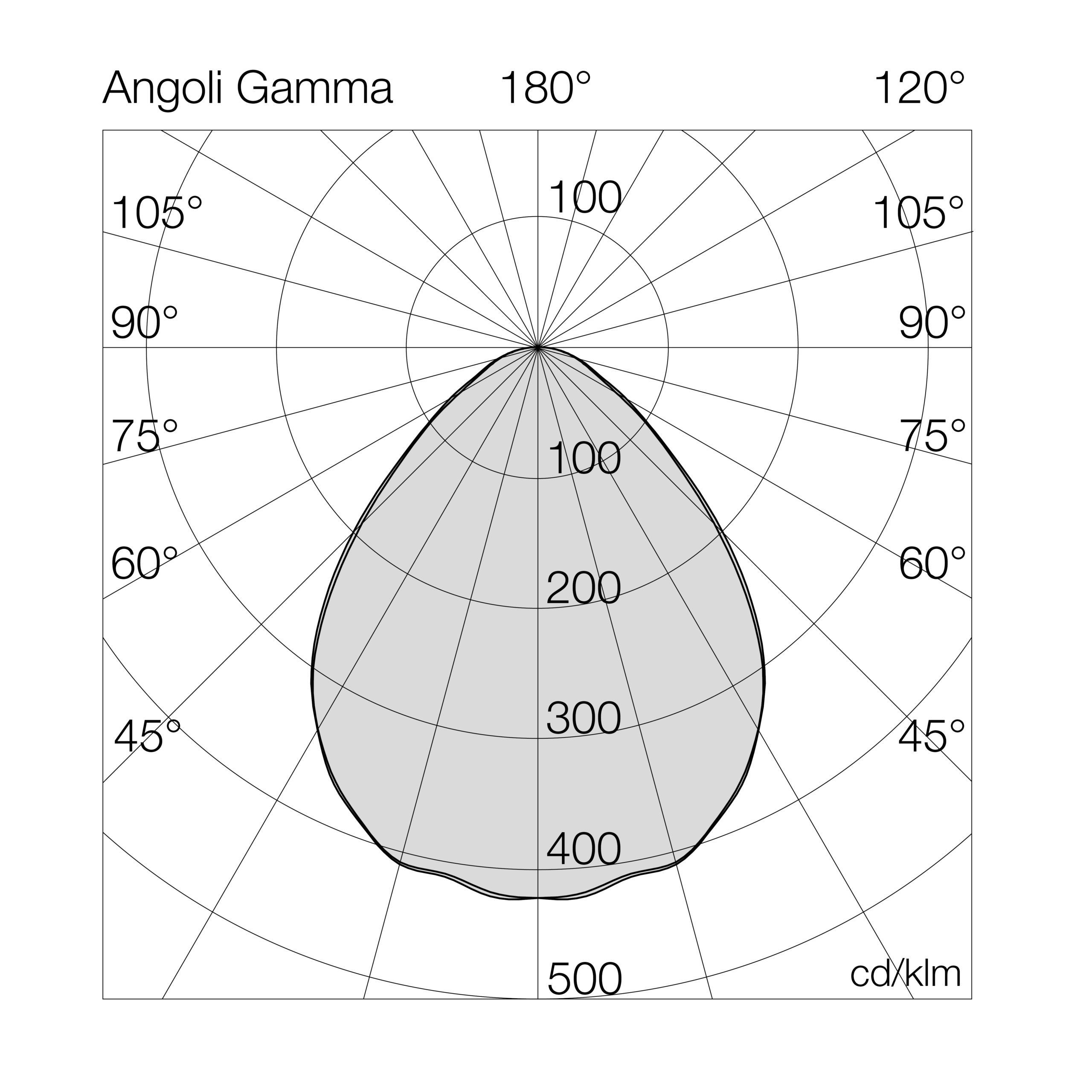

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1110RP03= 3000°K (CRI >80)17EL= on/off
04= 4000°K (CRI >80)22LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)27D1= dali 2 + em.1h
32E1= em. 1h
36E3= em. 3h
38
42
60
64

Models

W tot.
°K - CRI
Options

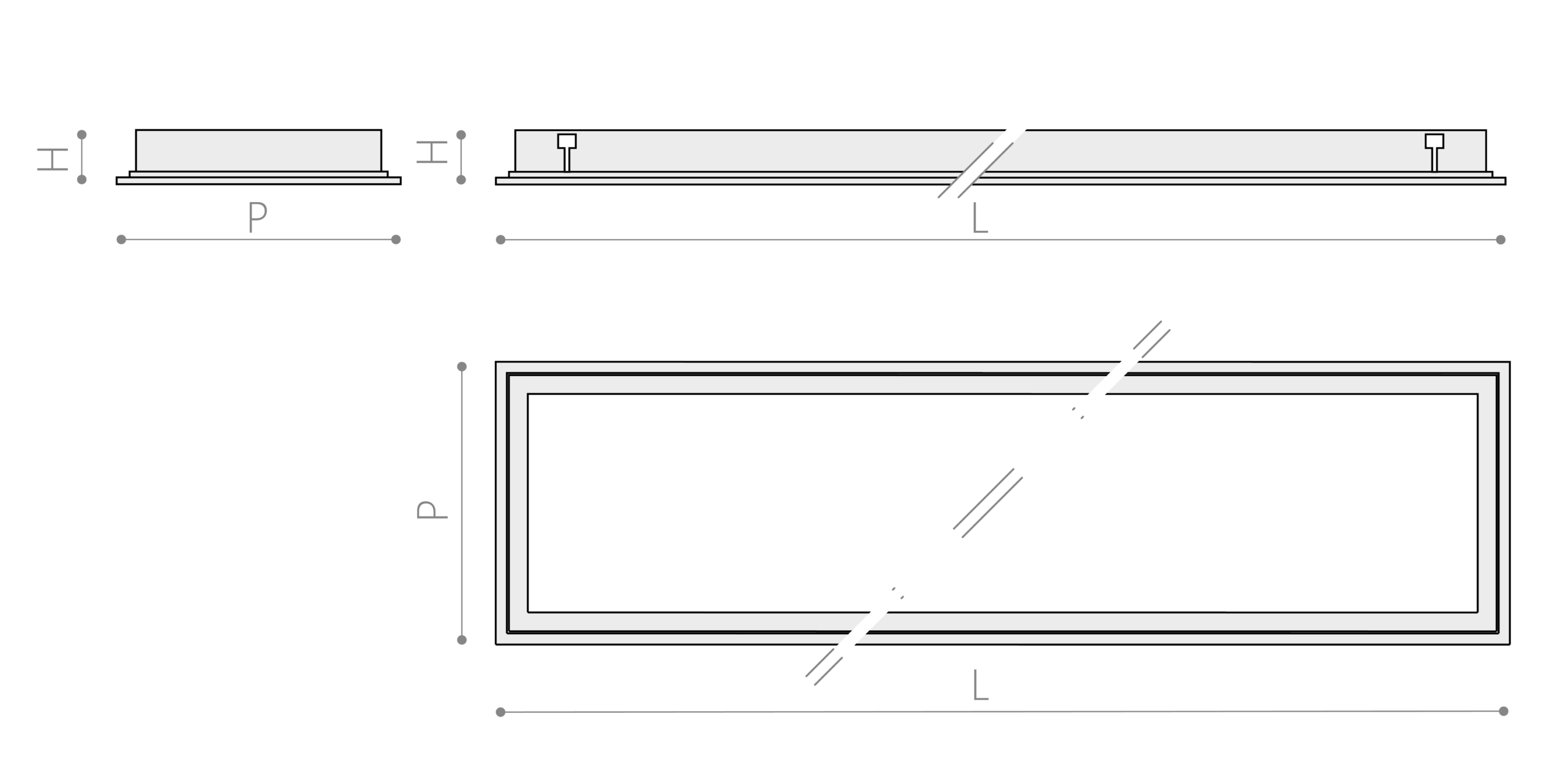

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1110RP0417EL17-4000°K - CRI>80on/off192311329859860-3.0
1110RP0422EL22-4000°K - CRI>80on/off2834129298119860-5.0
1110RP0427EL27-4000°K - CRI>80on/off3446128298119860-5.0
1110RP0432EL32-4000°K - CRI>80on/off3846120298119860-5.0
1110RP0436EL36-4000°K - CRI>80on/off4239118298119860-5.0
1110RP0438EL38-4000°K - CRI>80on/off4434117298119860-5.0
1110RP0442EL42-4000°K - CRI>80on/off4818115298119860-5.0
1110RP0460EL60-4000°K - CRI>80on/off7493125298149860-5.5
1110RP0464EL64-4000°K - CRI>80on/off7692120598119860-10.0
1110RP0417LD17-4000°K - CRI>80dali 2 / dali 2 push192311329859860-3.0
1110RP0422LD22-4000°K - CRI>80dali 2 / dali 2 push2834129298119860-5.0
1110RP0427LD27-4000°K - CRI>80dali 2 / dali 2 push3446128298119860-5.0
1110RP0432LD32-4000°K - CRI>80dali 2 / dali 2 push3846120298119860-5.0
1110RP0436LD36-4000°K - CRI>80dali 2 / dali 2 push4239118298119860-5.0
1110RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push4434117298119860-5.0
1110RP0442LD42-4000°K - CRI>80dali 2 / dali 2 push4818115298119860-5.0
1110RP0460LD60-4000°K - CRI>80dali 2 / dali 2 push7493125298149860-5.5
1110RP0464LD64-4000°K - CRI>80dali 2 / dali 2 push7692120598119860-10.0
1110RP0417D117-4000°K - CRI>80dali 2 + em. 1h192311329859860-3.0
1110RP0422D122-4000°K - CRI>80dali 2 + em. 1h2834129298119860-5.0

Accessories
