DARK-LED – Mod. Q3

(UGR<16)

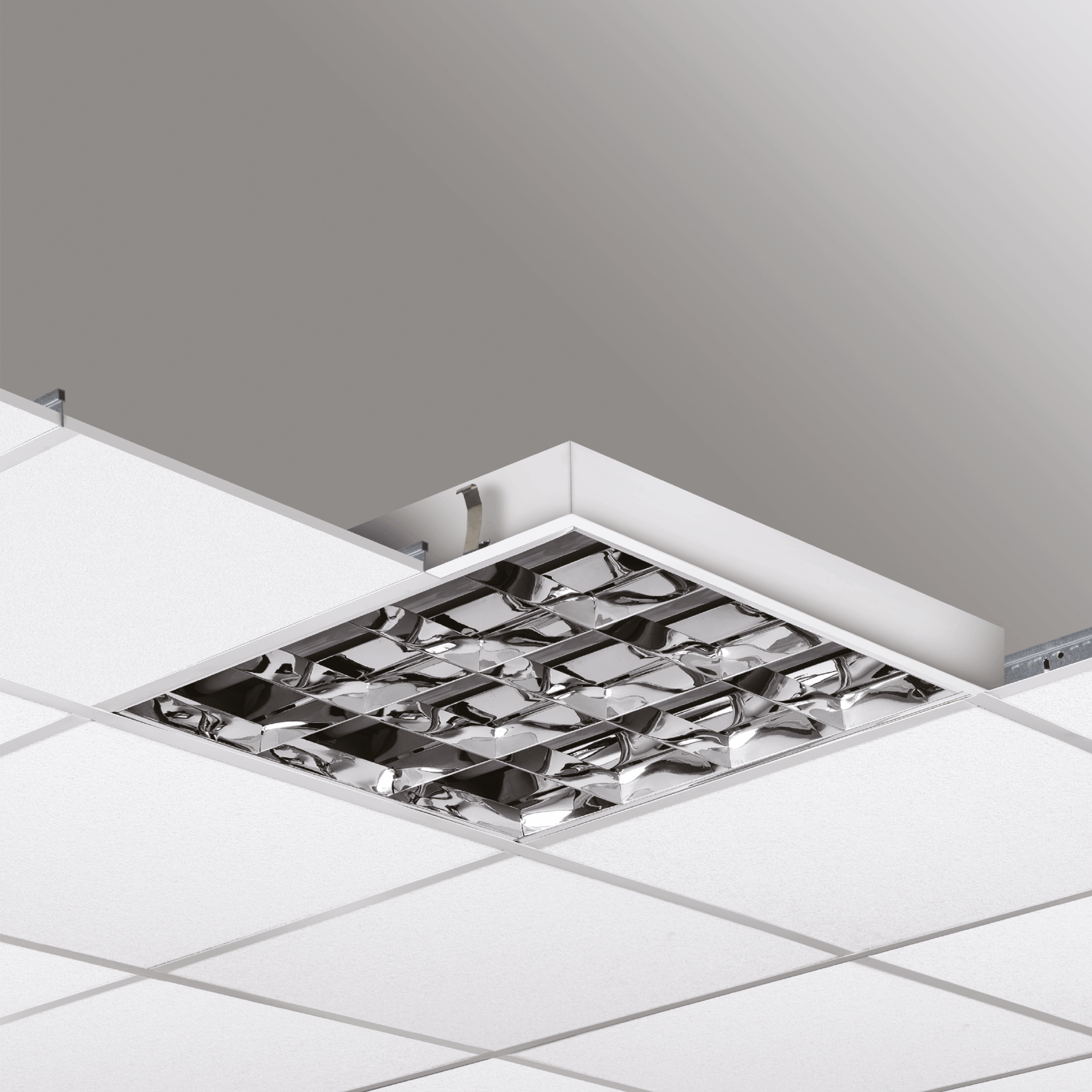

DIRECT BACKLIGHT LED fixture suitable for recessed installation in false ceilings in panels having exposed 15/24 mm load-bearing structure. Sheet steel body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Low luminance double parabolic dark-light optics (60° 200 Cd/sqm cat2) with high flux efficiency, anti-glare and anti-reflection microprismatic polycarbonate optical diffuser.

Categories: Led, DARK-LED - 1120, Office, DARK-LED

Models: 60

Color: Matt white

Catalogue abstract

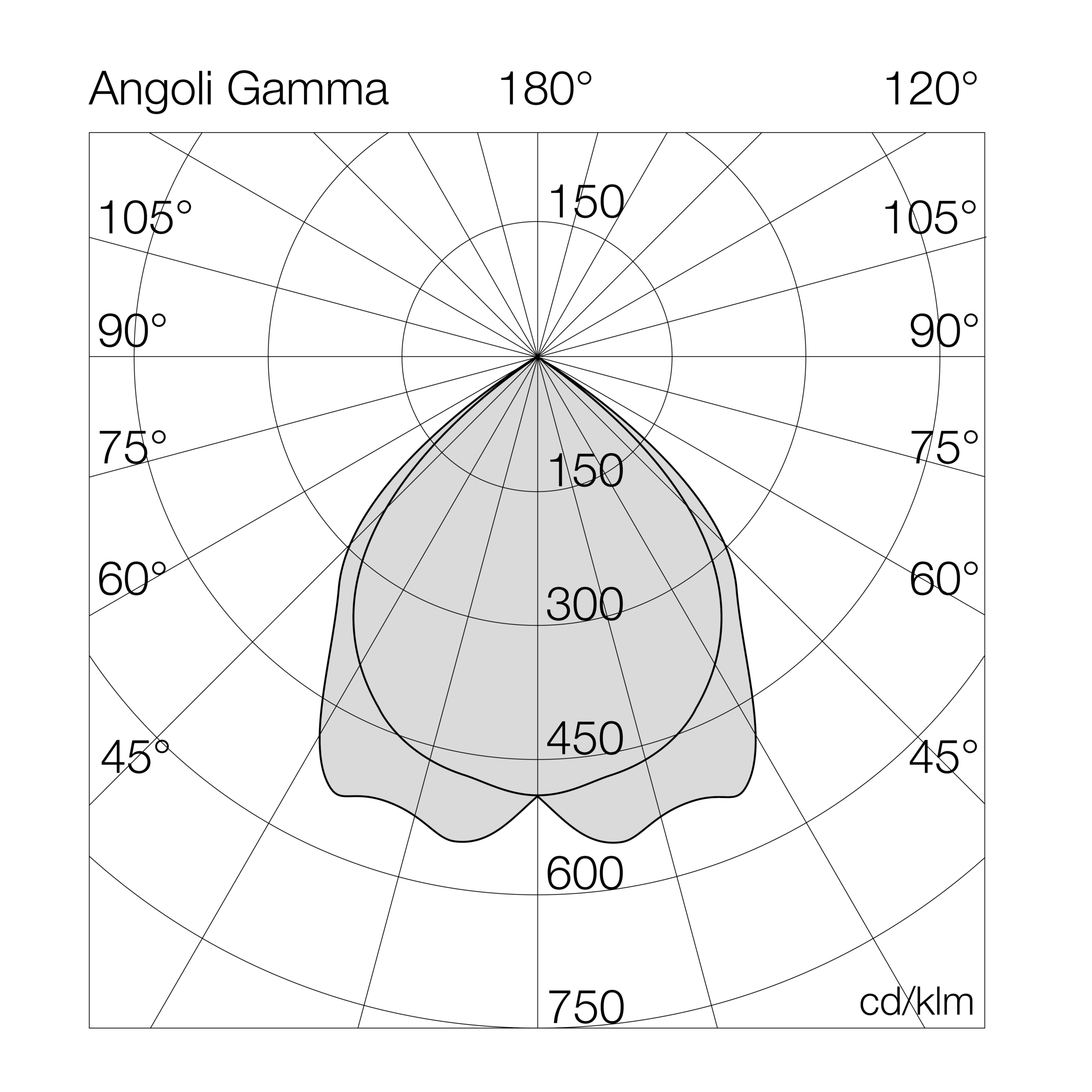

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1120	Q3	03	= 3000°K (CRI >80)	24	EL	= on/off
		04	= 4000°K (CRI >80)	37	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	45	D1	= dali 2 + em.1h
				72	E1	= em. 1h
					E3	= em. 3h

Models

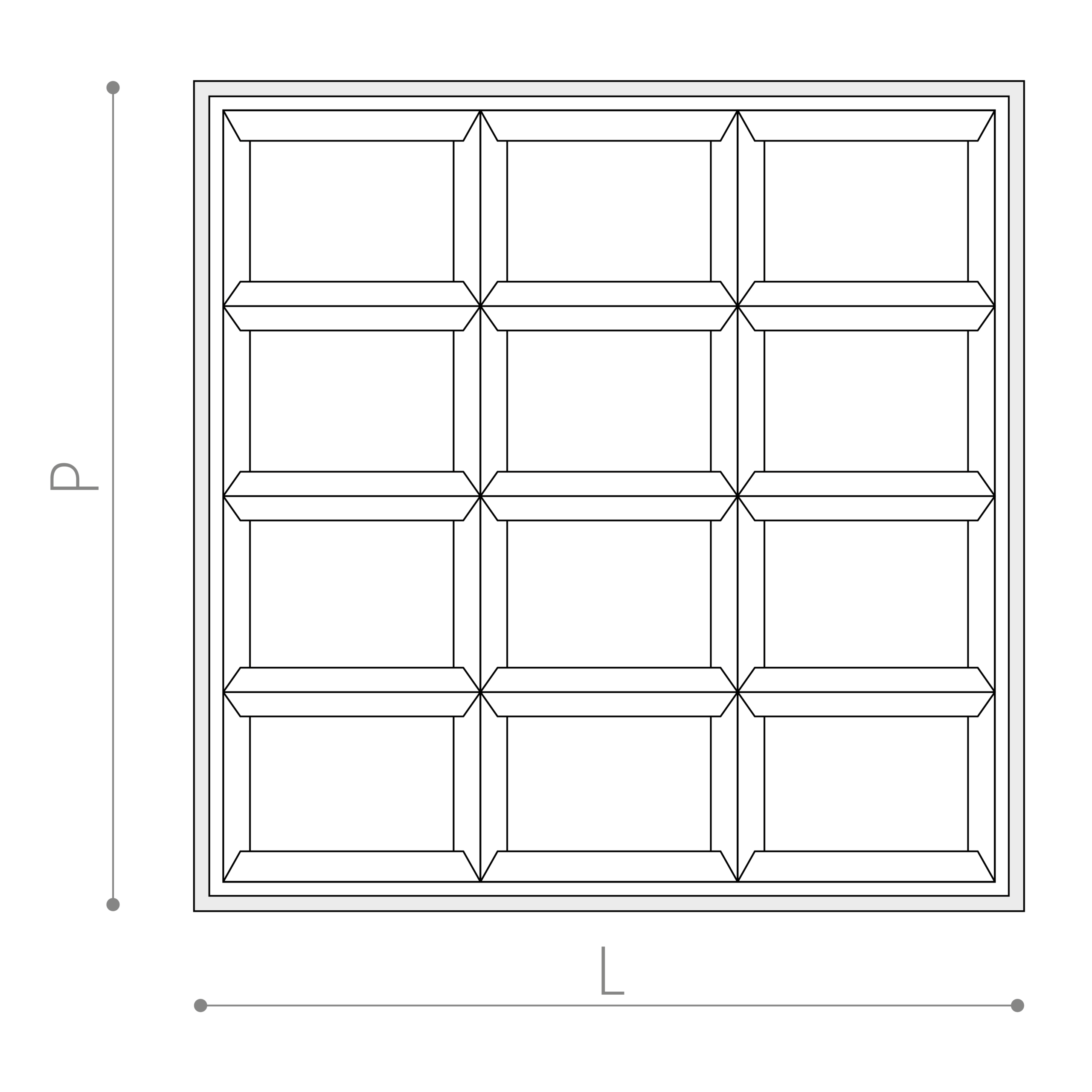

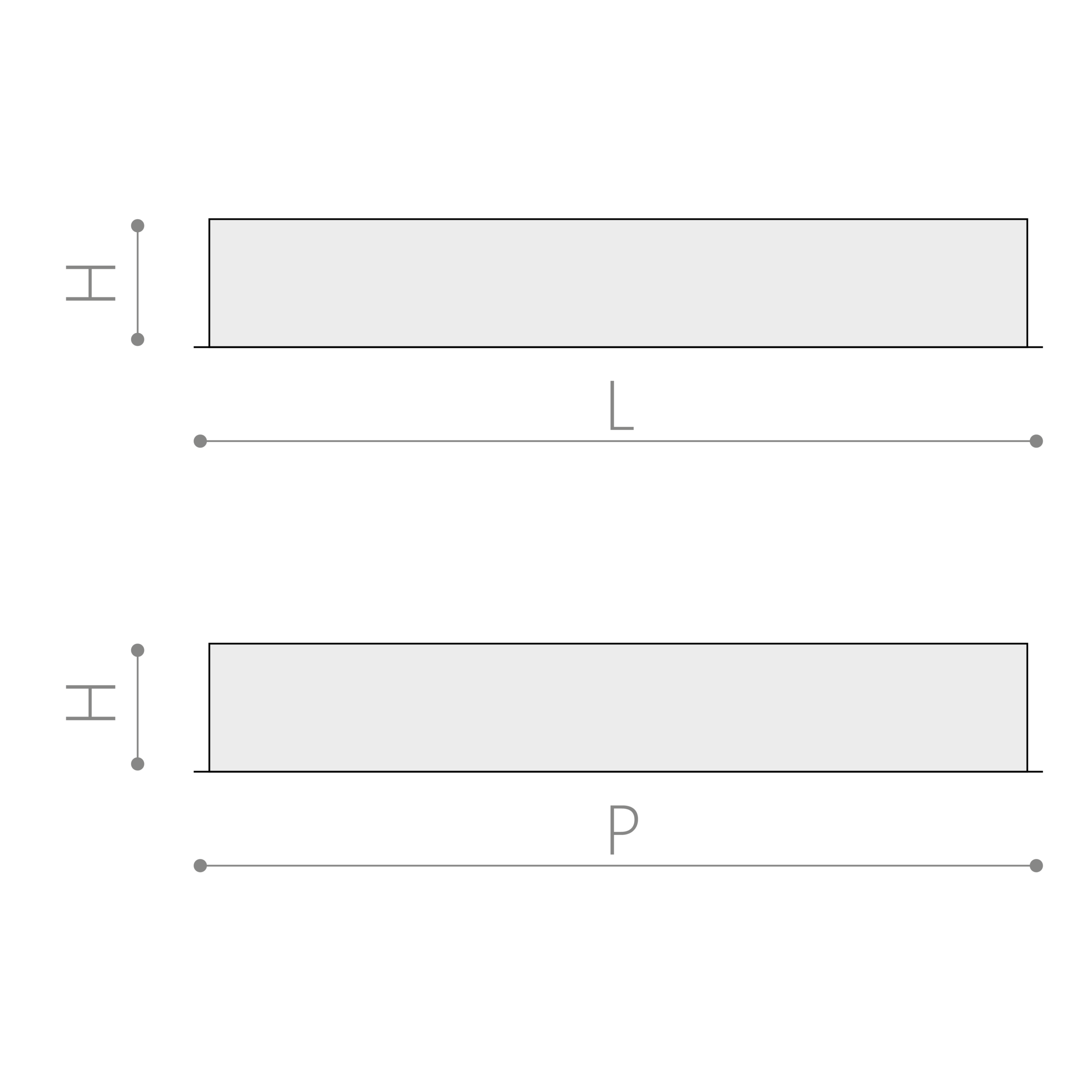

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1120Q30424EL	24	-	4000°K - CRI>80	on/off	2856	119	595	595	90	-	3.0
1120Q30437EL	37	-	4000°K - CRI>80	on/off	3789	102	595	595	90	-	3.0
1120Q30445EL	45	-	4000°K - CRI>80	on/off	5332	118	595	595	90	-	3.0
1120Q30472EL	72	-	4000°K - CRI>80	on/off	7578	105	595	595	90	-	3.0
1120Q30424LD	24	-	4000°K - CRI>80	dali 2 / dali 2 push	2856	119	595	595	90	-	3.0
1120Q30437LD	37	-	4000°K - CRI>80	dali 2 / dali 2 push	3789	102	595	595	90	-	3.0
1120Q30445LD	45	-	4000°K - CRI>80	dali 2 / dali 2 push	5332	118	595	595	90	-	3.0
1120Q30472LD	72	-	4000°K - CRI>80	dali 2 / dali 2 push	7578	105	595	595	90	-	3.0
1120Q30424D1	24	-	4000°K - CRI>80	dali 2 + em. 1h	2856	119	595	595	90	-	3.0
1120Q30437D1	37	-	4000°K - CRI>80	dali 2 + em. 1h	3789	102	595	595	90	-	3.0
1120Q30445D1	45	-	4000°K - CRI>80	dali 2 + em. 1h	5332	118	595	595	90	-	3.0
1120Q30472D1	72	-	4000°K - CRI>80	dali 2 + em. 1h	7578	105	595	595	90	-	3.0
1120Q30424E1	24	-	4000°K - CRI>80	em. 1h	2856	119	595	595	90	-	3.0
1120Q30437E1	37	-	4000°K - CRI>80	em. 1h	3789	102	595	595	90	-	3.0
1120Q30445E1	45	-	4000°K - CRI>80	em. 1h	5332	118	595	595	90	-	3.0
1120Q30472E1	72	-	4000°K - CRI>80	em. 1h	7578	105	595	595	90	-	3.0
1120Q30424E3	24	-	4000°K - CRI>80	em. 3h	2856	119	595	595	90	-	3.0
1120Q30437E3	37	-	4000°K - CRI>80	em. 3h	3789	102	595	595	90	-	3.0
1120Q30445E3	45	-	4000°K - CRI>80	em. 3h	5332	118	595	595	90	-	3.0
1120Q30472E3	72	-	4000°K - CRI>80	em. 3h	7578	105	595	595	90	-	3.0
