DARK-LED – Mod. Q4

(UGR<16)

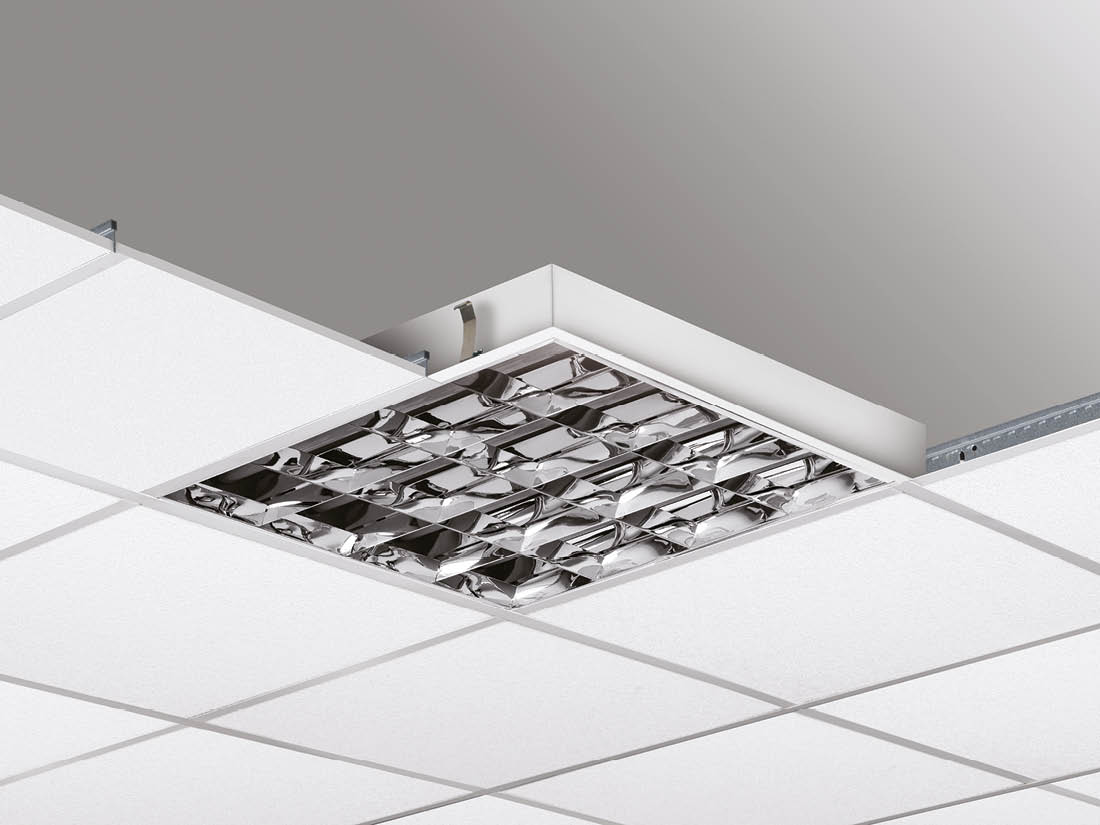

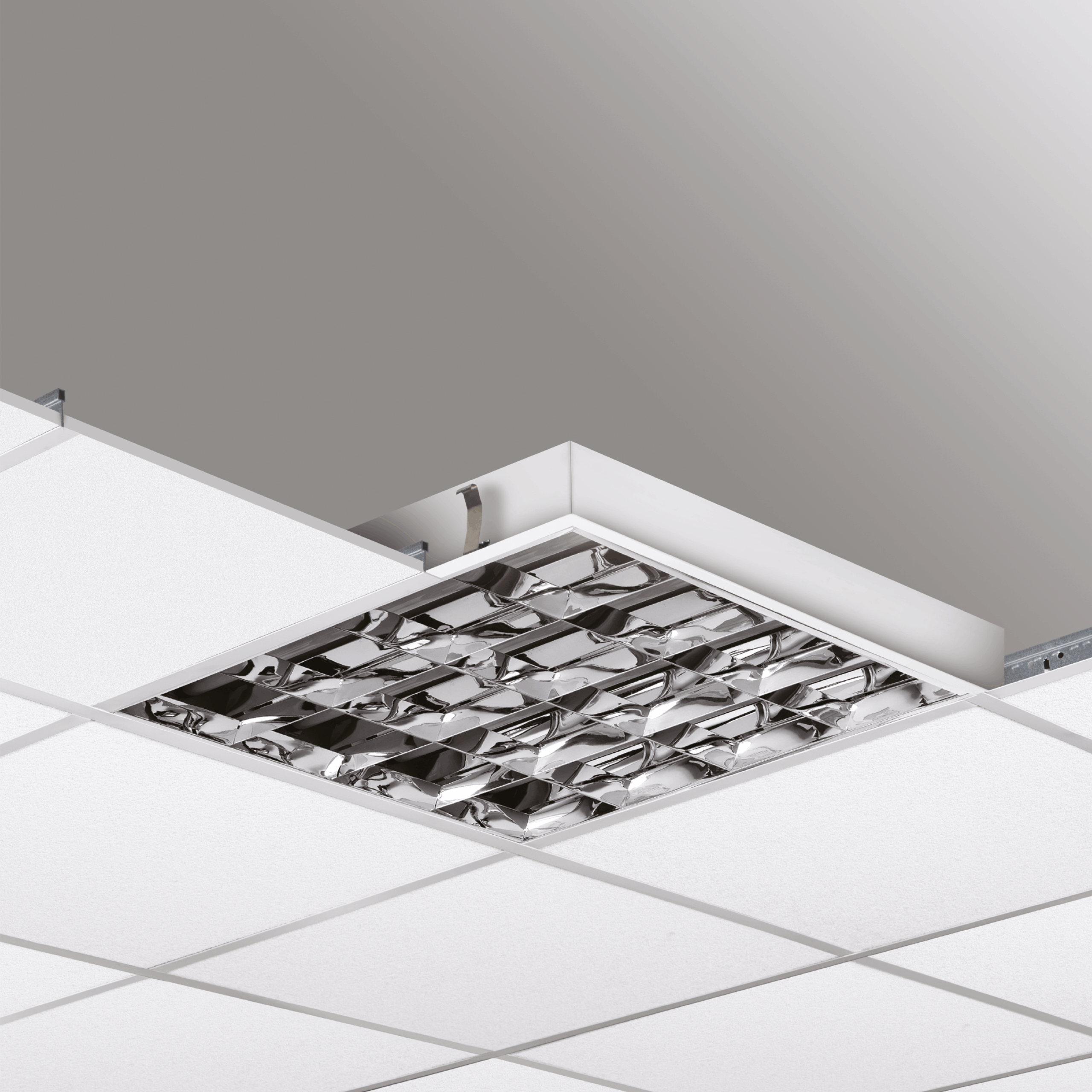

DIRECT BACKLIGHT LED fixture suitable for recessed installation in false ceilings in panels having exposed 15/24 mm load-bearing structure. Sheet steel body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Low luminance double parabolic dark-light optics (60° 200 Cd/sqm cat2) with high flux efficiency, anti-glare and anti-reflection microprismatic polycarbonate optical diffuser.

Categories: Led, DARK-LED - 1120, Office, DARK-LED

Models: 60

Color: Matt white

Catalogue abstract

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1120	Q4	03	= 3000°K (CRI >80)	23	EL	= on/off
		04	= 4000°K (CRI >80)	33	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	42	D1	= dali 2 + em.1h
				48	E1	= em. 1h
					E3	= em. 3h

Models

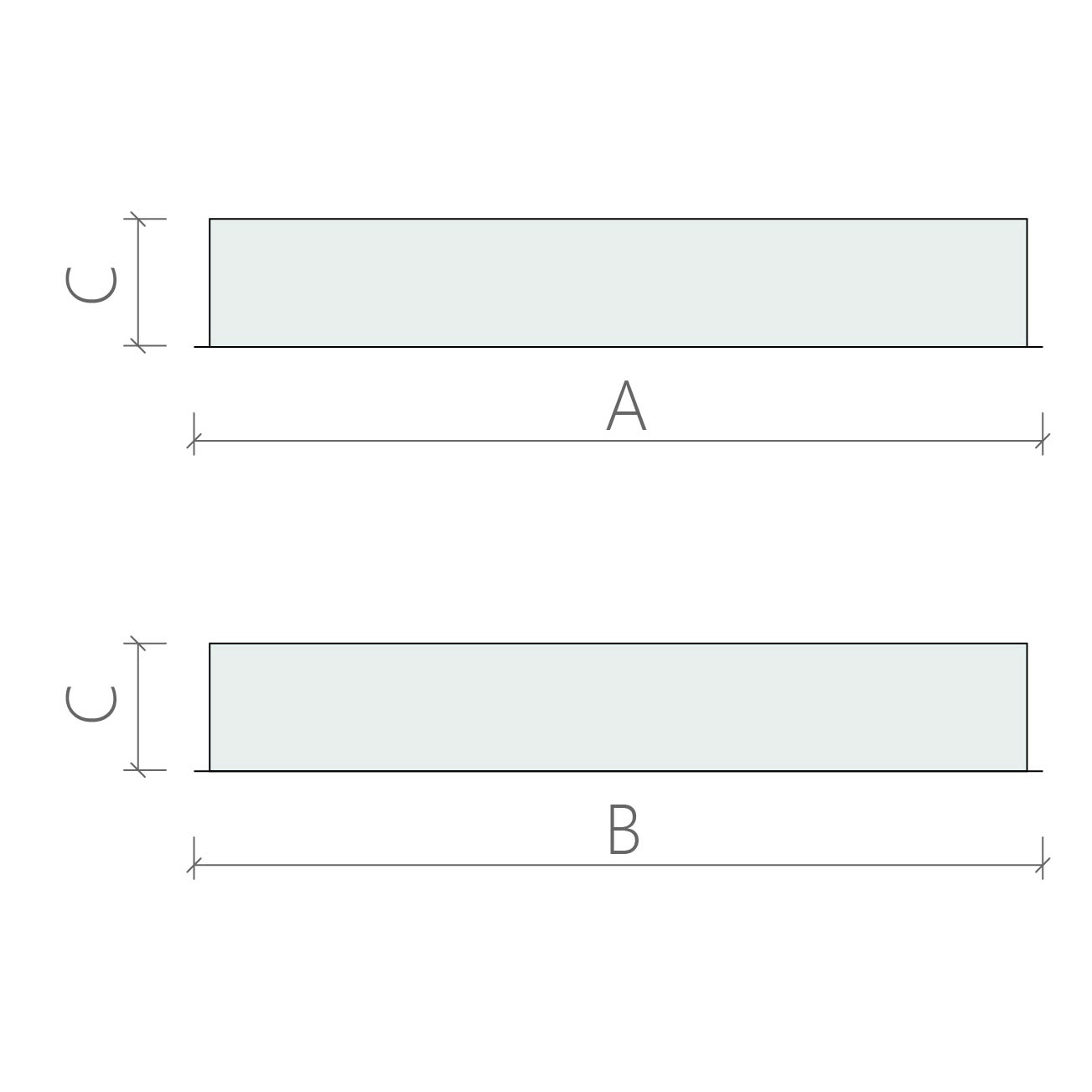

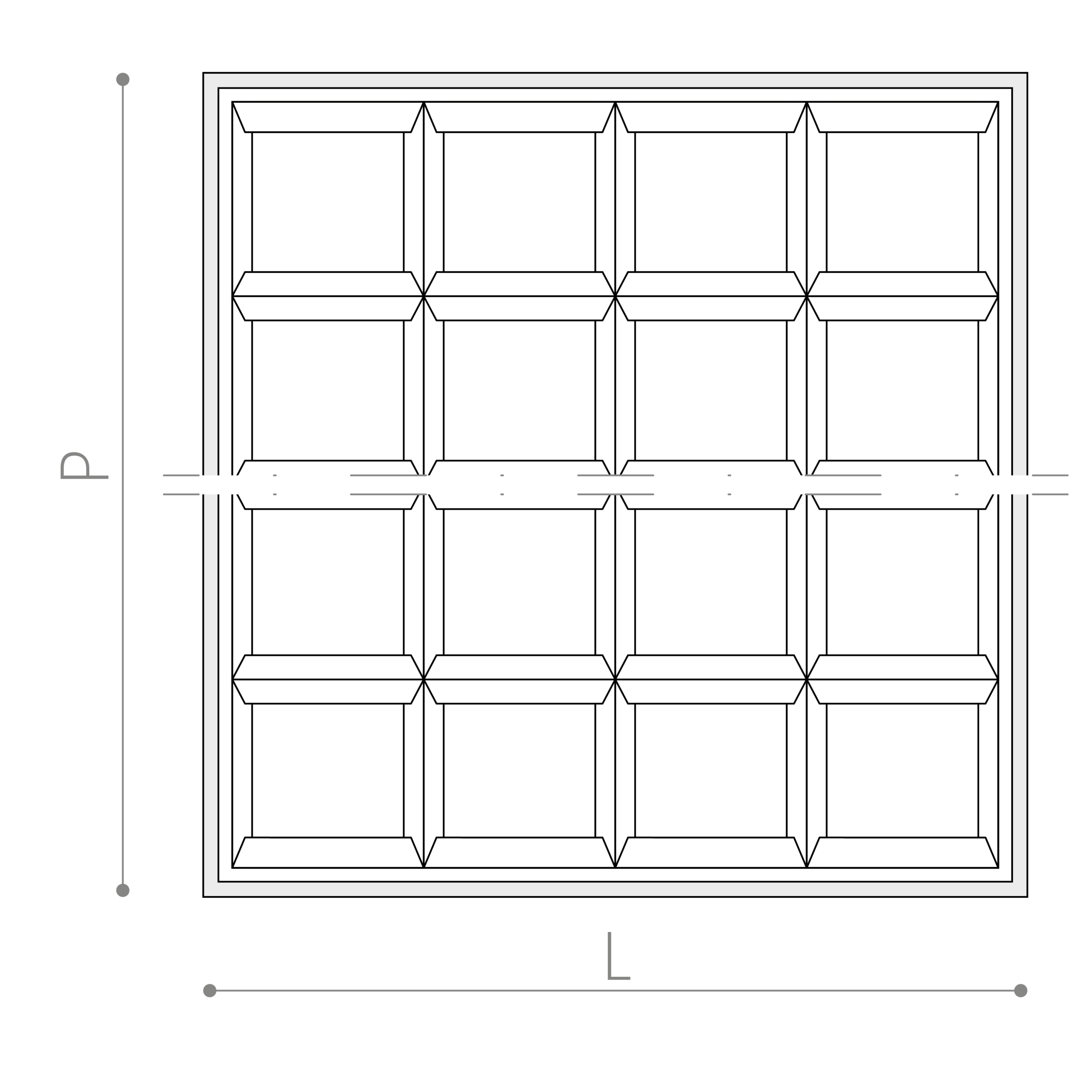

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1120Q40423EL	23	-	4000°K - CRI>80	on/off	2776	121	595	595	90	-	3.0
1120Q40433EL	33	-	4000°K - CRI>80	on/off	3809	115	595	595	90	-	3.0
1120Q40442EL	42	-	4000°K - CRI>80	on/off	4781	114	595	595	90	-	3.0
1120Q40448EL	48	-	4000°K - CRI>80	on/off	5052	105	595	595	90	-	3.0
1120Q40423LD	23	-	4000°K - CRI>80	dali 2 / dali 2 push	2776	121	595	595	90	-	3.0
1120Q40433LD	33	-	4000°K - CRI>80	dali 2 / dali 2 push	3809	115	595	595	90	-	3.0
1120Q40442LD	42	-	4000°K - CRI>80	dali 2 / dali 2 push	4781	114	595	595	90	-	3.0
1120Q40448LD	48	-	4000°K - CRI>80	dali 2 / dali 2 push	5052	105	595	595	90	-	3.0
1120Q40423D1	23	-	4000°K - CRI>80	dali 2 + em. 1h	2776	121	595	595	90	-	3.0
1120Q40433D1	33	-	4000°K - CRI>80	dali 2 + em. 1h	3809	115	595	595	90	-	3.0
1120Q40442D1	42	-	4000°K - CRI>80	dali 2 + em. 1h	4781	114	595	595	90	-	3.0
1120Q40448D1	48	-	4000°K - CRI>80	dali 2 + em. 1h	5052	105	595	595	90	-	3.0
1120Q40423E1	23	-	4000°K - CRI>80	em. 1h	2776	121	595	595	90	-	3.0
1120Q40433E1	33	-	4000°K - CRI>80	em. 1h	3809	115	595	595	90	-	3.0
1120Q40442E1	42	-	4000°K - CRI>80	em. 1h	4781	114	595	595	90	-	3.0
1120Q40448E1	48	-	4000°K - CRI>80	em. 1h	5052	105	595	595	90	-	3.0
1120Q40423E3	23	-	4000°K - CRI>80	em. 3h	2776	121	595	595	90	-	3.0
1120Q40433E3	33	-	4000°K - CRI>80	em. 3h	3809	115	595	595	90	-	3.0
1120Q40442E3	42	-	4000°K - CRI>80	em. 3h	4781	114	595	595	90	-	3.0
1120Q40448E3	48	-	4000°K - CRI>80	em. 3h	5052	105	595	595	90	-	3.0
