DARK-LED – Mod. R2

(UGR<16)

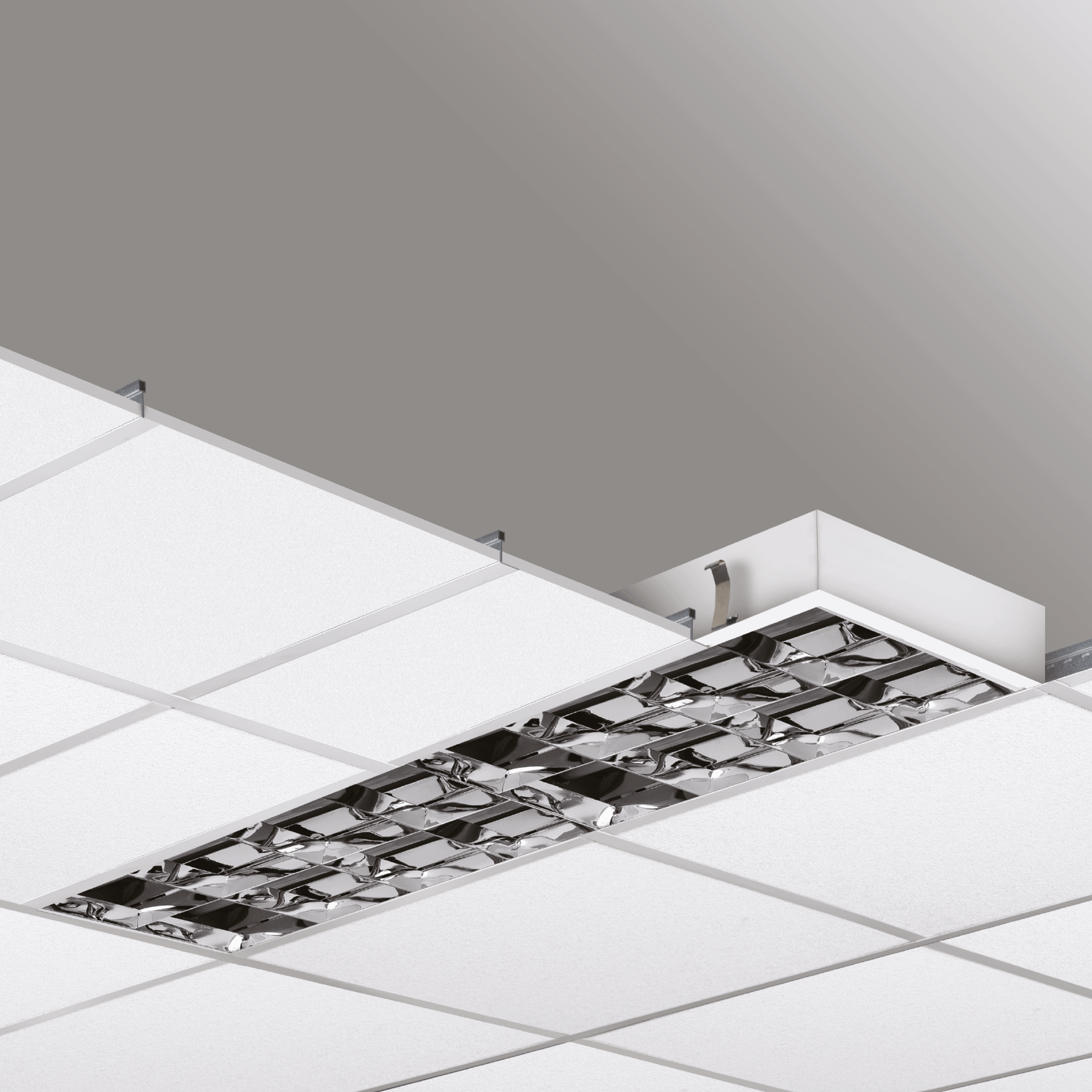

DIRECT BACKLIGHT LED fixture suitable for recessed installation in false ceilings in panels having exposed 15/24 mm load-bearing structure. Sheet steel body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Low luminance double parabolic dark-light optics (60° 200 Cd/sqm cat2) with high flux efficiency, anti-glare and anti-reflection microprismatic polycarbonate optical diffuser.
Categories: Led, DARK-LED - 1120, Office, DARK-LED
Models: 75
Color: Matt white
Catalogue abstract
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1120R203= 3000°K (CRI >80)15EL= on/off
04= 4000°K (CRI >80)33LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)48D1= dali 2 + em.1h
66E1= em. 1h
75E3= em. 3h

Models

W tot.
°K - CRI
Options

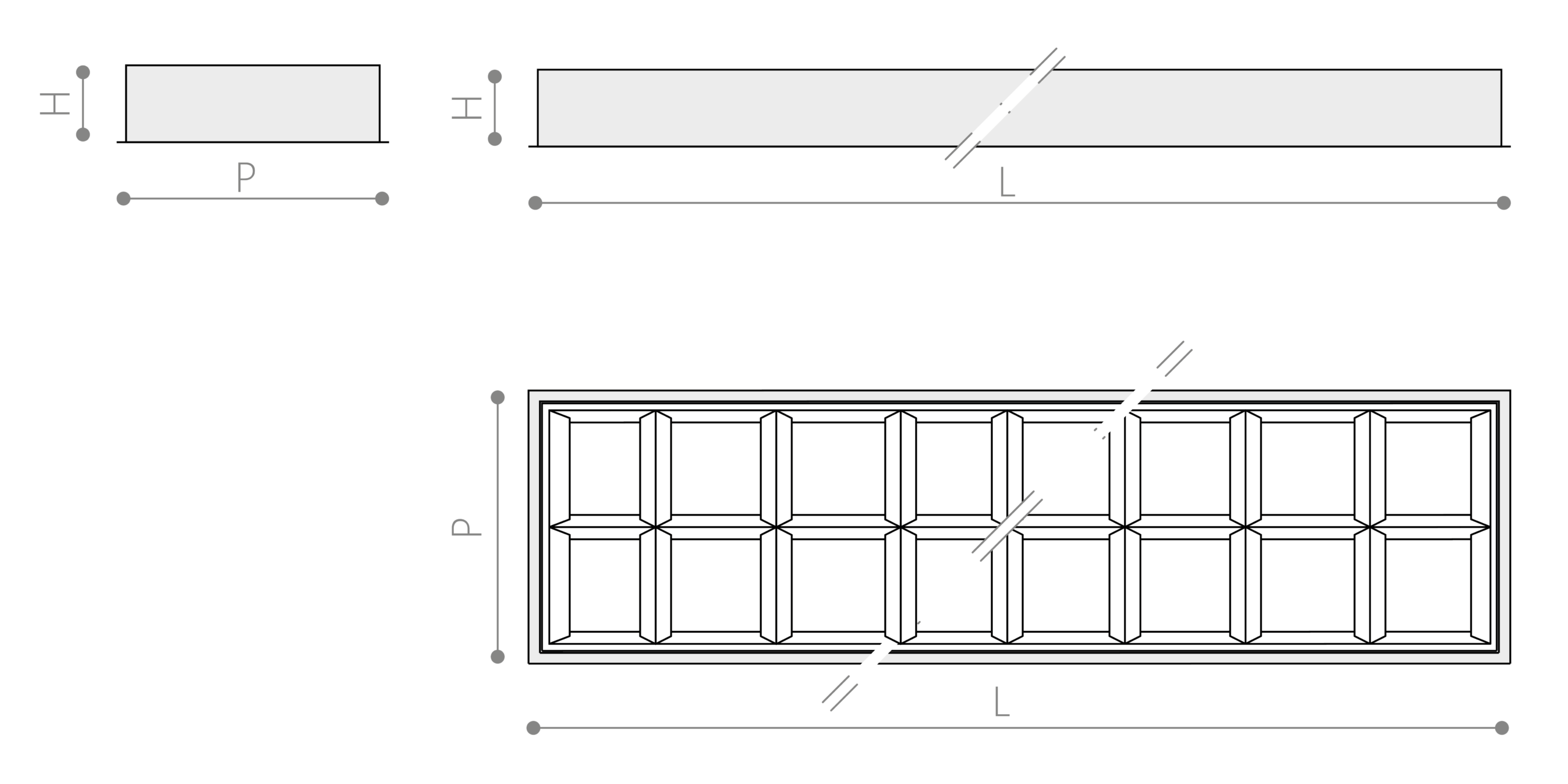

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1120R20415EL15-4000°K - CRI>80on/off179211929559590-2.0
1120R20433EL33-4000°K - CRI>80on/off3809115295119590-3.0
1120R20448EL48-4000°K - CRI>80on/off4781114295119590-3.0
1120R20466EL66-4000°K - CRI>80on/off7618115595119590-7.0
1120R20475EL75-4000°K - CRI>80on/off8619115595119590-7.0
1120R20415LD15-4000°K - CRI>80dali 2 / dali 2 push179211929559590-2.0
1120R20433LD33-4000°K - CRI>80dali 2 / dali 2 push3809115295119590-3.0
1120R20448LD48-4000°K - CRI>80dali 2 / dali 2 push4781114295119590-3.0
1120R20466LD66-4000°K - CRI>80dali 2 / dali 2 push7618115595119590-7.0
1120R20475LD75-4000°K - CRI>80dali 2 / dali 2 push8619115595119590-7.0
1120R20415D115-4000°K - CRI>80dali 2 + em. 1h179211929559590-2.0
1120R20433D133-4000°K - CRI>80dali 2 + em. 1h3809115295119590-3.0
1120R20448D148-4000°K - CRI>80dali 2 + em. 1h4781114295119590-3.0
1120R20466D166-4000°K - CRI>80dali 2 + em. 1h7618115595119590-7.0
1120R20475D175-4000°K - CRI>80dali 2 + em. 1h8619115595119590-7.0
1120R20415E115-4000°K - CRI>80em. 1h179211929559590-2.0
1120R20433E133-4000°K - CRI>80em. 1h3809115295119590-3.0
1120R20448E148-4000°K - CRI>80em. 1h4781114295119590-3.0
1120R20466E166-4000°K - CRI>80em. 1h7618115595119590-7.0
1120R20475E175-4000°K - CRI>80em. 1h8619115595119590-7.0

Accessories
