SIRACUSA – Mod. 3R

(UGR<19)

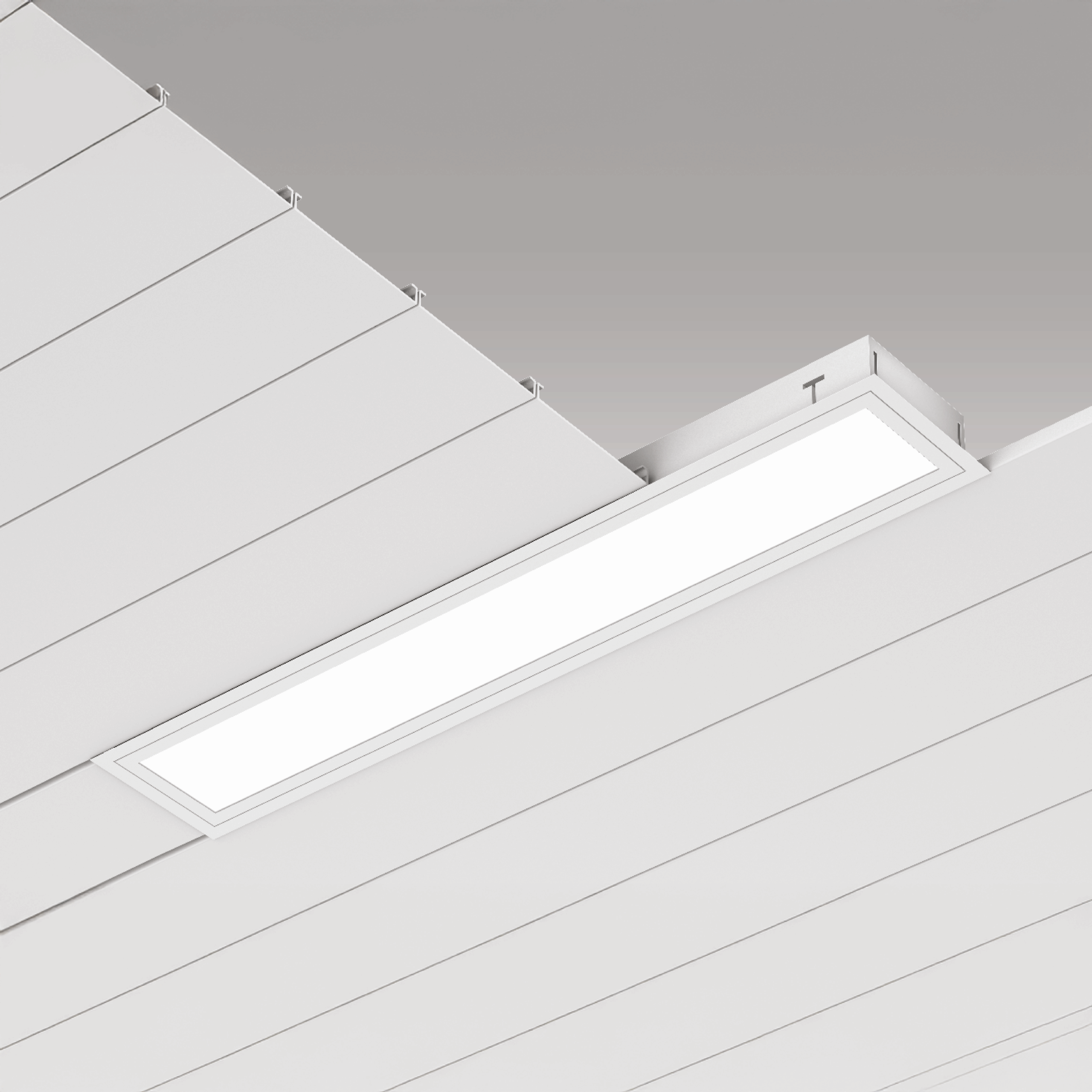

Multi-installation DIRECT BACKLIGHT LED luminaire suitable for installation in 35 mm pitch 50, 85 mm pitch 100, 135 mm pitch 150, 185 mm pitch 200, or recessed for plasterboard ceilings. Bracket mounting included. Body made of sheet steel, painted with epoxy-polyester powder coating in white non-yellowing color with fine embossed finish, phosphating and degreasing treatment.
Categories: Led, SIRACUSA - 1160, Office, SIRACUSA
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions

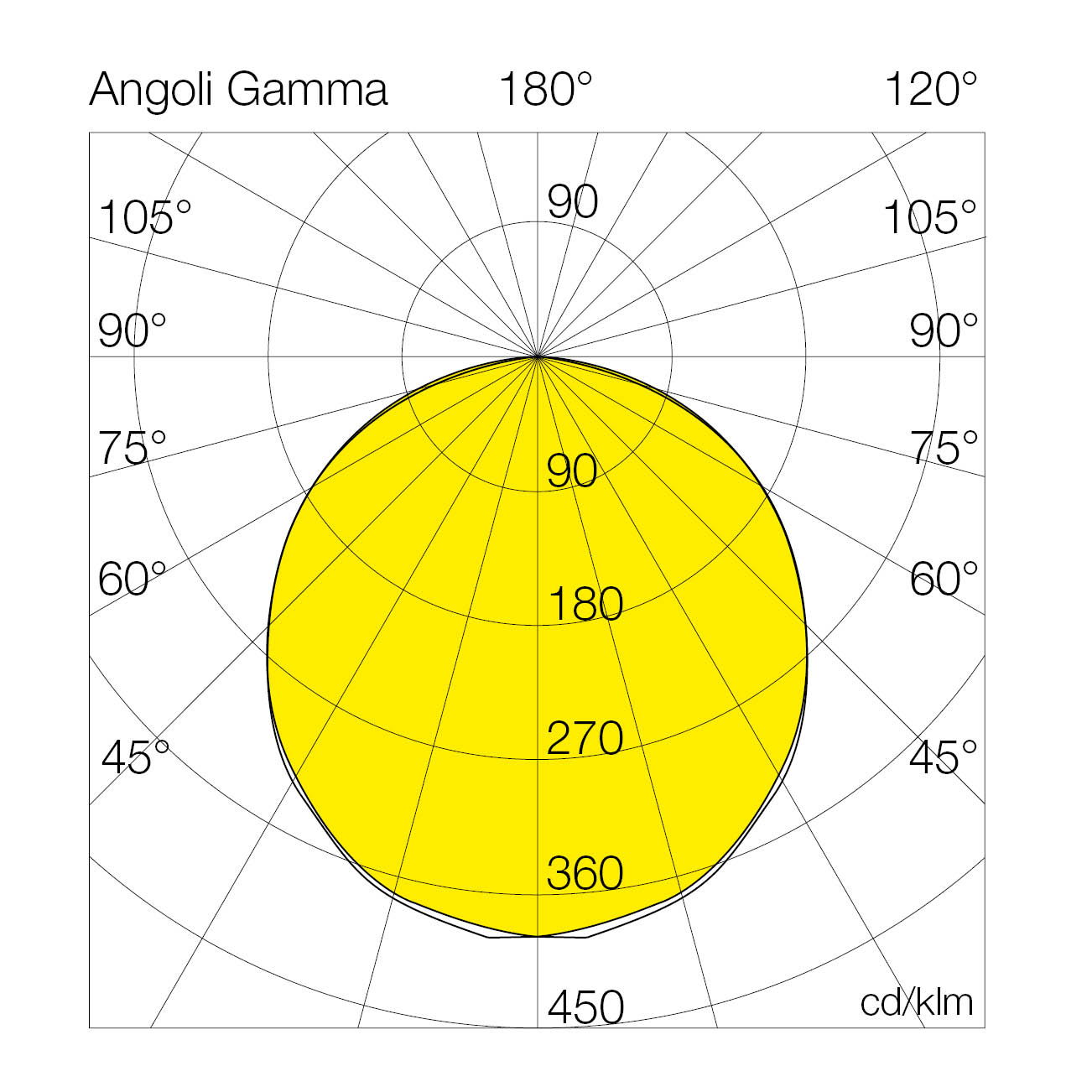

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
11603R03= 3000°K (CRI >80)12EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)23D1= dali 2 + em. 1h
28E1= em. 1h
33E3= em. 3h
38
48
60

Models

W tot.
°K - CRI
Options

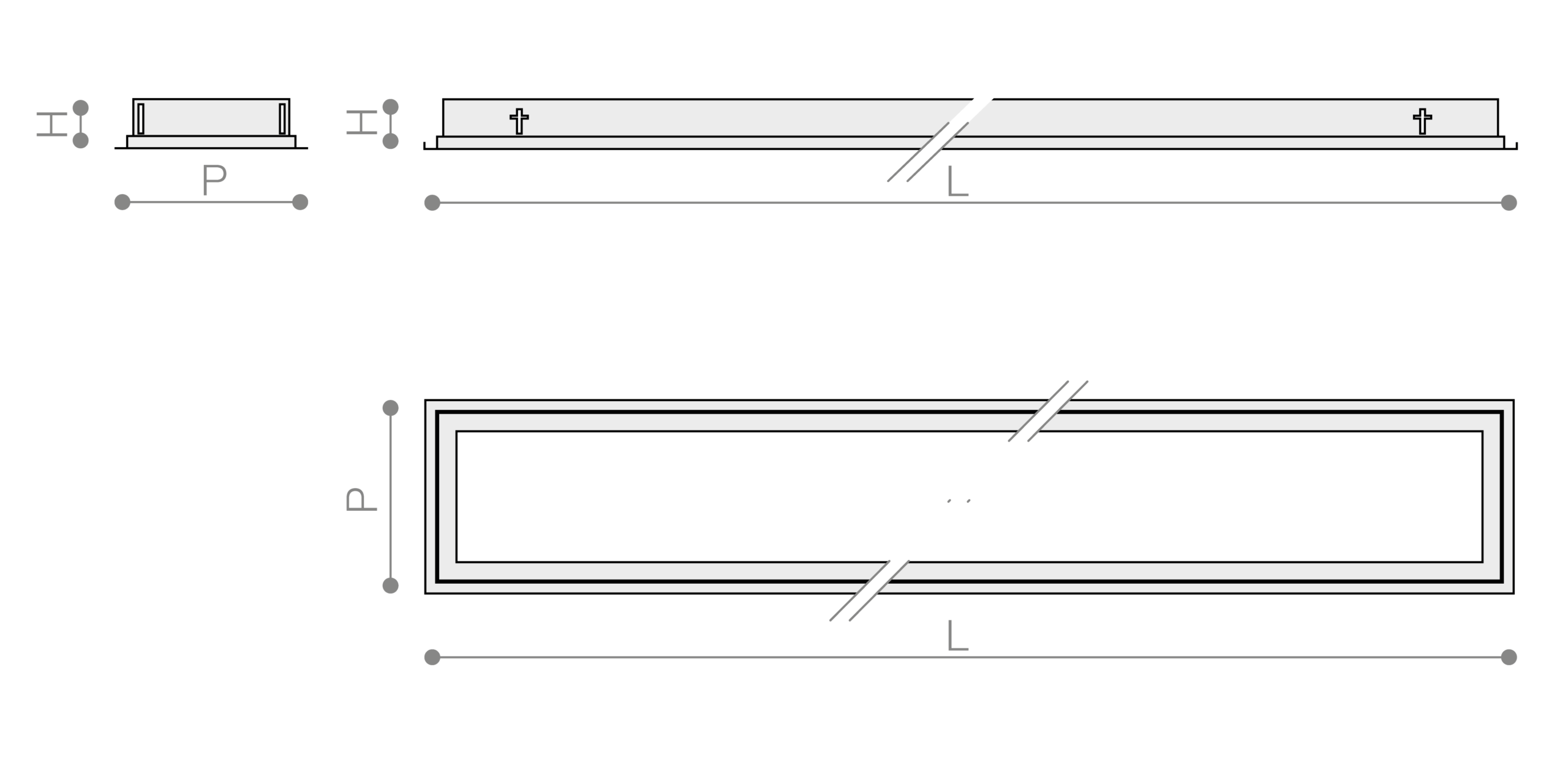

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
11603R0412EL12-4000°K - CRI>80on/off139511622566060-1.9
11603R0415EL15-4000°K - CRI>80on/off196313122566060-1.9
11603R0423EL23-4000°K - CRI>80on/off2790121225127060-3.6
11603R0428EL28-4000°K - CRI>80on/off3646130225157060-4.5
11603R0433EL33-4000°K - CRI>80on/off4207127225127060-3.6
11603R0438EL38-4000°K - CRI>80on/off4907129225157060-4.5
11603R0448EL48-4000°K - CRI>80on/off5580116225127060-4.5
11603R0460EL60-4000°K - CRI>80on/off6975116225157060-4.5
11603R0412LD12-4000°K - CRI>80dali 2 / dali 2 push139511622566060-1.9
11603R0415LD15-4000°K - CRI>80dali 2 / dali 2 push196313122566060-1.9
11603R0423LD23-4000°K - CRI>80dali 2 / dali 2 push2790121225127060-3.6
11603R0428LD28-4000°K - CRI>80dali 2 / dali 2 push3646130225157060-4.5
11603R0433LD33-4000°K - CRI>80dali 2 / dali 2 push4207127225127060-3.6
11603R0438LD38-4000°K - CRI>80dali 2 / dali 2 push4907129225157060-4.5
11603R0448LD48-4000°K - CRI>80dali 2 / dali 2 push5580116225127060-4.5
11603R0460LD60-4000°K - CRI>80dali 2 / dali 2 push6975116225157060-4.5
11603R0412D112-4000°K - CRI>80dali 2 + em. 1h139511622566060-1.9
11603R0415D115-4000°K - CRI>80dali 2 + em. 1h196313122566060-1.9
11603R0423D123-4000°K - CRI>80dali 2 + em. 1h2790121225127060-3.6
11603R0428D128-4000°K - CRI>80dali 2 + em. 1h3646130225157060-4.5
