INDI – Mod. LD

(Luce Indiretta)

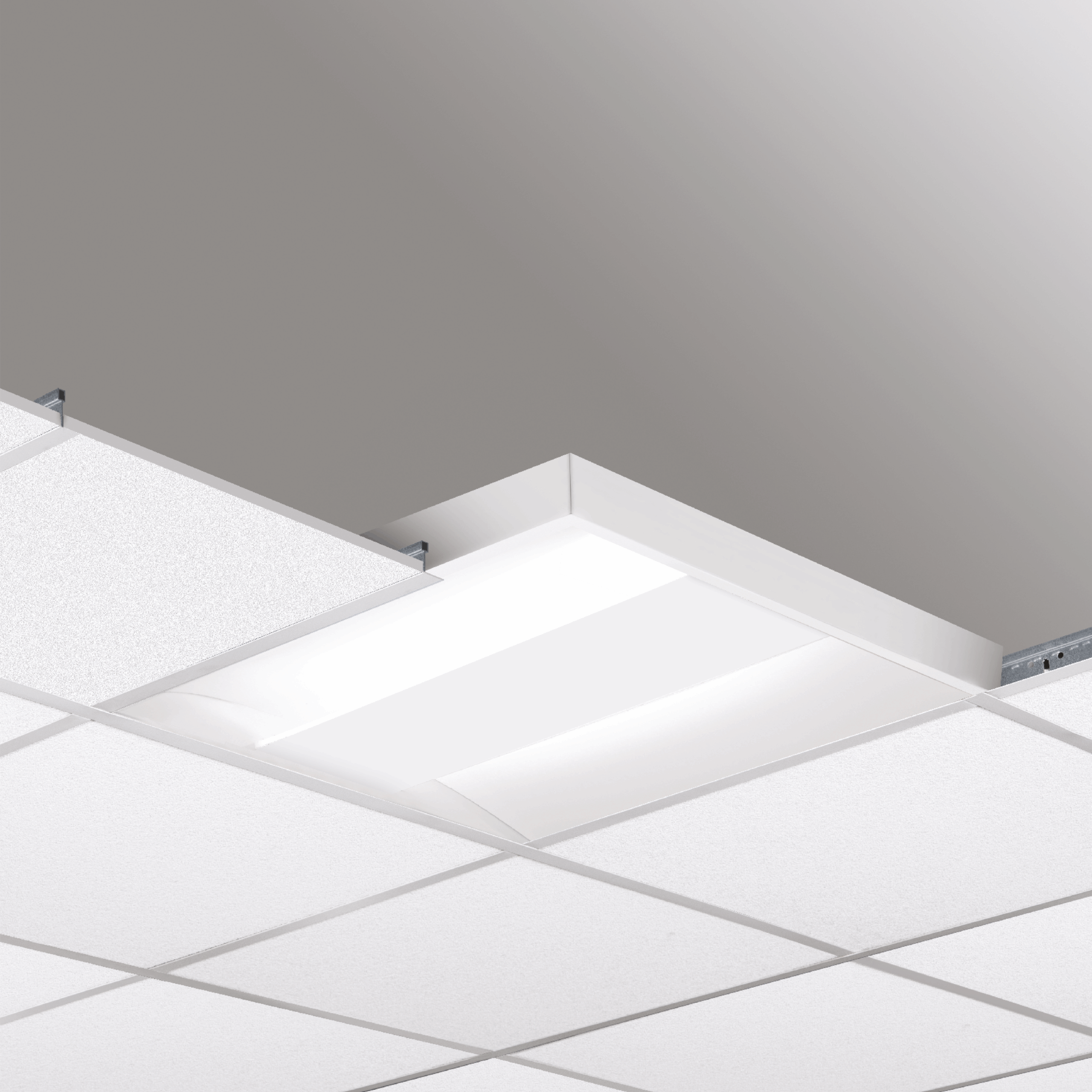

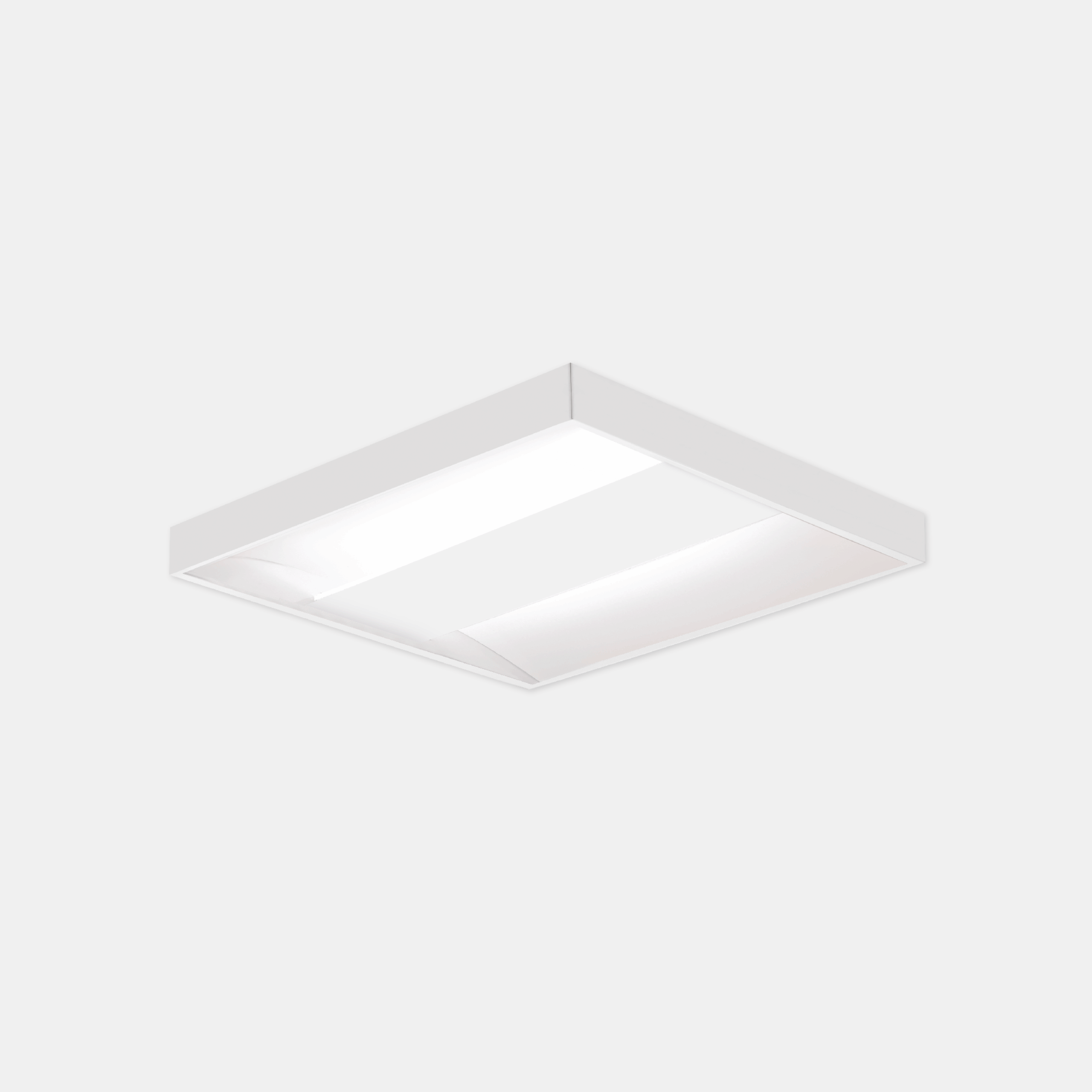

Multi-installation INDIRECT BACKLIGHT LED fixture with indirect light suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, surface-mounted or suspended (via accessory). Sheet steel body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Double-curved reflector made of painted steel sheet and satin PMMA diffuser, anti-glare and anti-reflection.

Categories: Led, INDI - 1213, Office, INDI

Models: 60

Color: Matt white

Catalogue abstract

Installation instructions

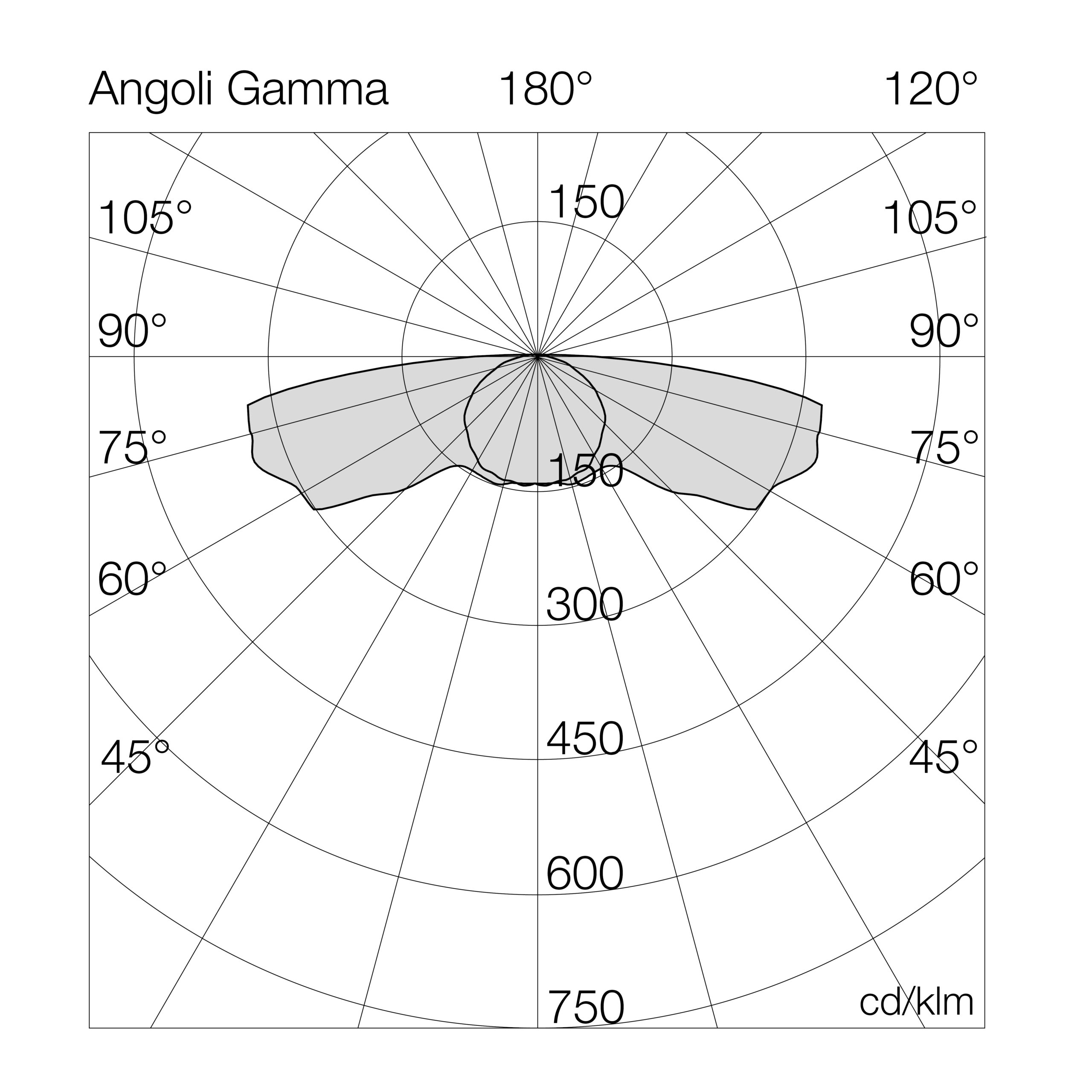

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1213	LD	03	= 3000°K (CRI >80)	26	EL	= on/off
		04	= 4000°K (CRI >80)	32	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	38	D1	= dali 2 + em.1h
				48	E1	= em. 1h
					E3	= em. 3h

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1213LD0426EL	26	-	4000°K - CRI>80	on/off	2840	109	595	595	80	-	5.1
1213LD0432EL	32	-	4000°K - CRI>80	on/off	3420	107	595	595	80	-	5.1
1213LD0438EL	38	-	4000°K - CRI>80	on/off	3989	105	595	595	80	-	5.1
1213LD0448EL	48	-	4000°K - CRI>80	on/off	4914	102	595	595	80	-	5.1
1213LD0426LD	26	-	4000°K - CRI>80	dali 2 / dali 2 push	2840	109	595	595	80	-	5.1
1213LD0432LD	32	-	4000°K - CRI>80	dali 2 / dali 2 push	3420	107	595	595	80	-	5.1
1213LD0438LD	38	-	4000°K - CRI>80	dali 2 / dali 2 push	3989	105	595	595	80	-	5.1
1213LD0448LD	48	-	4000°K - CRI>80	dali 2 / dali 2 push	4914	102	595	595	80	-	5.1
1213LD0426D1	26	-	4000°K - CRI>80	dali 2 + em. 1h	2840	109	595	595	80	-	5.1
1213LD0432D1	32	-	4000°K - CRI>80	dali 2 + em. 1h	3420	107	595	595	80	-	5.1
1213LD0438D1	38	-	4000°K - CRI>80	dali 2 + em. 1h	3989	105	595	595	80	-	5.1
1213LD0448D1	48	-	4000°K - CRI>80	dali 2 + em. 1h	4914	102	595	595	80	-	5.1
1213LD0426E1	26	-	4000°K - CRI>80	em. 1h	2840	109	595	595	80	-	5.1
1213LD0432E1	32	-	4000°K - CRI>80	em. 1h	3420	107	595	595	80	-	5.1
1213LD0438E1	38	-	4000°K - CRI>80	em. 1h	3989	105	595	595	80	-	5.1
1213LD0448E1	48	-	4000°K - CRI>80	em. 1h	4914	102	595	595	80	-	5.1
1213LD0426E3	26	-	4000°K - CRI>80	em. 3h	2840	109	595	595	80	-	5.1
1213LD0432E3	32	-	4000°K - CRI>80	em. 3h	3420	107	595	595	80	-	5.1
1213LD0438E3	38	-	4000°K - CRI>80	em. 3h	3989	105	595	595	80	-	5.1
1213LD0448E3	48	-	4000°K - CRI>80	em. 3h	4914	102	595	595	80	-	5.1
