QUADRA – Mod. Q3

(UGR<22)

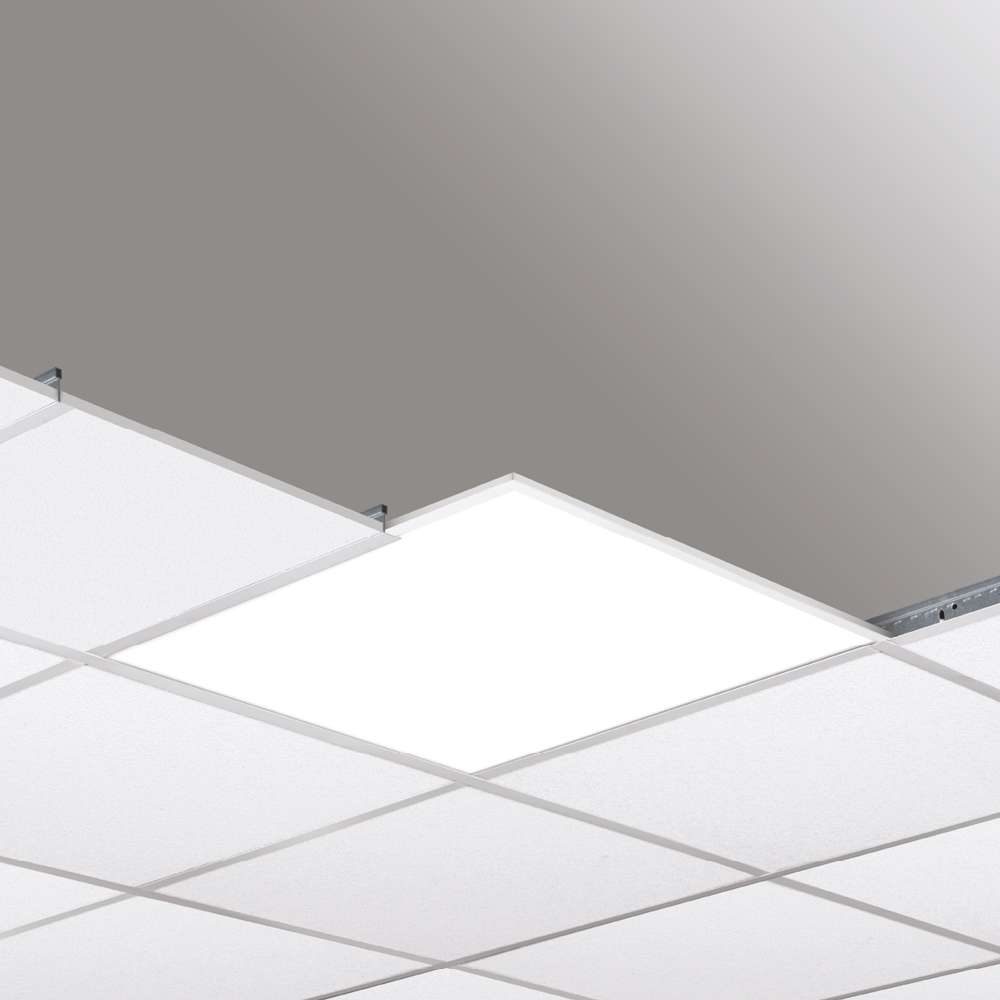

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, QUADRA
Models: 100
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804Q303= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options

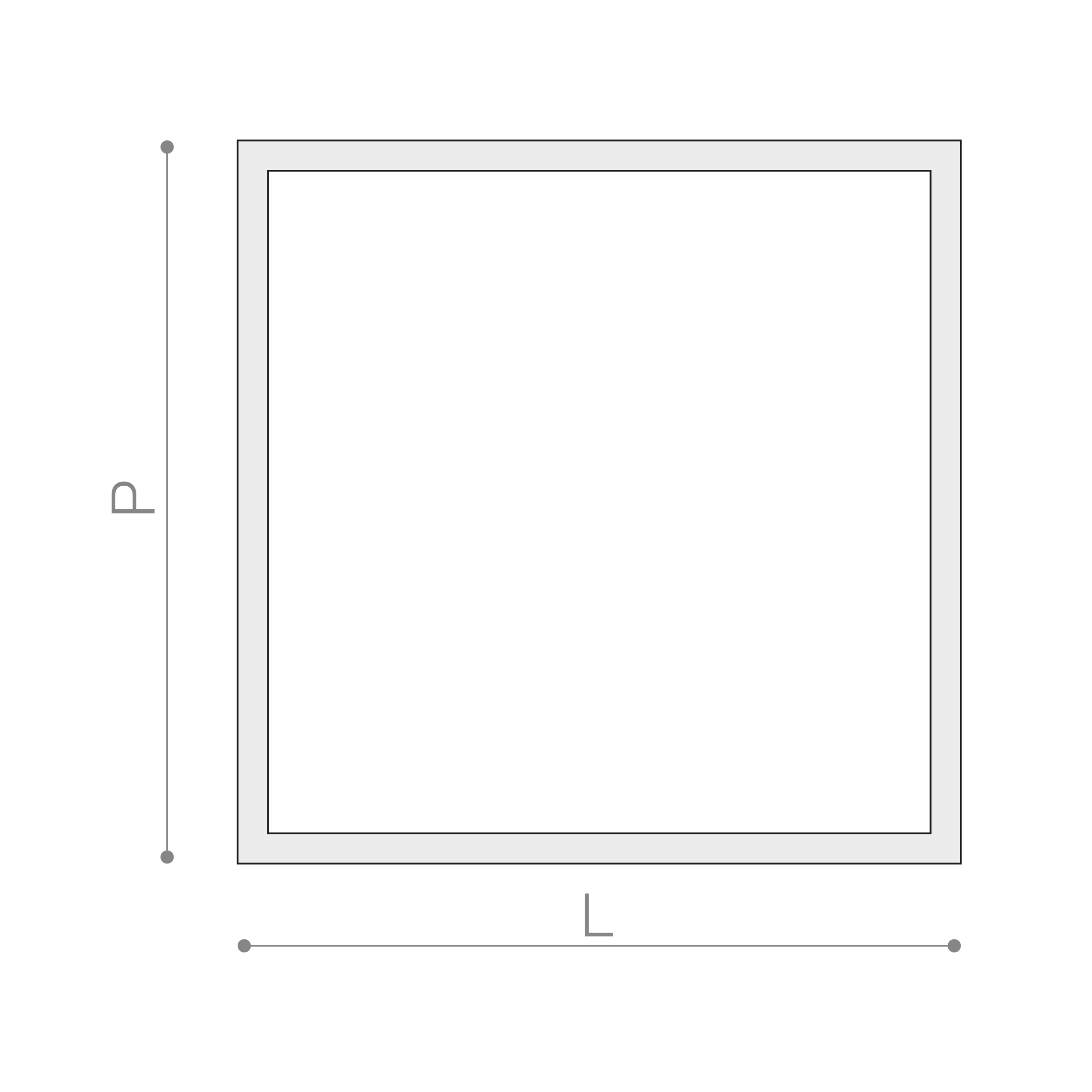

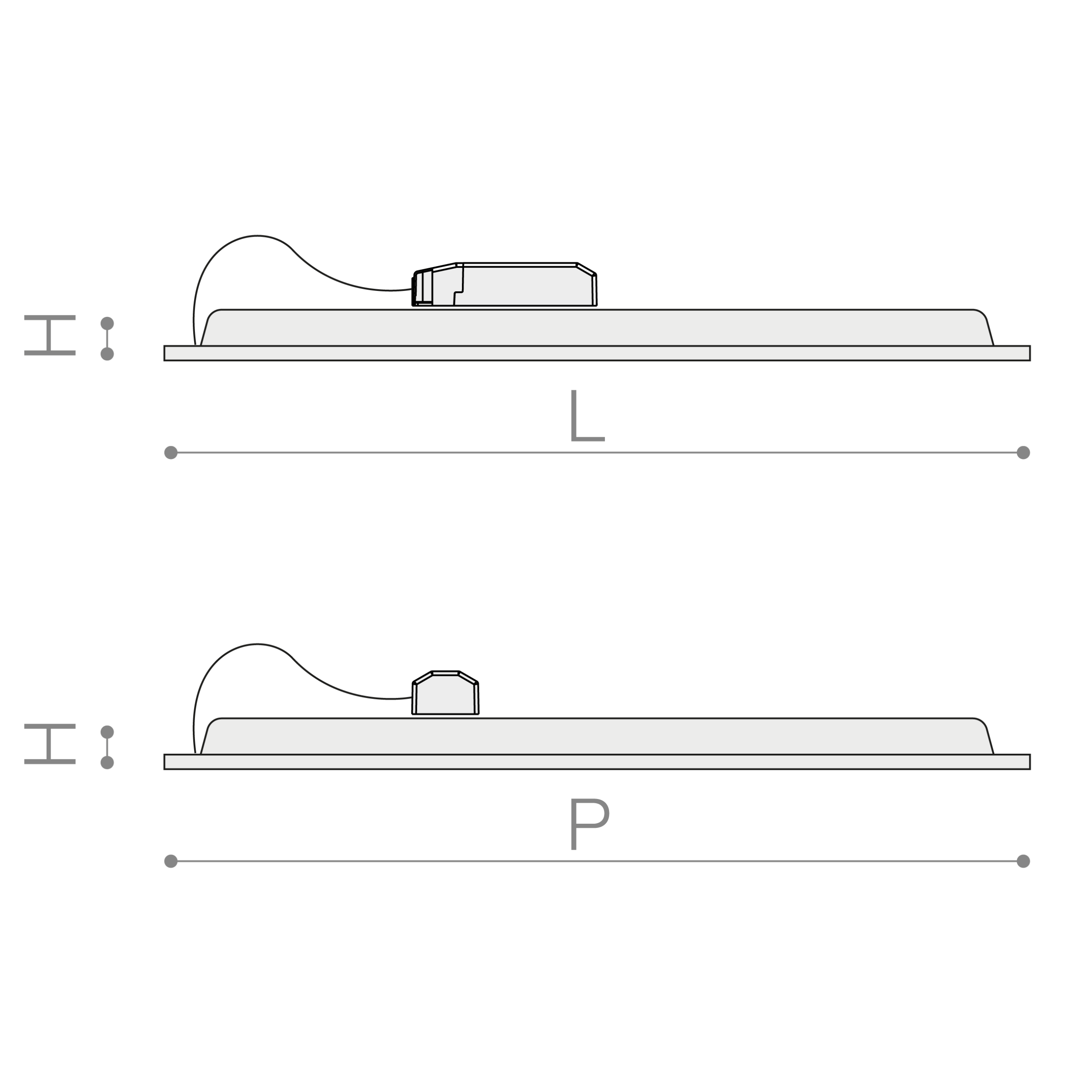

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1804Q30424EL24-4000°K - CRI>80on/off279511659559535-2.2
1804Q30425EL25-4000°K - CRI>80on/off (DIP-switch)293711759559535-2.2
1804Q30427EL27-4000°K - CRI>80on/off (DIP-switch)312211659559535-2.2
1804Q30429EL29-4000°K - CRI>80on/off (DIP-switch)334011559559535-2.2
1804Q30432EL32-4000°K - CRI>80on/off (DIP-switch)366711459559535-2.2
1804Q30436EL36-4000°K - CRI>80on/off (DIP-switch)399111159559535-2.2
1804Q30438EL38-4000°K - CRI>80on/off (DIP-switch)411610859559535-2.2
1804Q30442EL42-4000°K - CRI>80on/off (DIP-switch)435210459559535-2.2
1804Q30444EL44-4000°K - CRI>80on/off (DIP-switch)449010259559535-2.2
1804Q30448EL48-4000°K - CRI>80on/off494610359559535-2.2
1804Q30424LD24-4000°K - CRI>80dali 2 / dali 2 push279511659559535-2.2
1804Q30425LD25-4000°K - CRI>80dali 2 / dali 2 push293711759559535-2.2
1804Q30427LD27-4000°K - CRI>80dali 2 / dali 2 push312211659559535-2.2
1804Q30429LD29-4000°K - CRI>80dali 2 / dali 2 push334011559559535-2.2
1804Q30432LD32-4000°K - CRI>80dali 2 / dali 2 push366711459559535-2.2
1804Q30436LD36-4000°K - CRI>80dali 2 / dali 2 push399111159559535-2.2
1804Q30438LD38-4000°K - CRI>80dali 2 / dali 2 push411610859559535-2.2
1804Q30442LD42-4000°K - CRI>80dali 2 / dali 2 push435210459559535-2.2
1804Q30444LD44-4000°K - CRI>80dali 2 / dali 2 push449010259559535-2.2
1804Q30448LD48-4000°K - CRI>80dali 2 / dali 2 push494610359559535-2.2
