art.-1804-quadra-qn

QUADRA – Mod. QN

(UGR<19)

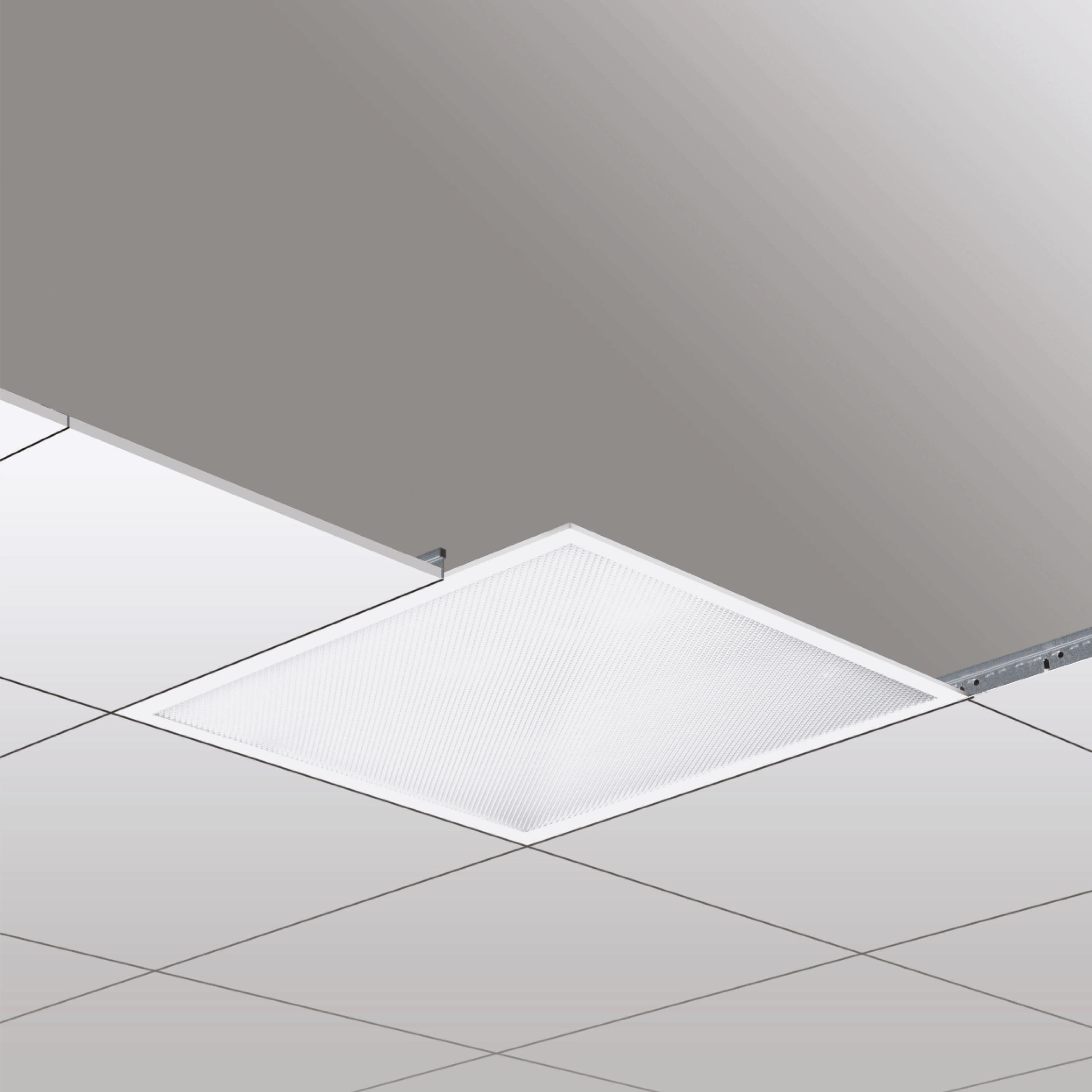

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in rebate with brackets (included) for false ceilings with concealed structure. Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, QUADRA
Models: 100
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804QN03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1804QN0424EL24-4000°K - CRI>80on/off275811559859835-2.2
1804QN0425EL25-4000°K - CRI>80on/off (DIP-switch)289911659859835-2.2
1804QN0427EL27-4000°K - CRI>80on/off (DIP-switch)308111459859835-2.2
1804QN0429EL29-4000°K - CRI>80on/off (DIP-switch)329611459859835-2.2
1804QN0432EL32-4000°K - CRI>80on/off (DIP-switch)361911359859835-2.2
1804QN0436EL36-4000°K - CRI>80on/off (DIP-switch)393910959859835-2.2
1804QN0438EL38-4000°K - CRI>80on/off (DIP-switch)406210759859835-2.2
1804QN0442EL42-4000°K - CRI>80on/off (DIP-switch)429510259859835-2.2
1804QN0444EL44-4000°K - CRI>80on/off (DIP-switch)443210159859835-2.2
1804QN0448EL48-4000°K - CRI>80on/off488110259859835-2.2
1804QN0424LD24-4000°K - CRI>80dali 2 / dali 2 push275811559859835-2.2
1804QN0425LD25-4000°K - CRI>80dali 2 / dali 2 push289911659859835-2.2
1804QN0427LD27-4000°K - CRI>80dali 2 / dali 2 push308111459859835-2.2
1804QN0429LD29-4000°K - CRI>80dali 2 / dali 2 push329611459859835-2.2
1804QN0432LD32-4000°K - CRI>80dali 2 / dali 2 push361911359859835-2.2
1804QN0436LD36-4000°K - CRI>80dali 2 / dali 2 push393910959859835-2.2
1804QN0438LD38-4000°K - CRI>80dali 2 / dali 2 push406210759859835-2.2
1804QN0442LD42-4000°K - CRI>80dali 2 / dali 2 push429510259859835-2.2
1804QN0444LD44-4000°K - CRI>80dali 2 / dali 2 push443210159859835-2.2
1804QN0448LD48-4000°K - CRI>80dali 2 / dali 2 push488110259859835-2.2

Accessories
