QUADRA – Mod. QP

(UGR<19)

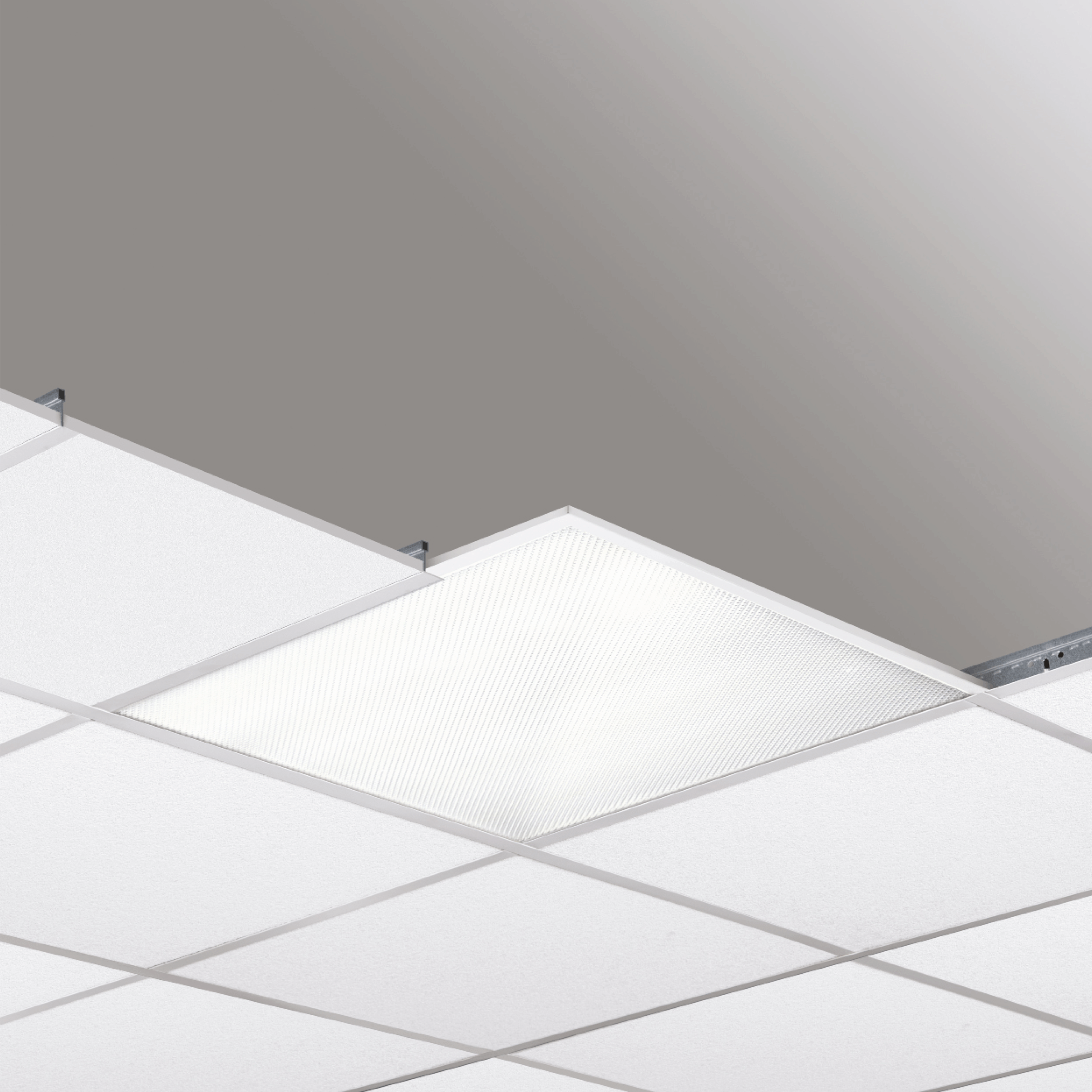

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, QUADRA
Models: 100
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804QP03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1804QP0424EL24-4000°K - CRI>80on/off275811559559535-2.2
1804QP0425EL25-4000°K - CRI>80on/off (DIP-switch)289911659559535-2.2
1804QP0427EL27-4000°K - CRI>80on/off (DIP-switch)308111459559535-2.2
1804QP0429EL29-4000°K - CRI>80on/off (DIP-switch)329611459559535-2.2
1804QP0432EL32-4000°K - CRI>80on/off (DIP-switch)361911359559535-2.2
1804QP0436EL36-4000°K - CRI>80on/off (DIP-switch)393910959559535-2.2
1804QP0438EL38-4000°K - CRI>80on/off (DIP-switch)406210759559535-2.2
1804QP0442EL42-4000°K - CRI>80on/off (DIP-switch)429510259559535-2.2
1804QP0444EL44-4000°K - CRI>80on/off (DIP-switch)443210159559535-2.2
1804QP0448EL48-4000°K - CRI>80on/off488110259559535-2.2
1804QP0424LD24-4000°K - CRI>80dali 2 / dali 2 push275811559559535-2.2
1804QP0425LD25-4000°K - CRI>80dali 2 / dali 2 push289911659559535-2.2
1804QP0427LD27-4000°K - CRI>80dali 2 / dali 2 push308111459559535-2.2
1804QP0429LD29-4000°K - CRI>80dali 2 / dali 2 push329611459559535-2.2
1804QP0432LD32-4000°K - CRI>80dali 2 / dali 2 push361911359559535-2.2
1804QP0436LD36-4000°K - CRI>80dali 2 / dali 2 push393910959559535-2.2
1804QP0438LD38-4000°K - CRI>80dali 2 / dali 2 push406210759559535-2.2
1804QP0442LD42-4000°K - CRI>80dali 2 / dali 2 push429510259559535-2.2
1804QP0444LD44-4000°K - CRI>80dali 2 / dali 2 push443210159559535-2.2
1804QP0448LD48-4000°K - CRI>80dali 2 / dali 2 push488110259559535-2.2
