QUADRA – Mod. R3

(UGR<22)

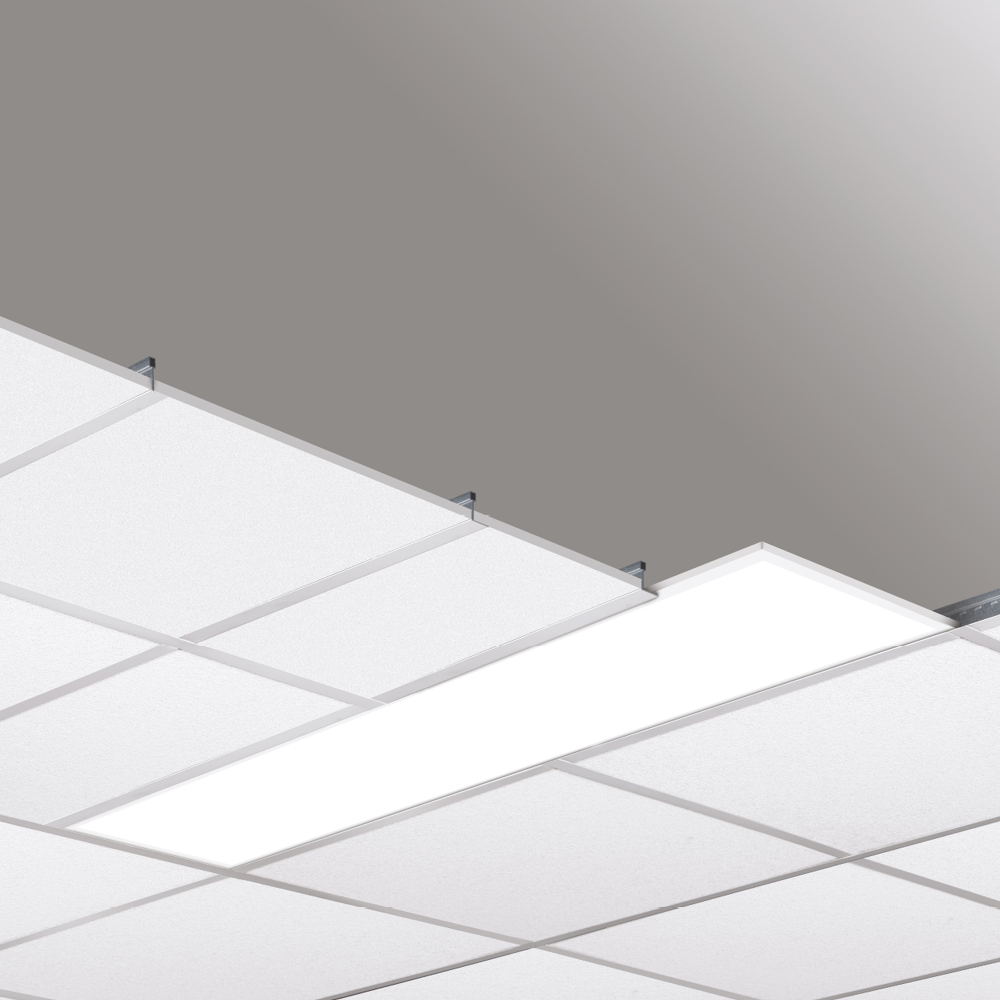

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, QUADRA
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions

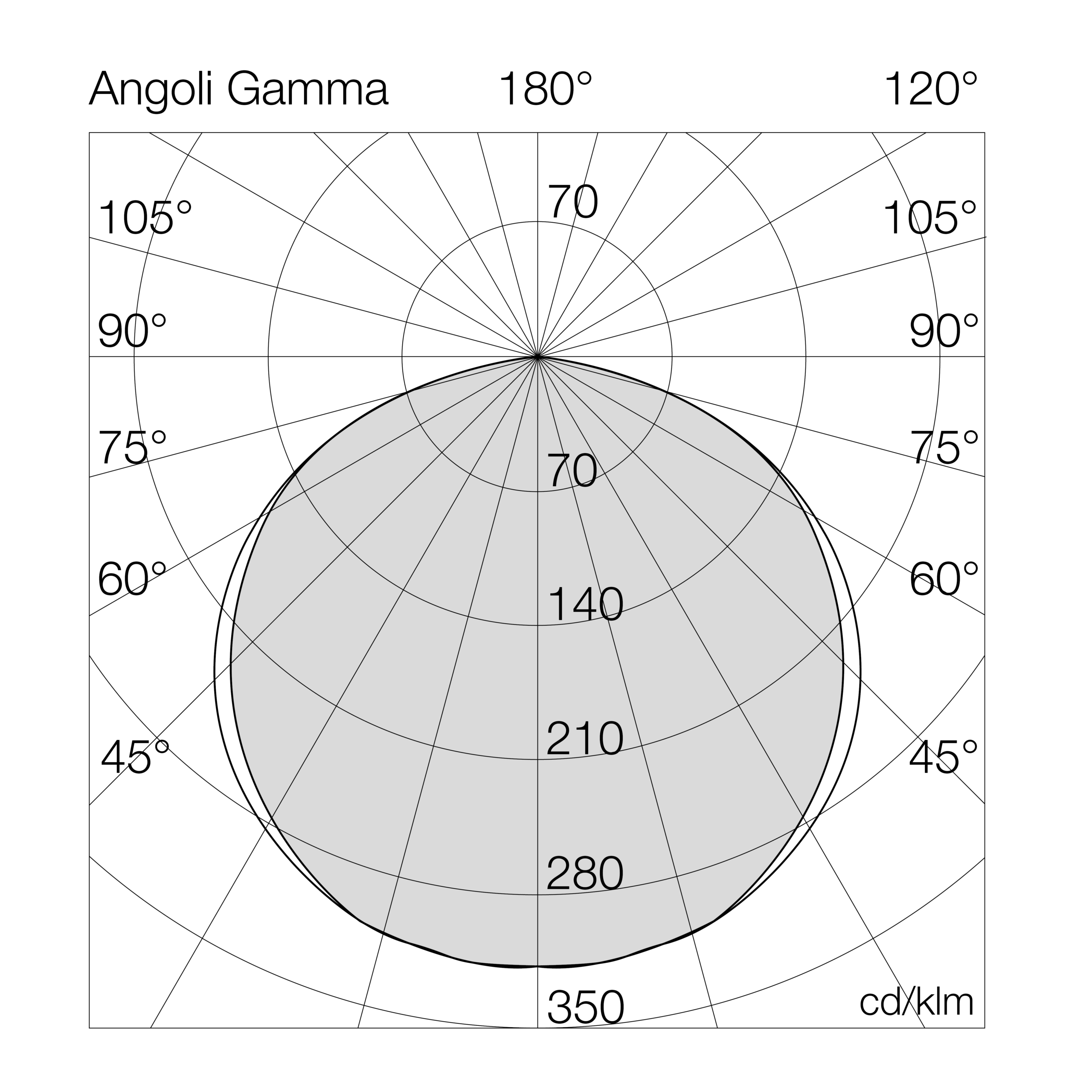

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804R303= 3000°K (CRI >80)16EL= on/off (DIP-switch)
04= 4000°K (CRI >80)24LD= dali 2 / dali 2 push
25D1= dali 2 + em.1h
27E1= em. 1h (DIP-switch)
29E3= em. 3h (DIP-switch)
32
36
38
42
44
48
64

Models

W tot.
°K - CRI
Options

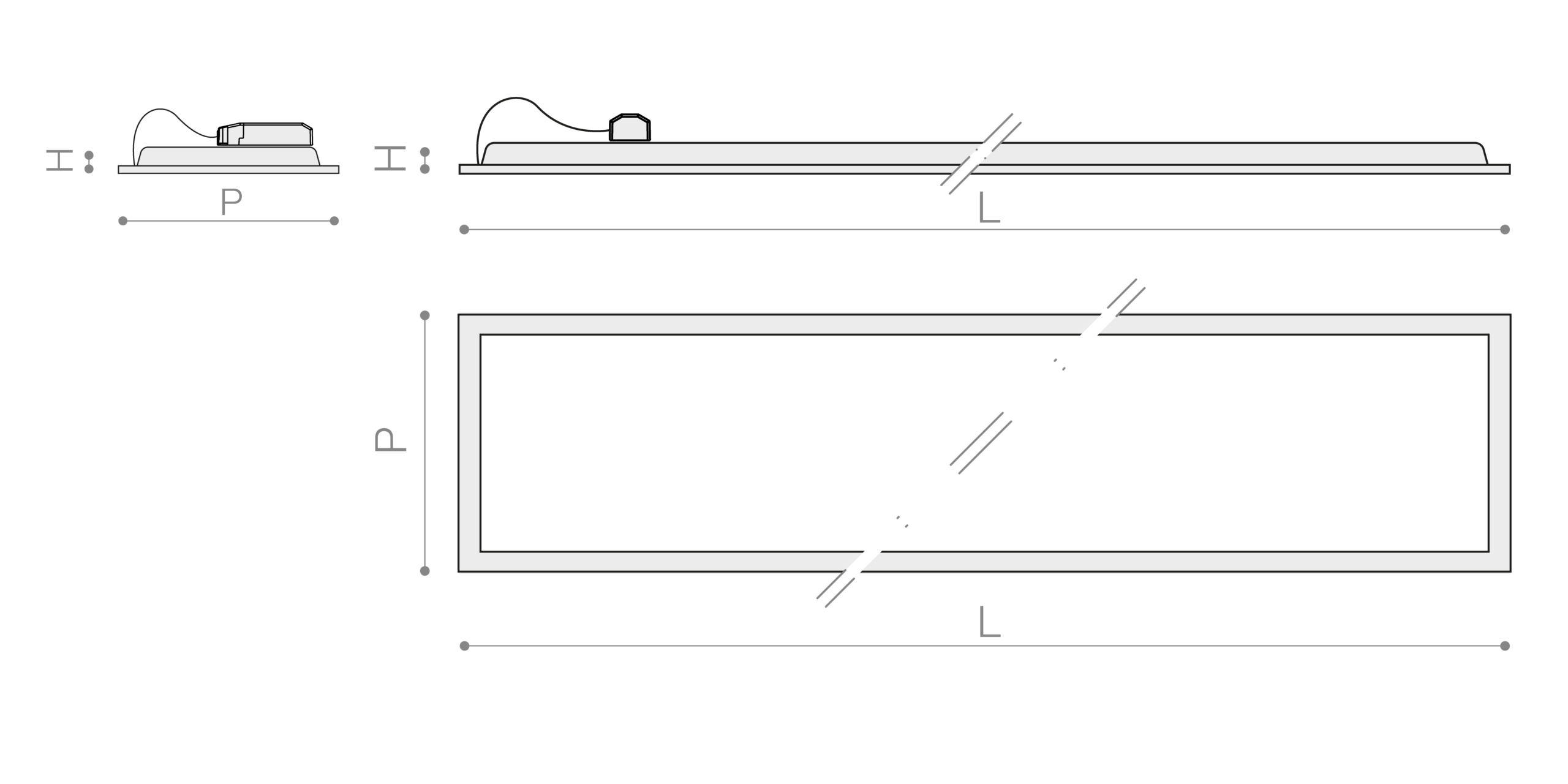

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1804R30416EL16-4000°K - CRI>80on/off183311459529535-1.6
1804R30424EL24-4000°K - CRI>80on/off2795116119529535-2.3
1804R30425EL25-4000°K - CRI>80on/off (DIP-switch)2937117119529535-2.3
1804R30427EL27-4000°K - CRI>80on/off (DIP-switch)3122116119529535-2.3
1804R30429EL29-4000°K - CRI>80on/off (DIP-switch)3340115119529535-2.3
1804R30432EL32-4000°K - CRI>80on/off (DIP-switch)3667115119529535-2.3
1804R30436EL36-4000°K - CRI>80on/off (DIP-switch)3991111119529535-2.3
1804R30438EL38-4000°K - CRI>80on/off (DIP-switch)4116108119529535-2.3
1804R30442EL42-4000°K - CRI>80on/off (DIP-switch)4352104119529535-2.3
1804R30444EL44-4000°K - CRI>80on/off (DIP-switch)4490102119529535-2.3
1804R30448EL48-4000°K - CRI>80on/off4946103119529535-2.3
1804R30464EL64-4000°K - CRI>80on/off7333115119559535-4.5
1804R30416LD16-4000°K - CRI>80dali 2 / dali 2 push183311459529535-1.6
1804R30424LD24-4000°K - CRI>80dali 2 / dali 2 push2795116119529535-2.3
1804R30425LD25-4000°K - CRI>80dali 2 / dali 2 push2937117119529535-2.3
1804R30427LD27-4000°K - CRI>80dali 2 / dali 2 push3122116119529535-2.3
1804R30429LD29-4000°K - CRI>80dali 2 / dali 2 push3340115119529535-2.3
1804R30432LD32-4000°K - CRI>80dali 2 / dali 2 push3667115119529535-2.3
1804R30436LD36-4000°K - CRI>80dali 2 / dali 2 push3991111119529535-2.3
1804R30438LD38-4000°K - CRI>80dali 2 / dali 2 push4116108119529535-2.3

Accessories
