QUADRA/RN

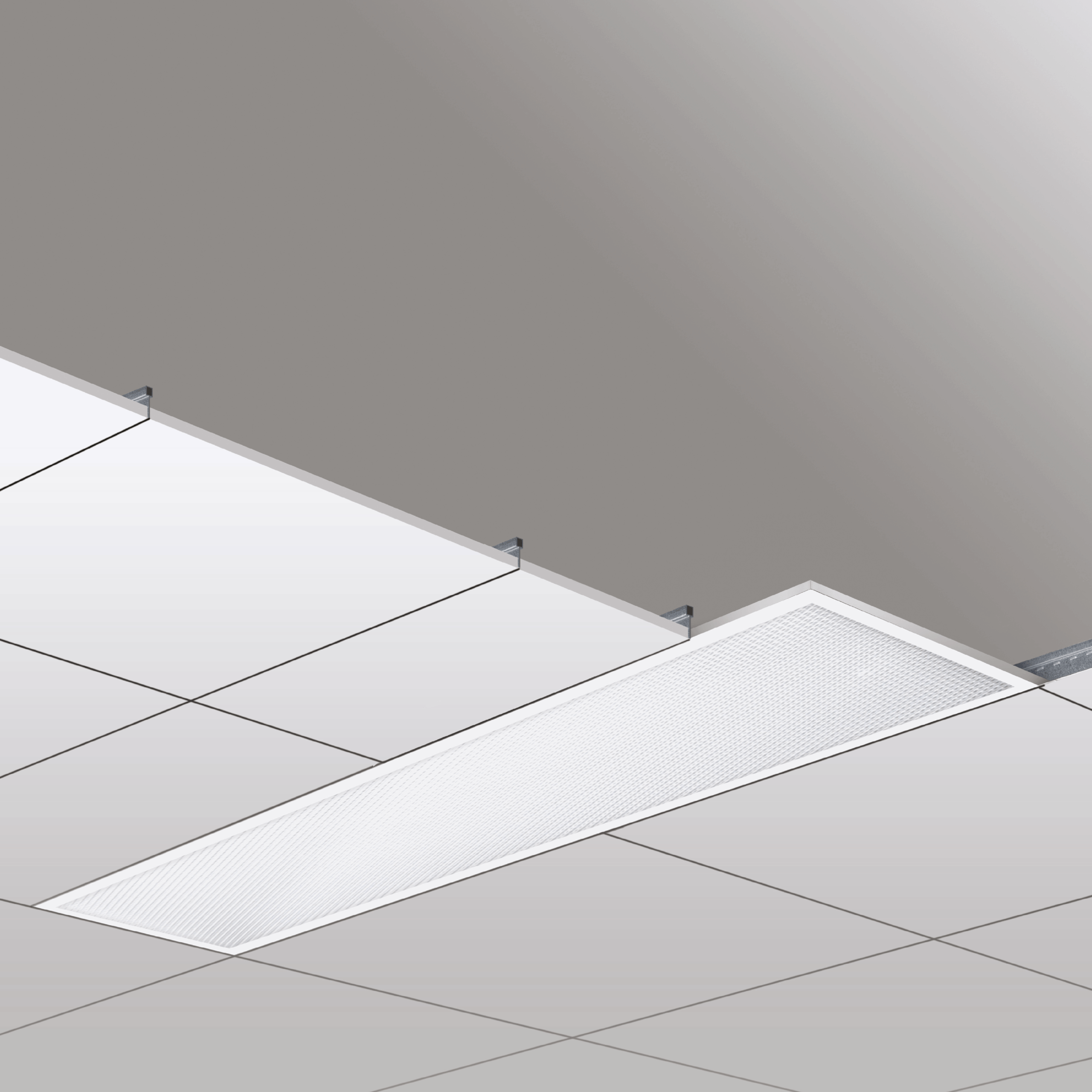

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in rebate with brackets (included) for false ceilings with concealed structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, art. 1804 Quadra
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804RN03= 3000°K (CRI >80)16EL= on/off (DIP-switch)
04= 4000°K (CRI >80)24LD= dali 2 / dali 2 push
25D1= dali 2 + em.1h
27E1= em. 1h (DIP-switch)
29E3= em. 3h (DIP-switch)
32
36
38
42
44
48
64

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1804RN0416EL16-4000°K - CRI>80on/off183311559829835-1.6
1804RN0424EL24-4000°K - CRI>80on/off2758115119829835-2.3
1804RN0425EL25-4000°K - CRI>80on/off (DIP-switch)2899116119829835-2.3
1804RN0427EL27-4000°K - CRI>80on/off (DIP-switch)3081114119829835-2.3
1804RN0429EL29-4000°K - CRI>80on/off (DIP-switch)3296114119829835-2.3
1804RN0432EL32-4000°K - CRI>80on/off (DIP-switch)3619113119829835-2.3
1804RN0436EL36-4000°K - CRI>80on/off (DIP-switch)3939109119829835-2.3
1804RN0438EL38-4000°K - CRI>80on/off (DIP-switch)4062107119829835-2.3
1804RN0442EL42-4000°K - CRI>80on/off (DIP-switch)4295102119829835-2.3
1804RN0444EL44-4000°K - CRI>80on/off (DIP-switch)4432101119829835-2.3
1804RN0448EL48-4000°K - CRI>80on/off4881102119829835-2.3
1804RN0464EL64-4000°K - CRI>80on/off7237113119859835-4.5
1804RN0416LD16-4000°K - CRI>80dali 2 / dali 2 push183311559829835-1.6
1804RN0424LD24-4000°K - CRI>80dali 2 / dali 2 push2758115119829835-2.3
1804RN0425LD25-4000°K - CRI>80dali 2 / dali 2 push2899116119829835-2.3
1804RN0427LD27-4000°K - CRI>80dali 2 / dali 2 push3081114119829835-2.3
1804RN0429LD29-4000°K - CRI>80dali 2 / dali 2 push3296114119829835-2.3
1804RN0432LD32-4000°K - CRI>80dali 2 / dali 2 push3619113119829835-2.3
1804RN0436LD36-4000°K - CRI>80dali 2 / dali 2 push3939109119829835-2.3
1804RN0438LD38-4000°K - CRI>80dali 2 / dali 2 push4062107119829835-2.3
