QUADRA – Mod. RP

(UGR<19)

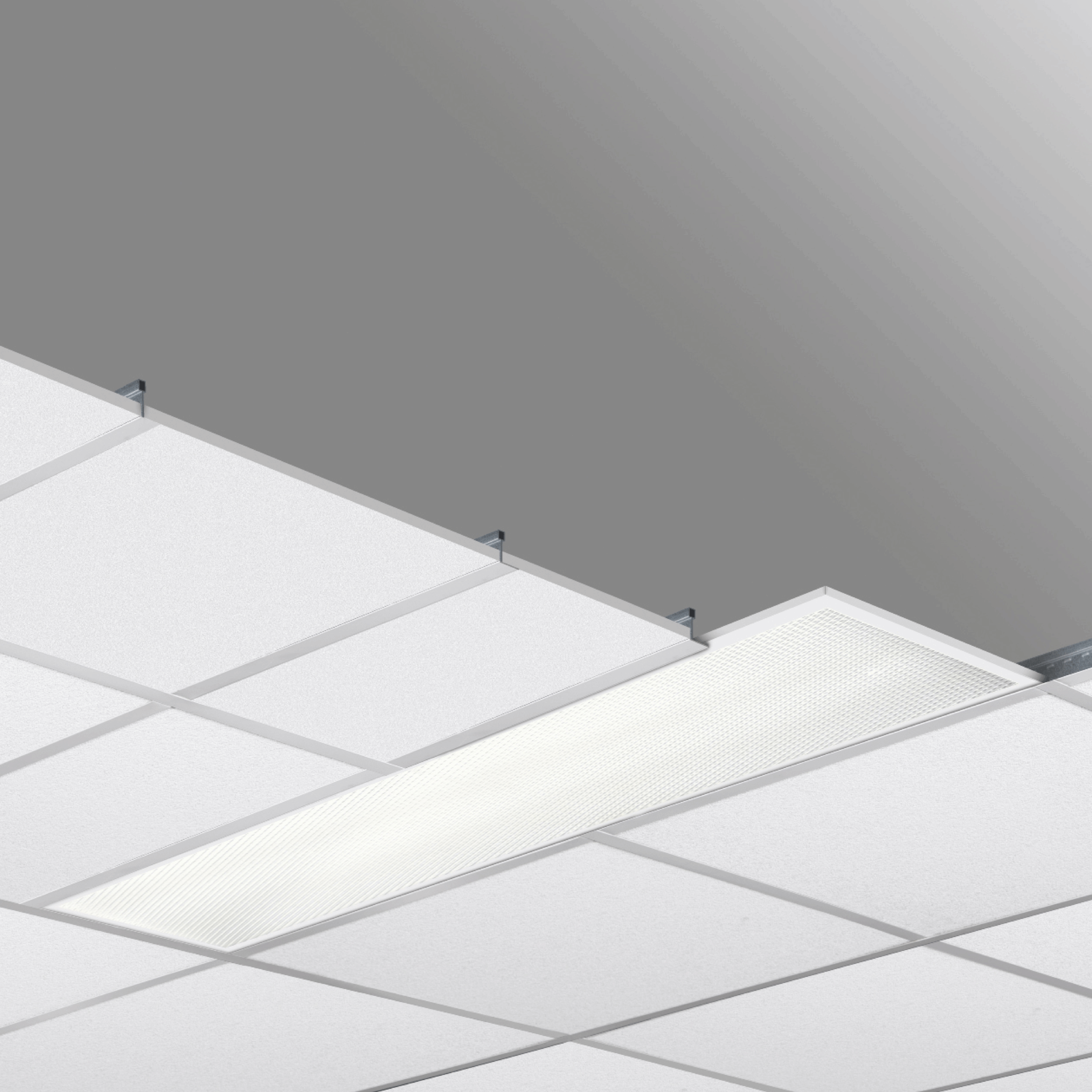

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having exposed 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment with anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA - 1804, Office, QUADRA
Models: 120
Color: Matt white
Catalogue abstract
Installation instructions

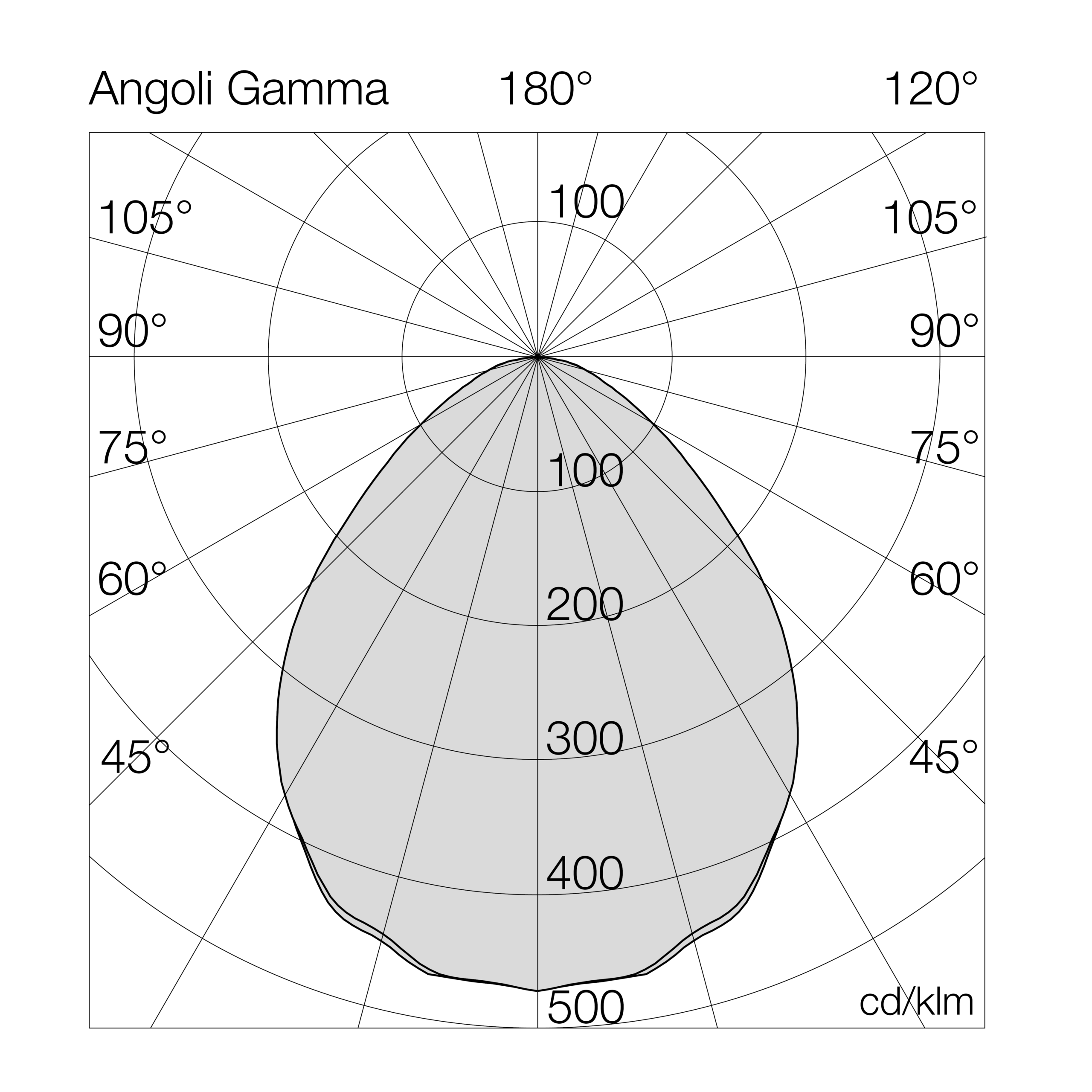

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1804RP03= 3000°K (CRI >80)16EL= on/off (DIP-switch)
04= 4000°K (CRI >80)24LD= dali 2 / dali 2 push
25D1= dali 2 + em.1h
27E1= em. 1h (DIP-switch)
29E3= em. 3h (DIP-switch)
32
36
38
42
44
48
64

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1804RP0416EL16-4000°K - CRI>80on/off183311559529535-1.6
1804RP0424EL24-4000°K - CRI>80on/off2758115119529535-2.3
1804RP0425EL25-4000°K - CRI>80on/off (DIP-switch)2899116119529535-2.3
1804RP0427EL27-4000°K - CRI>80on/off (DIP-switch)3081114119529535-2.3
1804RP0429EL29-4000°K - CRI>80on/off (DIP-switch)3296114119529535-2.3
1804RP0432EL32-4000°K - CRI>80on/off (DIP-switch)3619113119529535-2.3
1804RP0436EL36-4000°K - CRI>80on/off (DIP-switch)3939109119529535-2.3
1804RP0438EL38-4000°K - CRI>80on/off (DIP-switch)4062107119529535-2.3
1804RP0442EL42-4000°K - CRI>80on/off (DIP-switch)4295102119529535-2.3
1804RP0444EL44-4000°K - CRI>80on/off (DIP-switch)4432101119529535-2.3
1804RP0448EL48-4000°K - CRI>80on/off4881102119529535-2.3
1804RP0464EL64-4000°K - CRI>80on/off7237113119559535-4.5
1804RP0416LD16-4000°K - CRI>80dali 2 / dali 2 push183311559529535-1.6
1804RP0424LD24-4000°K - CRI>80dali 2 / dali 2 push2758115119529535-2.3
1804RP0425LD25-4000°K - CRI>80dali 2 / dali 2 push2899116119529535-2.3
1804RP0427LD27-4000°K - CRI>80dali 2 / dali 2 push3081114119529535-2.3
1804RP0429LD29-4000°K - CRI>80dali 2 / dali 2 push3296114119529535-2.3
1804RP0432LD32-4000°K - CRI>80dali 2 / dali 2 push3619113119529535-2.3
1804RP0436LD36-4000°K - CRI>80dali 2 / dali 2 push3939109119529535-2.3
1804RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push4062107119529535-2.3

Accessories
