QUADRA HP – Mod. QN

(UGR<19)

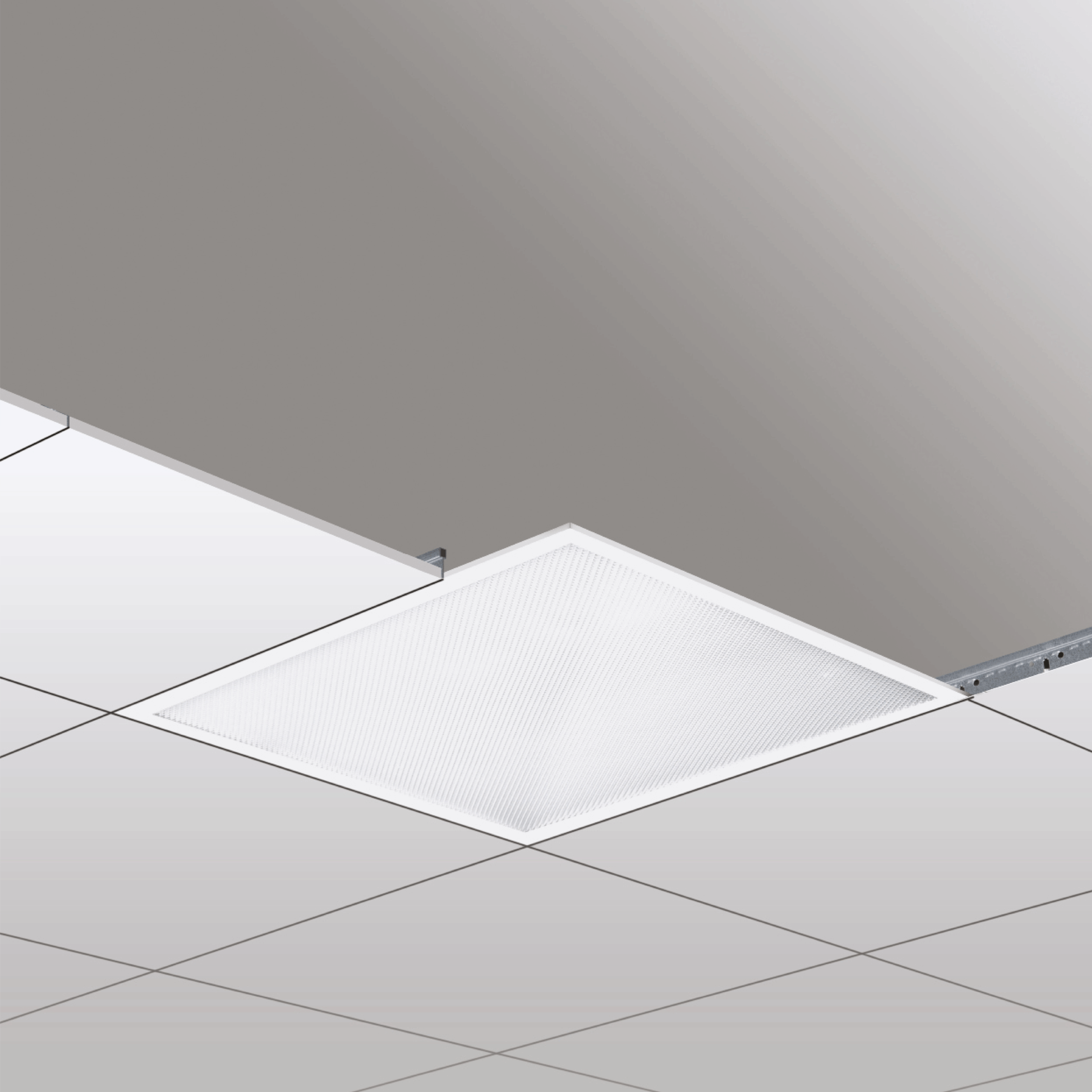

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in rebate with brackets (included) for false ceilings with concealed structure. Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA HP - 1806, Office, QUADRA HP
Models: 165
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1806QP03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
34
36
38
42
44
48

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1806QN0424EL24-4000°K - CRI>80on/off322313459859835-2.2
1806QN0425EL25-4000°K - CRI>80on/off (DIP-switch)334113459859835-2.2
1806QN0427EL27-4000°K - CRI>80on/off (DIP-switch)355513259859835-2.2
1806QN0429EL29-4000°K - CRI>80on/off (DIP-switch)382413259859835-2.2
1806QN0432EL32-4000°K - CRI>80on/off (DIP-switch)415813059859835-2.2
1806QN0434EL34-4000°K - CRI>80on/off440012959859835-2.2
1806QN0436EL36-4000°K - CRI>80on/off (DIP-switch)464212959859835-2.2
1806QN0438EL38-4000°K - CRI>80on/off (DIP-switch)473212559859835-2.2
1806QN0442EL42-4000°K - CRI>80on/off (DIP-switch)511312259859835-2.2
1806QN0444EL44-4000°K - CRI>80on/off (DIP-switch)533912159859835-2.2
1806QN0448EL48-4000°K - CRI>80on/off579512159859835-2.2
1806QN0424LD24-4000°K - CRI>80dali 2 / dali 2 push322313459859835-2.2
1806QN0425LD25-4000°K - CRI>80dali 2 / dali 2 push334113459859835-2.2
1806QN0427LD27-4000°K - CRI>80dali 2 / dali 2 push355513259859835-2.2
1806QN0429LD29-4000°K - CRI>80dali 2 / dali 2 push382413259859835-2.2
1806QN0432LD32-4000°K - CRI>80dali 2 / dali 2 push415813059859835-2.2
1806QN0434LD34-4000°K - CRI>80dali 2 / dali 2 push440012959859835-2.2
1806QN0436LD36-4000°K - CRI>80dali 2 / dali 2 push464212959859835-2.2
1806QN0438LD38-4000°K - CRI>80dali 2 / dali 2 push473212559859835-2.2
1806QN0442LD42-4000°K - CRI>80dali 2 / dali 2 push511312259859835-2.2
