QUADRA HP/QP

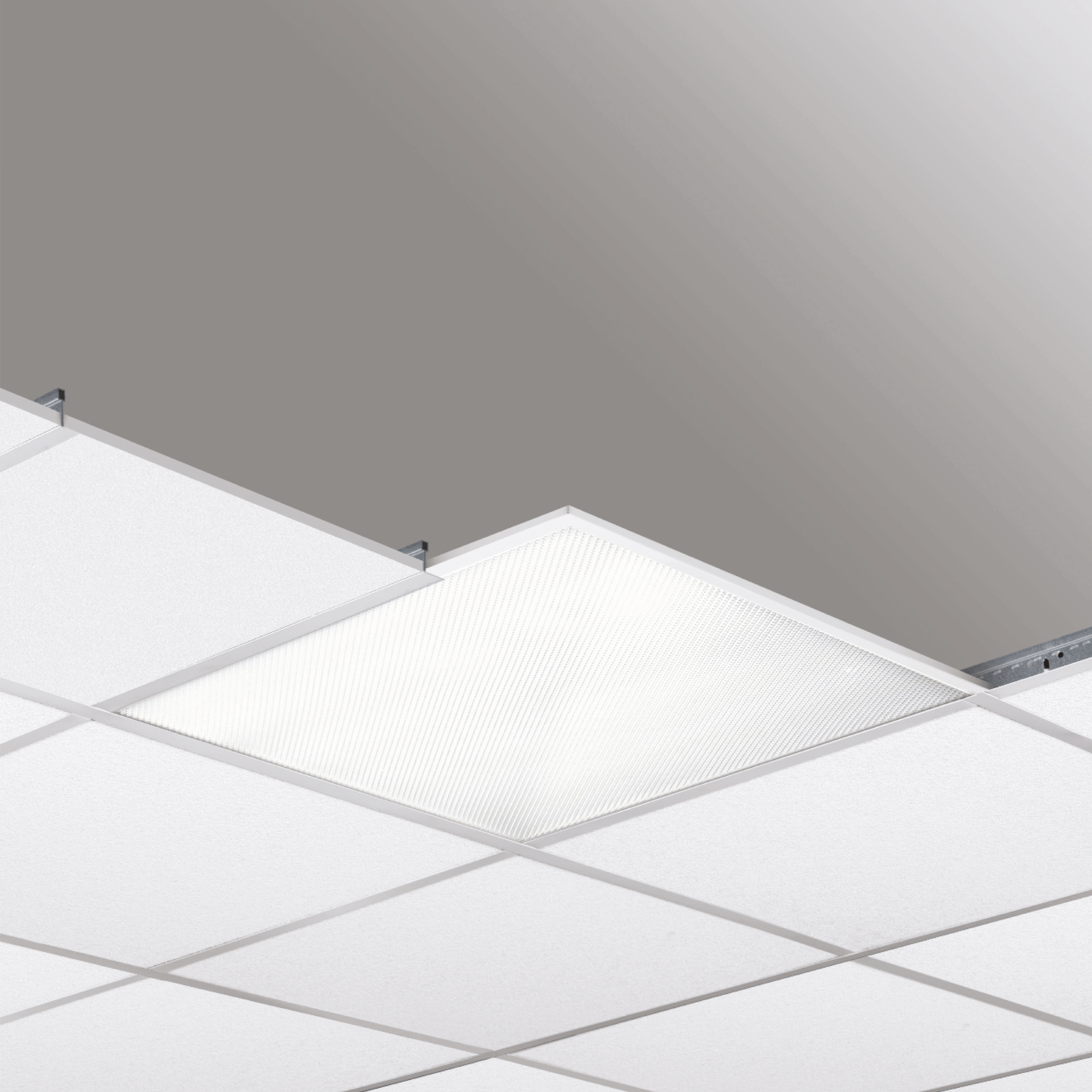

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in rebate with brackets (included) for false ceilings with concealed structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, Office, art. 1806 Quadra HP
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1806QP03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
34
36
38
42
44
48

Models

W tot.
°K - CRI
Options

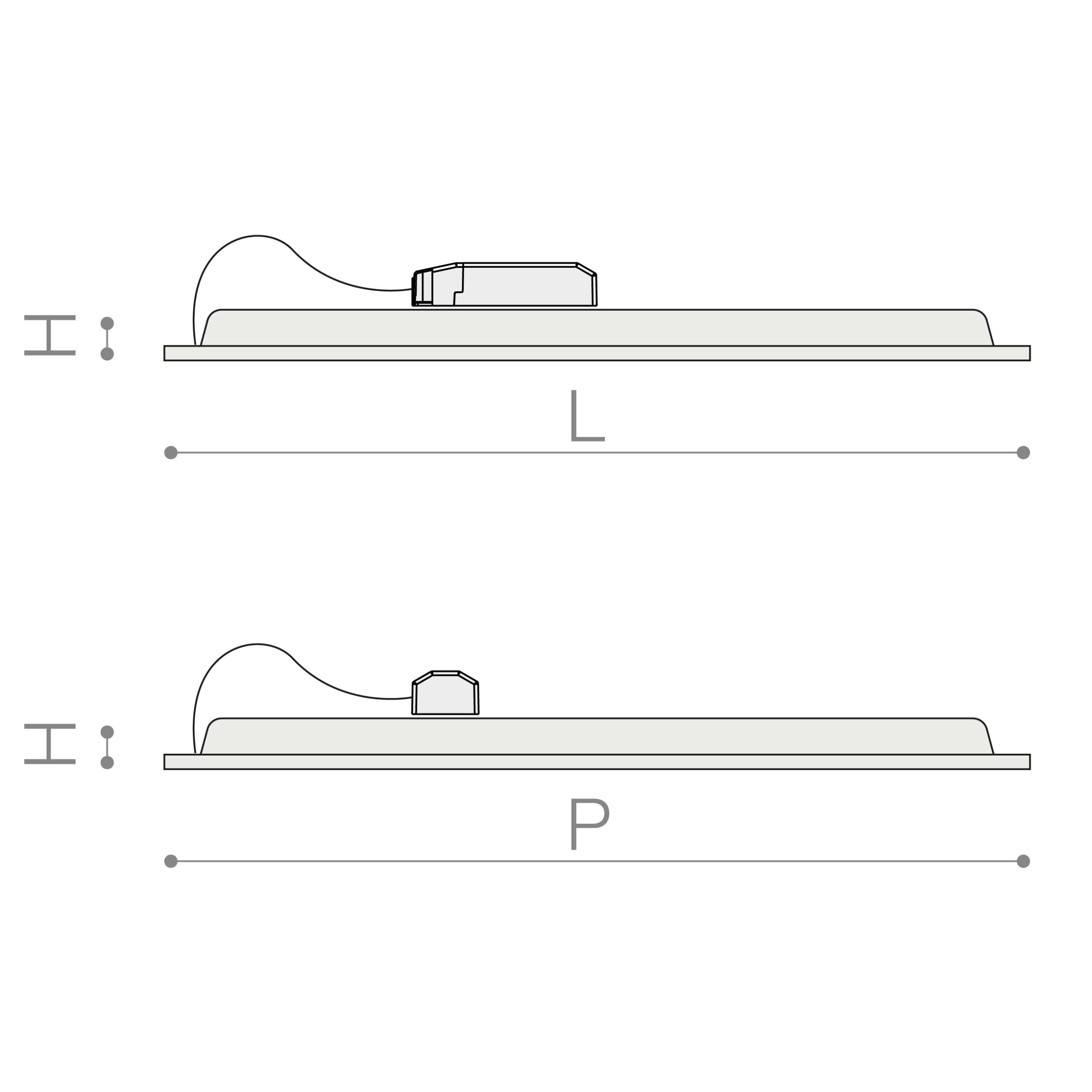

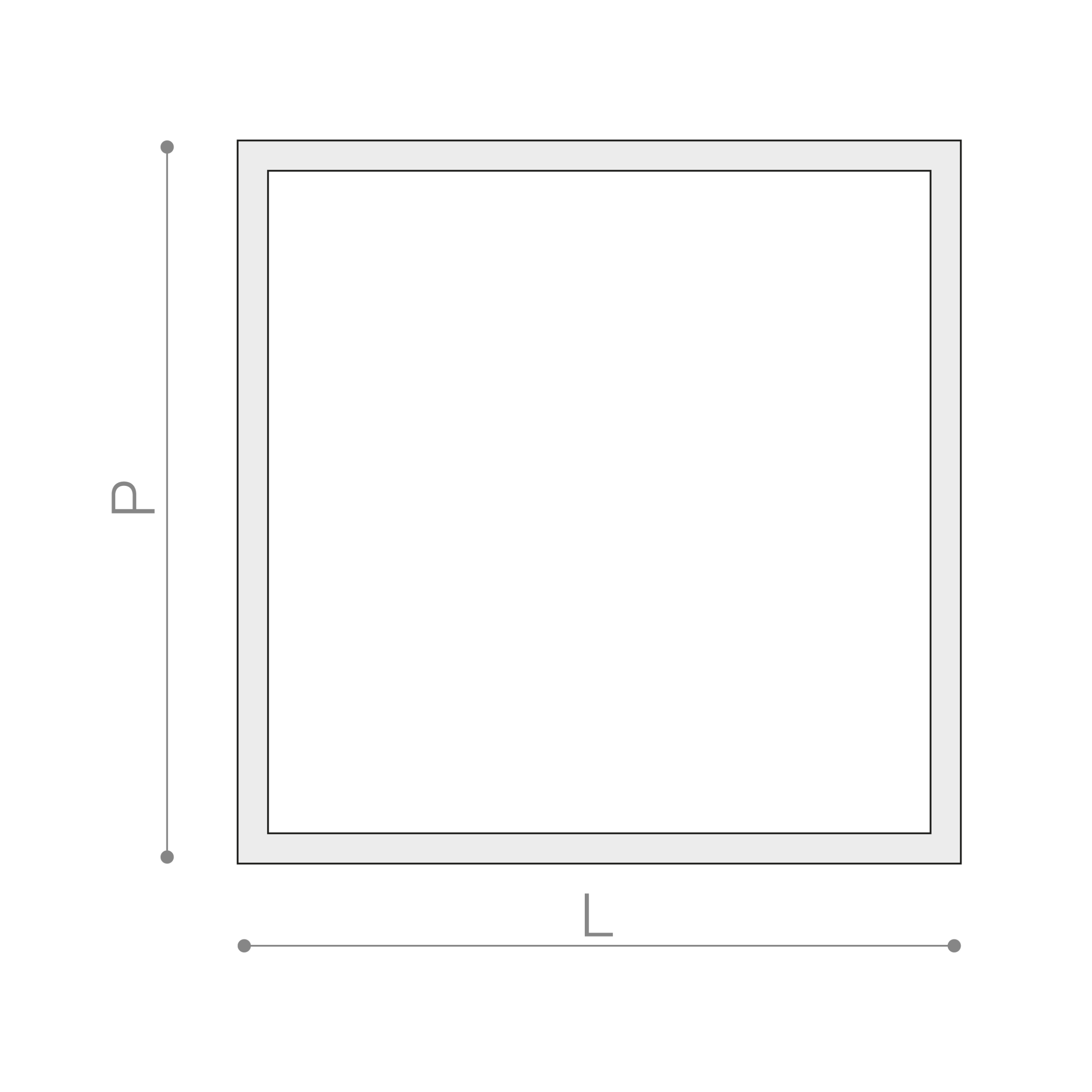

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1806QP0424EL244000°K - CRI>80on/off3223134595595352.2
1806QP0427EL274000°K - CRI>80on/off3555132595595352.2
1806QP0432EL324000°K - CRI>80on/off4158130595595352.2
1806QP0436EL364000°K - CRI>80on/off4642129595595352.2
1806QP0442EL424000°K - CRI>80on/off5113122595595352.2
1806QP0448EL484000°K - CRI>80on/off5795121595595352.2
1806QP0424LD244000°K - CRI>80dali 2 / dali 2 push3223134595595352.2
1806QP0427LD274000°K - CRI>80dali 2 / dali 2 push3555132595595352.2
1806QP0432LD324000°K - CRI>80dali 2 / dali 2 push4158130595595352.2
1806QP0436LD364000°K - CRI>80dali 2 / dali 2 push4642129595595352.2
1806QP0442LD424000°K - CRI>80dali 2 / dali 2 push5113122595595352.2
1806QP0448LD484000°K - CRI>80dali 2 / dali 2 push5795121595595352.2
1806QP0424D1244000°K - CRI>80dali 2 + em. 1h3223134595595352.2
1806QP0427D1274000°K - CRI>80dali 2 + em. 1h3555132595595352.2
1806QP0432D1324000°K - CRI>80dali 2 + em. 1h4158130595595352.2
1806QP0436D1364000°K - CRI>80dali 2 + em. 1h4642129595595352.2
1806QP0442D1424000°K - CRI>80dali 2 + em. 1h5113122595595352.2
1806QP0448D1484000°K - CRI>80dali 2 + em. 1h5795121595595352.2
1806QP0424E1244000°K - CRI>80em. 1h3223134595595352.2
1806QP0427E1274000°K - CRI>80em. 1h3555132595595352.2

Accessories
