QUADRA HP – Mod. RN

(UGR<19)

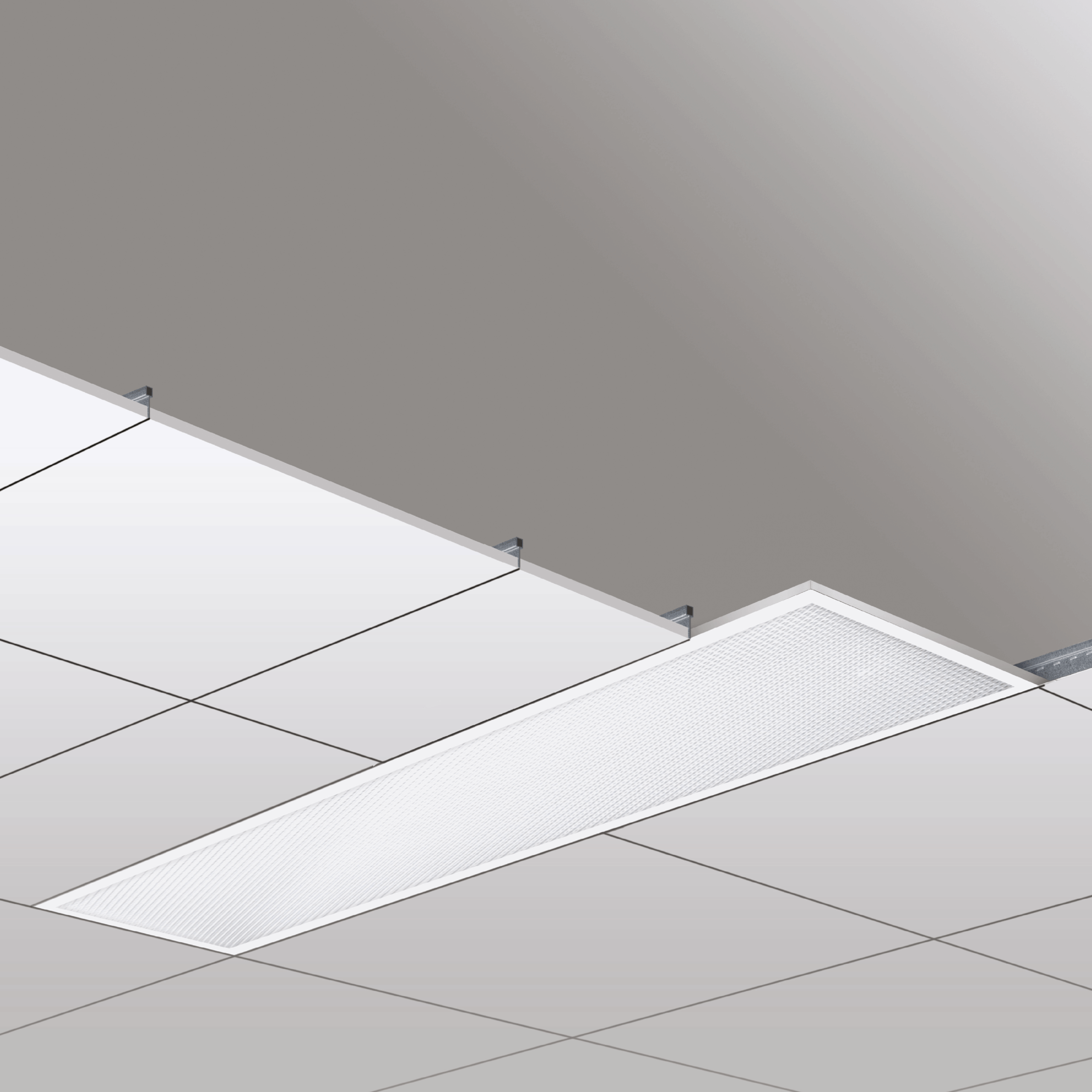

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in rebate with brackets (included) for false ceilings with concealed structure. Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA HP - 1806, Office, QUADRA HP
Models: 150
Color: Matt white
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1806RN03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1806RN0424EL24-4000°K - CRI>80on/off3223134298119835-2.3
1806RN0425EL25-4000°K - CRI>80on/off (DIP-switch)3341134298119835-2.3
1806RN0427EL27-4000°K - CRI>80on/off (DIP-switch)3555132298119835-2.3
1806RN0429EL29-4000°K - CRI>80on/off (DIP-switch)3824132298119835-2.3
1806RN0432EL32-4000°K - CRI>80on/off (DIP-switch)4158130298119835-2.3
1806RN0436EL36-4000°K - CRI>80on/off (DIP-switch)4642129298119835-2.3
1806RN0438EL38-4000°K - CRI>80on/off (DIP-switch)4732125298119835-2.3
1806RN0442EL42-4000°K - CRI>80on/off (DIP-switch)5113122298119835-2.3
1806RN0444EL44-4000°K - CRI>80on/off (DIP-switch)5339121298119835-2.3
1806RN0448EL48-4000°K - CRI>80on/off579512159859835-2.2
1806RN0424LD24-4000°K - CRI>80dali 2 / dali 2 push3223134298119835-2.3
1806RN0425LD25-4000°K - CRI>80dali 2 / dali 2 push3341134298119835-2.3
1806RN0427LD27-4000°K - CRI>80dali 2 / dali 2 push3555132298119835-2.3
1806RN0429LD29-4000°K - CRI>80dali 2 / dali 2 push3824132298119835-2.3
1806RN0432LD32-4000°K - CRI>80dali 2 / dali 2 push4158130298119835-2.3
1806RN0436LD36-4000°K - CRI>80dali 2 / dali 2 push4642129298119835-2.3
1806RN0438LD38-4000°K - CRI>80dali 2 / dali 2 push4732125298119835-2.3
1806RN0442LD42-4000°K - CRI>80dali 2 / dali 2 push5113122298119835-2.3
1806RN0444LD44-4000°K - CRI>80dali 2 / dali 2 push5339121298119835-2.3
1806RN0448LD48-4000°K - CRI>80dali 2 / dali 2 push579512159859835-2.2
