QUADRA HP – Mod. RP

(UGR<19)

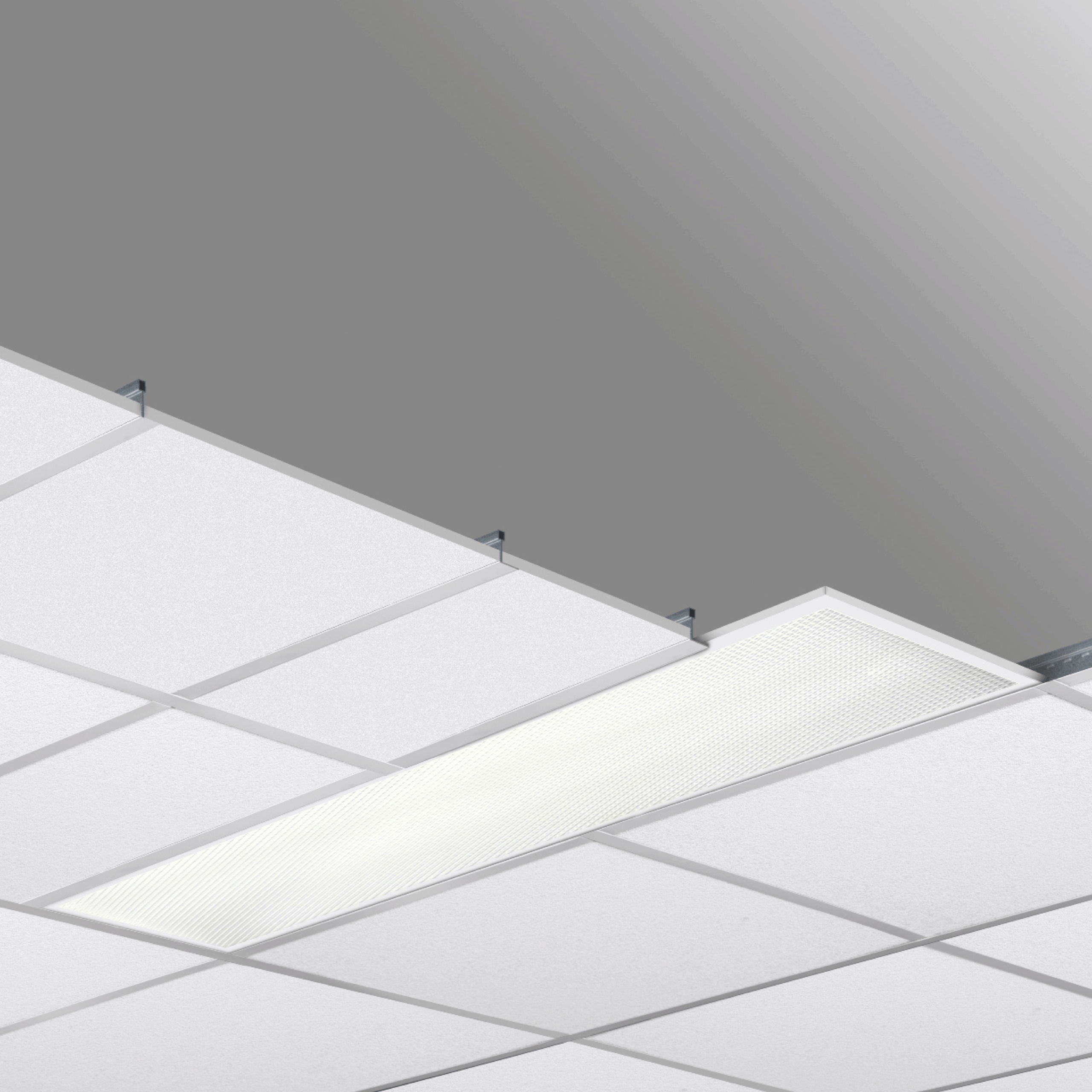

Multi-installation BACKLIGHT led fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, QUADRA HP - 1806, Office, QUADRA HP
Models: 150
Color: Matt white
Catalogue abstract
Installation instructions

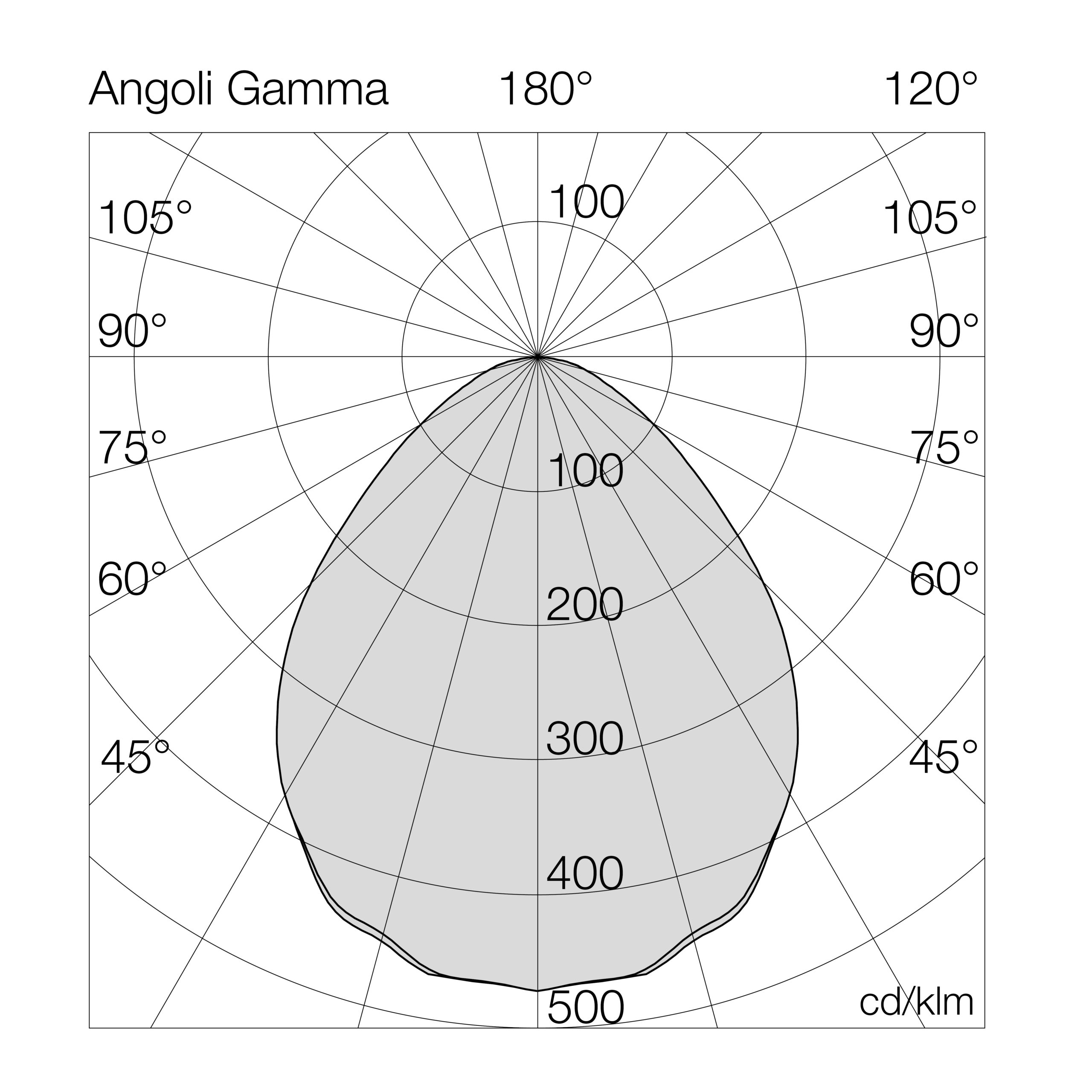

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1806RP03= 3000°K (CRI >80)24EL= on/off (DIP-switch)
04= 4000°K (CRI >80)25LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options

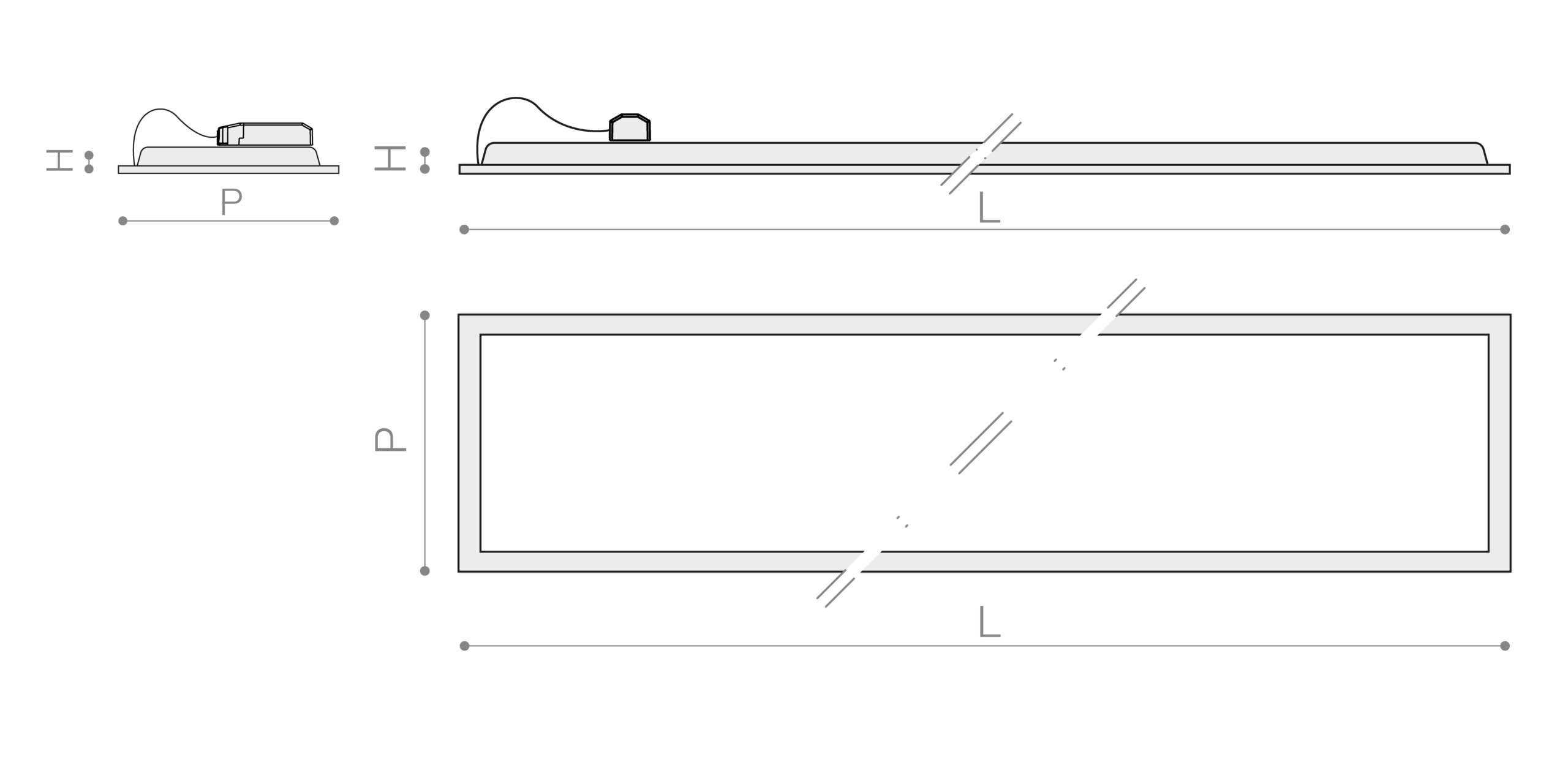

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1806RP0424EL24-4000°K - CRI>80on/off3223134295119535-2.3
1806RP0425EL25-4000°K - CRI>80on/off (DIP-switch)3341134295119535-2.3
1806RP0427EL27-4000°K - CRI>80on/off (DIP-switch)3555132295119535-2.3
1806RP0429EL29-4000°K - CRI>80on/off (DIP-switch)3824132295119535-2.3
1806RP0432EL32-4000°K - CRI>80on/off (DIP-switch)4158130295119535-2.3
1806RP0436EL36-4000°K - CRI>80on/off (DIP-switch)4642129295119535-2.3
1806RP0438EL38-4000°K - CRI>80on/off (DIP-switch)4732125295119535-2.3
1806RP0442EL42-4000°K - CRI>80on/off (DIP-switch)5113122295119535-2.3
1806RP0444EL44-4000°K - CRI>80on/off (DIP-switch)5339121295119535-2.3
1806RP0448EL48-4000°K - CRI>80on/off579512159559535-2.2
1806RP0424LD24-4000°K - CRI>80dali 2 / dali 2 push3223134295119535-2.3
1806RP0425LD25-4000°K - CRI>80dali 2 / dali 2 push3341134295119535-2.3
1806RP0427LD27-4000°K - CRI>80dali 2 / dali 2 push3555132295119535-2.3
1806RP0429LD29-4000°K - CRI>80dali 2 / dali 2 push3824132295119535-2.3
1806RP0432LD32-4000°K - CRI>80dali 2 / dali 2 push4158130295119535-2.3
1806RP0436LD36-4000°K - CRI>80dali 2 / dali 2 push4642129295119535-2.3
1806RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push4732125295119535-2.3
1806RP0442LD42-4000°K - CRI>80dali 2 / dali 2 push5113122295119535-2.3
1806RP0444LD44-4000°K - CRI>80dali 2 / dali 2 push5339121295119535-2.3
1806RP0448LD48-4000°K - CRI>80dali 2 / dali 2 push579512159559535-2.2
