art.-1808-dasia-rp

DASIA – Mod. RP

(UGR<19)

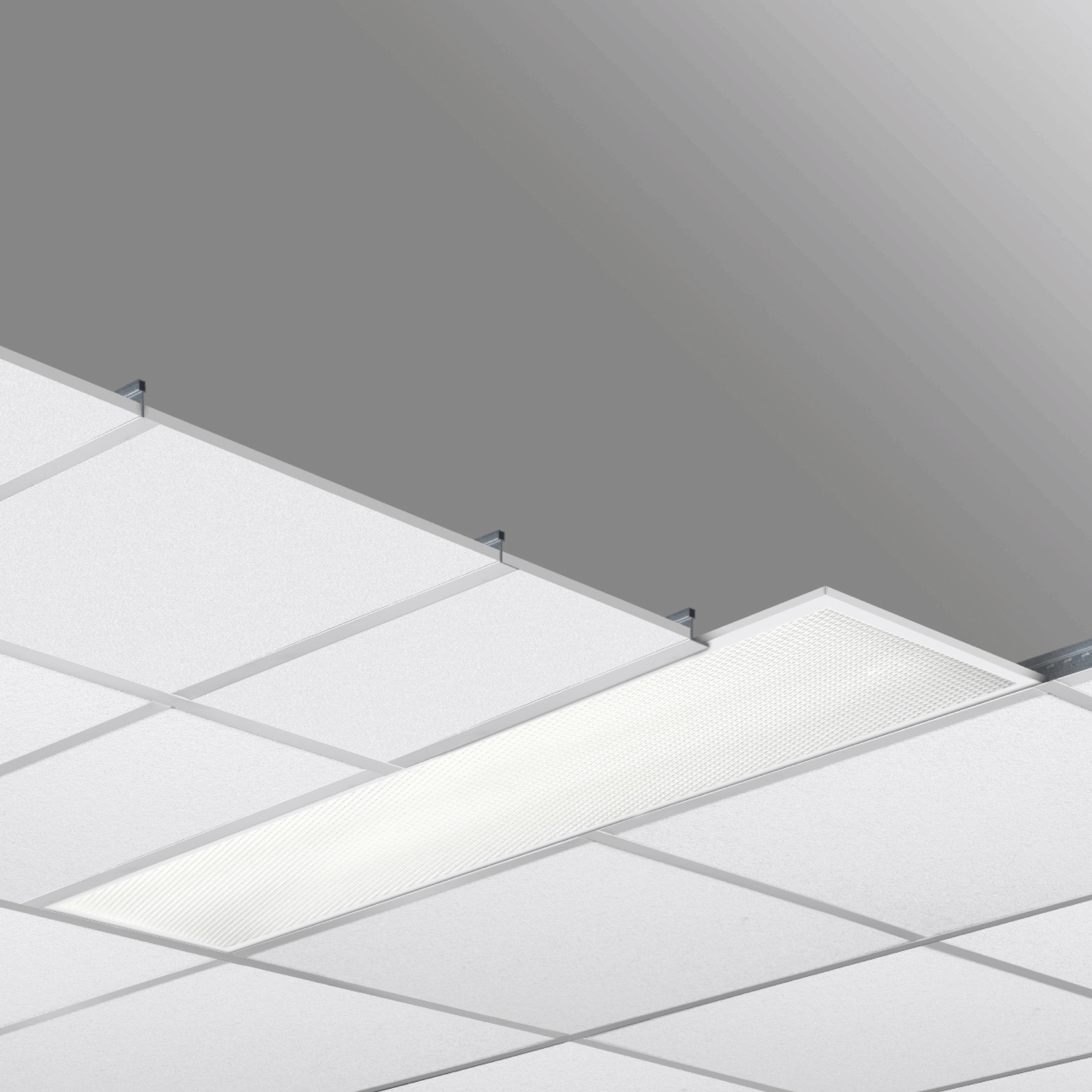

Multi-installation BACKLIGHT LED fixture, suitable for recessed installation in support of false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted (via accessory) or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, DASIA - 1808, Office, DASIA
Models: 100
Color: Matt white
Catalogue abstract
Installation instructions

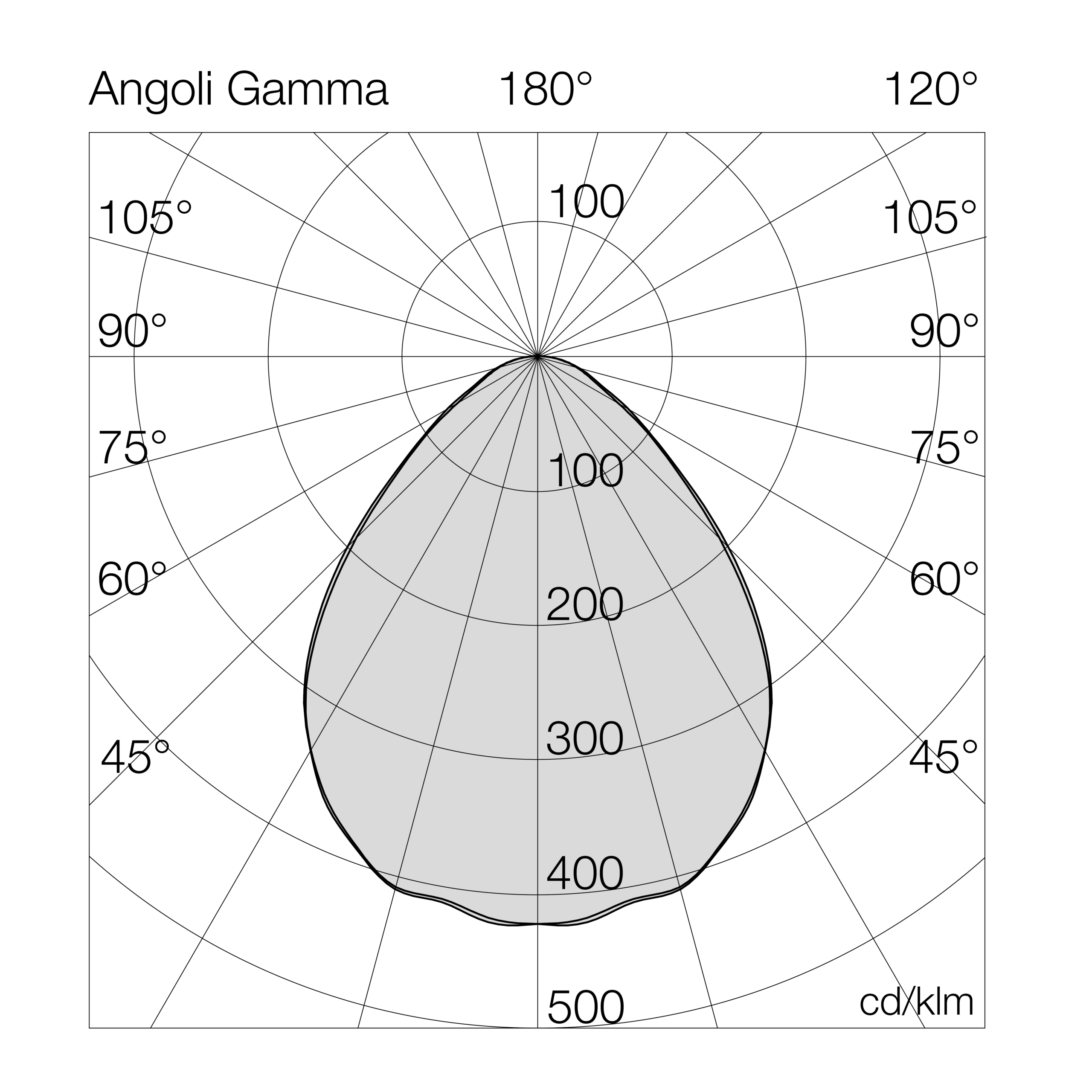

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1808RP04= 4000°K (CRI >80)17EL= on/off
09= 4000°K (CRI >90)24LD= dali 2 / dali 2 push
34D1= dali 2 + em.1h
35E1= em. 1h
E3= em. 3h
Art.+Mod.+°K (CRI)+W tot.+Options
1808RP03= 3000°K (CRI >80)32EL= on/off
04= 4000°K (CRI >80)38LD= dali 2 / dali 2 push
06= 6500°K (CRI >80)42D1= dali 2 + em.1h
09= 4000°K (CRI >90)E1= em. 1h
E3= em. 3h

Models

W tot.
°K - CRI
Options

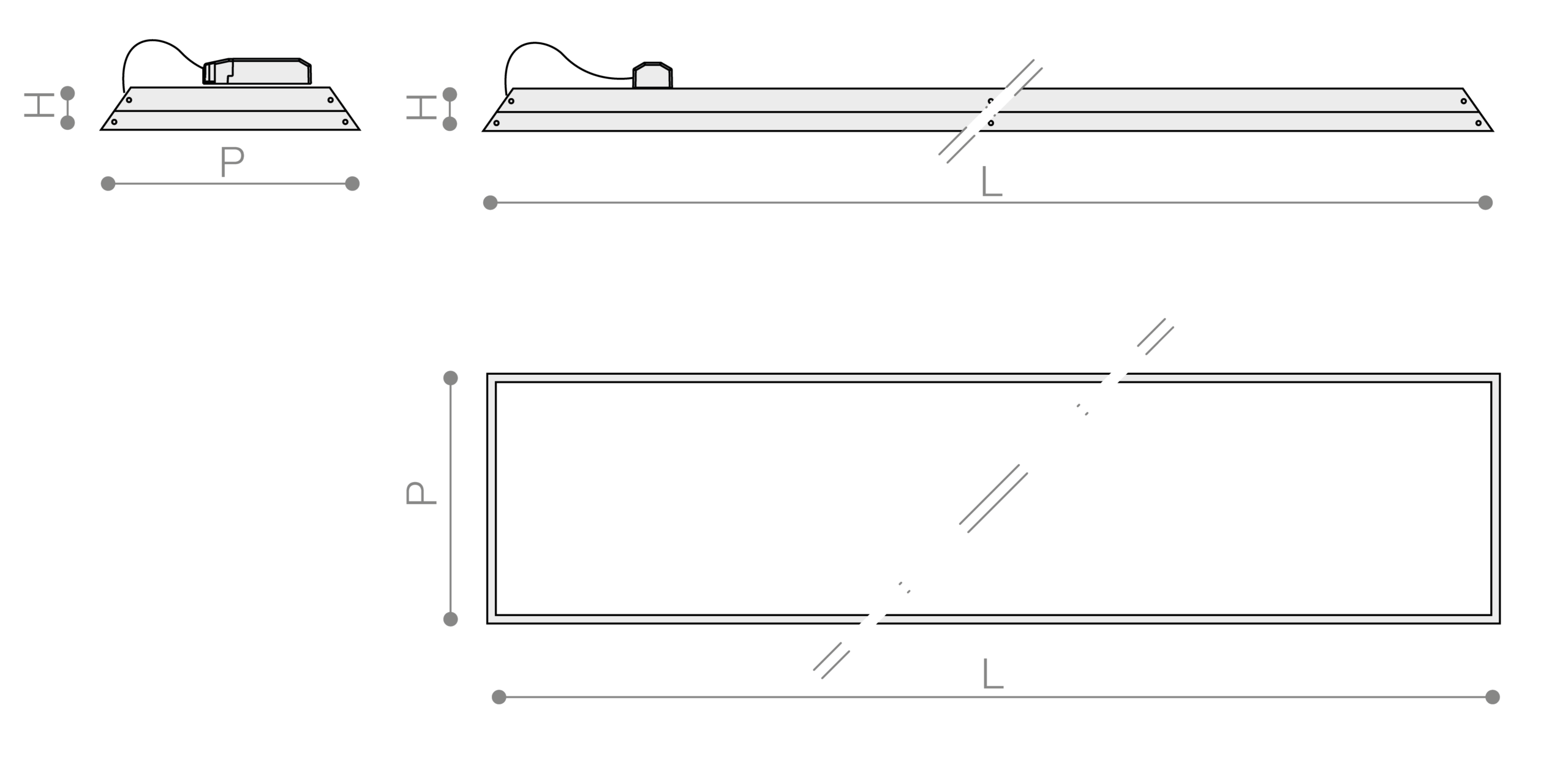

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1808RP0417EL17-4000°K - CRI>80on/off170010029559560-2.0
1808RP0424EL24-4000°K - CRI>80on/off2573107295119560-3.2
1808RP0432EL32-4000°K - CRI>80on/off4185131295119560-3.2
1808RP0434EL34-4000°K - CRI>80on/off3729110295119560-3.2
1808RP0435EL35-4000°K - CRI>80on/off340097295119560-3.2
1808RP0438EL38-4000°K - CRI>80on/off4462117295119560-3.2
1808RP0442EL42-4000°K - CRI>80on/off4849115295119560-3.2
1808RP0417LD17-4000°K - CRI>80dali 2 / dali 2 push170010029559560-2.0
1808RP0424LD24-4000°K - CRI>80dali 2 / dali 2 push2573107295119560-3.2
1808RP0432LD32-4000°K - CRI>80dali 2 / dali 2 push4185131295119560-3.2
1808RP0434LD34-4000°K - CRI>80dali 2 / dali 2 push3729110295119560-3.2
1808RP0435LD35-4000°K - CRI>80dali 2 / dali 2 push340097295119560-3.2
1808RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push4462117295119560-3.2
1808RP0442LD42-4000°K - CRI>80dali 2 / dali 2 push4849115295119560-3.2
1808RP0417D117-4000°K - CRI>80dali + em. 1h170010029559560-2.0
1808RP0424D124-4000°K - CRI>80dali + em. 1h2573107295119560-3.2
1808RP0432D132-4000°K - CRI>80dali + em. 1h4185131295119560-3.2
1808RP0434D134-4000°K - CRI>80dali + em. 1h3729110295119560-3.2
1808RP0435D135-4000°K - CRI>80dali + em. 1h340097295119560-3.2
1808RP0438D138-4000°K - CRI>80dali + em. 1h4462117295119560-3.2
