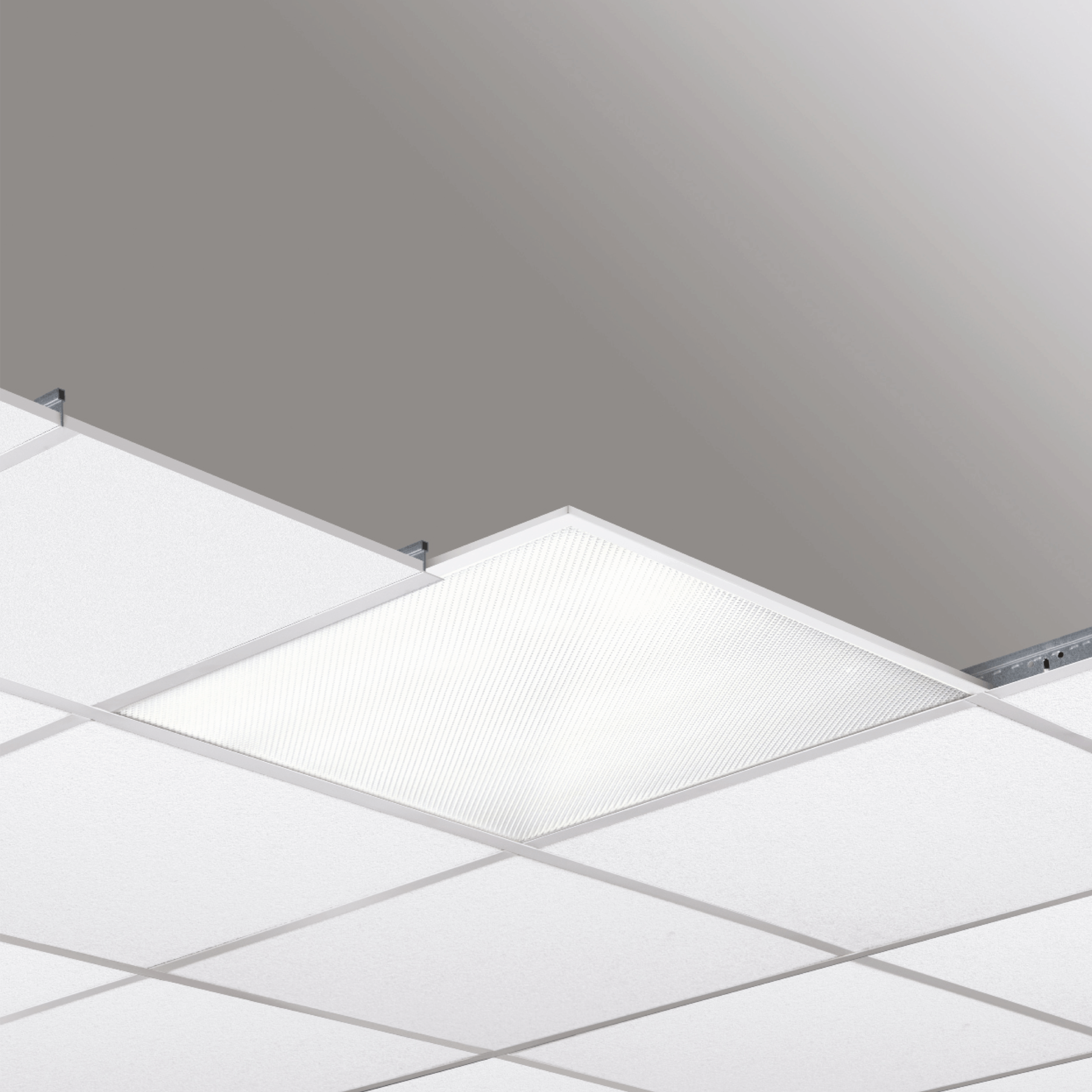

QUADRA IP – Mod. QH6

(IP65 – UGR<19)

BACKLIGHT led panel for countertop installation recessed in false ceiling with 15/24 mm visible structure. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, QUADRA IP, QUADRA IP - 1814, Places of Care, QUADRA IP
Models: 100
Color: Matt white
Catalogue abstract
Installation instructions

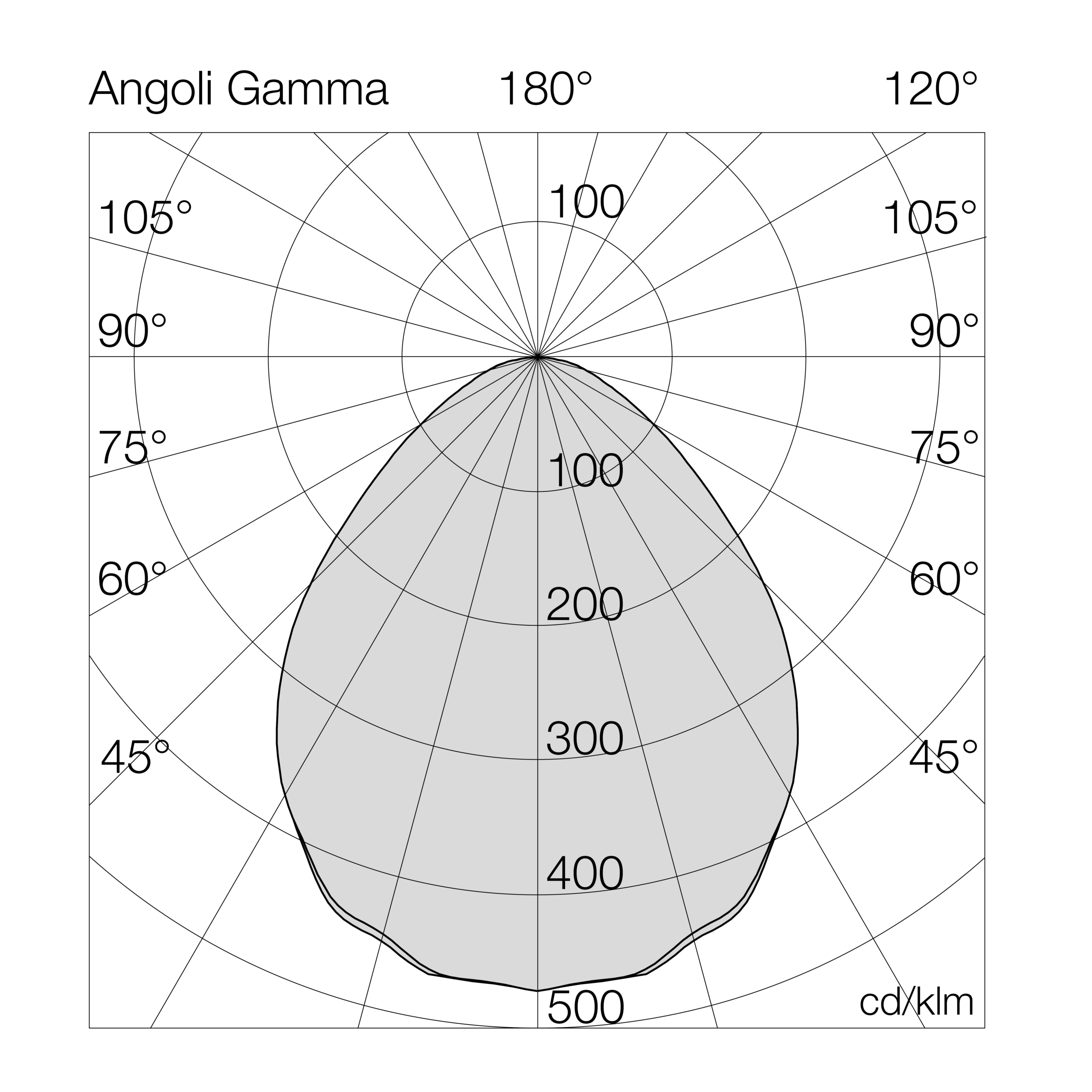

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1814QH64= 4000°K (CRI >80)24EL= on/off (DIP-switch)
9= 4000°K (CRI >90)25LD= dali 2 / dali 2 push
27D1= dali 2 + em.1h
29E1= em. 1h (DIP-switch)
32E3= em. 3h (DIP-switch)
36
38
42
44
48

Models

W tot.
°K - CRI
Options

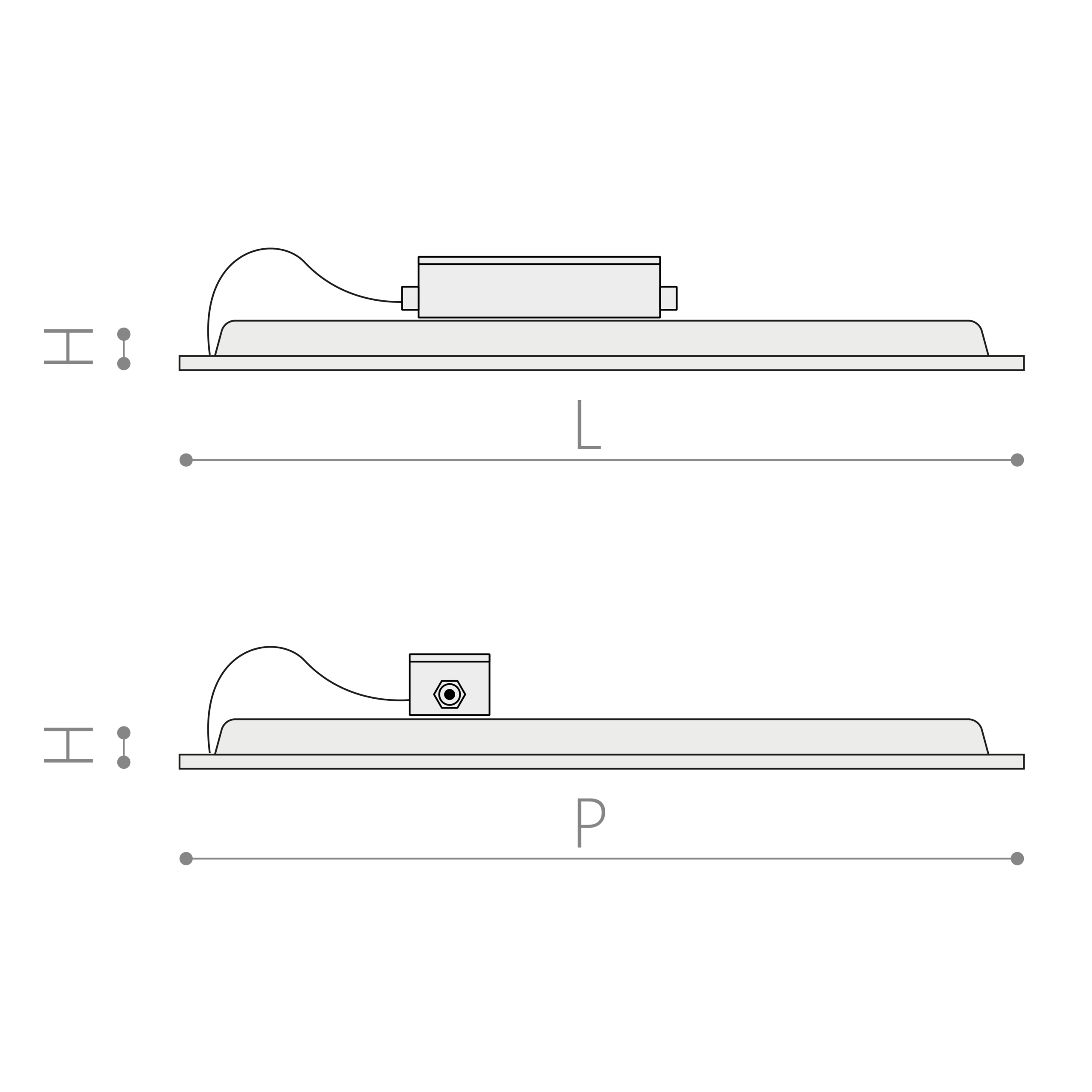

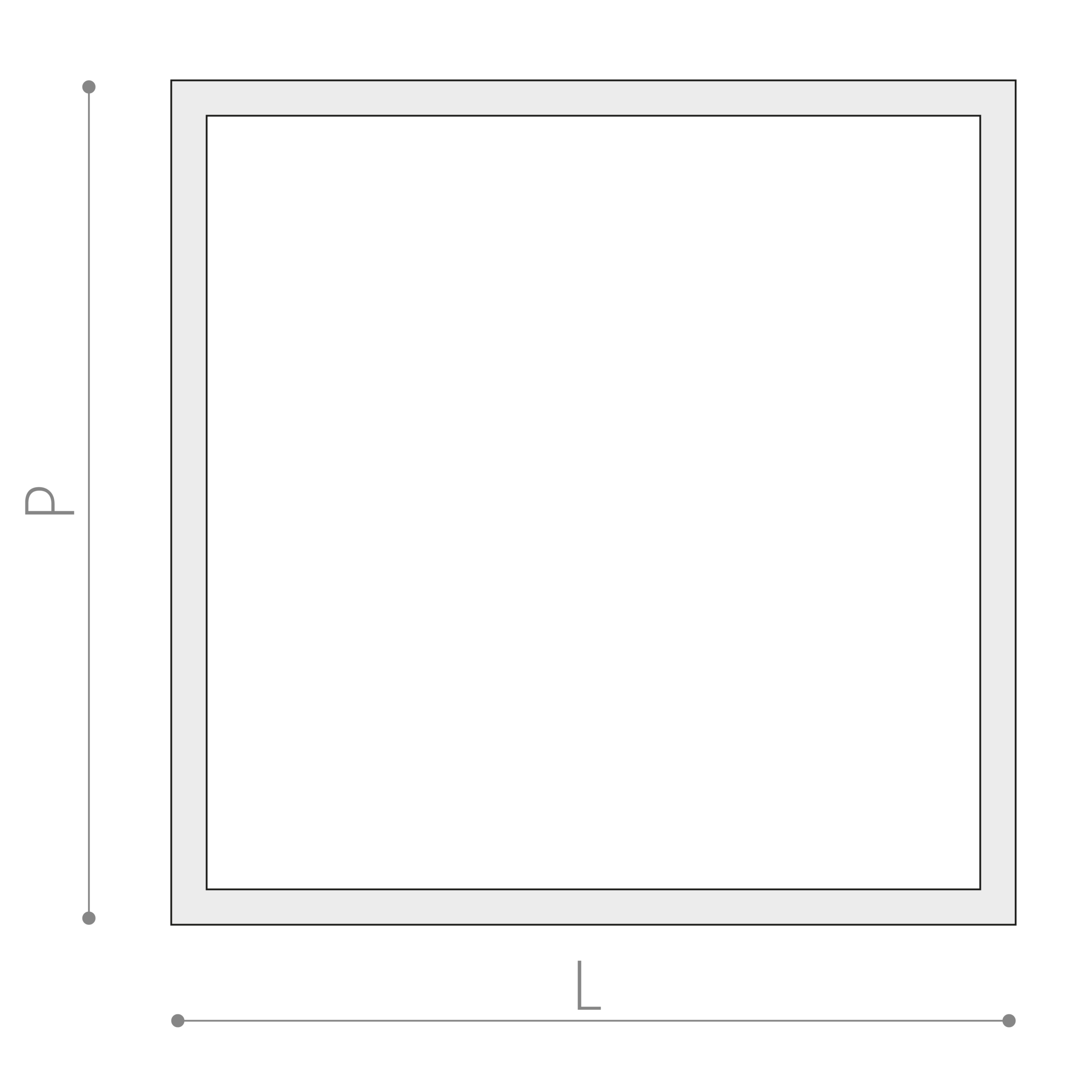

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1814QH6424EL24-4000°K - CRI>80on/off322313459559535-2.5
1814QH6425EL25-4000°K - CRI>80on/off (DIP-switch)334113459559535-2.5
1814QH6427EL27-4000°K - CRI>80on/off (DIP-switch)355513259559535-2.5
1814QH6429EL29-4000°K - CRI>80on/off (DIP-switch)382413259559535-2.5
1814QH6432EL32-4000°K - CRI>80on/off (DIP-switch)415813059559535-2.5
1814QH6436EL36-4000°K - CRI>80on/off (DIP-switch)464212959559535-2.5
1814QH6438EL38-4000°K - CRI>80on/off (DIP-switch)473212559559535-2.5
1814QH6442EL42-4000°K - CRI>80on/off (DIP-switch)511312259559535-2.5
1814QH6444EL44-4000°K - CRI>80on/off (DIP-switch)533912159559535-2.5
1814QH6448EL48-4000°K - CRI>80on/off579512159559535-2.5
1814QH6424LD24-4000°K - CRI>80dali 2 / dali 2 push322313459559535-2.5
1814QH6425LD25-4000°K - CRI>80dali 2 / dali 2 push334113459559535-2.5
1814QH6427LD27-4000°K - CRI>80dali 2 / dali 2 push355513259559535-2.5
1814QH6429LD29-4000°K - CRI>80dali 2 / dali 2 push382413259559535-2.5
1814QH6432LD32-4000°K - CRI>80dali 2 / dali 2 push415813059559535-2.5
1814QH6436LD36-4000°K - CRI>80dali 2 / dali 2 push464212959559535-2.5
1814QH6438LD38-4000°K - CRI>80dali 2 / dali 2 push473212559559535-2.5
1814QH6442LD42-4000°K - CRI>80dali 2 / dali 2 push511312259559535-2.5
1814QH6444LD44-4000°K - CRI>80dali 2 / dali 2 push533912159559535-2.5
1814QH6448LD48-4000°K - CRI>80dali 2 / dali 2 push579512159559535-2.5

Accessories
