VERA – Mod. IQ

(UGR<19)

Multi-installation DIRECT BACKLIGHT LED luminaire, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory). Sheet steel body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Rotosymmetric reflector made of drawn sheet steel painted white, anti-glare and anti-reflective.

Categories: Led, VERA, VERA - 1820, Office, VERA

Models: 60

Color: Matt white

Catalogue abstract

Installation instructions

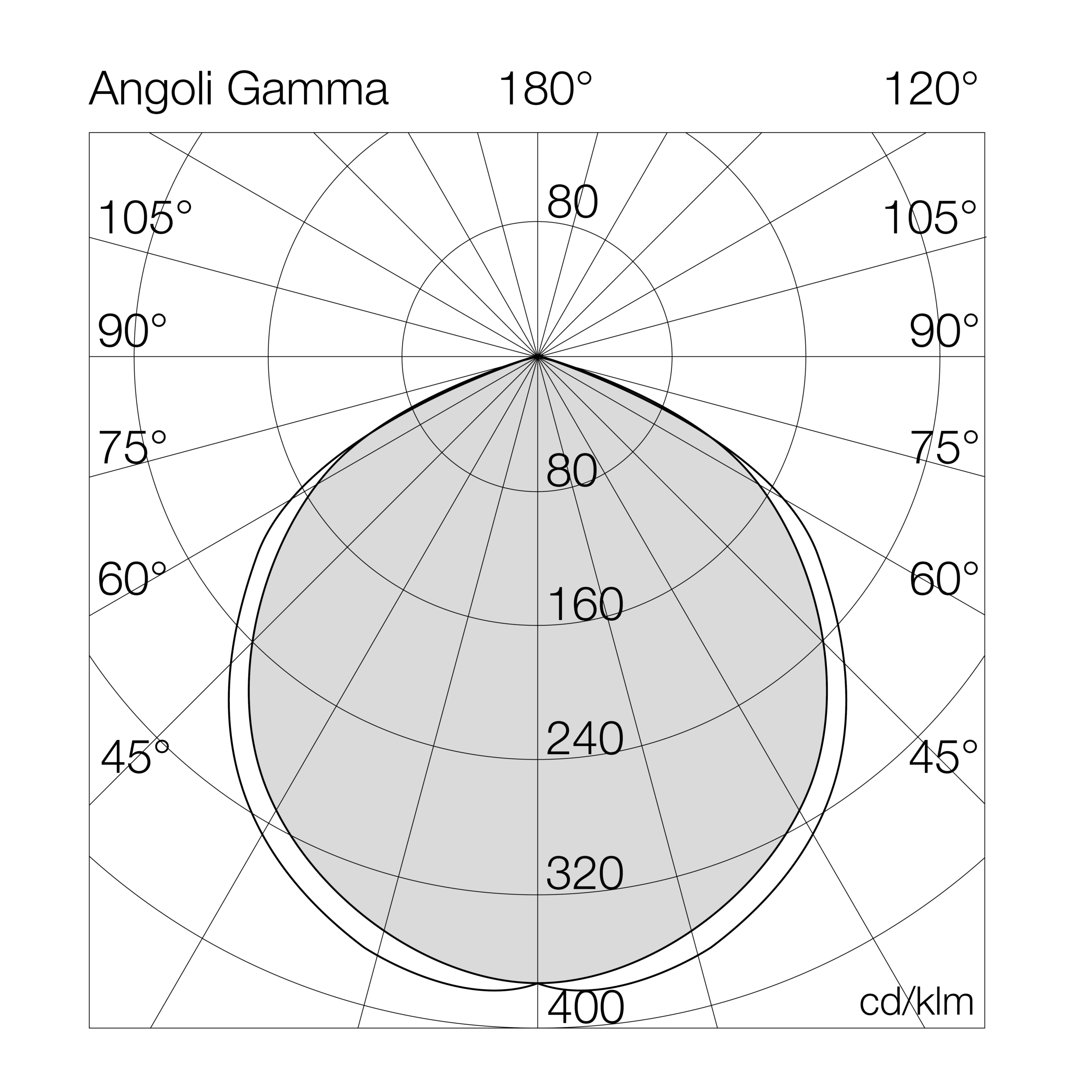

Photometric data

Legenda

Art	Mod.	°K (CRI)		W tot.	Options
1820	IQ	03	= 3000°K (CRI >80)	26	EL	= on/off
		04	= 4000°K (CRI >80)	29	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	32	D1	= dali 2 + em. 1h
				37	E1	= em. 1h
					E3	= em. 3h

Models

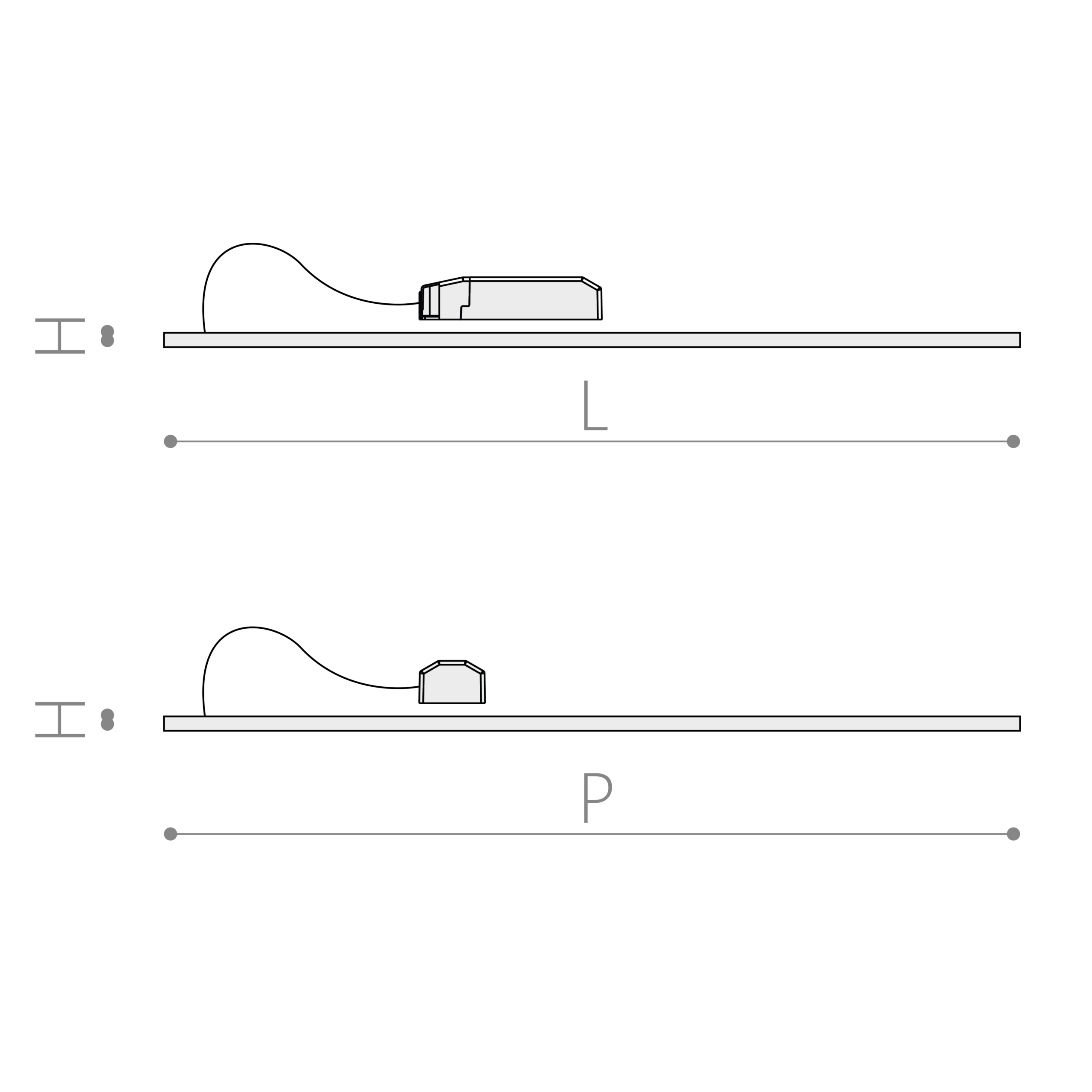

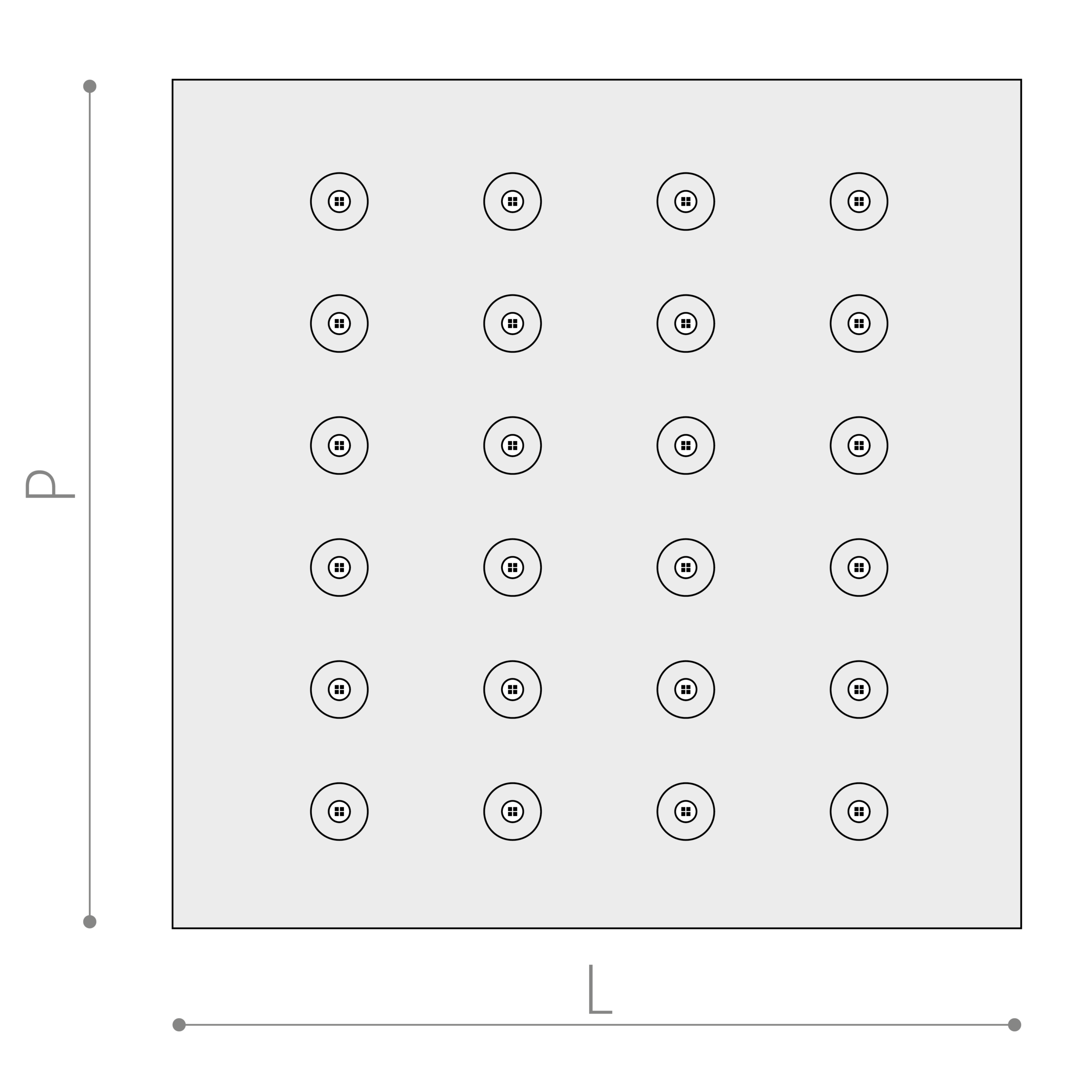

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
1820IQ0426EL	26	-	4000°K - CRI>80	on/off	3837	148	595	595	10	-	4.0
1820IQ0429EL	29	-	4000°K - CRI>80	on/off	4658	161	595	595	10	-	4.0
1820IQ0432EL	32	-	4000°K - CRI>80	on/off	4817	151	595	595	10	-	4.0
1820IQ0437EL	37	-	4000°K - CRI>80	on/off	5322	144	595	595	10	-	4.0
1820IQ0426LD	26	-	4000°K - CRI>80	dali 2 / dali 2 push	3837	148	595	595	10	-	4.0
1820IQ0429LD	29	-	4000°K - CRI>80	dali 2 / dali 2 push	4658	161	595	595	10	-	4.0
1820IQ0432LD	32	-	4000°K - CRI>80	dali 2 / dali 2 push	4817	151	595	595	10	-	4.0
1820IQ0437LD	37	-	4000°K - CRI>80	dali 2 / dali 2 push	5322	144	595	595	10	-	4.0
1820IQ0426D1	26	-	4000°K - CRI>80	dali + em. 1h	3837	148	595	595	10	-	4.0
1820IQ0429D1	29	-	4000°K - CRI>80	dali + em. 1h	4658	161	595	595	10	-	4.0
1820IQ0432D1	32	-	4000°K - CRI>80	dali + em. 1h	4817	151	595	595	10	-	4.0
1820IQ0437D1	37	-	4000°K - CRI>80	dali + em. 1h	5322	144	595	595	10	-	4.0
1820IQ0426E1	26	-	4000°K - CRI>80	em. 1h	3837	148	595	595	10	-	4.0
1820IQ0429E1	29	-	4000°K - CRI>80	em. 1h	4658	161	595	595	10	-	4.0
1820IQ0432E1	32	-	4000°K - CRI>80	em. 1h	4817	151	595	595	10	-	4.0
1820IQ0437E1	37	-	4000°K - CRI>80	em. 1h	5322	144	595	595	10	-	4.0
1820IQ0426E3	26	-	4000°K - CRI>80	em. 3h	3837	148	595	595	10	-	4.0
1820IQ0429E3	29	-	4000°K - CRI>80	em. 3h	4658	161	595	595	10	-	4.0
1820IQ0432E3	32	-	4000°K - CRI>80	em. 3h	4817	151	595	595	10	-	4.0
1820IQ0437E3	37	-	4000°K - CRI>80	em. 3h	5322	144	595	595	10	-	4.0
