art.-1820-vera-lq-nero

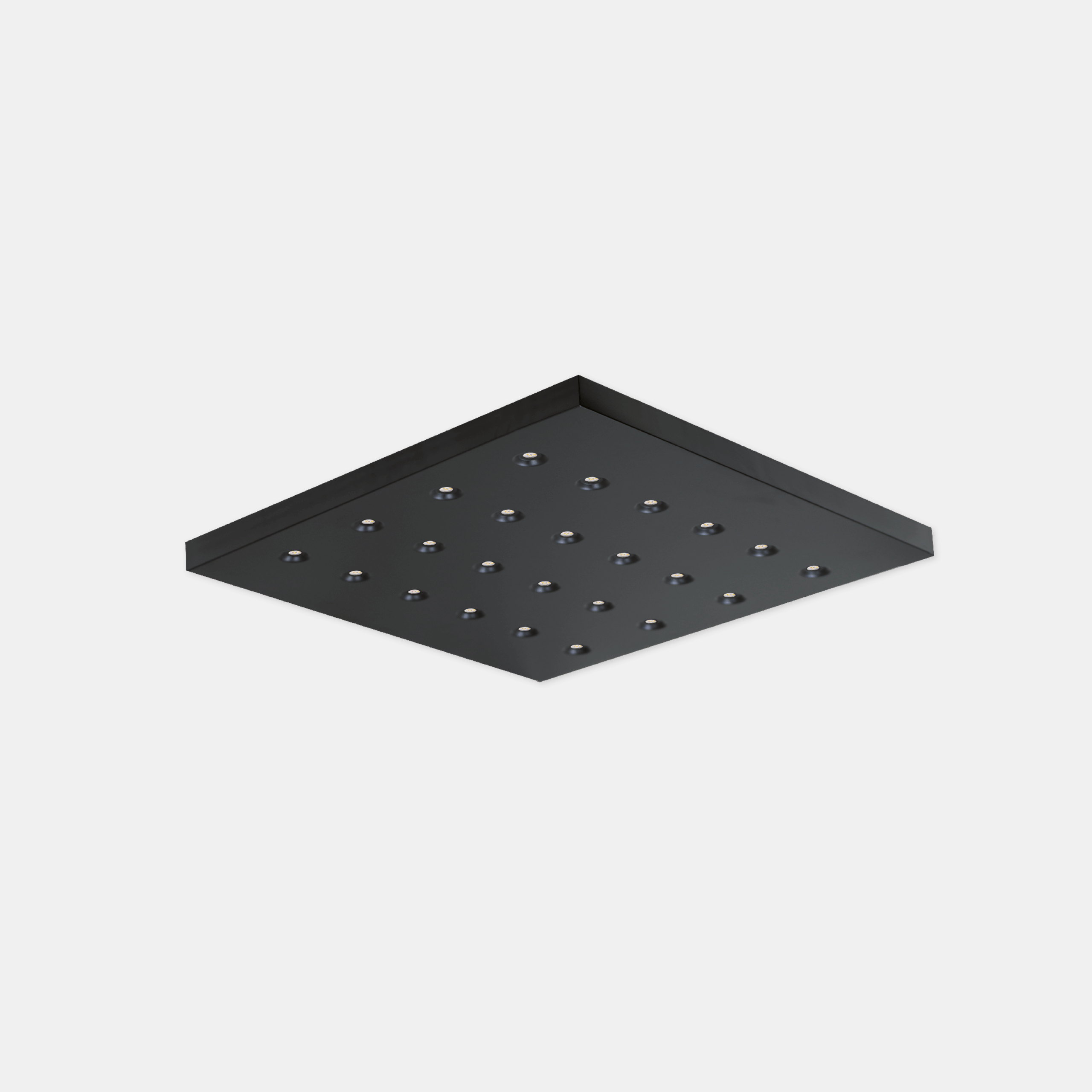

VERA – Mod. LQ

(UGR<19)

Multi-installation DIRECT BACKLIGHT LED luminaire, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface-mounted or suspended (via accessory). Sheet steel body, painted with black epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Rotosymmetric reflector made of drawn sheet steel painted black, anti-glare and anti-reflective.
Categories: Led, VERA, VERA - 1820, Office, VERA
Models: 75
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1820LQ03= 3000°K (CRI >80)26NL= on/off
04= 4000°K (CRI >80)29ND= dali 2 / dali 2 push
94= 4000°K (CRI >90)321N= dali 2 + em. 1h
36N1= em. 1h
37N3= em. 3h

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1820LQ0426NL26-4000°K - CRI>80on/off383714859559535-5.0
1820LQ0429NL29-4000°K - CRI>80on/off465816159559535-5.0
1820LQ0432NL32-4000°K - CRI>80on/off481715159559535-5.0
1820LQ0436NL36-4000°K - CRI>80on/off573815959559535-5.0
1820LQ0437NL37-4000°K - CRI>80on/off532214459559535-5.0
1820LQ0426ND26-4000°K - CRI>80dali 2 / dali 2 push383714859559535-5.0
1820LQ0429ND29-4000°K - CRI>80dali 2 / dali 2 push465816159559535-5.0
1820LQ0432ND32-4000°K - CRI>80dali 2 / dali 2 push481715159559535-5.0
1820LQ0436ND36-4000°K - CRI>80dali 2 / dali 2 push573815959559535-5.0
1820LQ0437ND37-4000°K - CRI>80dali 2 / dali 2 push532214459559535-5.0
1820LQ04261N26-4000°K - CRI>80dali + em. 1h383714859559535-5.0
1820LQ04291N29-4000°K - CRI>80dali + em. 1h465816159559535-5.0
1820LQ04321N32-4000°K - CRI>80dali + em. 1h481715159559535-5.0
1820LQ04361N36-4000°K - CRI>80dali + em. 1h573815959559535-5.0
1820LQ04371N37-4000°K - CRI>80dali + em. 1h532214459559535-5.0
1820LQ0426N126-4000°K - CRI>80em. 1h383714859559535-5.0
1820LQ0429N129-4000°K - CRI>80em. 1h465816159559535-5.0
1820LQ0432N132-4000°K - CRI>80em. 1h481715159559535-5.0
1820LQ0436N136-4000°K - CRI>80em. 1h573815959559535-5.0
1820LQ0437N137-4000°K - CRI>80em. 1h532214459559535-5.0

Accessories
