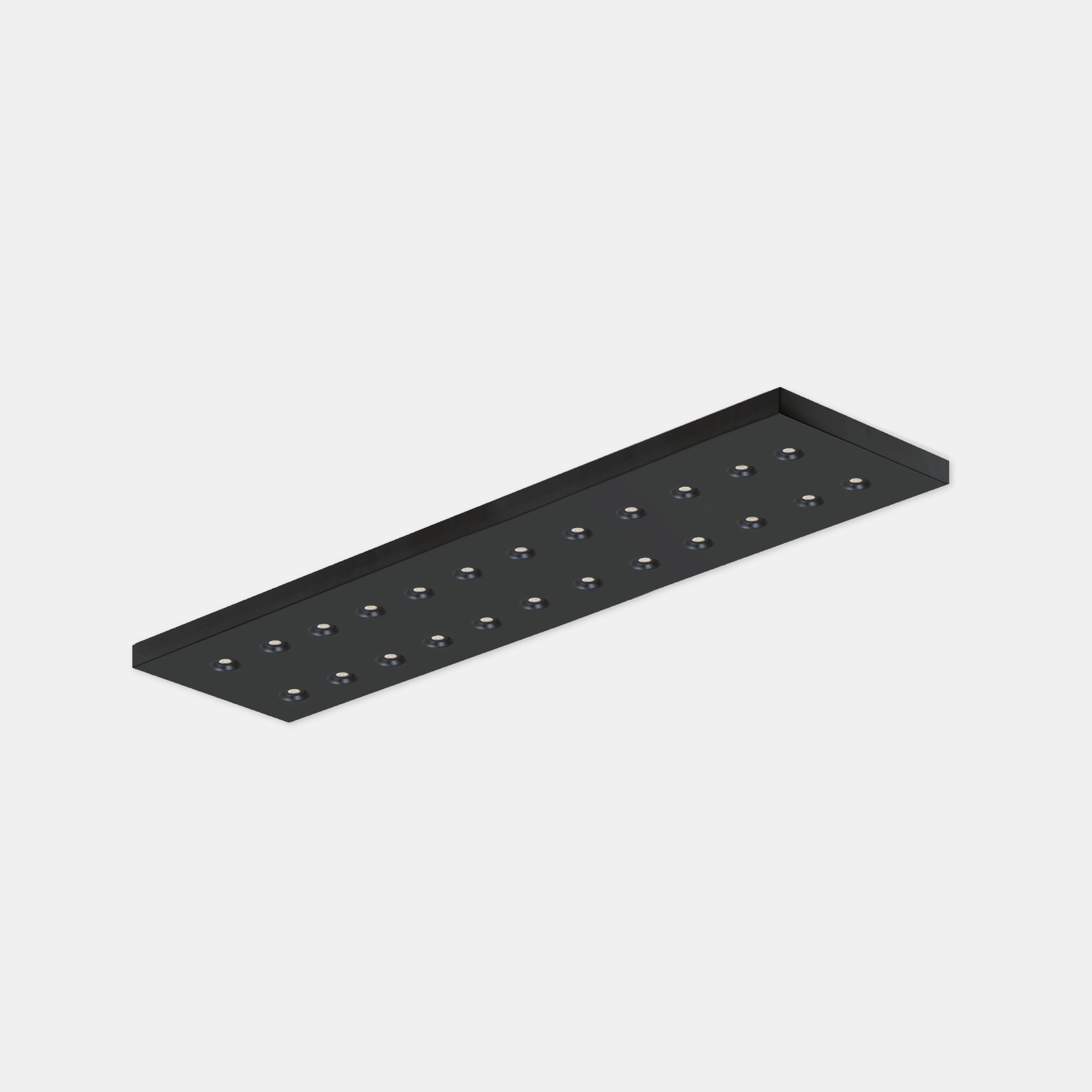

VERA – Mod. LR

(UGR<19)

Multi-installation DIRECT BACKLIGHT LED luminaire, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface-mounted or suspended (via accessory). Sheet steel body, painted with black epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Rotosymmetric reflector made of drawn sheet steel painted black, anti-glare and anti-reflective.
Categories: Led, VERA, VERA - 1820, Office, VERA
Models: 105
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1820LR03= 3000°K (CRI >80)18NL= on/off
04= 4000°K (CRI >80)26ND = dali 2 / dali 2 push
94= 4000°K (CRI >90)291N= dali 2 + em.1h
32N1= em. 1h
36N3= em. 3h
37
74

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1820LR0418NL18-4000°K - CRI>80on/off266014829559535-3.0
1820LR0426NL26-4000°K - CRI>80on/off3837148295119535-5.0
1820LR0429NL29-4000°K - CRI>80on/off4658161295119535-5.0
1820LR0432NL32-4000°K - CRI>80on/off4817151295119535-5.0
1820LR0436NL36-4000°K - CRI>80on/off5738159295119535-5.0
1820LR0437NL37-4000°K - CRI>80on/off5322144295119535-5.0
1820LR0474NL74-4000°K - CRI>80on/off10643144595119535-9.0
1820LR0418ND18-4000°K - CRI>80dali 2 / dali 2 push266014829559535-3.0
1820LR0426ND26-4000°K - CRI>80dali 2 / dali 2 push3837148295119535-5.0
1820LR0429ND29-4000°K - CRI>80dali 2 / dali 2 push4658161295119535-5.0
1820LR0432ND32-4000°K - CRI>80dali 2 / dali 2 push4817151295119535-5.0
1820LR0436ND36-4000°K - CRI>80dali 2 / dali 2 push5738159295119535-5.0
1820LR0437ND37-4000°K - CRI>80dali 2 / dali 2 push5322144295119535-5.0
1820LR0474ND74-4000°K - CRI>80dali 2 / dali 2 push10643144595119535-9.0
1820LR04181N18-4000°K - CRI>80dali + em. 1h266014829559535-3.0
1820LR04261N26-4000°K - CRI>80dali + em. 1h3837148295119535-5.0
1820LR04291N29-4000°K - CRI>80dali + em. 1h4658161295119535-5.0
1820LR04321N32-4000°K - CRI>80dali + em. 1h4817151295119535-5.0
1820LR04361N36-4000°K - CRI>80dali + em. 1h5738159295119535-5.0
1820LR04371N37-4000°K - CRI>80dali + em. 1h5322144295119535-5.0
