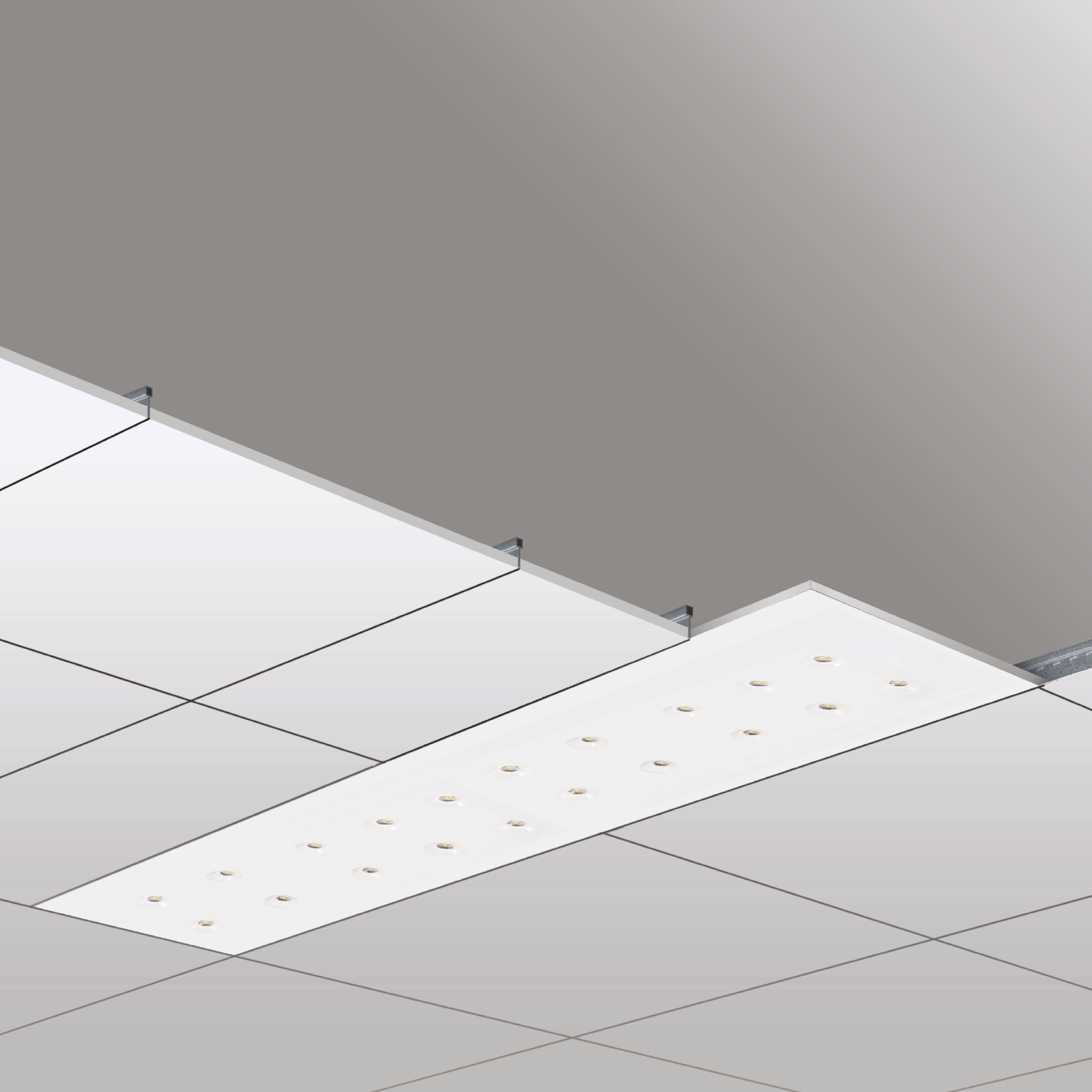

VERA/RN

Multi-installation DIRECT BACKLIGHT led panel, suitable for recessed installation in false ceiling with visible structure 15/24 mm, surface mounting or suspended installation (dedicated kit needed). Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, VERA - 1820, Office, art. 1820 Vera

Models: 90

Color: Matt white

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
1820	RN	03	= 3000°K (CRI >80)	18	EL	= on/off
		04	= 4000°K (CRI >80)	26	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	29	D1	= dali 2 + em.1h
				32	E1	= em. 1h
				36	E3	= em. 3h
				37

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
1820RN0418EL	18	-	4000°K - CRI>80	on/off	2660	148	298	598	10	-	3.0
1820RN0426EL	26	-	4000°K - CRI>80	on/off	3837	148	298	1198	10	-	4.2
1820RN0429EL	29	-	4000°K - CRI>80	on/off	4658	161	298	1198	10	-	4.2
1820RN0432EL	32	-	4000°K - CRI>80	on/off	4817	151	298	1198	10	-	4.2
1820RN0436EL	36	-	4000°K - CRI>80	on/off	5738	159	298	1198	10	-	4.2
1820RN0437EL	37	-	4000°K - CRI>80	on/off	5322	144	298	1198	10	-	4.2
1820RN0418LD	18	-	4000°K - CRI>80	dali 2 / dali 2 push	2660	148	298	598	10	-	3.0
1820RN0426LD	26	-	4000°K - CRI>80	dali 2 / dali 2 push	3837	148	298	1198	10	-	4.2
1820RN0429LD	29	-	4000°K - CRI>80	dali 2 / dali 2 push	4658	161	298	1198	10	-	4.2
1820RN0432LD	32	-	4000°K - CRI>80	dali 2 / dali 2 push	4817	151	298	1198	10	-	4.2
1820RN0436LD	36	-	4000°K - CRI>80	dali 2 / dali 2 push	5738	159	298	1198	10	-	4.2
1820RN0437LD	37	-	4000°K - CRI>80	dali 2 / dali 2 push	5322	144	298	1198	10	-	4.2
1820RN0418D1	18	-	4000°K - CRI>80	dali + em. 1h	2660	148	298	598	10	-	3.0
1820RN0426D1	26	-	4000°K - CRI>80	dali + em. 1h	3837	148	298	1198	10	-	4.2
1820RN0429D1	29	-	4000°K - CRI>80	dali + em. 1h	4658	161	298	1198	10	-	4.2
1820RN0432D1	32	-	4000°K - CRI>80	dali + em. 1h	4817	151	298	1198	10	-	4.2
1820RN0436D1	36	-	4000°K - CRI>80	dali + em. 1h	5738	159	298	1198	10	-	4.2
1820RN0437D1	37	-	4000°K - CRI>80	dali + em. 1h	5322	144	298	1198	10	-	4.2
1820RN0418E1	18	-	4000°K - CRI>80	em. 1h	2660	148	298	598	10	-	3.0
1820RN0426E1	26	-	4000°K - CRI>80	em. 1h	3837	148	298	1198	10	-	4.2
