OCTA/IR

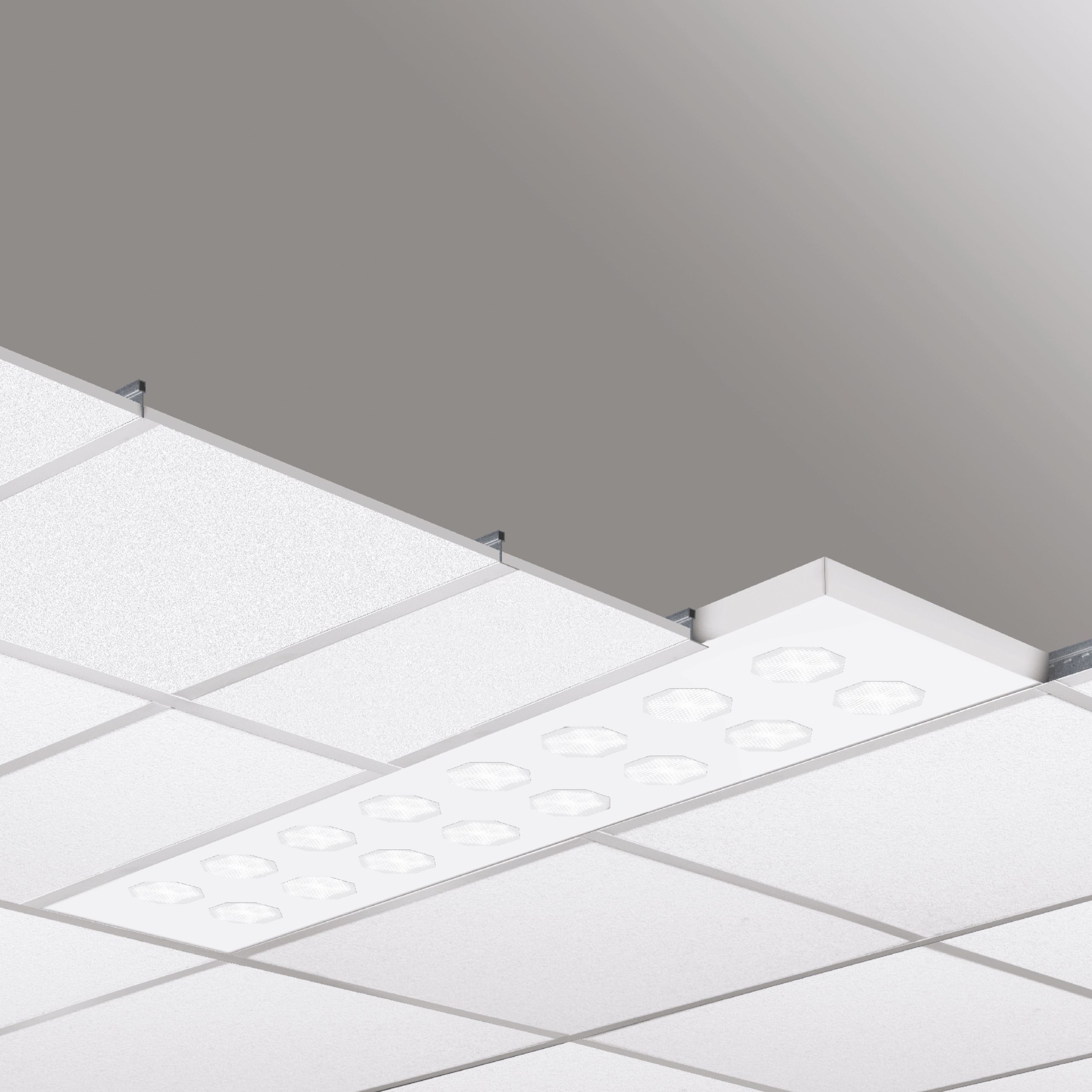

Multi-installation DIRECT BACKLIGHT LED fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory), surface mounted or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective polycarbonate diffuser.
Categories: Led, OCTA - 1824, art. 1824 Octa, art. 1824 Octa, Office, art. 1824 Octa
Models: 90
Color: Matt white
Catalogue abstract
Installation instructions

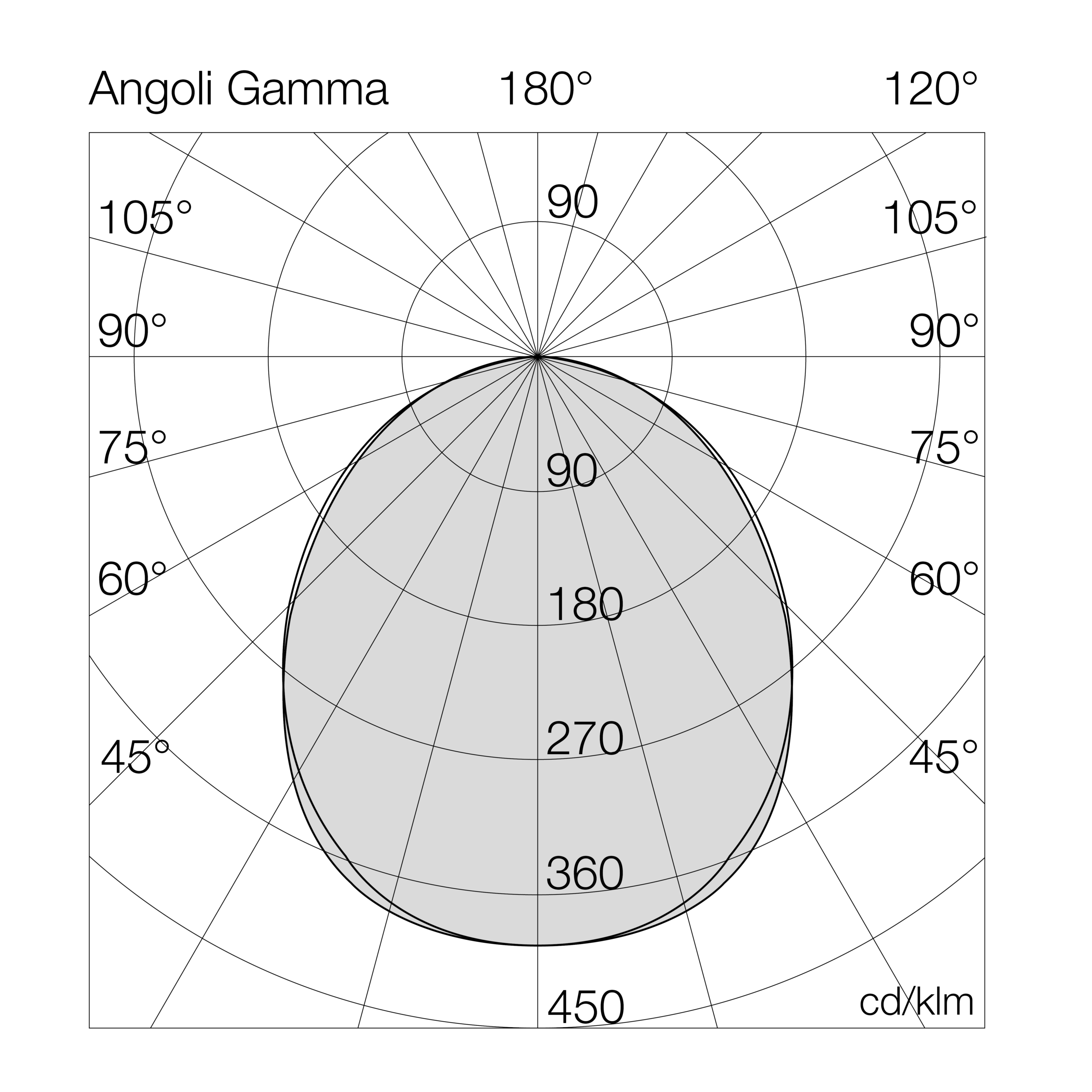

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1824IR03= 3000°K (CRI >80)16EL= on/off
04= 4000°K (CRI >80)23LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)32D1= dali 2 + em.1h
42E1= em. 1h
48E3= em. 3h
64

Models

W tot.
°K - CRI
Options

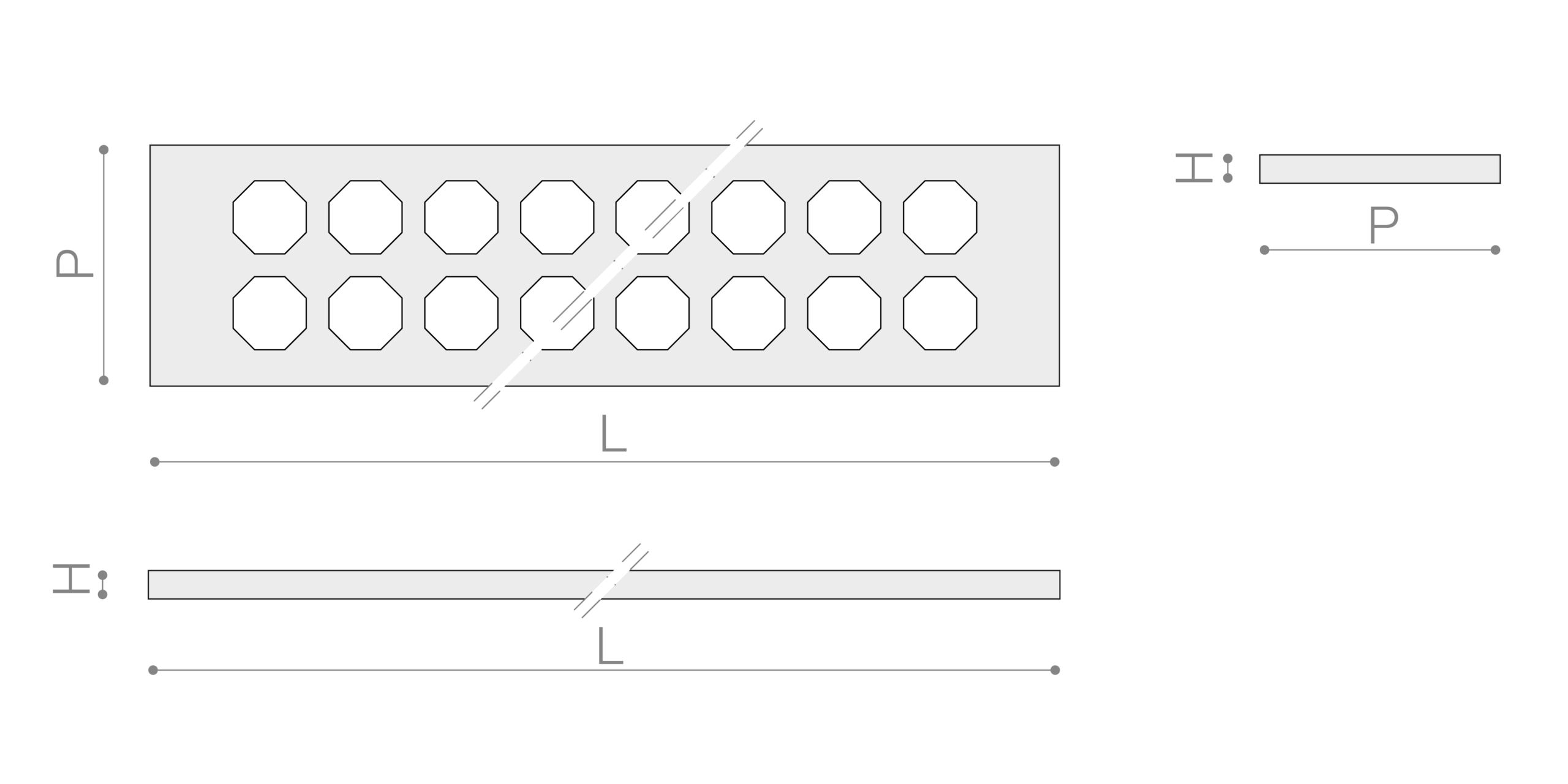

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
1824IR0416EL16-4000°K - CRI>80on/off200412529559535-3.0
1824IR0423EL23-4000°K - CRI>80on/off2921127595119535-4.2
1824IR0432EL32-4000°K - CRI>80on/off4008125295119535-4.2
1824IR0442EL42-4000°K - CRI>80on/off5031120295119535-4.2
1824IR0448EL48-4000°K - CRI>80on/off5558116295119535-4.2
1824IR0464EL64-4000°K - CRI>80on/off8016125595119535-7.9
1824IR0416LD16-4000°K - CRI>80dali 2 / dali 2 push200412529559535-3.0
1824IR0423LD23-4000°K - CRI>80dali 2 / dali 2 push2921127595119535-4.2
1824IR0432LD32-4000°K - CRI>80dali 2 / dali 2 push4008125295119535-4.2
1824IR0442LD42-4000°K - CRI>80dali 2 / dali 2 push5031120295119535-4.2
1824IR0448LD48-4000°K - CRI>80dali 2 / dali 2 push5558116295119535-4.2
1824IR0464LD64-4000°K - CRI>80dali 2 / dali 2 push8016125595119535-7.9
1824IR0416D116-4000°K - CRI>80dali 2 + em. 1h200412529559535-3.0
1824IR0423D123-4000°K - CRI>80dali 2 + em. 1h2921127595119535-4.2
1824IR0432D132-4000°K - CRI>80dali 2 + em. 1h4008125295119535-4.2
1824IR0442D142-4000°K - CRI>80dali 2 + em. 1h5031120295119535-4.2
1824IR0448D148-4000°K - CRI>80dali 2 + em. 1h5558116295119535-4.2
1824IR0464D164-4000°K - CRI>80dali 2 + em. 1h8016125595119535-7.9
1824IR0416E116-4000°K - CRI>80em. 1h200412529559535-3.0
1824IR0423E123-4000°K - CRI>80em. 1h2921127595119535-4.2

Accessories
