AURORA – Mod. QR

(UGR<19)

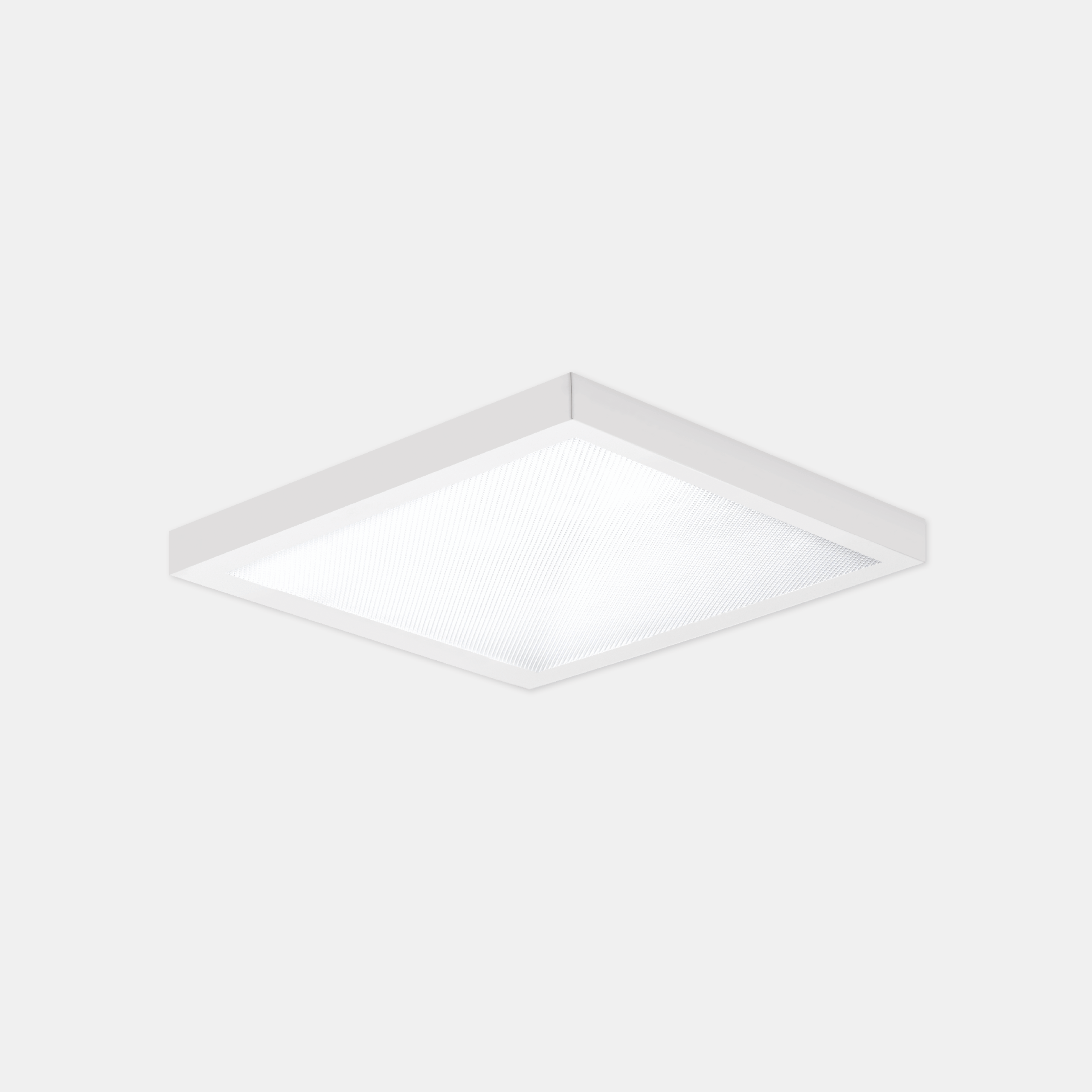

Multi-installation DIRECT BACKLIGHT LED fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory) surface mounted or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, AURORA, AURORA - 1881, Office, AURORA
Models: 180
Color: Matt white
Catalogue abstract
Installation instructions

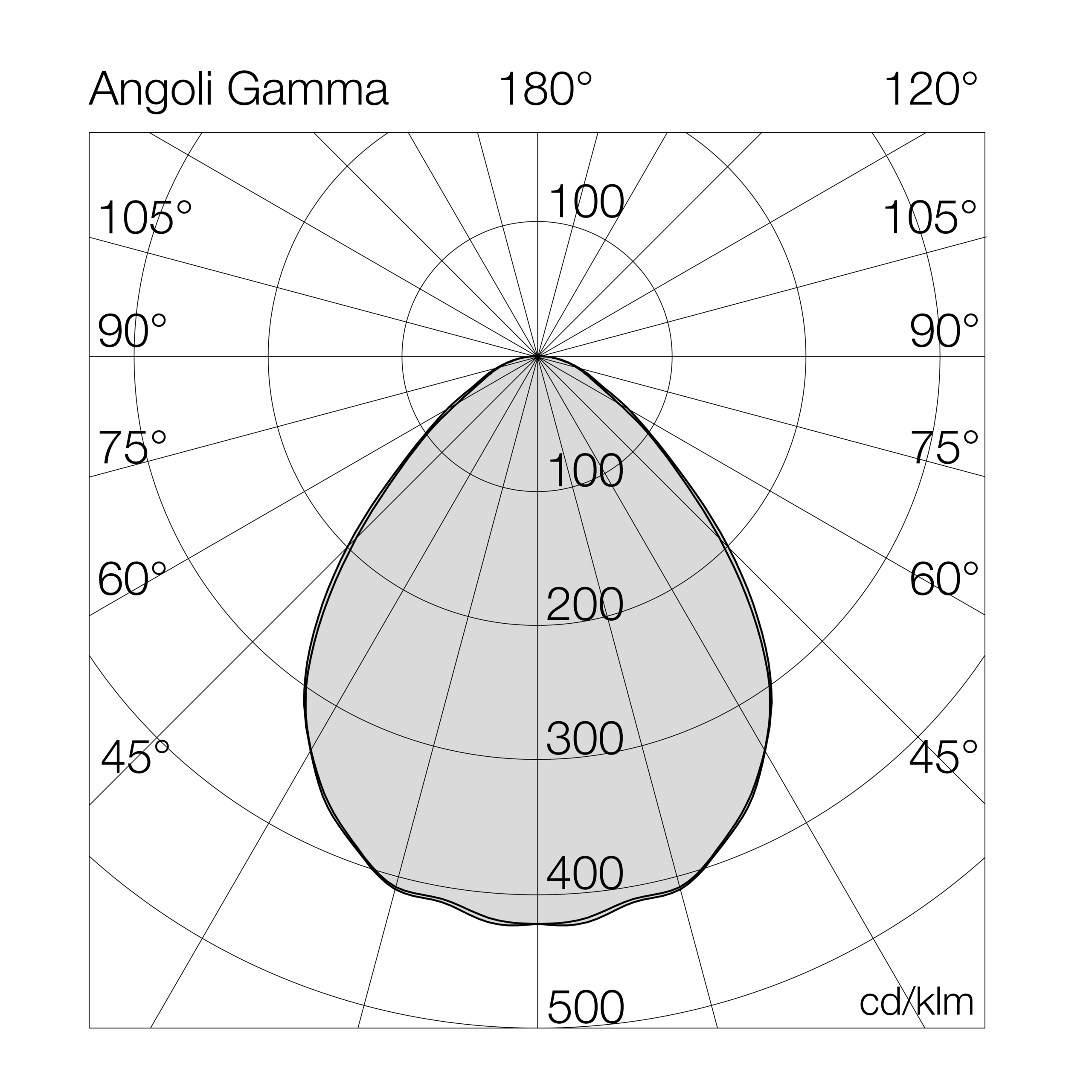

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1881QR03= 3000°K (CRI >80)22EL= on/off
04= 4000°K (CRI >80)27LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)28D1= dali 2 + em.1h
32E1= em. 1h
36E3= em. 3h
38
42
45
48
72
92
12 =120W

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1881QR0422EL22-4000°K - CRI>80on/off283412959559560-5.0
1881QR0427EL27-4000°K - CRI>80on/off344612859559560-5.0
1881QR0428EL28-4000°K - CRI>80on/off406814559559560-5.0
1881QR0432EL32-4000°K - CRI>80on/off384612059559560-5.0
1881QR0436EL36-4000°K - CRI>80on/off423911859559560-5.0
1881QR0438EL38-4000°K - CRI>80on/off443411759559560-5.0
1881QR0442EL42-4000°K - CRI>80on/off481811559559560-5.0
1881QR0445EL45-4000°K - CRI>80on/off630014059559560-5.0
1881QR0448EL48-4000°K - CRI>80on/off599412559559560-5.0
1881QR0472EL72-4000°K - CRI>80on/off795211059559560-5.0
1881QR0492EL92-4000°K - CRI>80on/off1102712059559560-5.0
1881QR0412EL120-4000°K - CRI>80on/off1443512059559560-5.0
1881QR0422LD22-4000°K - CRI>80dali 2 / dali 2 push283412959559560-5.0
1881QR0427LD27-4000°K - CRI>80dali 2 / dali 2 push344612859559560-5.0
1881QR0428LD28-4000°K - CRI>80dali 2 / dali 2 push406814559559560-5.0
1881QR0432LD32-4000°K - CRI>80dali 2 / dali 2 push384612059559560-5.0
1881QR0436LD36-4000°K - CRI>80dali 2 / dali 2 push423911859559560-5.0
1881QR0438LD38-4000°K - CRI>80dali 2 / dali 2 push443411759559560-5.0
1881QR0442LD42-4000°K - CRI>80dali 2 / dali 2 push481811559559560-5.0
1881QR0445LD45-4000°K - CRI>80dali 2 / dali 2 push630014059559560-5.0

Accessories
