AURORA – Mod. RR

(UGR<19)

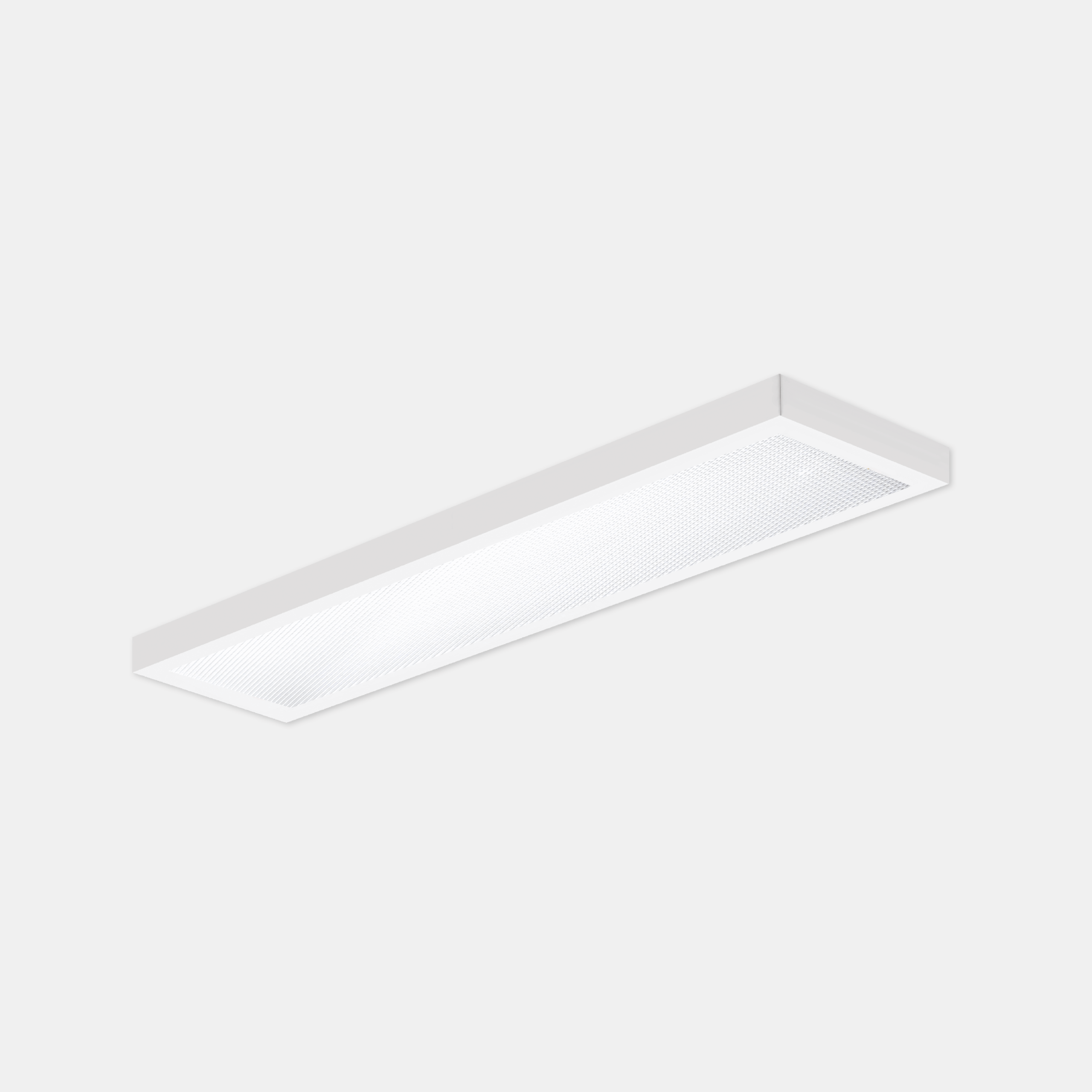

Multi-installation DIRECT BACKLIGHT LED fixture, suitable for recessed installation in support for false ceilings in panels having visible 15/24 mm load-bearing structure, recessed in plasterboard false ceilings (via accessory) surface mounted or suspended (via accessory). Steel sheet body, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, AURORA, AURORA - 1881, Office, AURORA
Models: 240
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1881RR03= 3000°K (CRI >80)17EL= on/off
04= 4000°K (CRI >80)22LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)26D1= dali 2 + em.1h
27E1= em. 1h
28E3= em. 3h
32
36
38
42
45
48
60
64
72
92
12 =120W

Models

W tot.
°K - CRI
Options

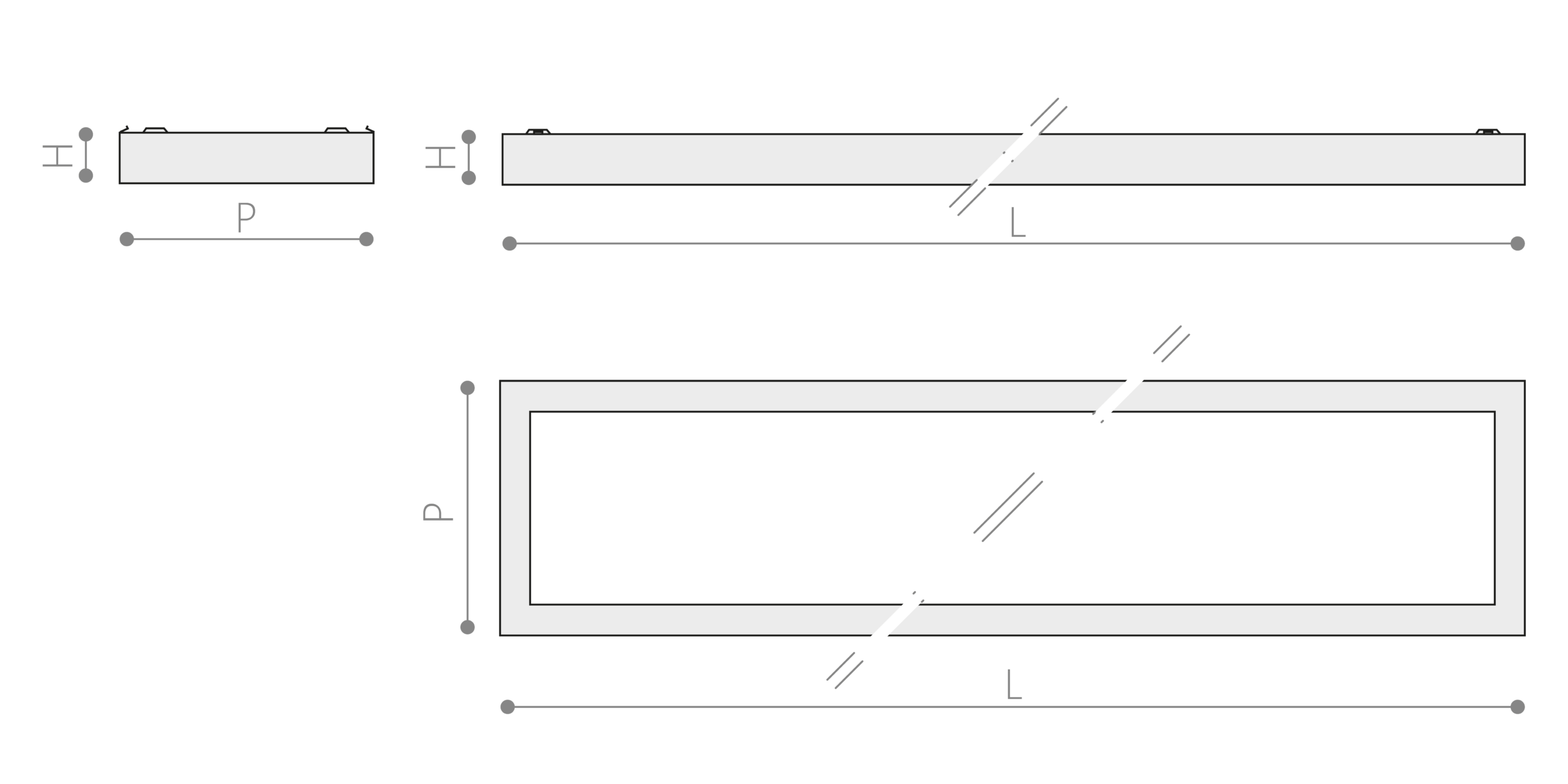

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1881RR0417EL17-4000°K - CRI>80on/off192311329559560-3.5
1881RR0422EL22-4000°K - CRI>80on/off2834129295119560-5.0
1881RR0426EL26-4000°K - CRI>80on/off301011629559560-3.5
1881RR0427EL27-4000°K - CRI>80on/off3446128295119560-5.0
1881RR0428EL28-4000°K - CRI>80on/off4068145295119560-3.0
1881RR0432EL32-4000°K - CRI>80on/off3846120295119560-5.0
1881RR0436EL36-4000°K - CRI>80on/off4239118295119560-5.0
1881RR0438EL38-4000°K - CRI>80on/off4434117295119560-5.0
1881RR0442EL42-4000°K - CRI>80on/off4818115295119560-5.0
1881RR0445EL45-4000°K - CRI>80on/off6300140295119560-3.0
1881RR0448EL48-4000°K - CRI>80on/off5994125295119560-3.0
1881RR0460EL60-4000°K - CRI>80on/off7941132295149560-6.8
1881RR0464EL64-4000°K - CRI>80on/off7692120595119560-8.0
1881RR0472EL72-4000°K - CRI>80on/off7952110295119560-5.0
1881RR0492EL92-4000°K - CRI>80on/off11027120295119560-5.0
1881RR0412EL120-4000°K - CRI>80on/off14435120295119560-5.0
1881RR0417LD17-4000°K - CRI>80dali 2 / dali 2 push192311329559560-3.5
1881RR0422LD22-4000°K - CRI>80dali 2 / dali 2 push2834129295119560-5.0
1881RR0426LD26-4000°K - CRI>80dali 2 / dali 2 push301011629559560-3.5
1881RR0427LD27-4000°K - CRI>80dali 2 / dali 2 push3446128295119560-5.0

Accessories
