art.-1891-dama-qp-incasso

DAMA – Mod. QP

(UGR<19)

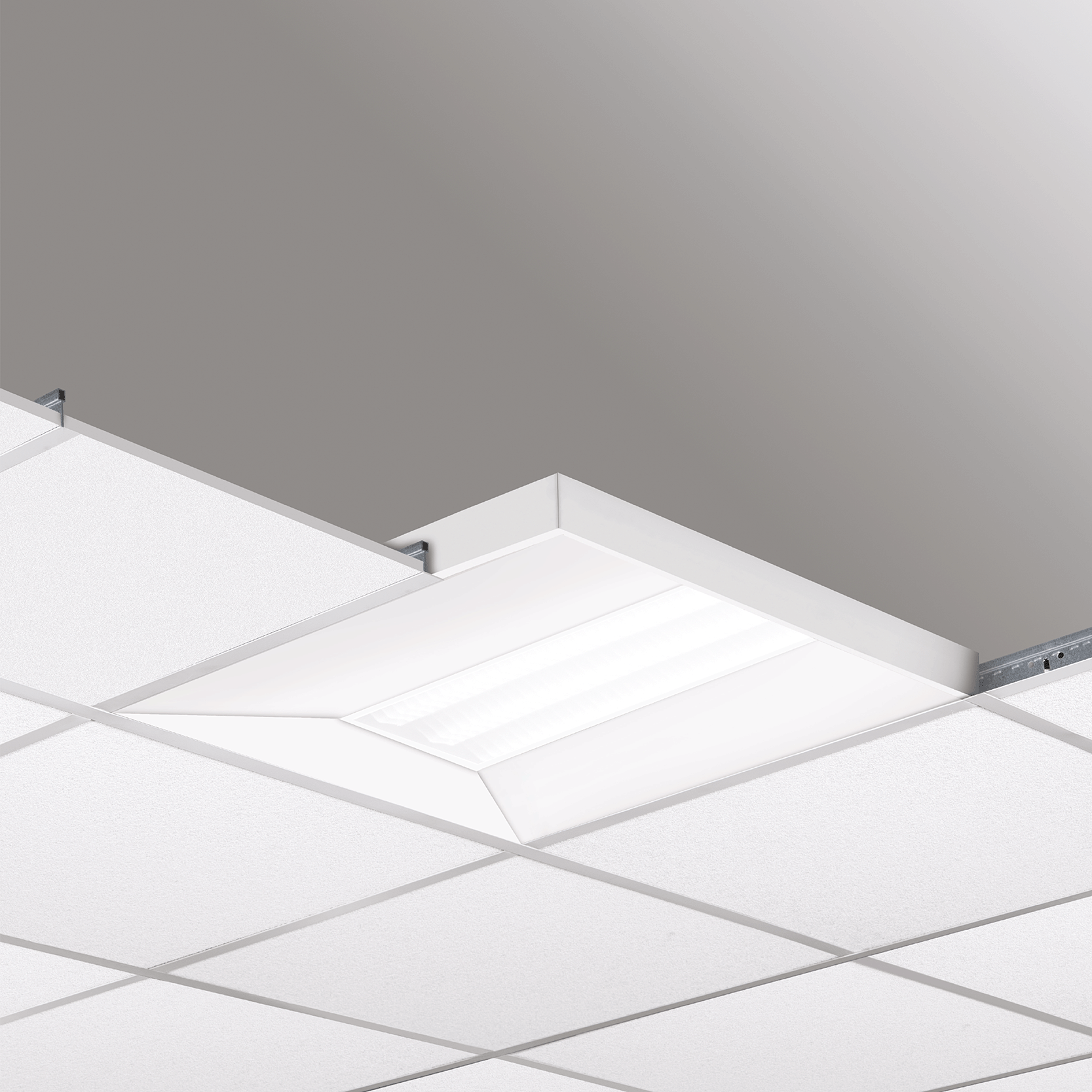

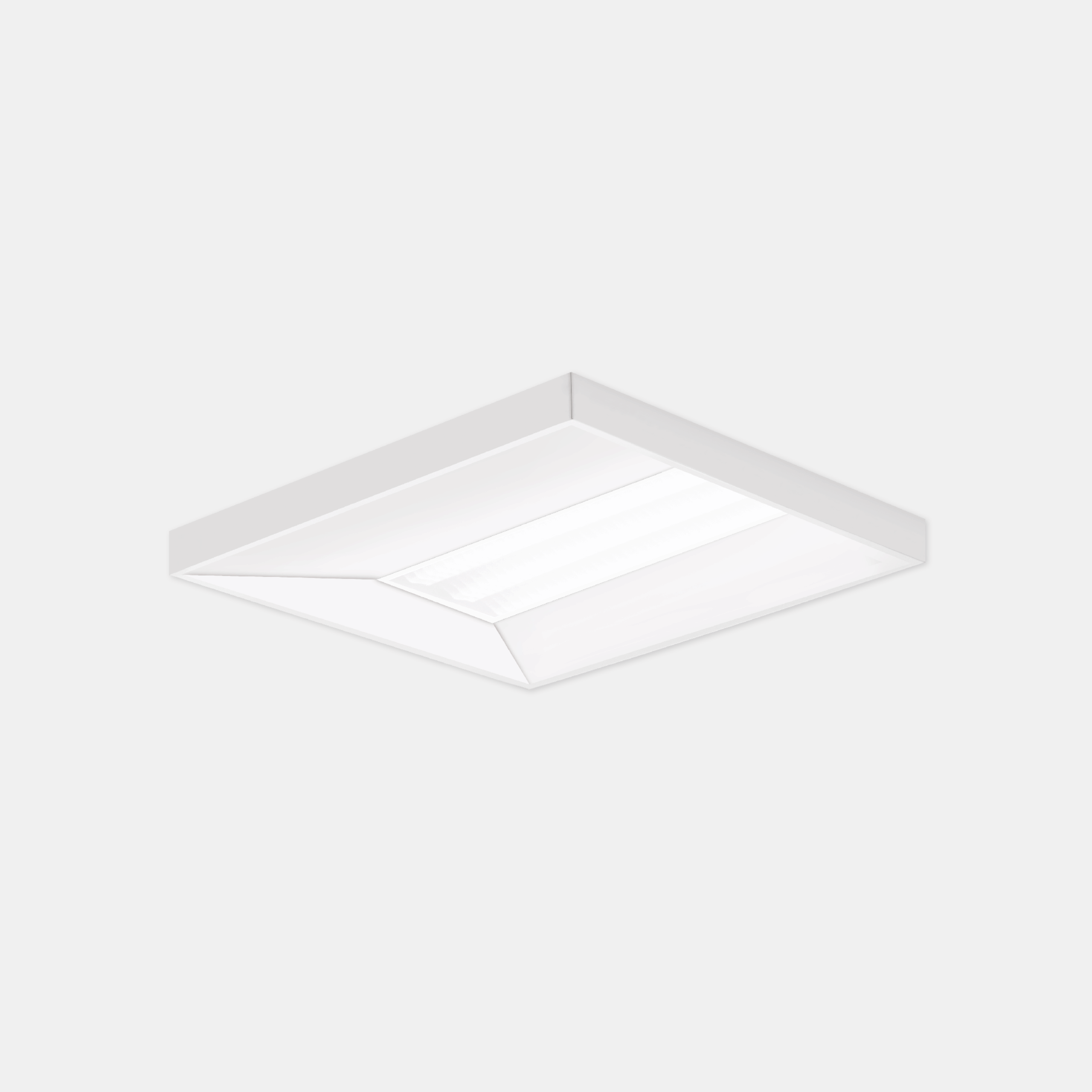

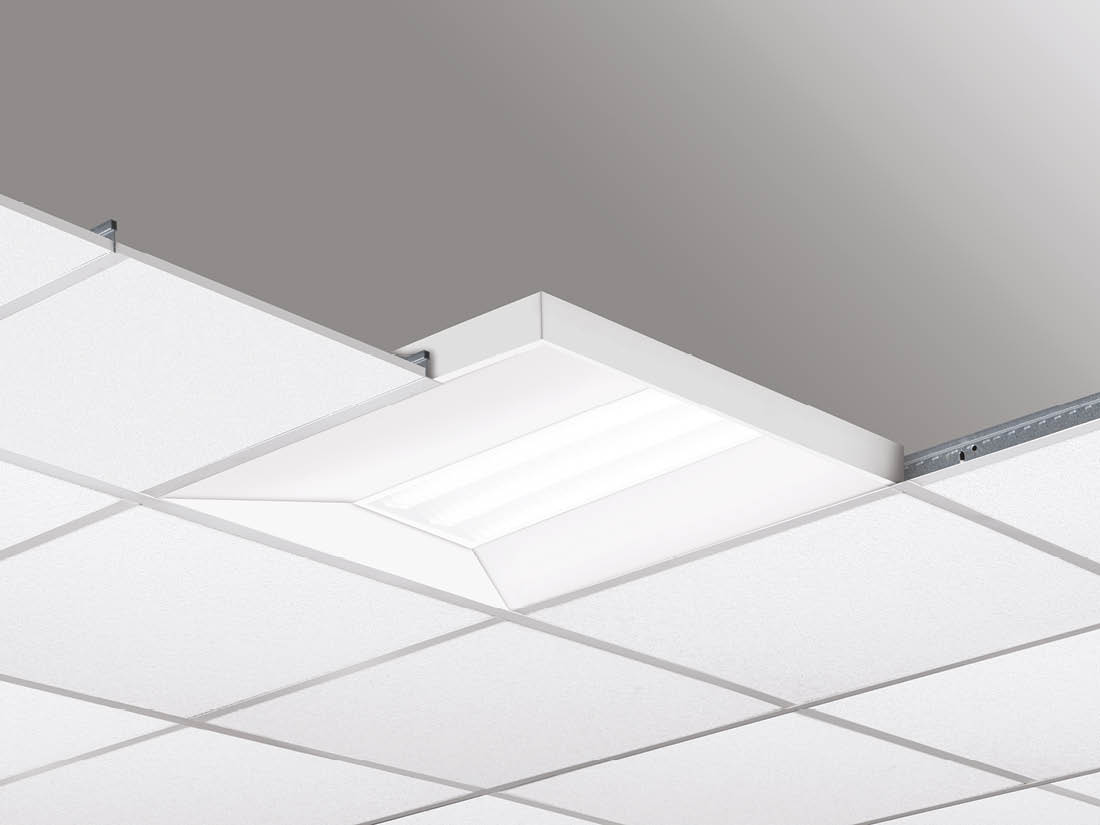

Multi-installation DIRECT BACKLIGHT LED luminaire suitable for recessed installation in support of false ceilings in panels having visible 15/24 mm load-bearing structure, surface mounted or suspended (via accessory). Body constructed of sheet steel, painted with white epoxy-polyester powder coating, non-yellowing with fine embossed finish, phosphating and degreasing pretreatment. Anti-glare and anti-reflective microprismatic polycarbonate diffuser.
Categories: Led, DAMA - 1891, Office, DAMA
Models: 30
Color: Matt white
Catalogue abstract

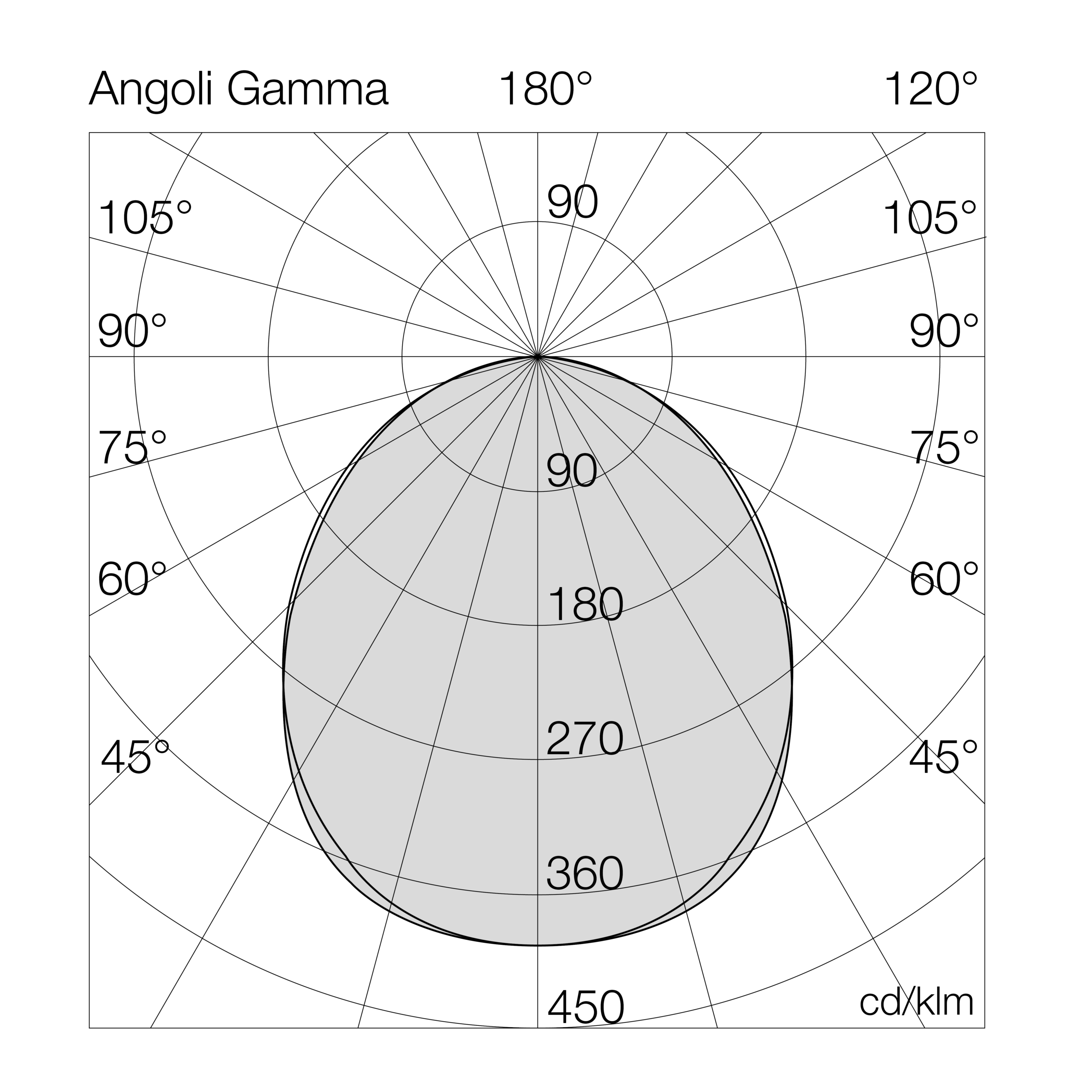

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
1891QP03= 3000°K (CRI >80)27EL = on/off
04= 4000°K (CRI >80)36LD = dali 2 / dali 2 push
94= 4000°K (CRI >90)42D1= dali 2 + em.1h
48E1= em. 1h
E3= em. 3h

Models

W tot.
°K - CRI
Options

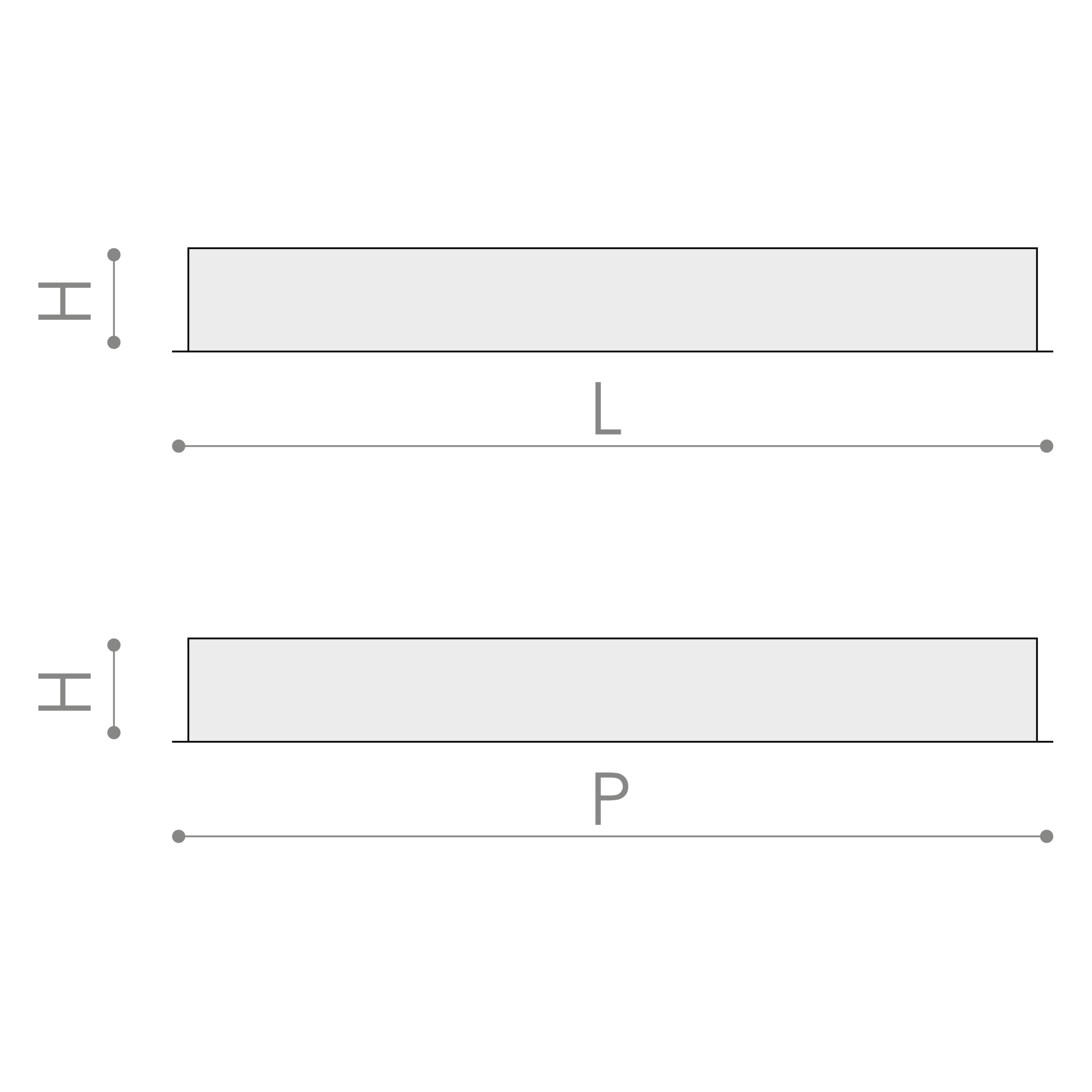

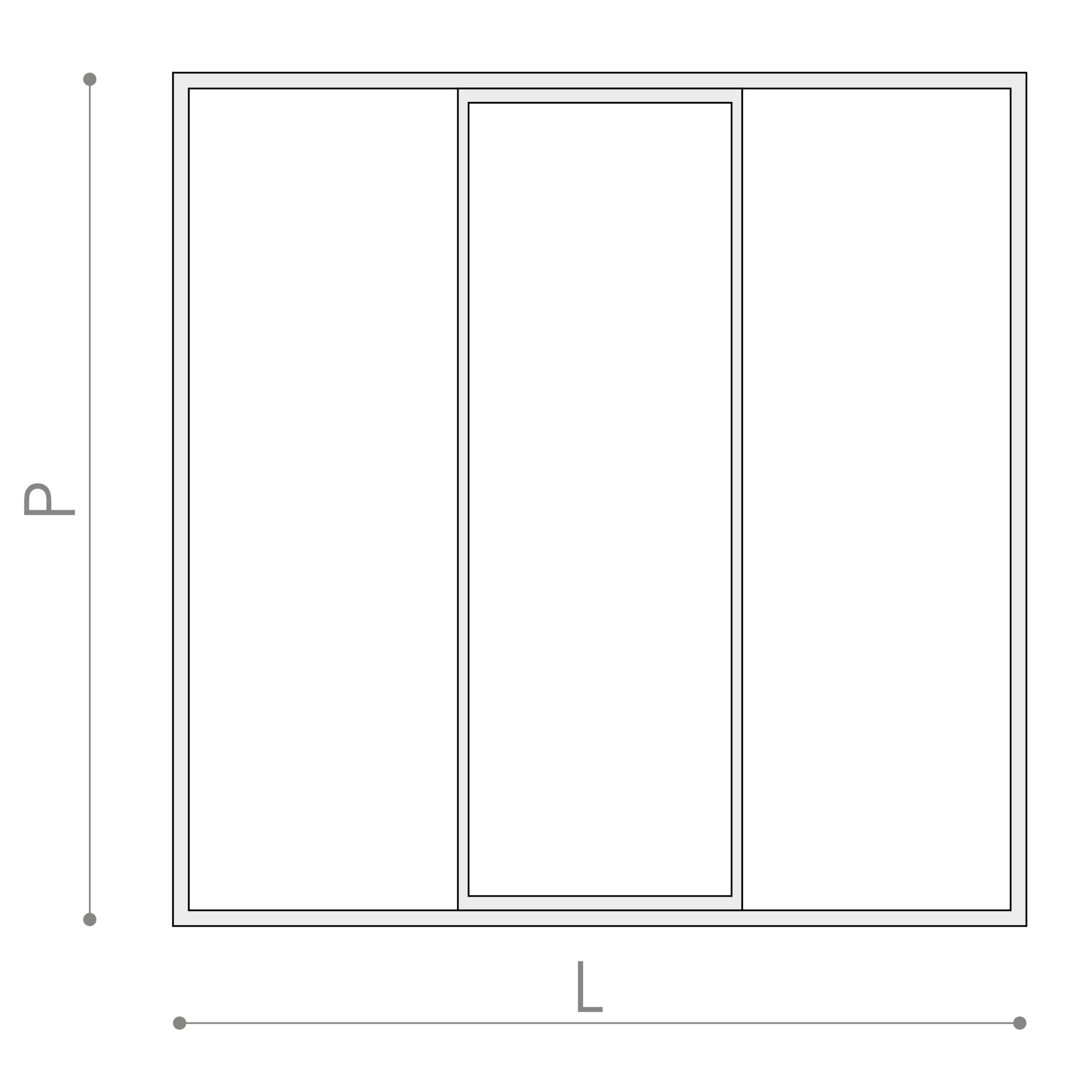

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
1891QP0427EL27-4000°K - CRI>80on/off346012859559570-6.0
1891QP0436EL36-4000°K - CRI>80on/off470613159559570-6.0
1891QP0427LD27-4000°K - CRI>80dali 2 / dali 2 push346012859559570-6.0
1891QP0436LD36-4000°K - CRI>80dali 2 / dali 2 push470613159559570-6.0
1891QP0427D127-4000°K - CRI>80dali 2 + em. 1h346012859559570-6.0
1891QP0436D136-4000°K - CRI>80dali 2 + em. 1h470613159559570-6.0
1891QP0427E127-4000°K - CRI>80em. 1h346012859559570-6.0
1891QP0436E136-4000°K - CRI>80em. 1h470613159559570-6.0
1891QP0427E327-4000°K - CRI>80em. 3h346012859559570-6.0
1891QP0436E336-4000°K - CRI>80em. 3h470613159559570-6.0
1891QP0327EL27-3000°K - CRI>80on/off328212259559570-6.0
1891QP0336EL36-3000°K - CRI>80on/off446412459559570-6.0
1891QP0327LD27-3000°K - CRI>80dali 2 / dali 2 push328212259559570-6.0
1891QP0336LD36-3000°K - CRI>80dali 2 / dali 2 push446412459559570-6.0
1891QP0327D127-3000°K - CRI>80dali 2 + em. 1h328212259559570-6.0
1891QP0336D136-3000°K - CRI>80dali 2 + em. 1h446412459559570-6.0
1891QP0327E127-3000°K - CRI>80em. 1h328212259559570-6.0
1891QP0336E136-3000°K - CRI>80em. 1h446412459559570-6.0
1891QP0327E327-3000°K - CRI>80em. 3h328212259559570-6.0
1891QP0336E336-3000°K - CRI>80em. 3h446412459559570-6.0
