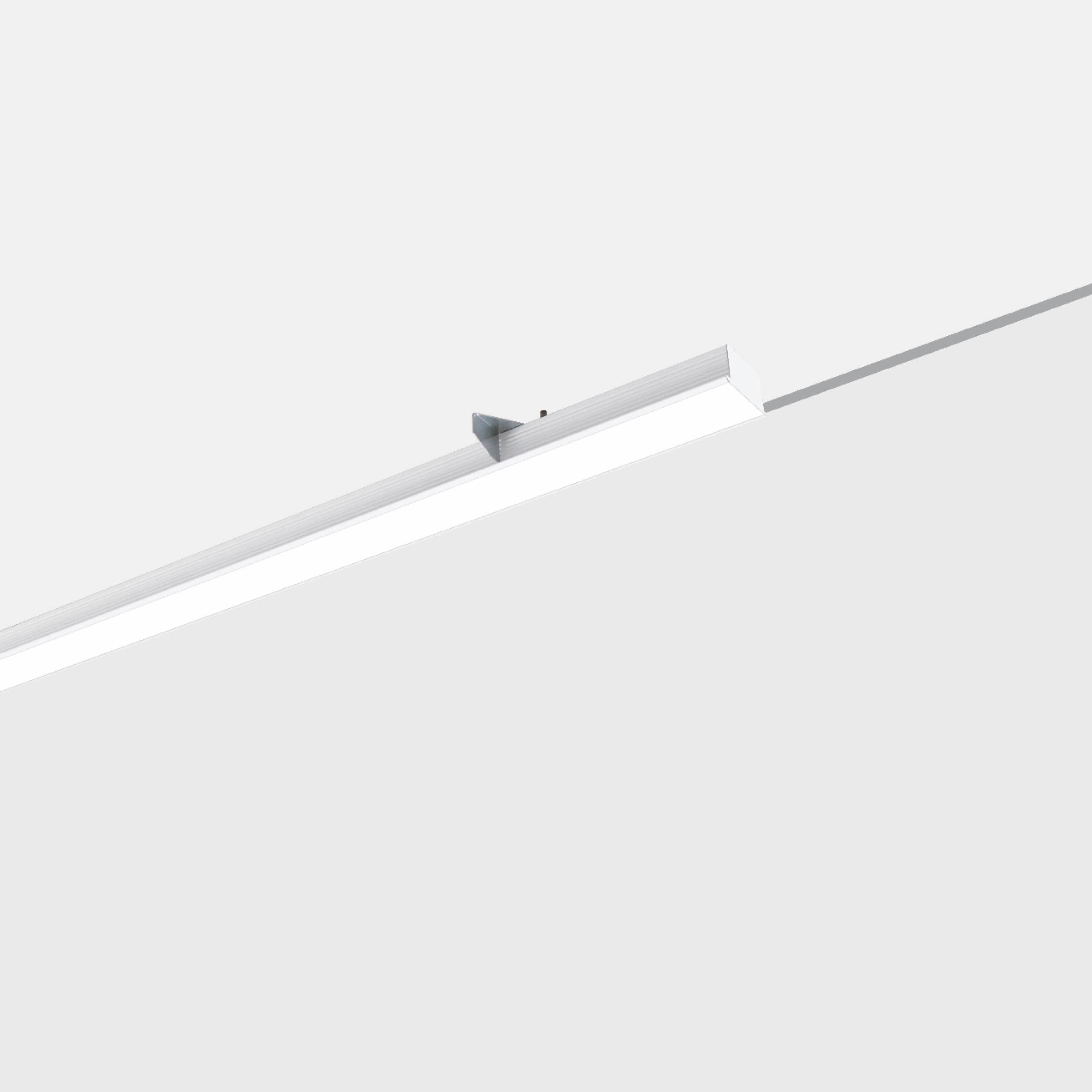

BRERA S/R3

Indoor linear LED fixture suitable for installation in plasterboard false ceilings. Extruded aluminum body painted with epoxy-polyester powder coating in non-yellowing white with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort or anti-glare and anti-reflection microprismatic polycarbonate.

Categories: Led, BRERA S - 2002, Architectural Indoor, art. 2002 Brera S

Models: 120

Color: Matt white

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2002	R3	30	= 3000°K (CRI >80)	12	EL	= on/off
		40	= 4000°K (CRI >80)	15	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	23	D1	= dali 2 + em.1h
				28	E1	= em. 1h
				33	E3	= em. 3h
				38
				48
				60

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2002R34012EL	12	-	4000°K - CRI>80	on/off	1357	113	66	100	565	-	0.7
2002R34015EL	15	-	4000°K - CRI>80	on/off	1910	127	66	100	565	-	0.7
2002R34023EL	23	-	4000°K - CRI>80	on/off	2714	118	66	100	1125	-	1.5
2002R34028EL	28	-	4000°K - CRI>80	on/off	4093	124	66	100	1405	-	1.9
2002R34033EL	33	-	4000°K - CRI>80	on/off	5430	113	66	100	1125	-	1.5
2002R34038EL	38	-	4000°K - CRI>80	on/off	3547	127	66	100	1405	-	1.9
2002R34048EL	48	-	4000°K - CRI>80	on/off	4774	126	66	100	1125	-	1.5
2002R34060EL	60	-	4000°K - CRI>80	on/off	6787	113	66	100	1405	-	1.9
2002R34012LD	12	-	4000°K - CRI>80	dali 2 / dali 2 push	1357	113	66	100	565	-	0.7
2002R34015LD	15	-	4000°K - CRI>80	dali 2 / dali 2 push	1910	127	66	100	565	-	0.7
2002R34023LD	23	-	4000°K - CRI>80	dali 2 / dali 2 push	2714	118	66	100	1125	-	1.5
2002R34028LD	28	-	4000°K - CRI>80	dali 2 / dali 2 push	4093	124	66	100	1405	-	1.9
2002R34033LD	33	-	4000°K - CRI>80	dali 2 / dali 2 push	5430	113	66	100	1125	-	1.5
2002R34038LD	38	-	4000°K - CRI>80	dali 2 / dali 2 push	3547	127	66	100	1405	-	1.9
2002R34048LD	48	-	4000°K - CRI>80	dali 2 / dali 2 push	4774	126	66	100	1125	-	1.5
2002R34060LD	60	-	4000°K - CRI>80	dali 2 / dali 2 push	6787	113	66	100	1405	-	1.9
2002R34012D1	12	-	4000°K - CRI>80	dali 2 + em. 1h	1357	113	66	100	565	-	0.7
2002R34015D1	15	-	4000°K - CRI>80	dali 2 + em. 1h	1910	127	66	100	565	-	0.7
2002R34023D1	23	-	4000°K - CRI>80	dali 2 + em. 1h	2714	118	66	100	1125	-	1.5
2002R34028D1	28	-	4000°K - CRI>80	dali 2 + em. 1h	4093	124	66	100	1405	-	1.9
