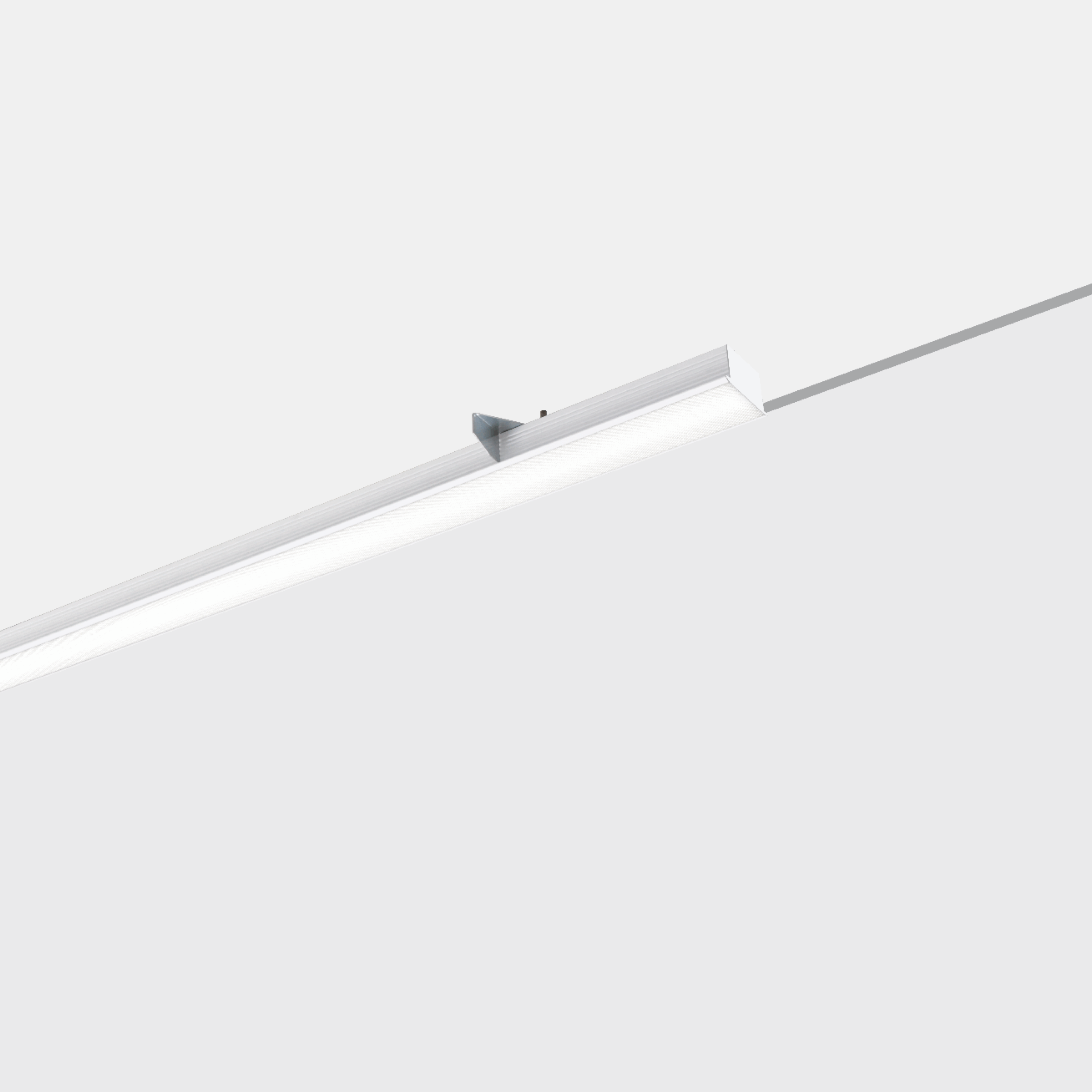

BRERA S/RP

Indoor linear LED fixture suitable for installation in plasterboard false ceilings. Extruded aluminum body painted with epoxy-polyester powder coating in non-yellowing white with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort or anti-glare and anti-reflection microprismatic polycarbonate.

Categories: Led, BRERA S - 2002, Architectural Indoor, art. 2002 Brera S

Models: 120

Color: Matt white

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2002	RP	30	= 3000°K (CRI >80)	12	EL	= on/off
		40	= 4000°K (CRI >80)	15	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	23	D1	= dali 2 + em.1h
				28	E1	= em. 1h
				33	E3	= em. 3h
				38
				48
				60

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2002RP4012EL	12	-	4000°K - CRI>80	on/off	1395	116	66	100	565	-	0.7
2002RP4015EL	15	-	4000°K - CRI>80	on/off	1963	131	66	100	565	-	0.7
2002RP4023EL	23	-	4000°K - CRI>80	on/off	2790	121	66	100	1125	-	1.5
2002RP4028EL	28	-	4000°K - CRI>80	on/off	4207	127	66	100	1405	-	1.9
2002RP4033EL	33	-	4000°K - CRI>80	on/off	5580	116	66	100	1125	-	1.5
2002RP4038EL	38	-	4000°K - CRI>80	on/off	3646	130	66	100	1405	-	1.9
2002RP4048EL	48	-	4000°K - CRI>80	on/off	4907	129	66	100	1125	-	1.5
2002RP4060EL	60	-	4000°K - CRI>80	on/off	6975	116	66	100	1405	-	1.9
2002RP4012LD	12	-	4000°K - CRI>80	dali 2 / dali 2 push	1395	116	66	100	565	-	0.7
2002RP4015LD	15	-	4000°K - CRI>80	dali 2 / dali 2 push	1963	131	66	100	565	-	0.7
2002RP4023LD	23	-	4000°K - CRI>80	dali 2 / dali 2 push	2790	121	66	100	1125	-	1.5
2002RP4028LD	28	-	4000°K - CRI>80	dali 2 / dali 2 push	4207	127	66	100	1405	-	1.9
2002RP4033LD	33	-	4000°K - CRI>80	dali 2 / dali 2 push	5580	116	66	100	1125	-	1.5
2002RP4038LD	38	-	4000°K - CRI>80	dali 2 / dali 2 push	3646	130	66	100	1405	-	1.9
2002RP4048LD	48	-	4000°K - CRI>80	dali 2 / dali 2 push	4907	129	66	100	1125	-	1.5
2002RP4060LD	60	-	4000°K - CRI>80	dali 2 / dali 2 push	6975	116	66	100	1405	-	1.9
2002RP4012D1	12	-	4000°K - CRI>80	dali 2 + em. 1h	1395	116	66	100	565	-	0.7
2002RP4015D1	15	-	4000°K - CRI>80	dali 2 + em. 1h	1963	131	66	100	565	-	0.7
2002RP4023D1	23	-	4000°K - CRI>80	dali 2 + em. 1h	2790	121	66	100	1125	-	1.5
2002RP4028D1	28	-	4000°K - CRI>80	dali 2 + em. 1h	4207	127	66	100	1405	-	1.9
