| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2003 | LP | 27 | = 2700°K (CRI >80) | 24 | EL | = on/off | L = 66 mm | ||||
| 30 | = 3000°K (CRI >80) | 48 | ES | = on/off | L = 43 mm | ||||||
| 40 | = 4000°K (CRI >80) | ||||||||||
| 93 | = 3000°K (CRI >90) | ||||||||||
| 94 | = 4000°K (CRI >90) |

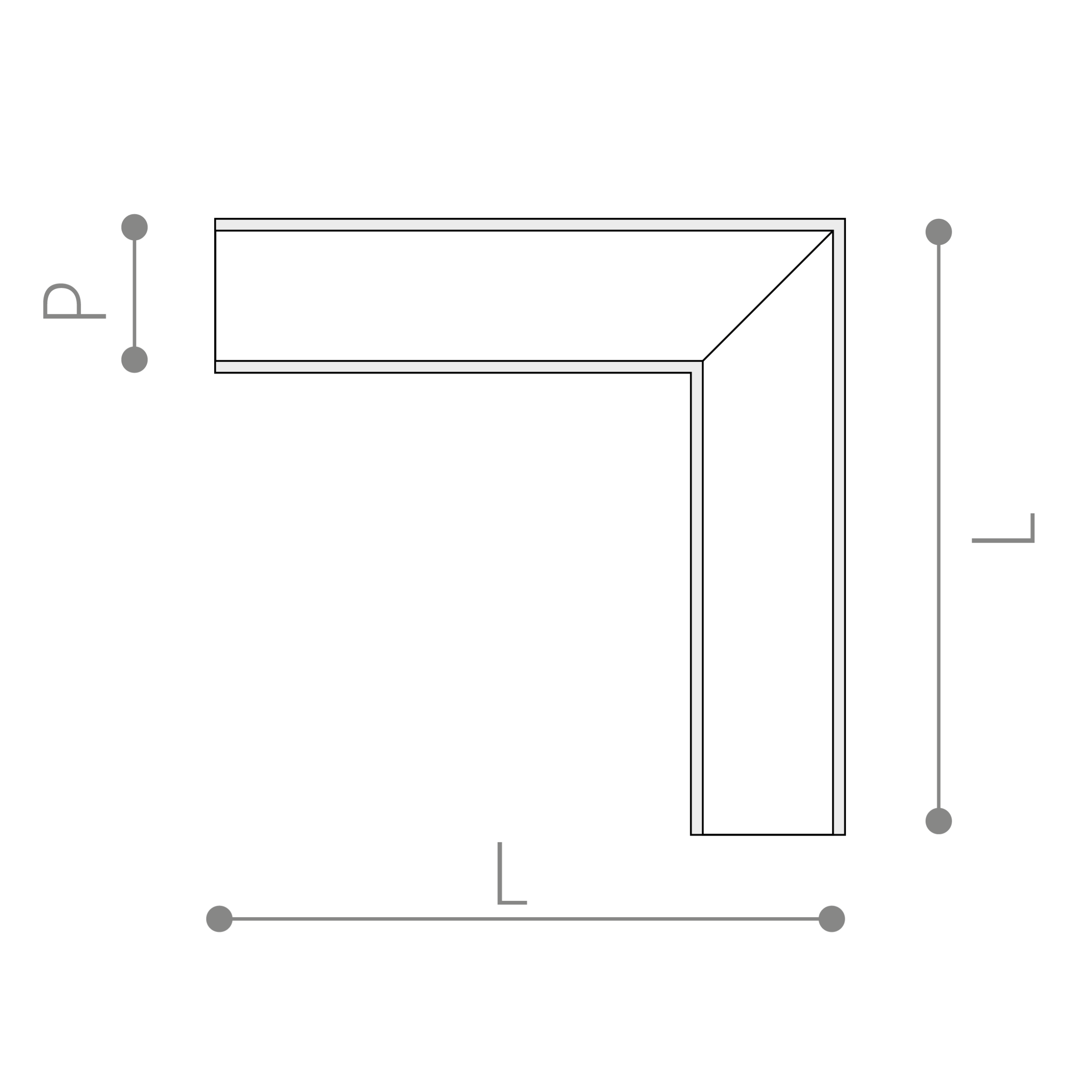

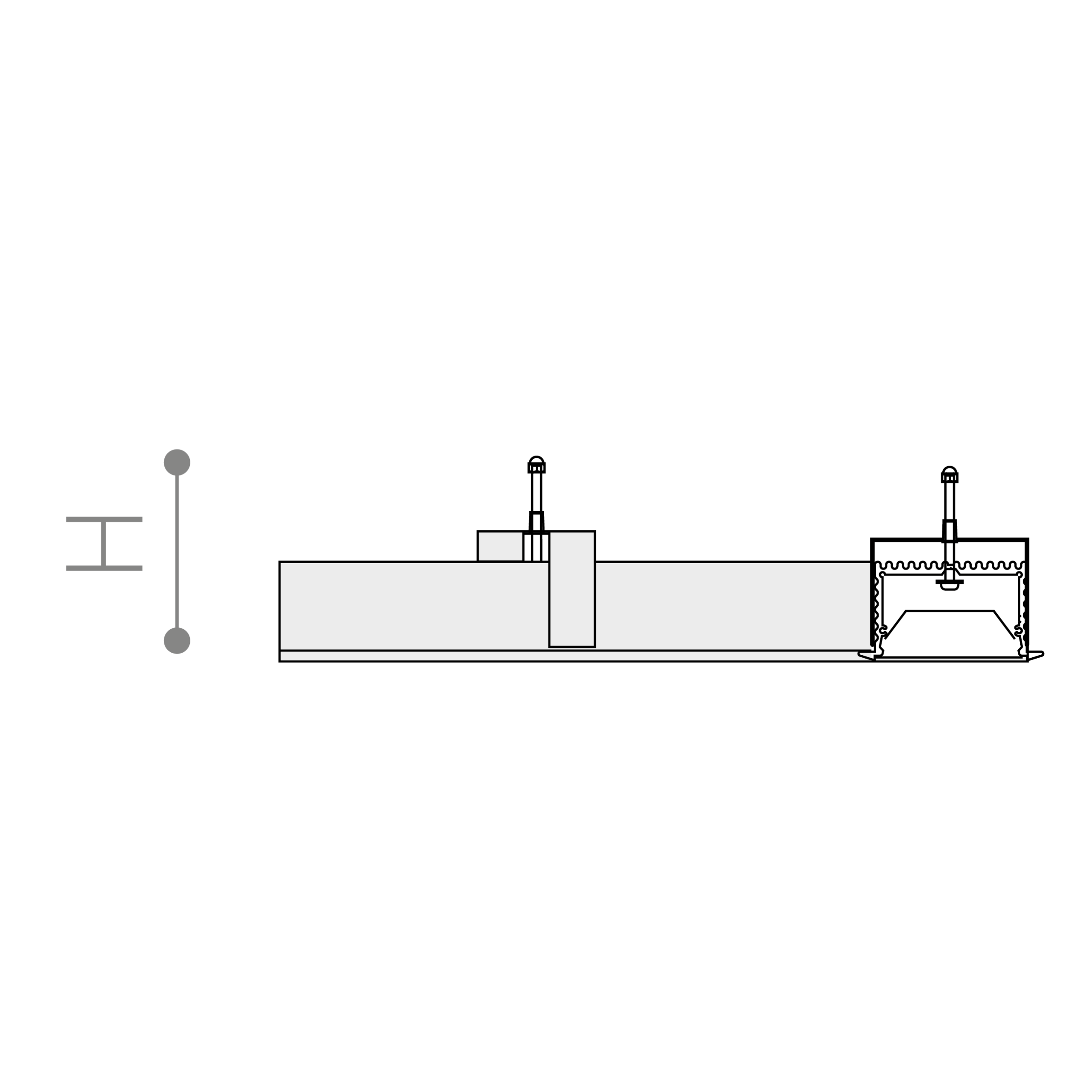

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2003LP4024EL | 24 | - | 4000°K - CRI>80 | on/off (L=66 mm) | 2590 | 108 | 66 | 90 | 600 | 600 | 1.6 | |
| 2003LP4048EL | 48 | - | 4000°K - CRI>80 | on/off (L=66 mm) | 5180 | 108 | 66 | 90 | 1160 | 1160 | 2.7 | |
| 2003LP4024ES | 24 | - | 4000°K - CRI>80 | on/off (L=43 mm) | 2590 | 108 | 43 | 90 | 600 | 600 | 1.1 | |
| 2003LP4048ES | 48 | - | 4000°K - CRI>80 | on/off (L=43 mm) | 5180 | 108 | 43 | 90 | 1160 | 1160 | 1.8 | |
| 2003LP3024EL | 24 | - | 3000°K - CRI>80 | on/off (L=66 mm) | 2457 | 102 | 66 | 90 | 600 | 600 | 1.6 | |
| 2003LP3048EL | 48 | - | 3000°K - CRI>80 | on/off (L=66 mm) | 4913 | 102 | 66 | 90 | 1160 | 1160 | 2.7 | |
| 2003LP3024ES | 24 | - | 3000°K - CRI>80 | on/off (L=43 mm) | 2457 | 102 | 43 | 90 | 600 | 600 | 1.1 | |
| 2003LP3048ES | 48 | - | 3000°K - CRI>80 | on/off (L=43 mm) | 4913 | 102 | 43 | 90 | 1160 | 1160 | 1.8 | |
| 2003LP9424EL | 24 | - | 4000°K - CRI>90 | on/off (L=66 mm) | 2199 | 92 | 66 | 90 | 600 | 600 | 1.6 | |
| 2003LP9448EL | 48 | - | 4000°K - CRI>90 | on/off (L=66 mm) | 4399 | 92 | 66 | 90 | 1160 | 1160 | 2.7 | |
| 2003LP9424ES | 24 | - | 4000°K - CRI>90 | on/off (L=43 mm) | 2199 | 92 | 43 | 90 | 600 | 600 | 1.1 | |
| 2003LP9448ES | 48 | - | 4000°K - CRI>90 | on/off (L=43 mm) | 4399 | 92 | 43 | 90 | 1160 | 1160 | 1.8 | |
| 2003LP2724EL | 24 | - | 2700°K - CRI>80 | on/off (L=66 mm) | 2284 | 95 | 66 | 90 | 600 | 600 | 1.6 | |
| 2003LP2748EL | 48 | - | 2700°K - CRI>80 | on/off (L=66 mm) | 4568 | 95 | 66 | 90 | 1160 | 1160 | 2.7 | |
| 2003LP2724ES | 24 | - | 2700°K - CRI>80 | on/off (L=43 mm) | 2284 | 95 | 43 | 90 | 600 | 600 | 1.1 | |
| 2003LP2748ES | 48 | - | 2700°K - CRI>80 | on/off (L=43 mm) | 4568 | 95 | 43 | 90 | 1160 | 1160 | 1.8 | |
| 2003LP9324EL | 24 | - | 3000°K - CRI>90 | on/off (L=66 mm) | 2161 | 90 | 66 | 90 | 600 | 600 | 1.6 | |
| 2003LP9348EL | 48 | - | 3000°K - CRI>90 | on/off (L=66 mm) | 4322 | 90 | 66 | 90 | 1160 | 1160 | 2.7 | |
| 2003LP9324ES | 24 | - | 3000°K - CRI>90 | on/off (L=43 mm) | 2161 | 90 | 43 | 90 | 600 | 600 | 1.1 | |
| 2003LP9348ES | 48 | - | 3000°K - CRI>90 | on/off (L=43 mm) | 4322 | 90 | 43 | 90 | 1160 | 1160 | 1.8 |
