BRERA 2/L3

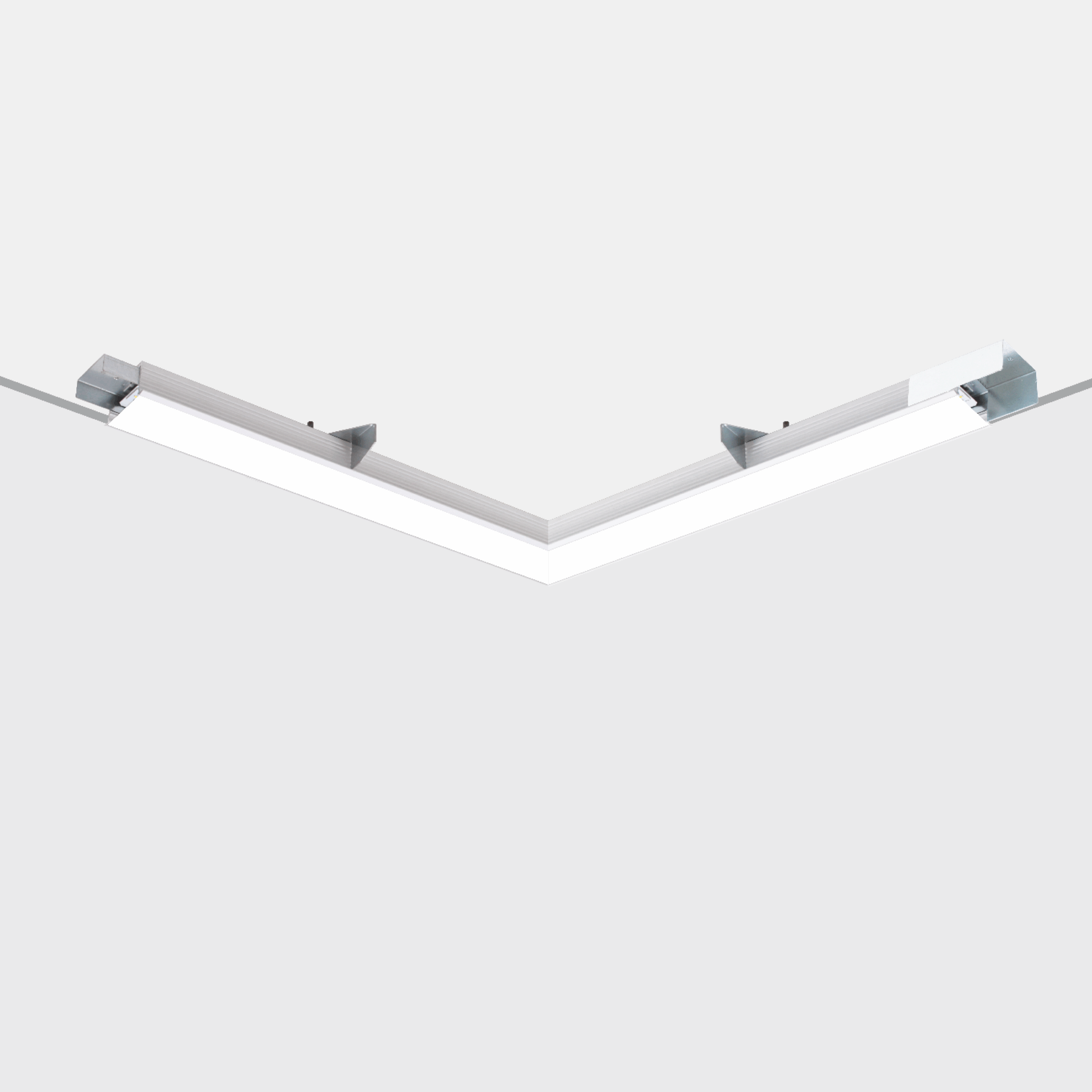

Led recessed fixture without frame for plasterboard false ceiling. Extruded aluminum body painted with white epoxy-polyester anti-yellowing with fine embossed finish, electronic ballast 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, Architectural Indoor, art. 2004 Brera 2

Models: 12

Color: Matt white

Catalogue abstract

Installation instructions

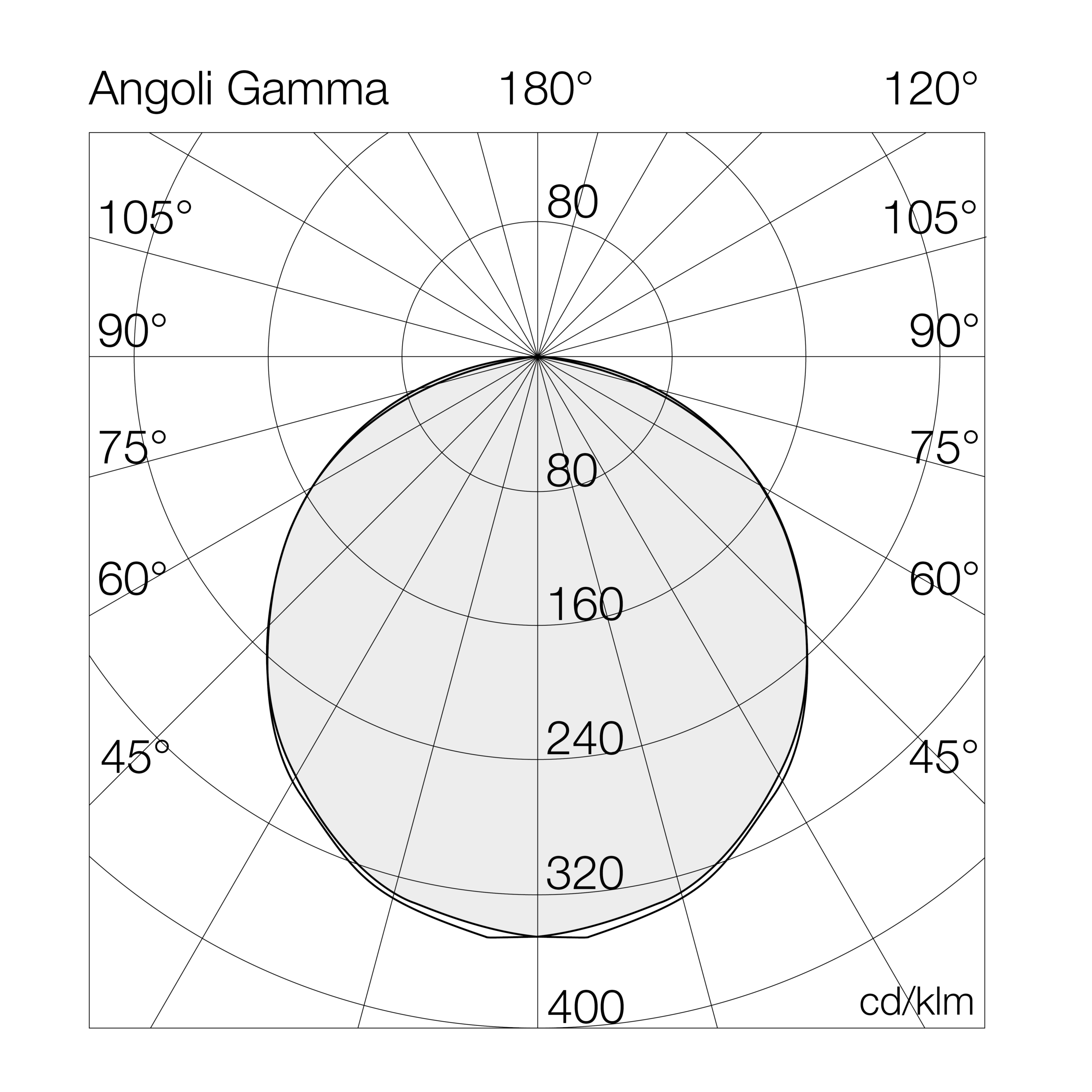

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2004	L3	30	= 3000°K (CRI >80)	24	EL	= on/off	L = 56 mm
		40	= 4000°K (CRI >80)	48	ES	= on/off	L = 31 mm
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2004L34024EL	24	920	4000°K - CRI>80	on/off (L=56 mm)	2520	105	56	90	600	600	1.6
2004L34048EL	48	1840	4000°K - CRI>80	on/off (L=56 mm)	5040	105	56	90	1160	1160	2.7
2004L34024ES	24	920	4000°K - CRI>80	on/off (L=31 mm)	2520	105	31	90	600	600	1.1
2004L34048ES	48	1840	4000°K - CRI>80	on/off (L=31 mm)	5040	105	31	90	1160	1160	1.8
2004L33024EL	24	920	3000°K - CRI>80	on/off (L=56 mm)	2390	100	56	90	600	600	1.6
2004L33048EL	48	1840	3000°K - CRI>80	on/off (L=56 mm)	4780	100	56	90	1160	1160	2.7
2004L33024ES	24	920	3000°K - CRI>80	on/off (L=31 mm)	2390	100	31	90	600	600	1.1
2004L33048ES	48	1840	3000°K - CRI>80	on/off (L=31 mm)	4780	100	31	90	1160	1160	1.8
2004L39424EL	24	920	4000°K - CRI>90	on/off (L=56 mm)	2140	89	56	90	600	600	1.6
2004L39448EL	48	1840	4000°K - CRI>90	on/off (L=56 mm)	4280	89	56	90	1160	1160	2.7
2004L39424ES	24	920	4000°K - CRI>90	on/off (L=31 mm)	2140	89	31	90	600	600	1.1
2004L39448ES	48	1840	4000°K - CRI>90	on/off (L=31 mm)	4280	89	31	90	1160	1160	1.8
