| Art. | + | Mod. | + | °K (CRI) | + | W tot. | + | Options | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2004 | RP | 30 | = 3000°K (CRI >80) | 12 | EL | = on/off | L = 56 mm | ||||
| 40 | = 4000°K (CRI >80) | 24 | ES | = on/off | L = 31 mm | ||||||
| 94 | = 4000°K (CRI >90) | 30 | |||||||||
| 36 |

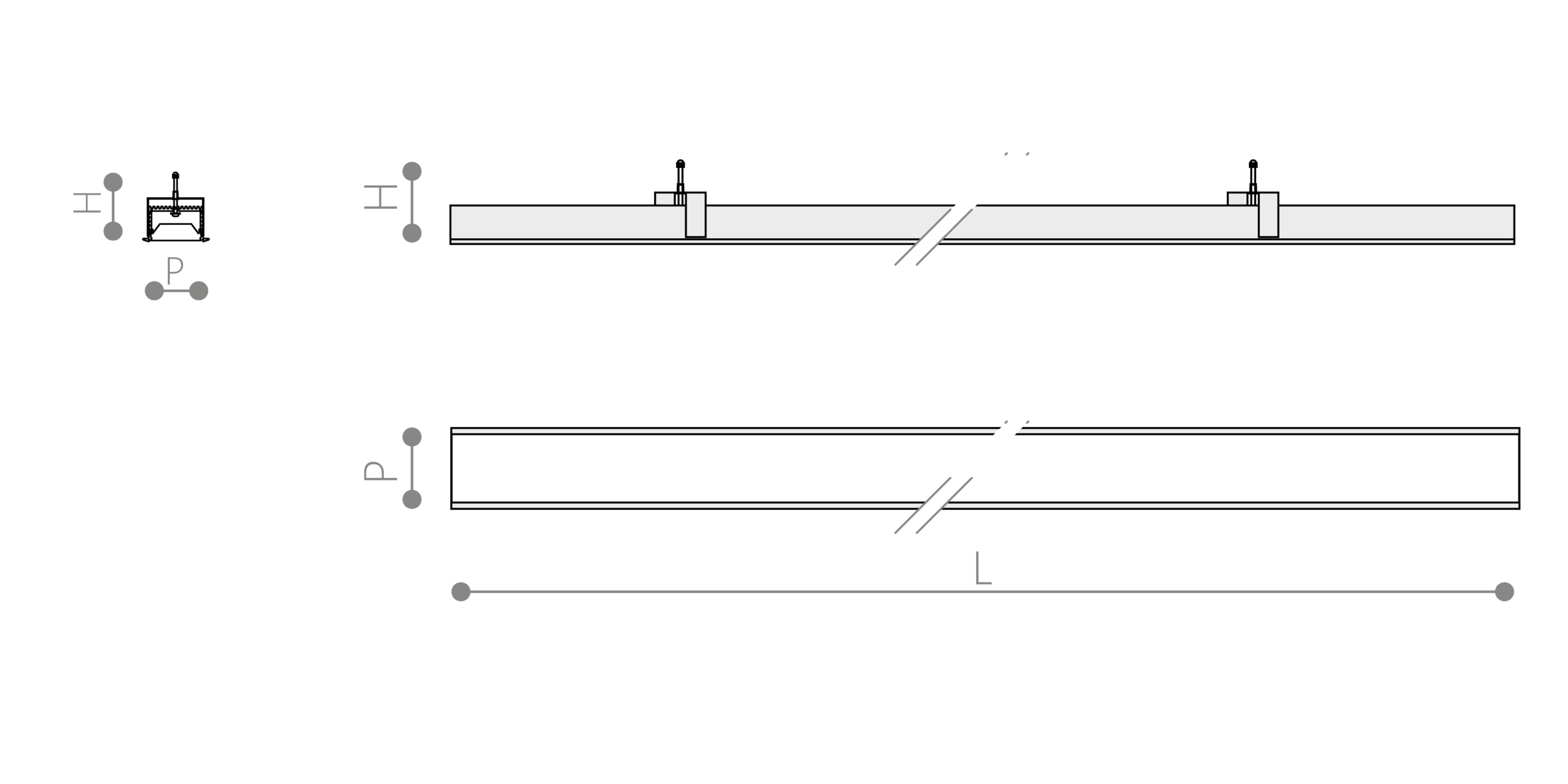

| Codice | W tot. | mA | °K - CRI | Options | Lumen OUTPUT | Lm/W | A (mm) | B (mm) | C (mm) | D (mm) | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2004RP4012EL | 12 | - | 4000°K - CRI>80 | on/off (L=56 mm) | 1295 | 108 | 56 | 90 | 565 | - | 0.70 | |
| 2004RP4024EL | 24 | - | 4000°K - CRI>80 | on/off (L=56 mm) | 2590 | 108 | 56 | 90 | 1125 | - | 1.5 | |
| 2004RP4030EL | 30 | - | 4000°K - CRI>80 | on/off (L=56 mm) | 3238 | 108 | 56 | 90 | 1405 | - | 1.9 | |
| 2004RP4036EL | 36 | - | 4000°K - CRI>80 | on/off (L=56 mm) | 3885 | 108 | 56 | 90 | 1685 | - | 2.3 | |
| 2004RP4012ES | 12 | - | 4000°K - CRI>80 | on/off (L=31 mm) | 1295 | 108 | 31 | 90 | 565 | - | 0.50 | |
| 2004RP4024ES | 24 | - | 4000°K - CRI>80 | on/off (L=31 mm) | 2590 | 108 | 31 | 90 | 1125 | - | 1.0 | |
| 2004RP4030ES | 30 | - | 4000°K - CRI>80 | on/off (L=31 mm) | 3238 | 108 | 31 | 90 | 1405 | - | 1.3 | |
| 2004RP4036ES | 36 | - | 4000°K - CRI>80 | on/off (L=31 mm) | 3885 | 108 | 31 | 90 | 1685 | - | 1.6 | |
| 2004RP3012EL | 12 | - | 3000°K - CRI>80 | on/off (L=56 mm) | 1228 | 102 | 56 | 90 | 565 | - | 0.70 | |
| 2004RP3024EL | 24 | - | 3000°K - CRI>80 | on/off (L=56 mm) | 2457 | 102 | 56 | 90 | 1125 | - | 1.5 | |
| 2004RP3030EL | 30 | - | 3000°K - CRI>80 | on/off (L=56 mm) | 3071 | 102 | 56 | 90 | 1405 | - | 1.9 | |
| 2004RP3036EL | 36 | - | 3000°K - CRI>80 | on/off (L=56 mm) | 3685 | 102 | 56 | 90 | 1685 | - | 2.3 | |
| 2004RP3012ES | 12 | - | 3000°K - CRI>80 | on/off (L=31 mm) | 1228 | 102 | 31 | 90 | 565 | - | 0.50 | |
| 2004RP3024ES | 24 | - | 3000°K - CRI>80 | on/off (L=31 mm) | 2457 | 102 | 31 | 90 | 1125 | - | 1.0 | |
| 2004RP3030ES | 30 | - | 3000°K - CRI>80 | on/off (L=31 mm) | 3071 | 102 | 31 | 90 | 1405 | - | 1.3 | |
| 2004RP3036ES | 36 | - | 3000°K - CRI>80 | on/off (L=31 mm) | 3685 | 102 | 31 | 90 | 1685 | - | 1.6 | |
| 2004RP9412EL | 12 | - | 4000°K - CRI>90 | on/off (L=56 mm) | 1100 | 92 | 56 | 90 | 565 | - | 0.70 | |
| 2004RP9424EL | 24 | - | 4000°K - CRI>90 | on/off (L=56 mm) | 2199 | 92 | 56 | 90 | 1125 | - | 1.5 | |
| 2004RP9430EL | 30 | - | 4000°K - CRI>90 | on/off (L=56 mm) | 2750 | 92 | 56 | 90 | 1405 | - | 1.9 | |
| 2004RP9436EL | 36 | - | 4000°K - CRI>90 | on/off (L=56 mm) | 3299 | 92 | 56 | 90 | 1685 | - | 2.3 |
