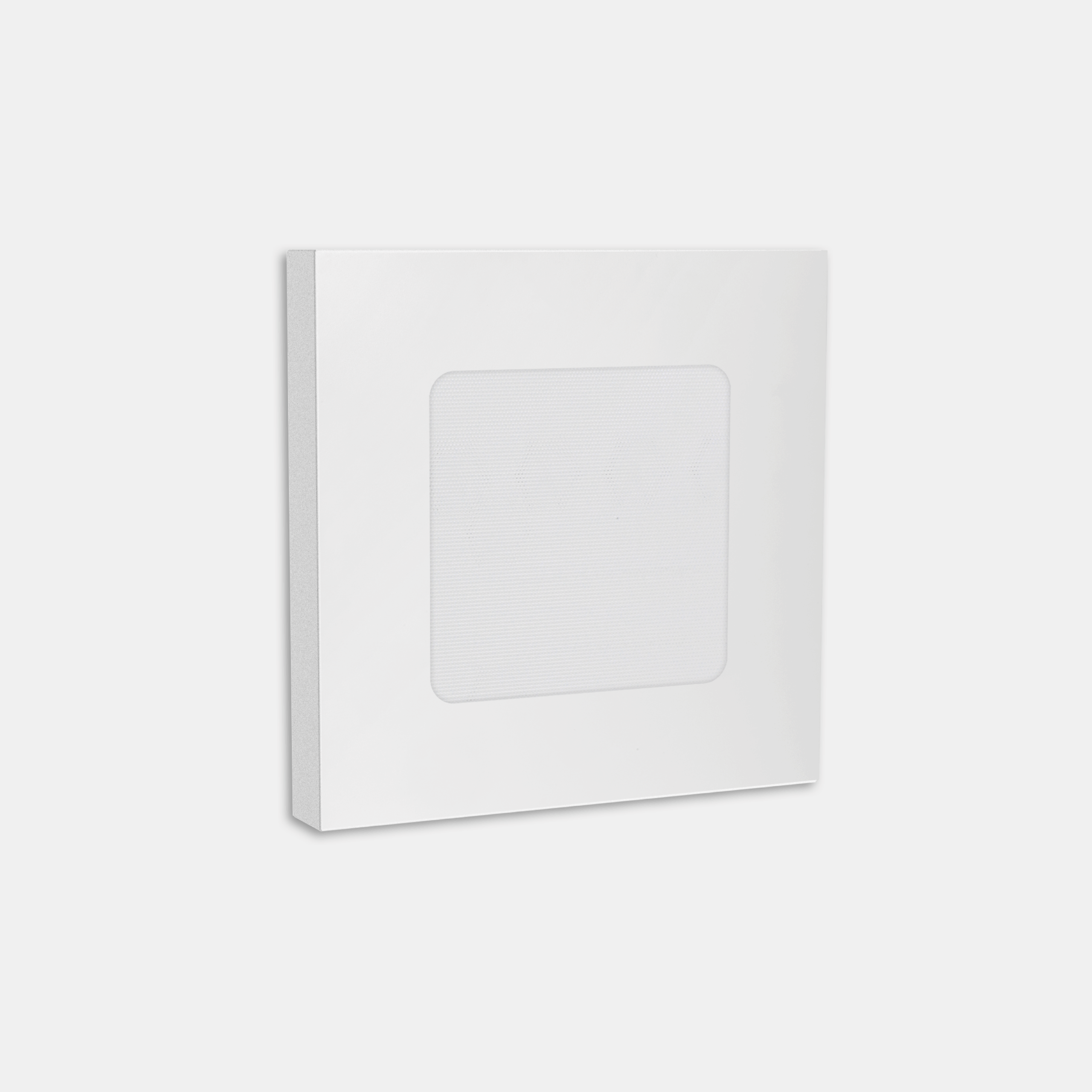

AMBER/2P

Led DIRECT BACKLIGHT wall or surface mounted. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, AMBER - 2005, Architectural Indoor, art. 2005 Amber
Models: 30
Color: Matt white
Catalogue abstract
Installation instructions

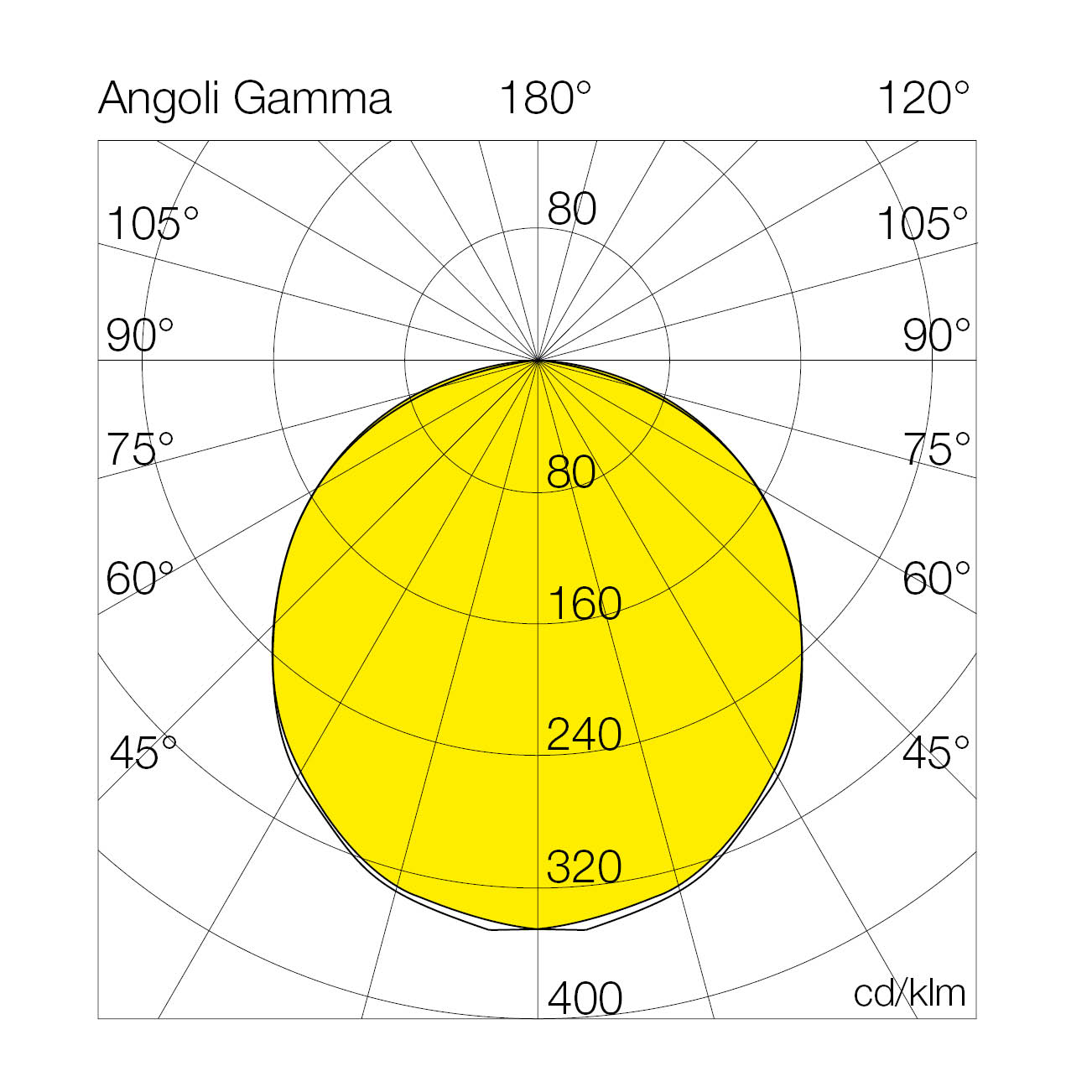

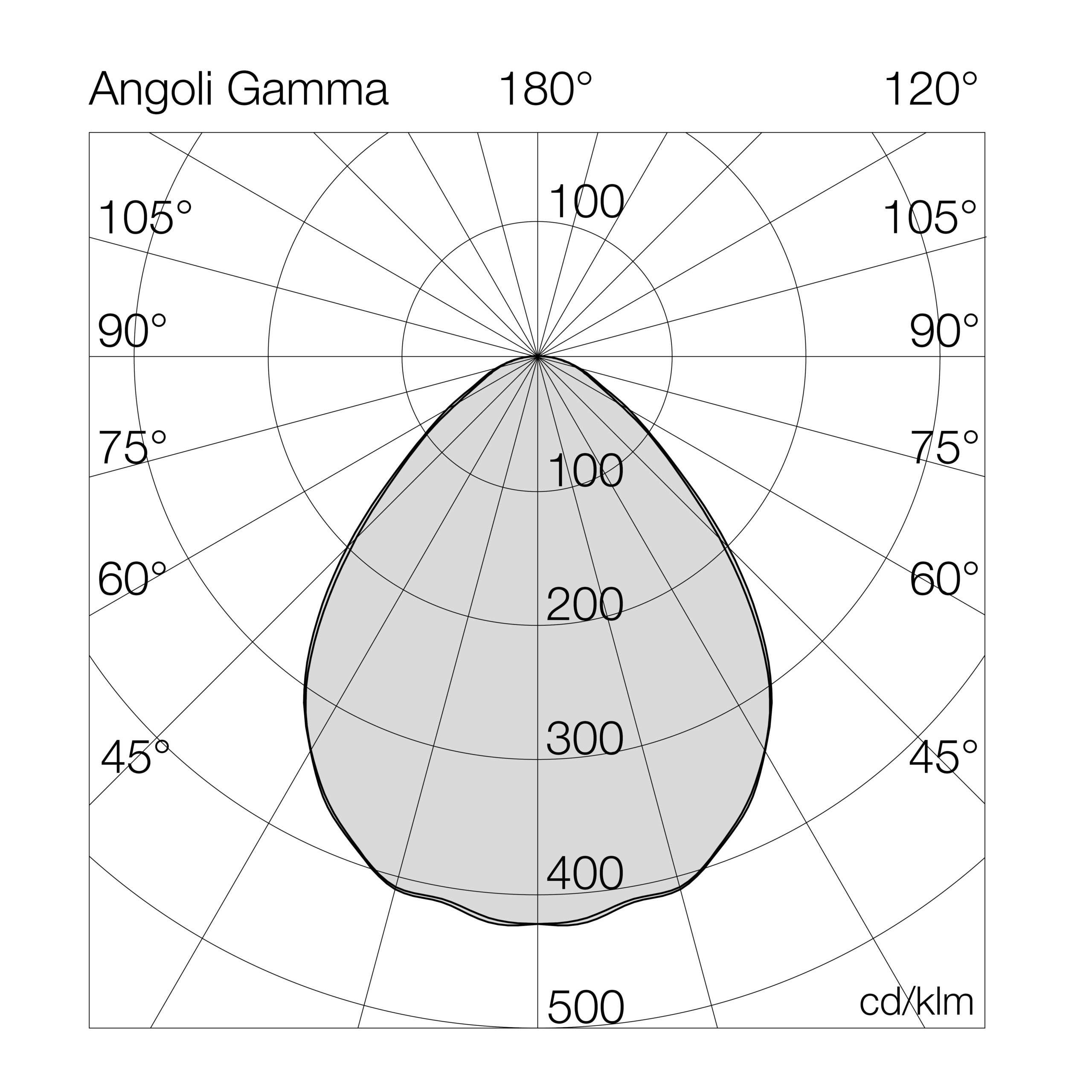

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
20052P27= 2700°K (CRI >80)13BL= on/off
03= 3000°K (CRI >80)18BD= dali 2 / dali 2 push
04= 4000°K (CRI >80)26
93= 3000°K (CRI >90)
94= 4000°K (CRI >90)

Models

W tot.
°K - CRI
Options

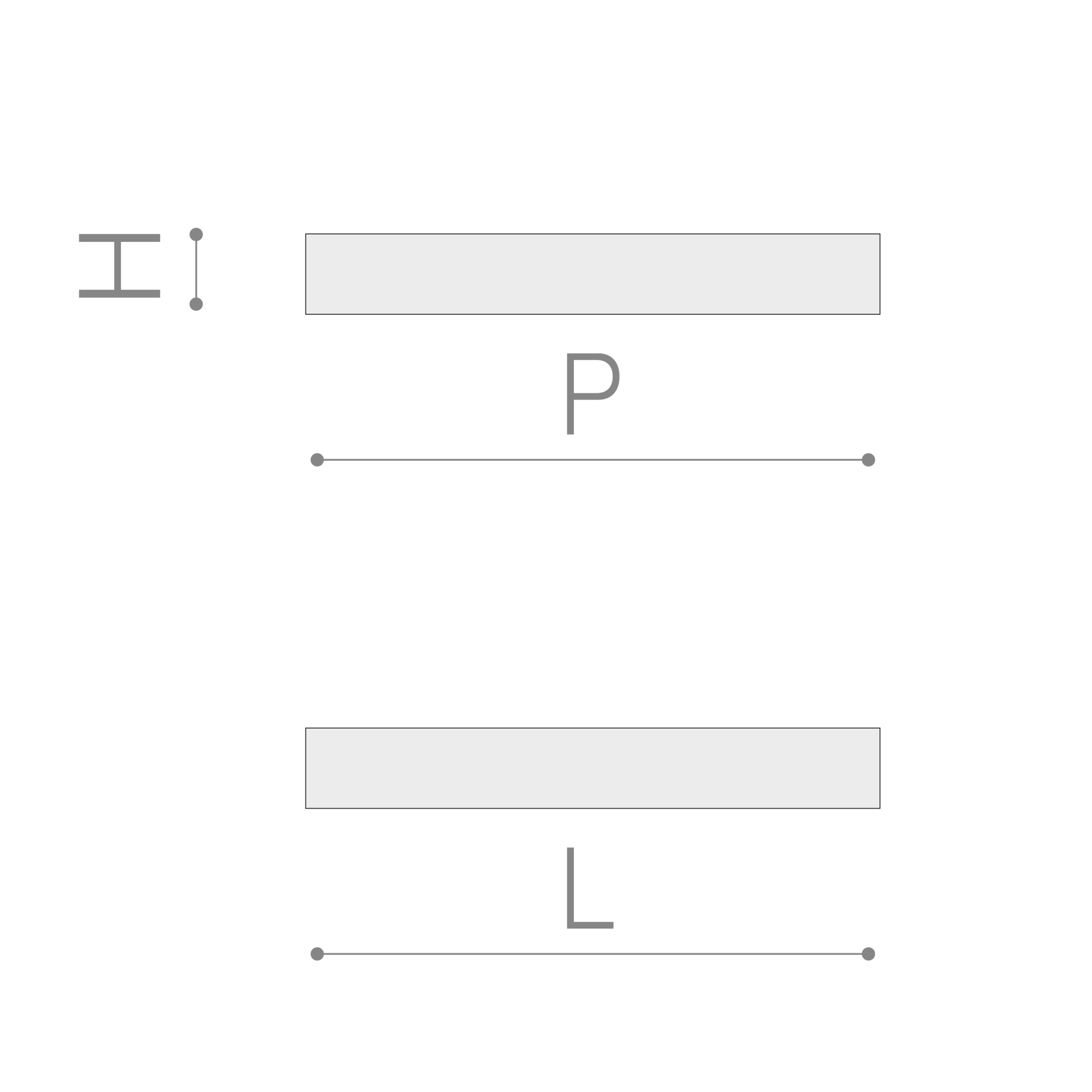

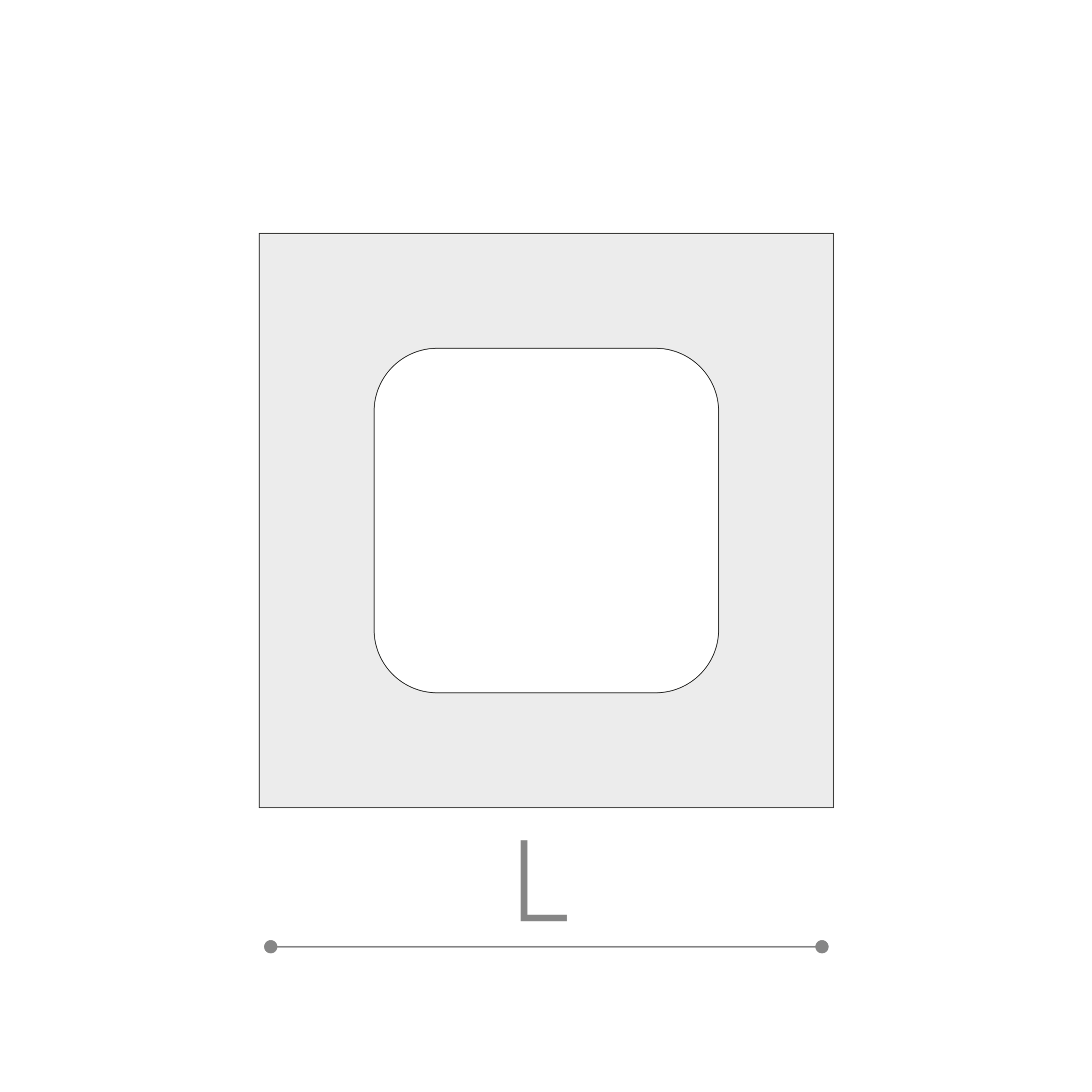

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
20052P0413BL13-4000°K - CRI>80on/off162512525025035-1.5
20052P0418BL18-4000°K - CRI>80on/off220712325025035-1.5
20052P0426BL26-4000°K - CRI>80on/off281510825025035-1.5
20052P0413BD13-4000°K - CRI>80dali 2 / dali 2 push162512525025035-1.5
20052P0418BD18-4000°K - CRI>80dali 2 / dali 2 push220712325025035-1.5
20052P0426BD26-4000°K - CRI>80dali 2 / dali 2 push281510825025035-1.5
20052P0313BL13-3000°K - CRI>80on/off154111925025035-1.5
20052P0318BL18-3000°K - CRI>80on/off209311625025035-1.5
20052P0326BL26-3000°K - CRI>80on/off267010325025035-1.5
20052P0313BD13-3000°K - CRI>80dali 2 / dali 2 push154111925025035-1.5
20052P0318BD18-3000°K - CRI>80dali 2 / dali 2 push209311625025035-1.5
20052P0326BD26-3000°K - CRI>80dali 2 / dali 2 push267010325025035-1.5
20052P2713BL13-2700°K - CRI>80on/off149311525025035-1.5
20052P2718BL18-2700°K - CRI>80on/off202811325025035-1.5
20052P2726BL26-2700°K - CRI>80on/off258710025025035-1.5
20052P2713BD13-2700°K - CRI>80dali 2 / dali 2 push149311525025035-1.5
20052P2718BD18-2700°K - CRI>80dali 2 / dali 2 push202811325025035-1.5
20052P2726BD26-2700°K - CRI>80dali 2 / dali 2 push258710025025035-1.5
20052P9413BL13-4000°K - CRI>90on/off130910125025035-1.5
20052P9418BL18-4000°K - CRI>90on/off17779925025035-1.5
