AMBER – Mod. 2P

(UGR<19)

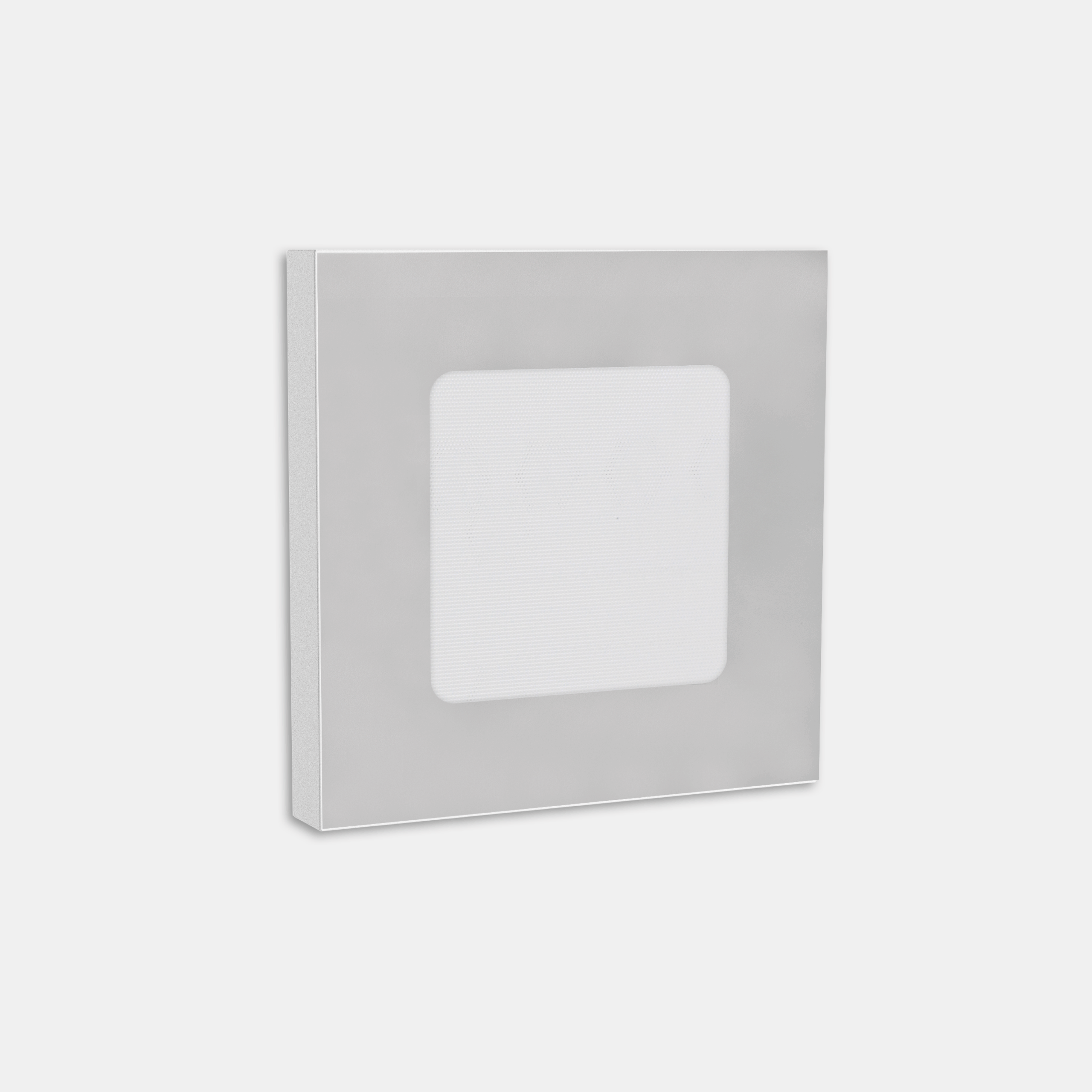

DIRECT BACKLIGHT LED fixture suitable for wall and ceiling installation. Body constructed of sheet steel, painted with epoxy-polyester powders in grey non-yellowing with fine embossed finish, with phosphating and degreasing pretreatment. Microprismatic anti-glare and anti-reflective polycarbonate diffuser.

Categories: Led, AMBER, AMBER - 2005, Architectural Indoor, AMBER

Models: 30

Color: Matt grey

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2005	2P	27	= 2700°K (CRI >80)	13	GL	= on/off
		03	= 3000°K (CRI >80)	18	GD	= dali 2 / dali 2 push
		04	= 4000°K (CRI >80)	26
		93	= 3000°K (CRI >90)
		94	= 4000°K (CRI >90)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
20052P0413GL	13	-	4000°K - CRI>80	on/off	1625	125	250	250	35	-	1.5
20052P0418GL	18	-	4000°K - CRI>80	on/off	2207	123	250	250	35	-	1.5
20052P0426GL	26	-	4000°K - CRI>80	on/off	2815	108	250	250	35	-	1.5
20052P0413GD	13	-	4000°K - CRI>80	dali 2 / dali 2 push	1625	125	250	250	35	-	1.5
20052P0418GD	18	-	4000°K - CRI>80	dali 2 / dali 2 push	2207	123	250	250	35	-	1.5
20052P0426GD	26	-	4000°K - CRI>80	dali 2 / dali 2 push	2815	108	250	250	35	-	1.5
20052P0313GL	13	-	3000°K - CRI>80	on/off	1541	119	250	250	35	-	1.5
20052P0318GL	18	-	3000°K - CRI>80	on/off	2093	116	250	250	35	-	1.5
20052P0326GL	26	-	3000°K - CRI>80	on/off	2670	103	250	250	35	-	1.5
20052P0313GD	13	-	3000°K - CRI>80	dali 2 / dali 2 push	1541	119	250	250	35	-	1.5
20052P0318GD	18	-	3000°K - CRI>80	dali 2 / dali 2 push	2093	116	250	250	35	-	1.5
20052P0326GD	26	-	3000°K - CRI>80	dali 2 / dali 2 push	2670	103	250	250	35	-	1.5
20052P2713GL	13	-	2700°K - CRI>80	on/off	1493	115	250	250	35	-	1.5
20052P2718GL	18	-	2700°K - CRI>80	on/off	2028	113	250	250	35	-	1.5
20052P2726GL	26	-	2700°K - CRI>80	on/off	2587	100	250	250	35	-	1.5
20052P2713GD	13	-	2700°K - CRI>80	dali 2 / dali 2 push	1493	115	250	250	35	-	1.5
20052P2718GD	18	-	2700°K - CRI>80	dali 2 / dali 2 push	2028	113	250	250	35	-	1.5
20052P2726GD	26	-	2700°K - CRI>80	dali 2 / dali 2 push	2587	100	250	250	35	-	1.5
20052P9413GL	13	-	4000°K - CRI>90	on/off	1309	101	250	250	35	-	1.5
20052P9418GL	18	-	4000°K - CRI>90	on/off	1777	99	250	250	35	-	1.5
