AGAPE – Mod. C3

(Single module – Satin opal diffuser)

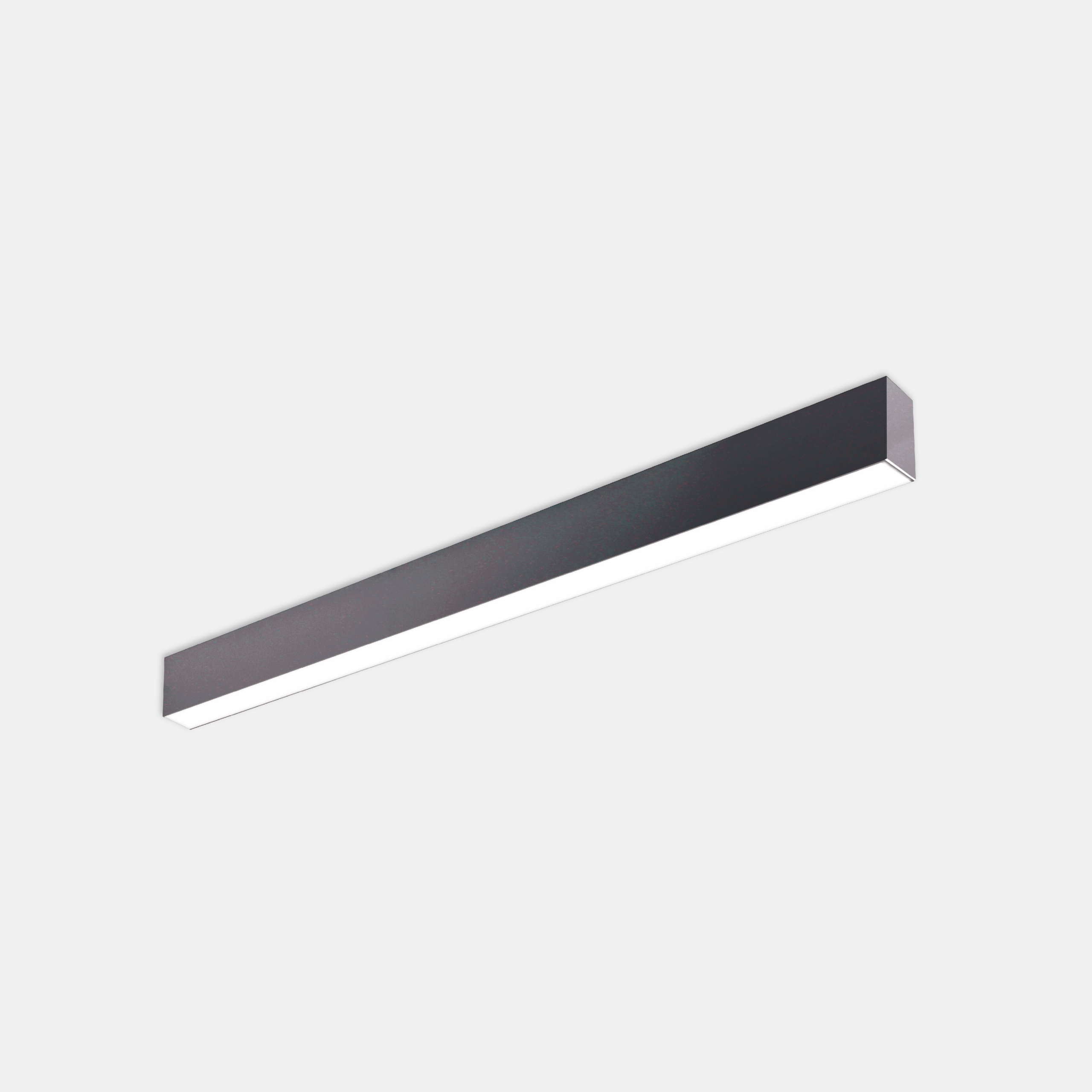

Indoor linear LED fixture suitable for ceiling or suspension installation. Epoxy-polyester powdercoated extruded aluminum body in black non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.

Categories: Led, AGAPE - 2006, Architectural Indoor, AGAPE

Models: 330

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.		Options
2006	C3	27	= 2700°K (CRI >80)	11	44	NL	= on/off
		30	= 3000°K (CRI >80)	16	48	ND	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	22	49	N7	= dali 2 / dali 2 push (6P+T)
		93	= 3000°K (CRI >90)	24	60	1N	= dali 2 + em. 1h (6P+T)
		94	= 4000°K (CRI >90)	28	64	N1	= em. 1h
				32	72	N3	= em. 3h
				34	96
				40

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2006C34011NL	11	250	4000°K - CRI>80	on/off	1571	143	56	90	565	265	1.4
2006C34022NL	22	250	4000°K - CRI>80	on/off	3143	143	56	90	1125	825	2.8
2006C34028NL	28	250	4000°K - CRI>80	on/off	3929	140	56	90	1405	1105	3.5
2006C34034NL	34	250	4000°K - CRI>80	on/off	4714	139	56	90	1685	1380	4.2
2006C34016NL	16	350	4000°K - CRI>80	on/off	2156	135	56	90	565	265	1.4
2006C34032NL	32	350	4000°K - CRI>80	on/off	4312	135	56	90	1125	825	2.8
2006C34040NL	40	350	4000°K - CRI>80	on/off	5390	135	56	90	1405	1105	3.5
2006C34049NL	49	350	4000°K - CRI>80	on/off	6467	132	56	90	1685	1380	4.2
2006C34024NL	24	500	4000°K - CRI>80	on/off	2989	125	56	90	565	265	1.4
2006C34048NL	48	500	4000°K - CRI>80	on/off	5978	125	56	90	1125	825	2.8
2006C34060NL	60	500	4000°K - CRI>80	on/off	7473	125	56	90	1405	1105	3.5
2006C34072NL	72	500	4000°K - CRI>80	on/off	8967	125	56	90	1685	1380	4.2
2006C34044NL	44	250	4000°K - CRI>80	on/off	6286	143	56	90	2250	1950	5.6
2006C34064NL	64	350	4000°K - CRI>80	on/off	8623	135	56	90	2250	1950	5.6
2006C34096NL	96	500	4000°K - CRI>80	on/off	11956	125	56	90	2250	1950	5.6
2006C34011ND	11	250	4000°K - CRI>80	dali 2 / dali 2 push	1571	143	56	90	565	265	1.4
2006C34022ND	22	250	4000°K - CRI>80	dali 2 / dali 2 push	3143	143	56	90	1125	825	2.8
2006C34028ND	28	250	4000°K - CRI>80	dali 2 / dali 2 push	3929	140	56	90	1405	1105	3.5
2006C34034ND	34	250	4000°K - CRI>80	dali 2 / dali 2 push	4714	139	56	90	1685	1380	4.2
2006C34016ND	16	350	4000°K - CRI>80	dali 2 / dali 2 push	2156	135	56	90	565	265	1.4
