AGAPE/L3

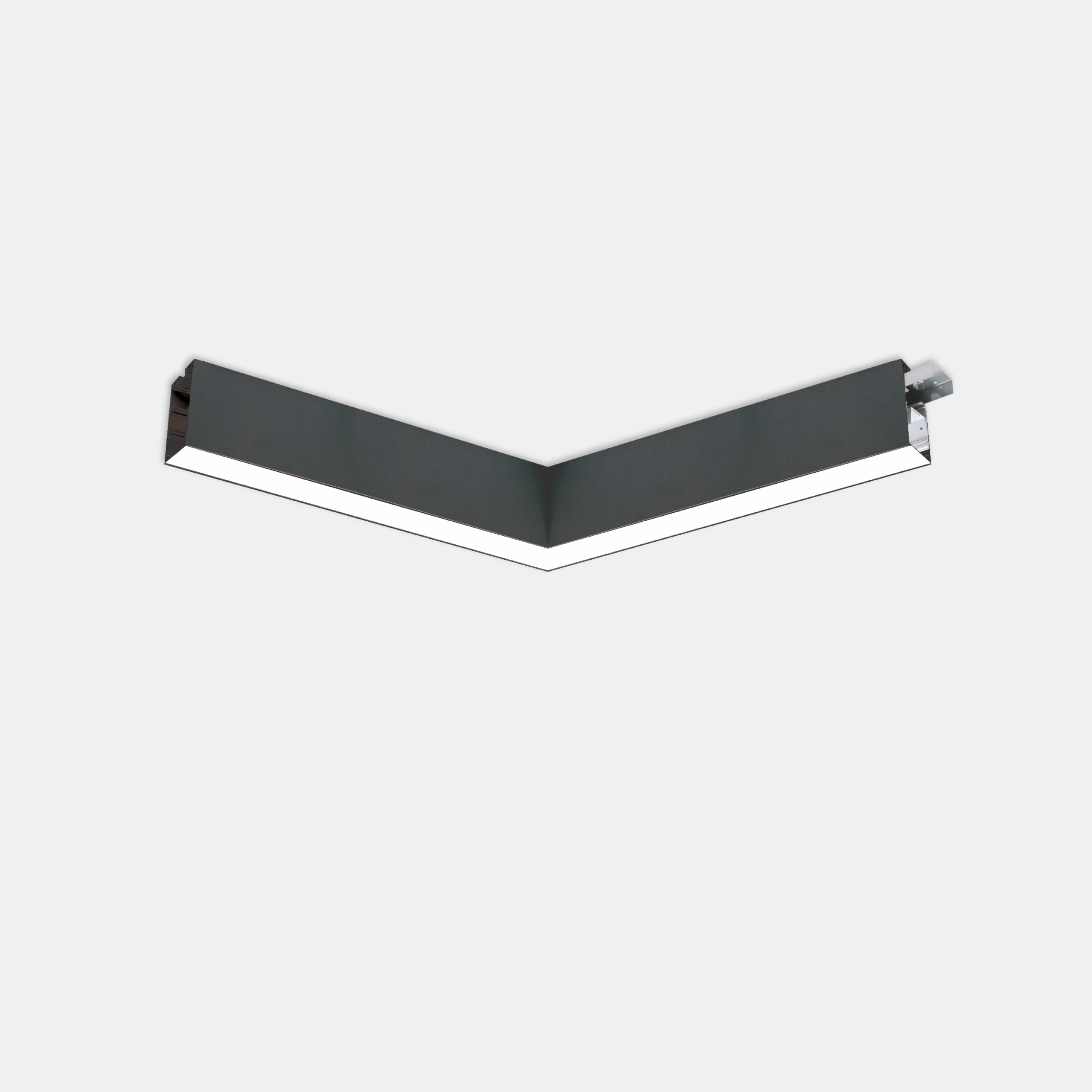

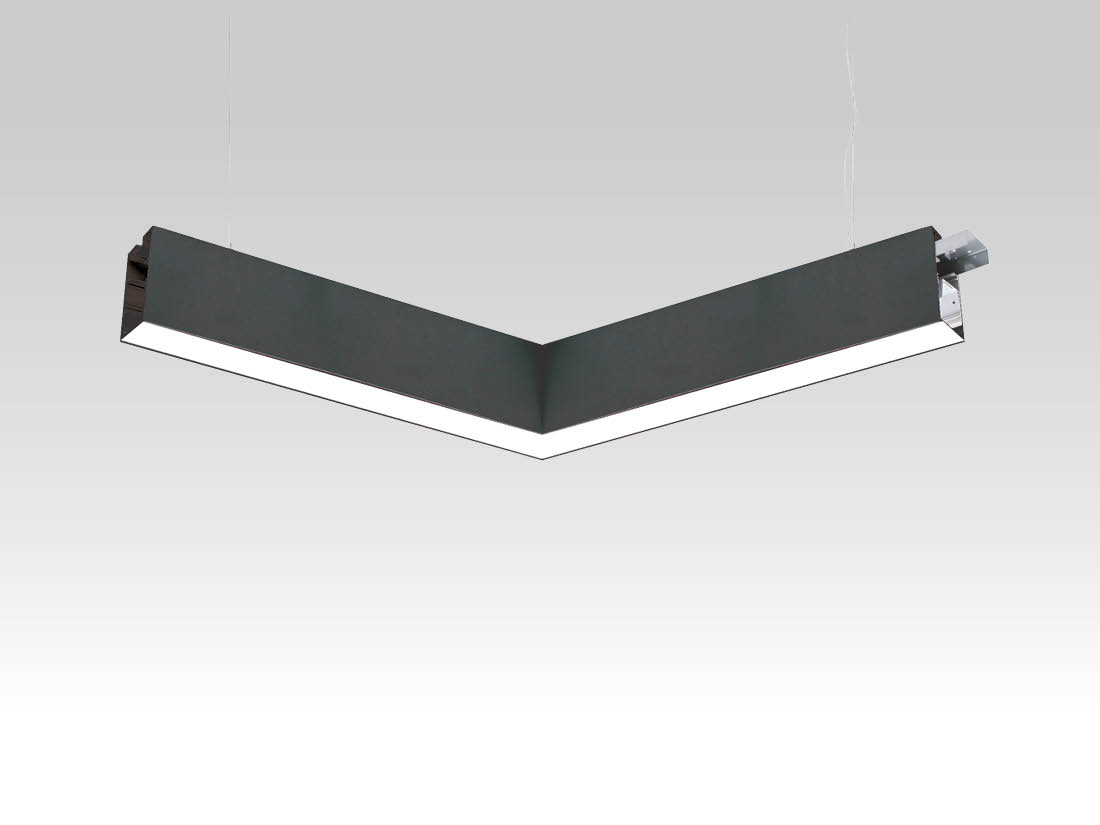

Led linear surface mounted or suspended fitting. Extruded aluminum body, painted with embossed matt black anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, AGAPE - 2006, Architectural Indoor, art. 2006 Agape

Models: 45

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2006	L3	27	= 2700°K (CRI >80)	22	NL	= on/off
		30	= 3000°K (CRI >80)	32	ND	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	48	N7	= dali 2 / dali 2 push (6P+T)
		93	= 3000°K (CRI >90)		1N	= dali 2 + em. 1h (6P+T)
		94	= 4000°K (CRI >90)		N1	= em. 1h
					N3	= em. 3h

Models

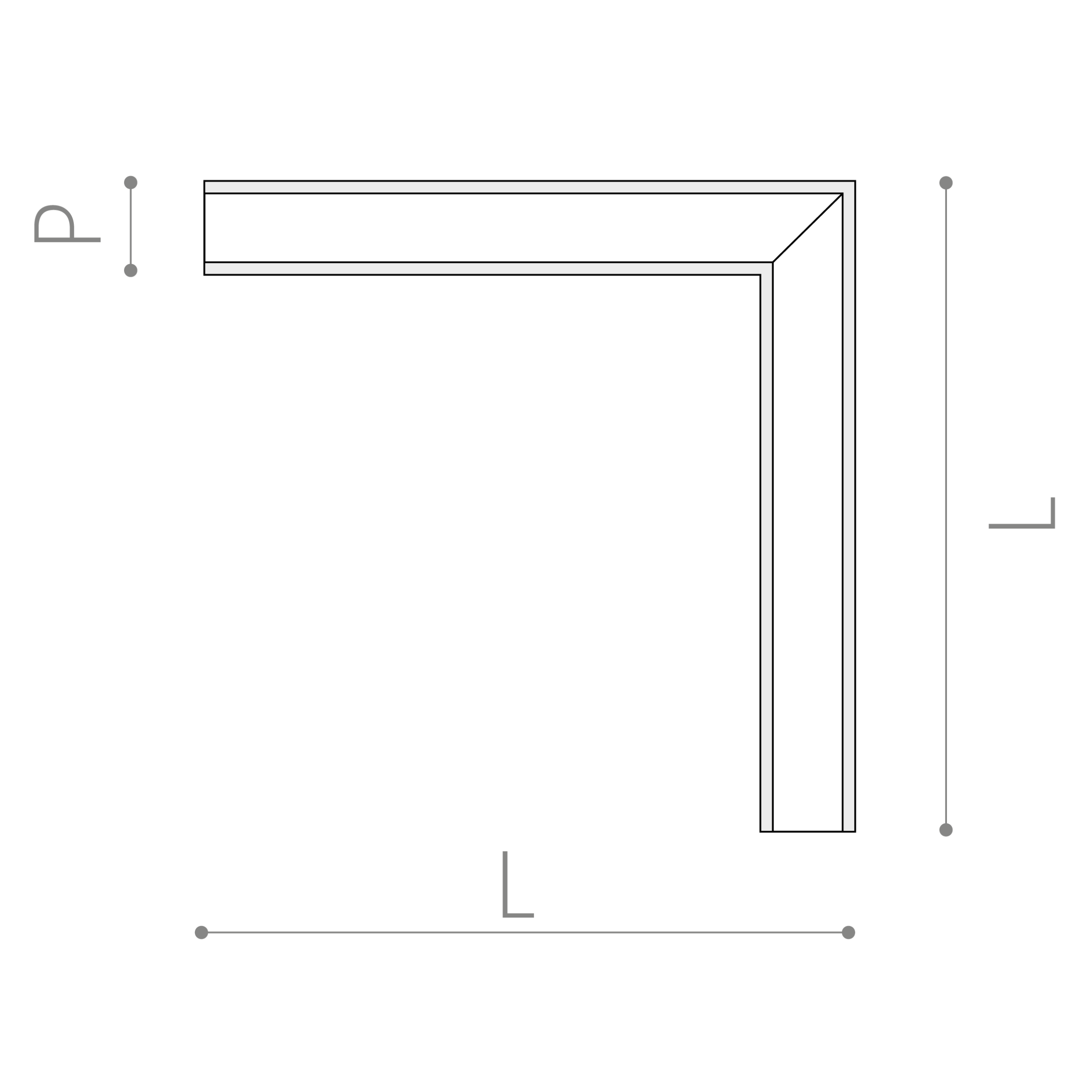

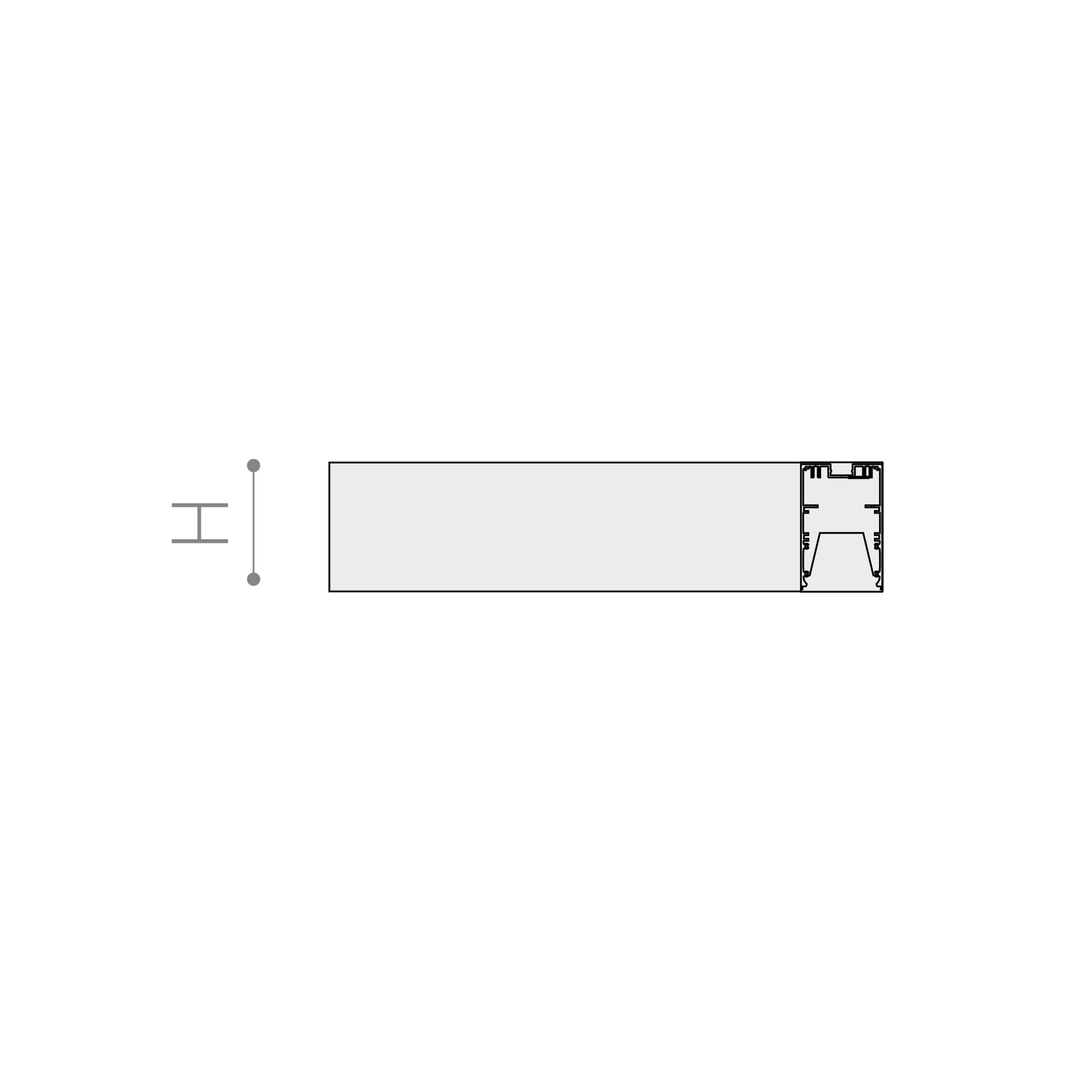

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
2006L34022NL	22	250	4000°K - CRI>80	on/off	3143	143	56	90	600	600	2.9
2006L34032NL	32	350	4000°K - CRI>80	on/off	4312	135	56	90	600	600	2.9
2006L34048NL	48	500	4000°K - CRI>80	on/off	5978	125	56	90	600	600	2.9
2006L34022ND	22	250	4000°K - CRI>80	dali 2 / dali 2 push	3143	143	56	90	600	600	2.9
2006L34032ND	32	350	4000°K - CRI>80	dali 2 / dali 2 push	4312	135	56	90	600	600	2.9
2006L34048ND	48	500	4000°K - CRI>80	dali 2 / dali 2 push	5978	125	56	90	600	600	2.9
2006L34022N7	22	250	4000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	3143	143	56	90	600	600	2.9
2006L34032N7	32	350	4000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	4312	135	56	90	600	600	2.9
2006L34048N7	48	500	4000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	5978	125	56	90	600	600	2.9
2006L33022NL	22	250	3000°K - CRI>80	on/off	2981	136	56	90	600	600	2.9
2006L33032NL	32	350	3000°K - CRI>80	on/off	4090	128	56	90	600	600	2.9
2006L33048NL	48	500	3000°K - CRI>80	on/off	5670	118	56	90	600	600	2.9
2006L33022ND	22	250	3000°K - CRI>80	dali 2 / dali 2 push	2981	136	56	90	600	600	2.9
2006L33032ND	32	350	3000°K - CRI>80	dali 2 / dali 2 push	4090	128	56	90	600	600	2.9
2006L33048ND	48	500	3000°K - CRI>80	dali 2 / dali 2 push	5670	118	56	90	600	600	2.9
2006L33022N7	22	250	3000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	2981	136	56	90	600	600	2.9
2006L33032N7	32	350	3000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	4090	128	56	90	600	600	2.9
2006L33048N7	48	500	3000°K - CRI>80	dali 2 / dali 2 push (6P+T poli)	5670	118	56	90	600	600	2.9
2006L39422NL	22	250	4000°K - CRI>90	on/off	2669	121	56	90	600	600	2.9
2006L39432NL	32	350	4000°K - CRI>90	on/off	3662	114	56	90	600	600	2.9
