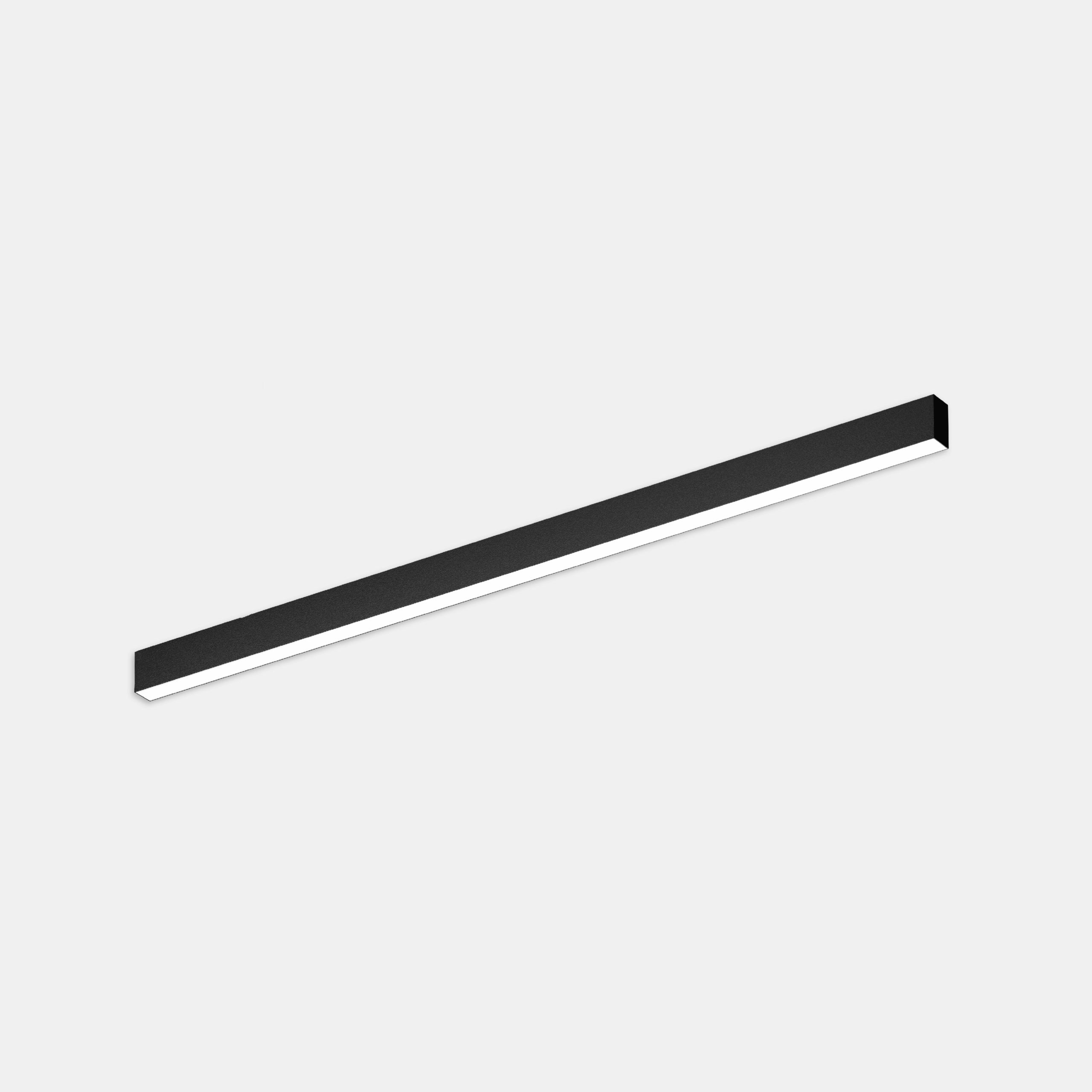

SLIM – Mod. C3

(Single module – Satin opal diffuser)

Indoor linear LED fixture suitable for ceiling or suspension installation. Epoxy-polyester powdercoated extruded aluminum body in black non-yellowing color with fine embossed finish. Satin opal polycarbonate diffuser with high visual comfort.

Categories: Led, SLIM, SLIM - 2008, Architectural Indoor, SLIM

Models: 80

Color: Matt black

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2008	C3	27	= 2700°K (CRI >80)	22	NL	= on/off
		30	= 3000°K (CRI >80)	28	ND	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	32
		93	= 3000°K (CRI >90)	34
		94	= 4000°K (CRI >90)	40
				44
				49
				64

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2008C34022NL	22	250	4000°K - CRI>80	on/off	3143	143	30	55	1125	825	-
2008C34028NL	28	250	4000°K - CRI>80	on/off	3929	140	30	55	1405	1105	-
2008C34034NL	34	250	4000°K - CRI>80	on/off	4714	139	30	55	1685	1380	-
2008C34044NL	44	250	4000°K - CRI>80	on/off	6286	143	30	55	2250	1950	-
2008C34032NL	32	350	4000°K - CRI>80	on/off	4312	135	30	55	1125	825	-
2008C34040NL	40	350	4000°K - CRI>80	on/off	5390	135	30	55	1405	1105	-
2008C34049NL	49	350	4000°K - CRI>80	on/off	6467	132	30	55	1685	1380	-
2008C34064NL	64	350	4000°K - CRI>80	on/off	8623	135	30	55	2250	1950	-
2008C34022ND	22	250	4000°K - CRI>80	dali / dali push	3143	143	30	55	1125	825	-
2008C34028ND	28	250	4000°K - CRI>80	dali / dali push	3929	140	30	55	1405	1105	-
2008C34034ND	34	250	4000°K - CRI>80	dali / dali push	4714	139	30	55	1685	1380	-
2008C34044ND	44	250	4000°K - CRI>80	dali / dali push	6286	143	30	55	2250	1950	-
2008C34032ND	32	350	4000°K - CRI>80	dali / dali push	4312	135	30	55	1125	825	-
2008C34040ND	40	350	4000°K - CRI>80	dali / dali push	5390	135	30	55	1405	1105	-
2008C34049ND	49	350	4000°K - CRI>80	dali / dali push	6467	132	30	55	1685	1380	-
2008C34064ND	64	350	4000°K - CRI>80	dali / dali push	8623	135	30	55	2250	1950	-
2008C33022NL	22	250	3000°K - CRI>80	on/off	2994	136	30	55	1125	825	-
2008C33028NL	28	250	3000°K - CRI>80	on/off	3742	134	30	55	1405	1105	-
2008C33034NL	34	250	3000°K - CRI>80	on/off	4490	132	30	55	1685	1380	-
2008C33044NL	44	250	3000°K - CRI>80	on/off	5987	136	30	55	2250	1950	-
