SLIM – Mod. RP

(Continuous row – Microprismatic diffuser UGR<19)

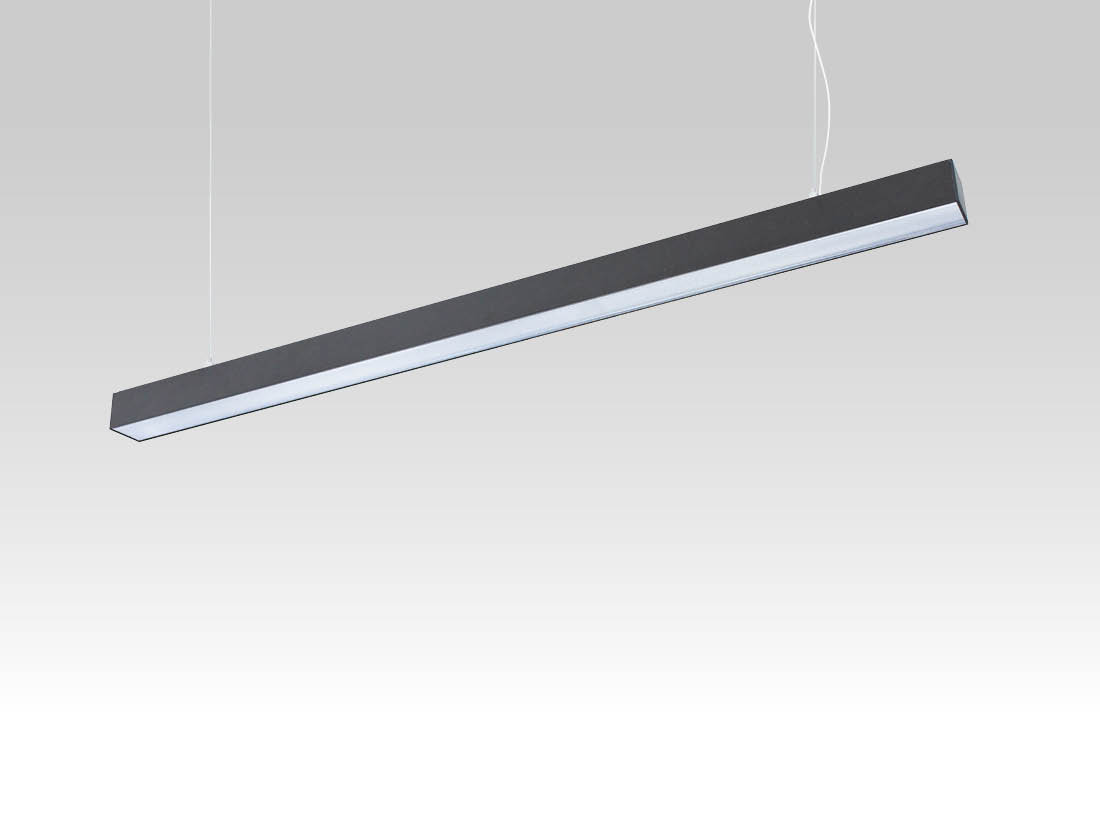

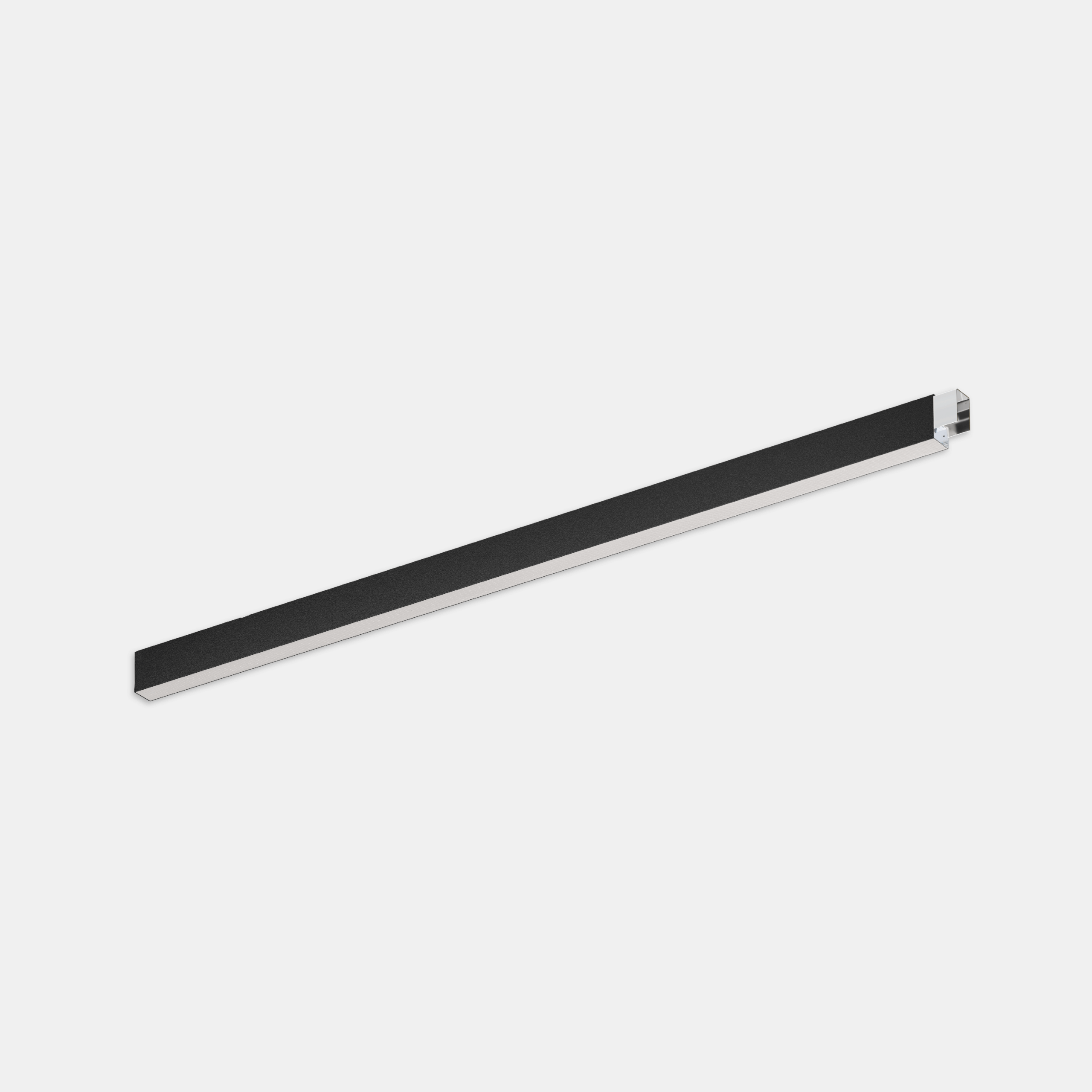

Indoor linear LED fixture suitable for ceiling or suspension installation. Epoxy-polyester powdercoated extruded aluminum body in black non-yellowing color with fine embossed finish. Anti-glare and anti-reflection microprismatic polycarbonate.

Categories: Led, SLIM, SLIM - 2008, Architectural Indoor, SLIM

Models: 80

Color: Matt black

Catalogue abstract

Installation instructions

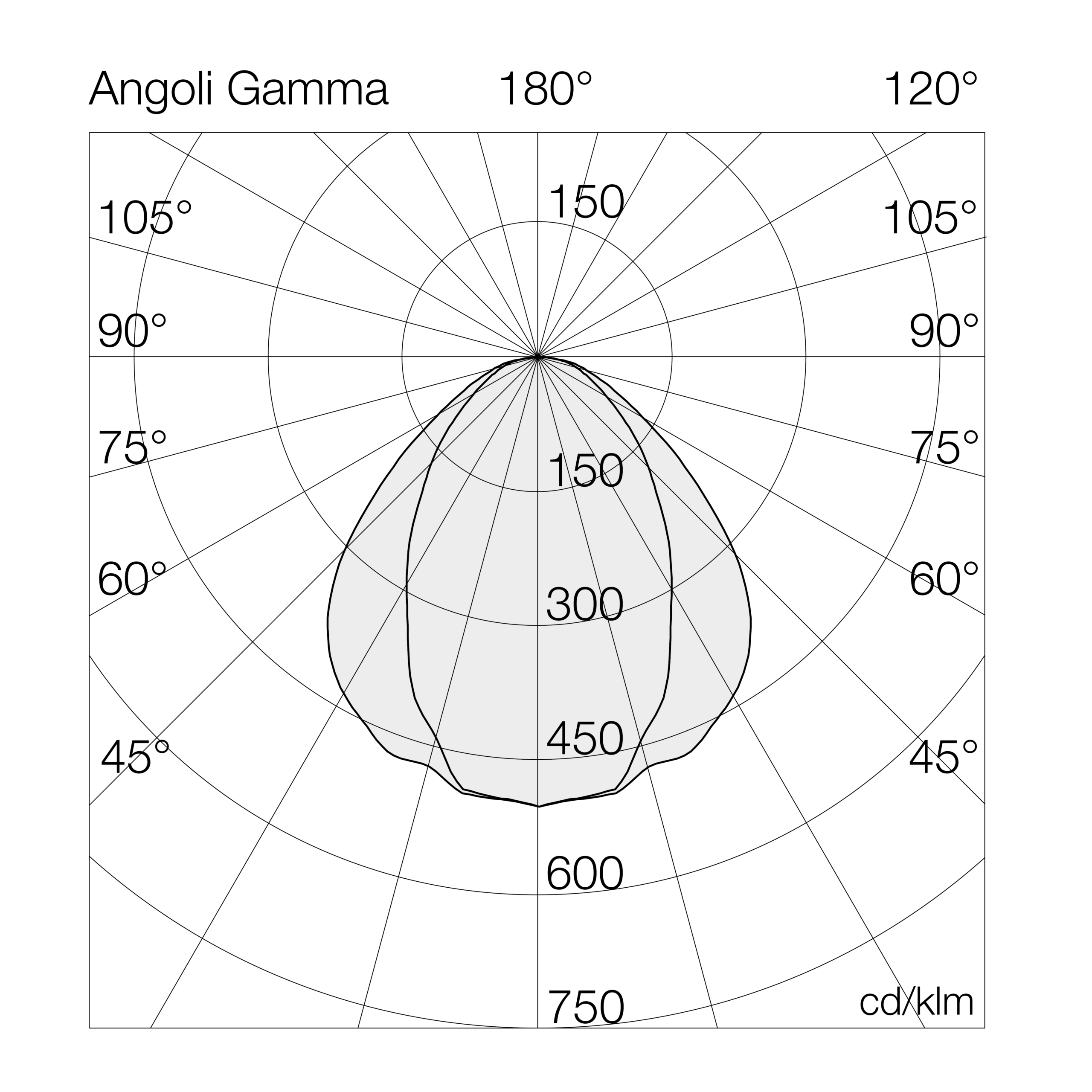

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2008	RP	27	= 2700°K (CRI >80)	22	NL	= on/off
		30	= 3000°K (CRI >80)	28	ND	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	32
		93	= 3000°K (CRI >90)	34
		94	= 4000°K (CRI >90)	40
				44
				49
				64

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2008RP4022NL	22	250	4000°K - CRI>80	on/off	2951	134	30	55	1125	825	-
2008RP4028NL	28	250	4000°K - CRI>80	on/off	3689	132	30	55	1405	1105	-
2008RP4034NL	34	250	4000°K - CRI>80	on/off	4427	130	30	55	1685	1380	-
2008RP4044NL	44	250	4000°K - CRI>80	on/off	5903	134	30	55	2250	1950	-
2008RP4032NL	32	350	4000°K - CRI>80	on/off	4049	127	30	55	1125	825	-
2008RP4040NL	40	350	4000°K - CRI>80	on/off	5061	127	30	55	1405	1105	-
2008RP4049NL	49	350	4000°K - CRI>80	on/off	6073	124	30	55	1685	1380	-
2008RP4064NL	64	350	4000°K - CRI>80	on/off	8097	127	30	55	2250	1950	-
2008RP4022ND	22	250	4000°K - CRI>80	dali / dali push	2951	134	30	55	1125	825	-
2008RP4028ND	28	250	4000°K - CRI>80	dali / dali push	3689	132	30	55	1405	1105	-
2008RP4034ND	34	250	4000°K - CRI>80	dali / dali push	4427	130	30	55	1685	1380	-
2008RP4044ND	44	250	4000°K - CRI>80	dali / dali push	5903	134	30	55	2250	1950	-
2008RP4032ND	32	350	4000°K - CRI>80	dali / dali push	4049	127	30	55	1125	825	-
2008RP4040ND	40	350	4000°K - CRI>80	dali / dali push	5061	127	30	55	1405	1105	-
2008RP4049ND	49	350	4000°K - CRI>80	dali / dali push	6073	124	30	55	1685	1380	-
2008RP4064ND	64	350	4000°K - CRI>80	dali / dali push	8097	127	30	55	2250	1950	-
2008RP3022NL	22	250	3000°K - CRI>80	on/off	2811	128	30	55	1125	825	-
2008RP3028NL	28	250	3000°K - CRI>80	on/off	3514	126	30	55	1405	1105	-
2008RP3034NL	34	250	3000°K - CRI>80	on/off	4217	124	30	55	1685	1380	-
2008RP3044NL	44	250	3000°K - CRI>80	on/off	5623	128	30	55	2250	1950	-
