art.-2011-blanca-rp-bianco

BLANCA – Mod. RP

(UGR<19)

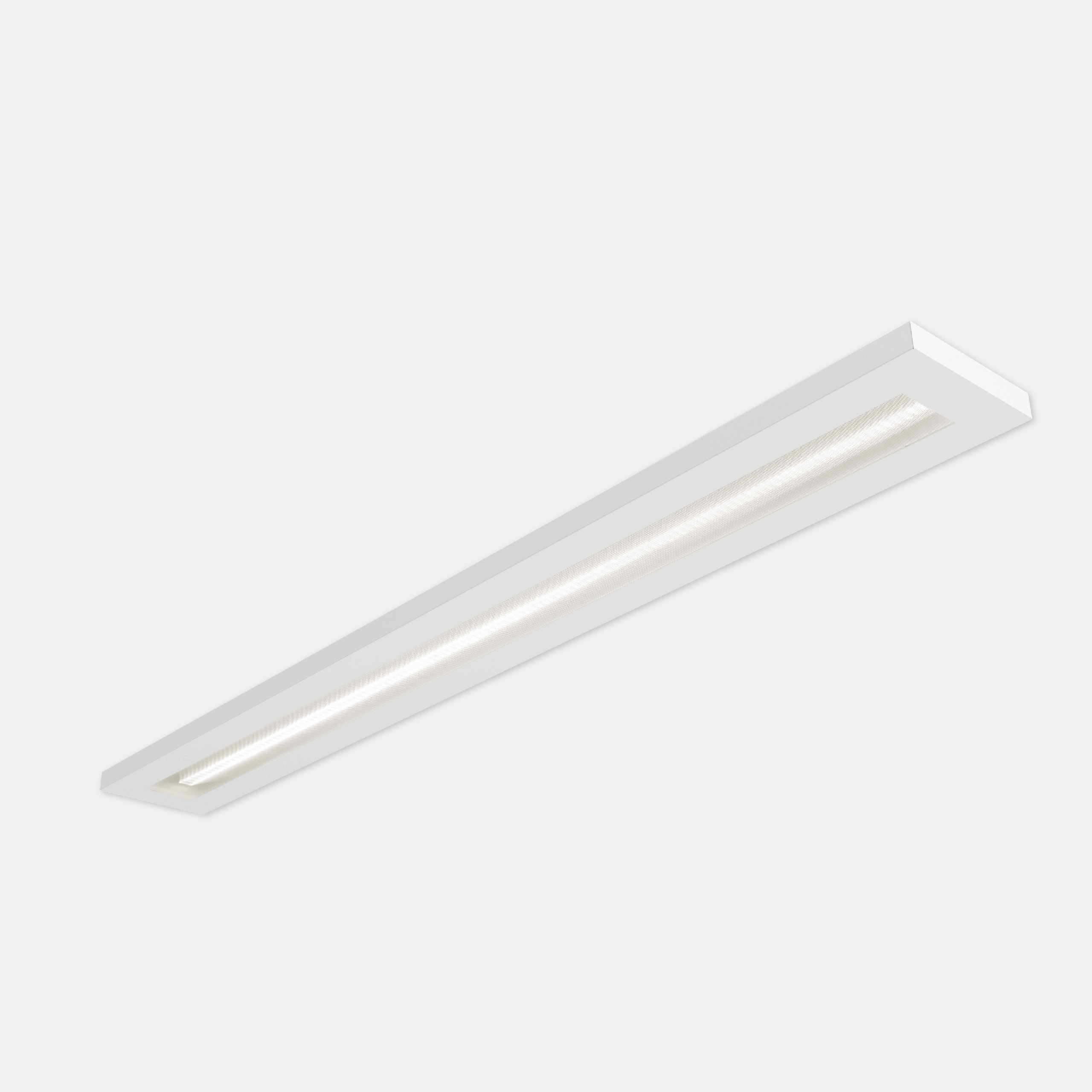

DIRECT BACKLIGHT LED fixture suitable for ceiling or suspension installation (via accessory). Steel sheet body, painted with epoxy-polyester powders in white non-yellowing color with fine embossed finish, with phosphating and degreasing pretreatment. Anti-glare and antireflective microprismatic polycarbonate diffuser or anti-glare and anti-reflective smooth opal polycarbonate diffuser.
Categories: Led, BLANCA - 2011, Office, BLANCA
Models: 165
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2011RP03= 3000°K (CRI >80)10EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)21D1= dali 2 + em.1h
23E1= em. 1h
28E3= em. 3h
33
38
40
48
49
60

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2011RP0410EL10-4000°K - CRI>80on/off131513115069035-2.0
2011RP0415EL15-4000°K - CRI>80on/off204013615069035-2.0
2011RP0421EL21-4000°K - CRI>80on/off277513215069035-2.0
2011RP0423EL23-4000°K - CRI>80on/off3061133150125035-3.6
2011RP0428EL28-4000°K - CRI>80on/off3655131150153035-4.4
2011RP0433EL33-4000°K - CRI>80on/off4378133150125035-3.6
2011RP0438EL38-4000°K - CRI>80on/off5234138150153035-4.4
2011RP0440EL40-4000°K - CRI>80on/off5322133150125035-3.6
2011RP0448EL48-4000°K - CRI>80on/off6121128150125035-3.6
2011RP0449EL49-4000°K - CRI>80on/off6651136150153035-4.4
2011RP0460EL60-4000°K - CRI>80on/off7651128150153035-4.4
2011RP0410LD10-4000°K - CRI>80dali 2 / dali 2 push131513115069035-2.0
2011RP0415LD15-4000°K - CRI>80dali 2 / dali 2 push204013615069035-2.0
2011RP0421LD21-4000°K - CRI>80dali 2 / dali 2 push277513215069035-2.0
2011RP0423LD23-4000°K - CRI>80dali 2 / dali 2 push3061133150125035-3.6
2011RP0428LD28-4000°K - CRI>80dali 2 / dali 2 push3655131150153035-4.4
2011RP0433LD33-4000°K - CRI>80dali 2 / dali 2 push4378133150125035-3.6
2011RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push5234138150153035-4.4
2011RP0440LD40-4000°K - CRI>80dali 2 / dali 2 push5322133150125035-3.6
2011RP0448LD48-4000°K - CRI>80dali 2 / dali 2 push6121128150125035-3.6

Accessories
