art.-2013-blanca-hp-rp

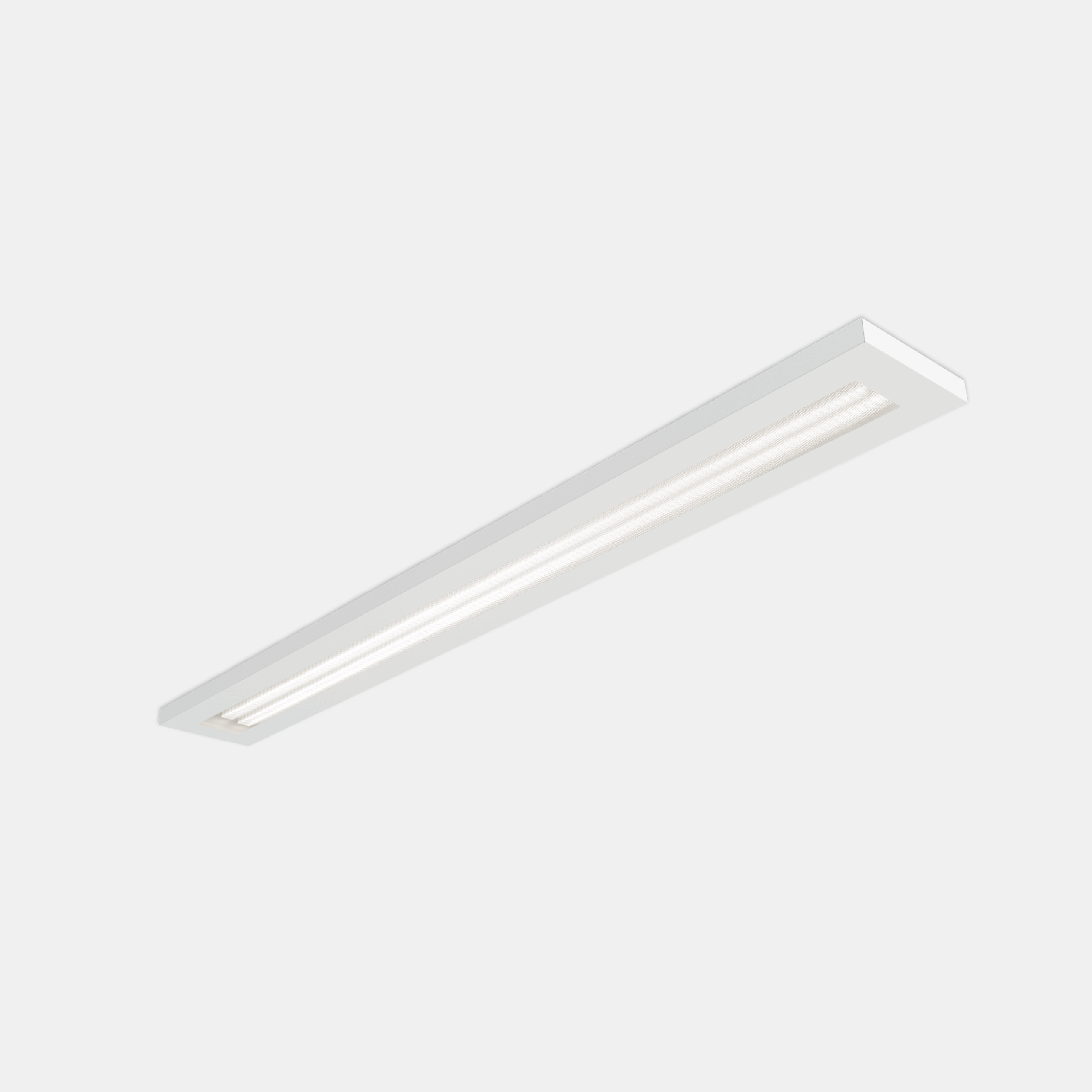

BLANCA HP – Mod. RP

(UGR<19)

Led DIRECT BACKLIGHT surface mounted or suspended fitting. Steel sheet body, painted with embossed white anti-yellowing epoxy-polyester powder, including phosphating and degreasing pre-treatment. Electronic driver 220-240V 50/60 Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, BLANCA HP - 2013, Office, BLANCA HP
Models: 165
Color: Matt white
Catalogue abstract
Installation instructions

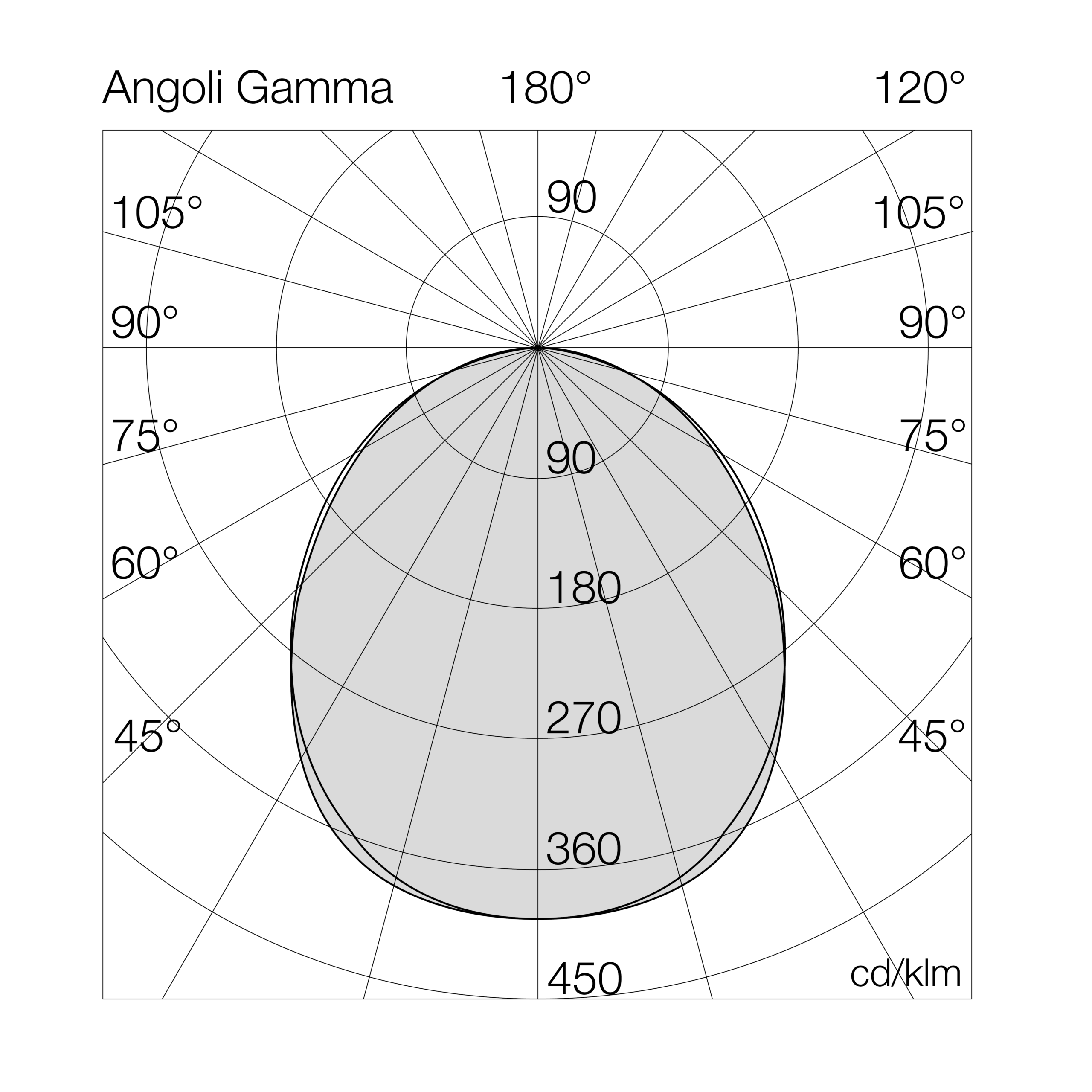

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2013RP03= 3000°K (CRI >80)10EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)21D1= dali 2 + em.1h
23E1= em. 1h
28E3= em. 3h
33
38
40
48
49
60

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2013RP0410EL10-4000°K - CRI>80on/off140014015069035-2.0
2013RP0415EL15-4000°K - CRI>80on/off215114315069035-2.0
2013RP0421EL21-4000°K - CRI>80on/off304714515069035-2.0
2013RP0423EL23-4000°K - CRI>80on/off3293143150125035-3.6
2013RP0428EL28-4000°K - CRI>80on/off3932140150153035-4.4
2013RP0433EL33-4000°K - CRI>80on/off4703143150125035-3.6
2013RP0438EL38-4000°K - CRI>80on/off5503145150153035-4.4
2013RP0440EL40-4000°K - CRI>80on/off5678142150125035-3.6
2013RP0448EL48-4000°K - CRI>80on/off6682139150125035-3.6
2013RP0449EL49-4000°K - CRI>80on/off7097145150153035-4.4
2013RP0460EL60-4000°K - CRI>80on/off8353139150153035-4.4
2013RP0410LD10-4000°K - CRI>80dali 2 / dali 2 push140014015069035-2.0
2013RP0415LD15-4000°K - CRI>80dali 2 / dali 2 push215114315069035-2.0
2013RP0421LD21-4000°K - CRI>80dali 2 / dali 2 push304714515069035-2.0
2013RP0423LD23-4000°K - CRI>80dali 2 / dali 2 push3293143150125035-3.6
2013RP0428LD28-4000°K - CRI>80dali 2 / dali 2 push3932140150153035-4.4
2013RP0433LD33-4000°K - CRI>80dali 2 / dali 2 push4703143150125035-3.6
2013RP0438LD38-4000°K - CRI>80dali 2 / dali 2 push5503145150153035-4.4
2013RP0440LD40-4000°K - CRI>80dali 2 / dali 2 push5678142150125035-3.6
2013RP0448LD48-4000°K - CRI>80dali 2 / dali 2 push6682139150125035-3.6

Accessories
