DIAMANTE – Mod. Q2

(UGR<16)

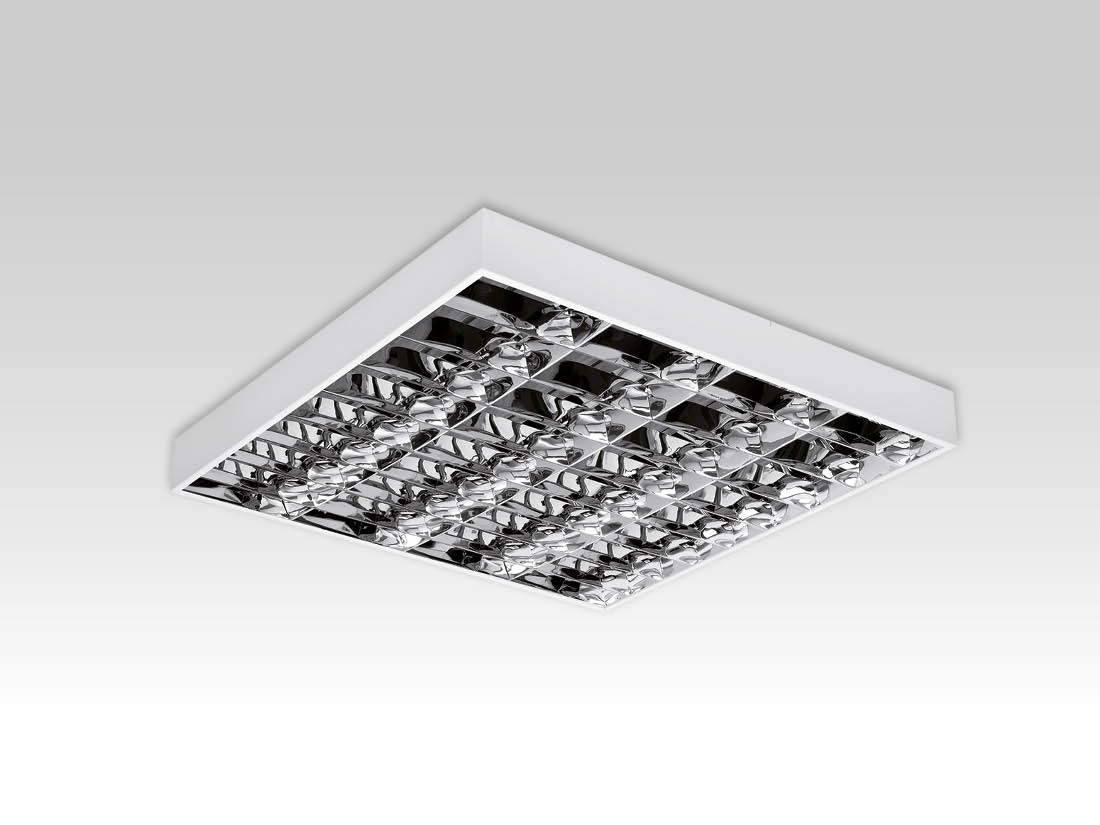

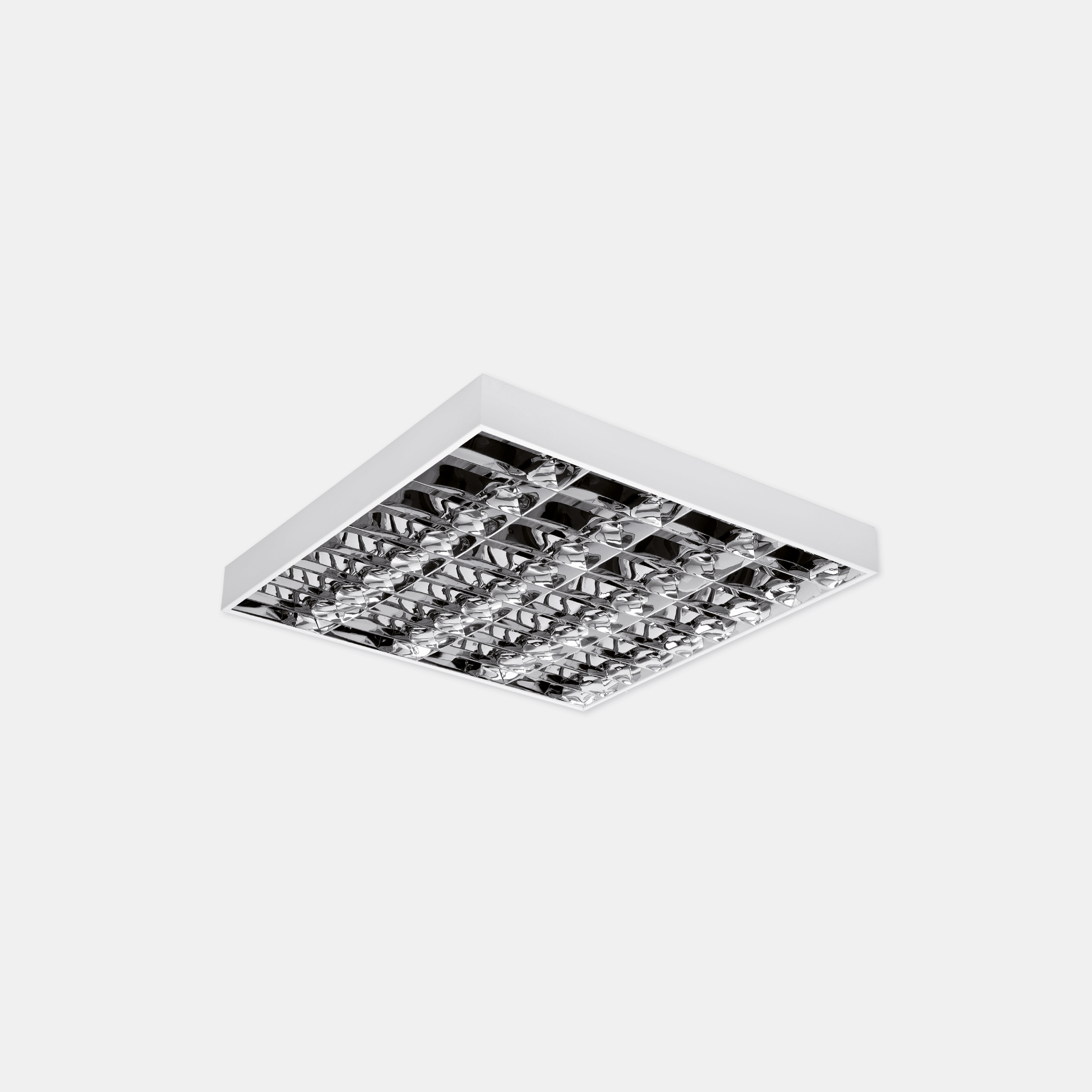

DIRECT BACKLIGHT LED fixture suitable for ceiling or suspension installation (via accessory). Sheet steel body, painted with epoxy-polyester powders in non-yellowing white with fine embossed finish, with phosphating and degreasing pretreatment. Low luminance double parabolic dark-light optics (60° 200 cd/sqm cat2) with high flux efficiency, anti-glare and antireflection microprismatic polycarbonate LED cover diffuser.

Categories: Led, DIAMANTE - 2020, Office, DIAMANTE

Models: 120

Color: Matt white

Catalogue abstract

Installation instructions

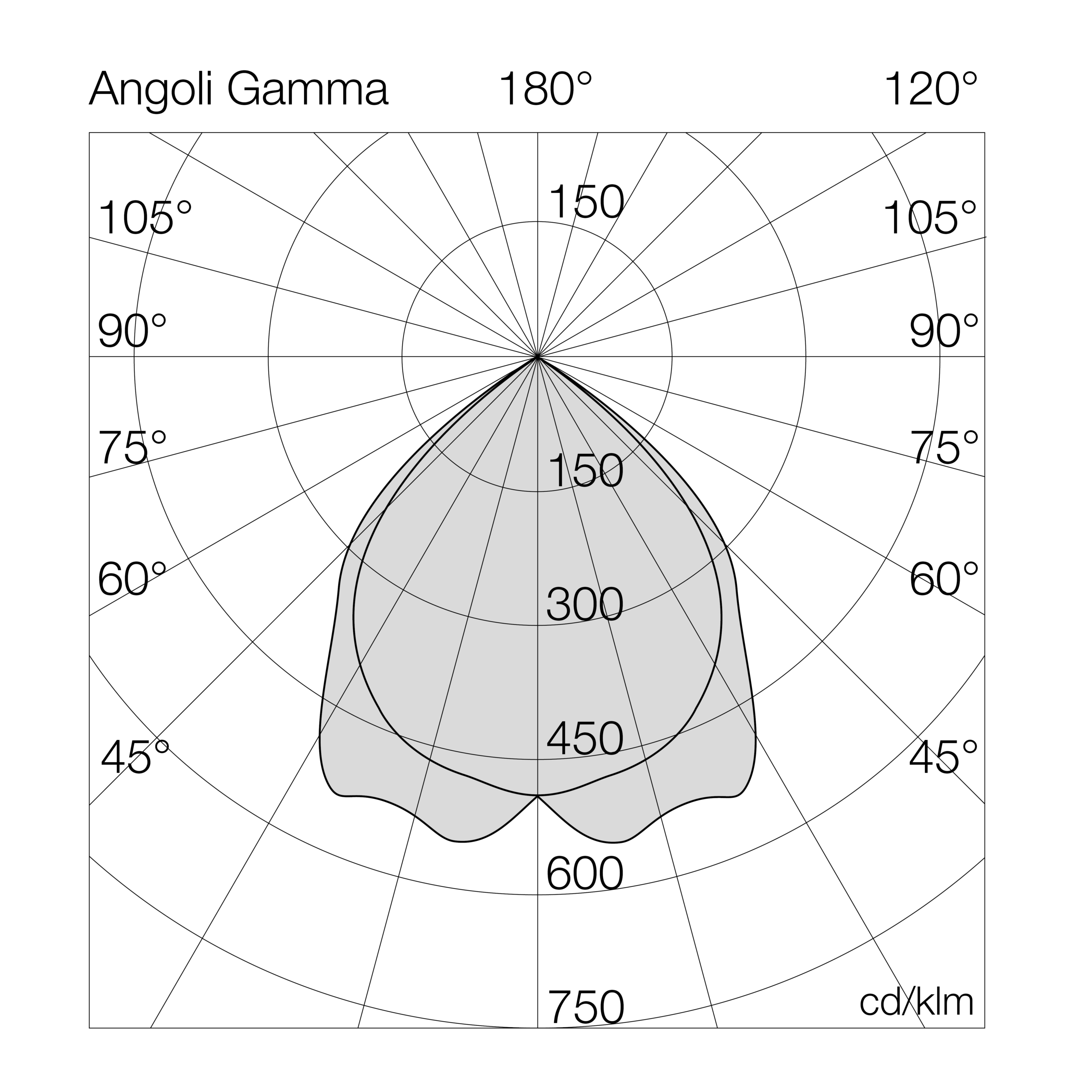

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
2020	Q2	03	= 3000°K (CRI >80)	23	EL	= on/off
		04	= 4000°K (CRI >80)	24	LD	= dali 2 / dali 2 push
		94	= 4000°K (CRI >90)	33	D1	= dali 2 + em.1h
				37	E1	= em. 1h
				42	E3	= em. 3h
				45
				48
				72

Models

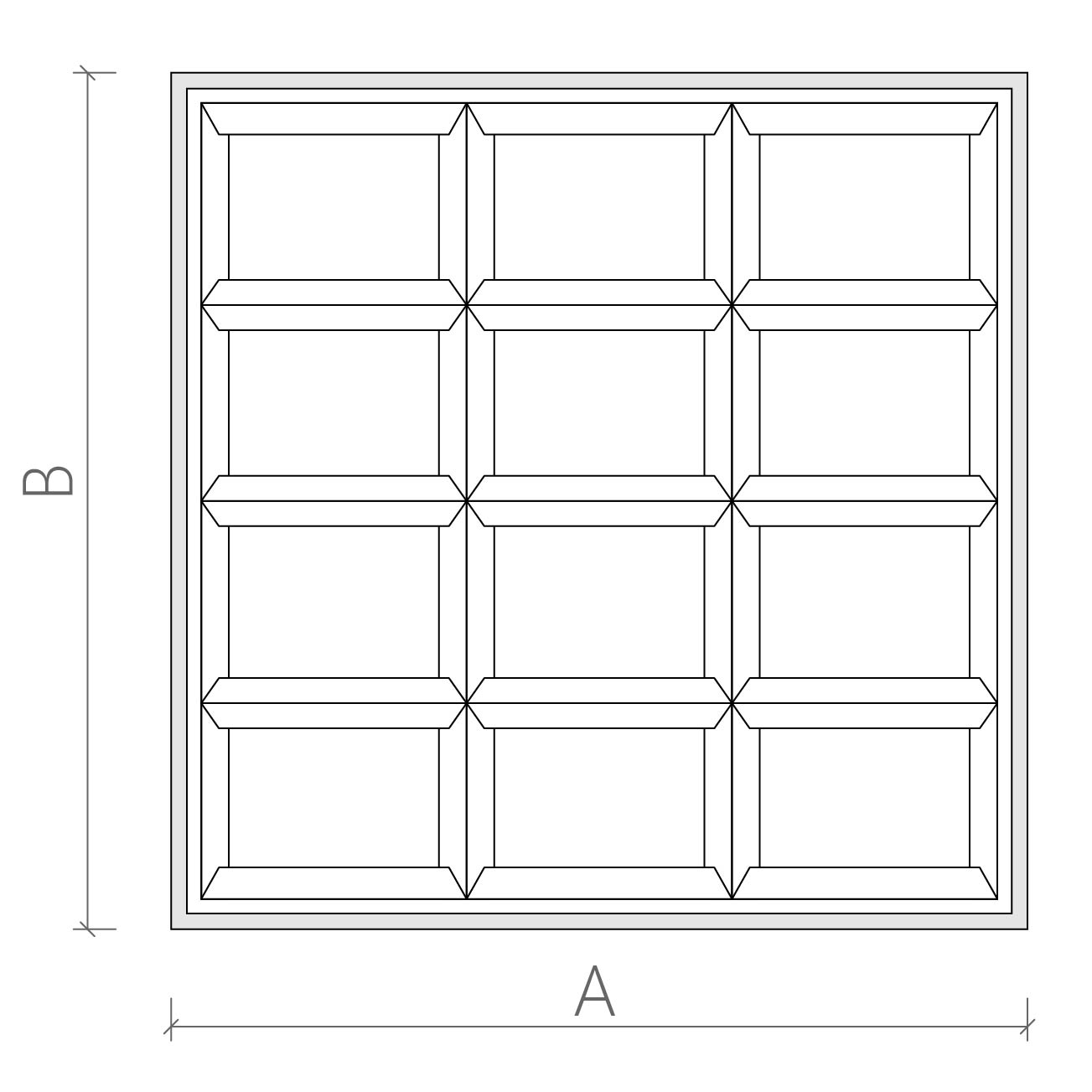

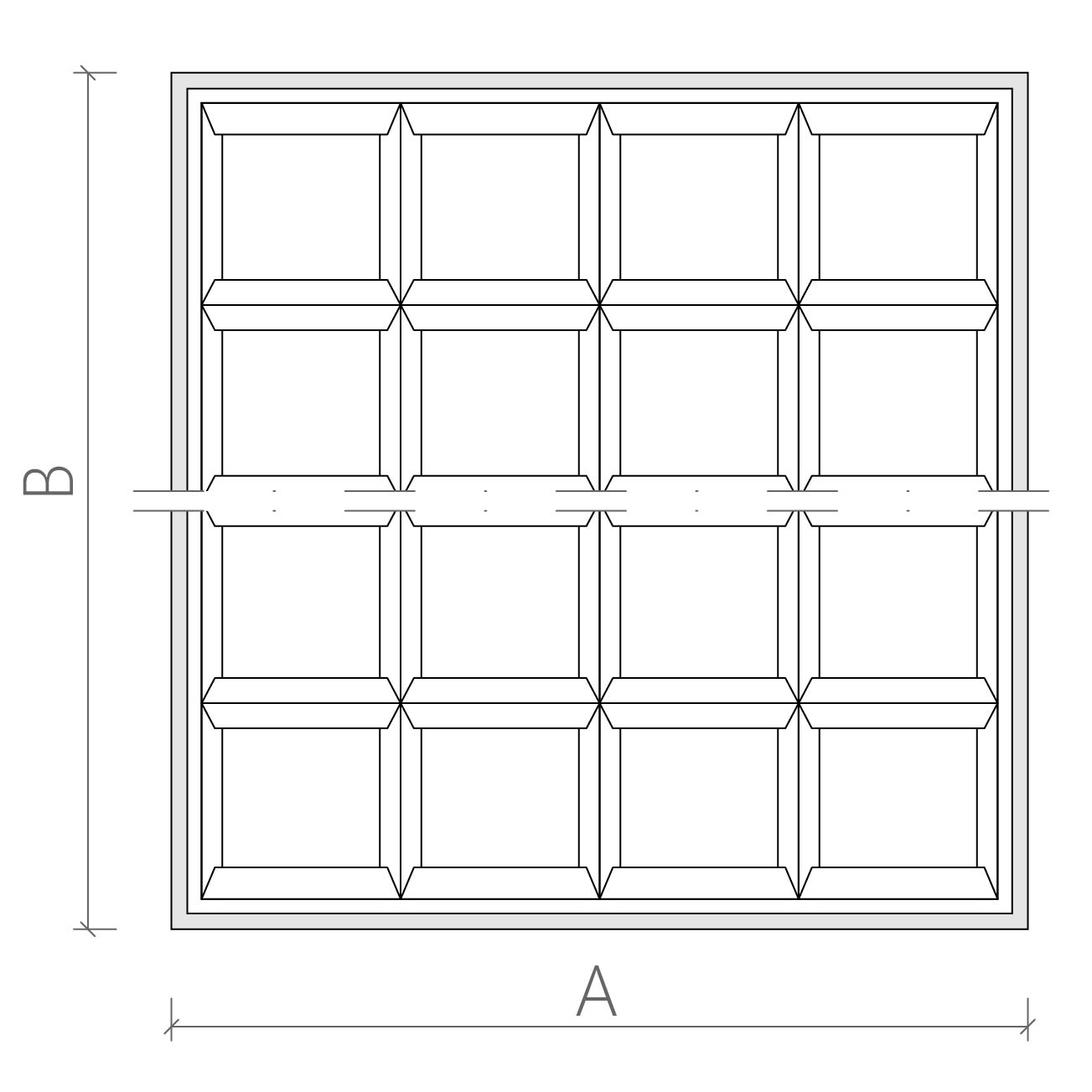

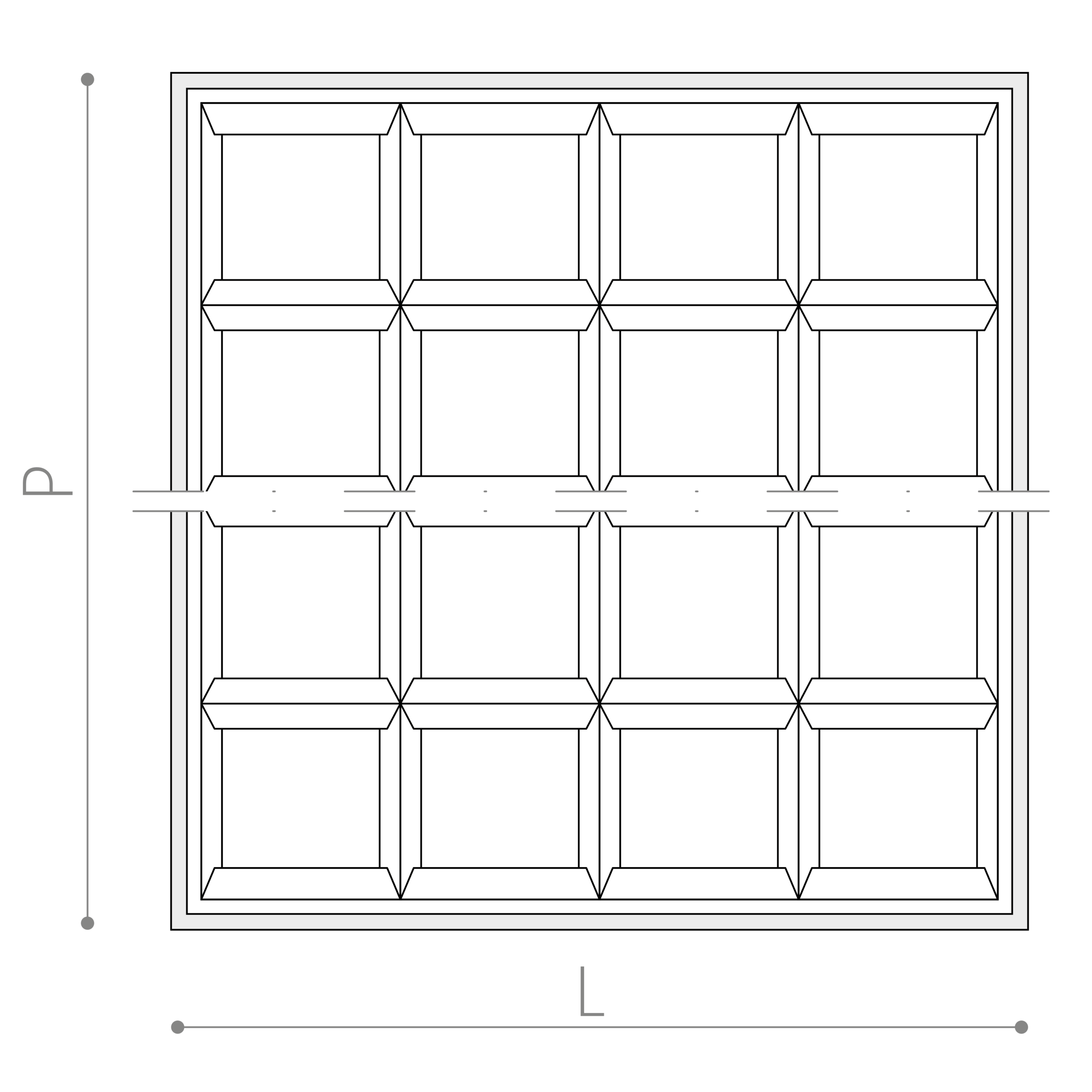

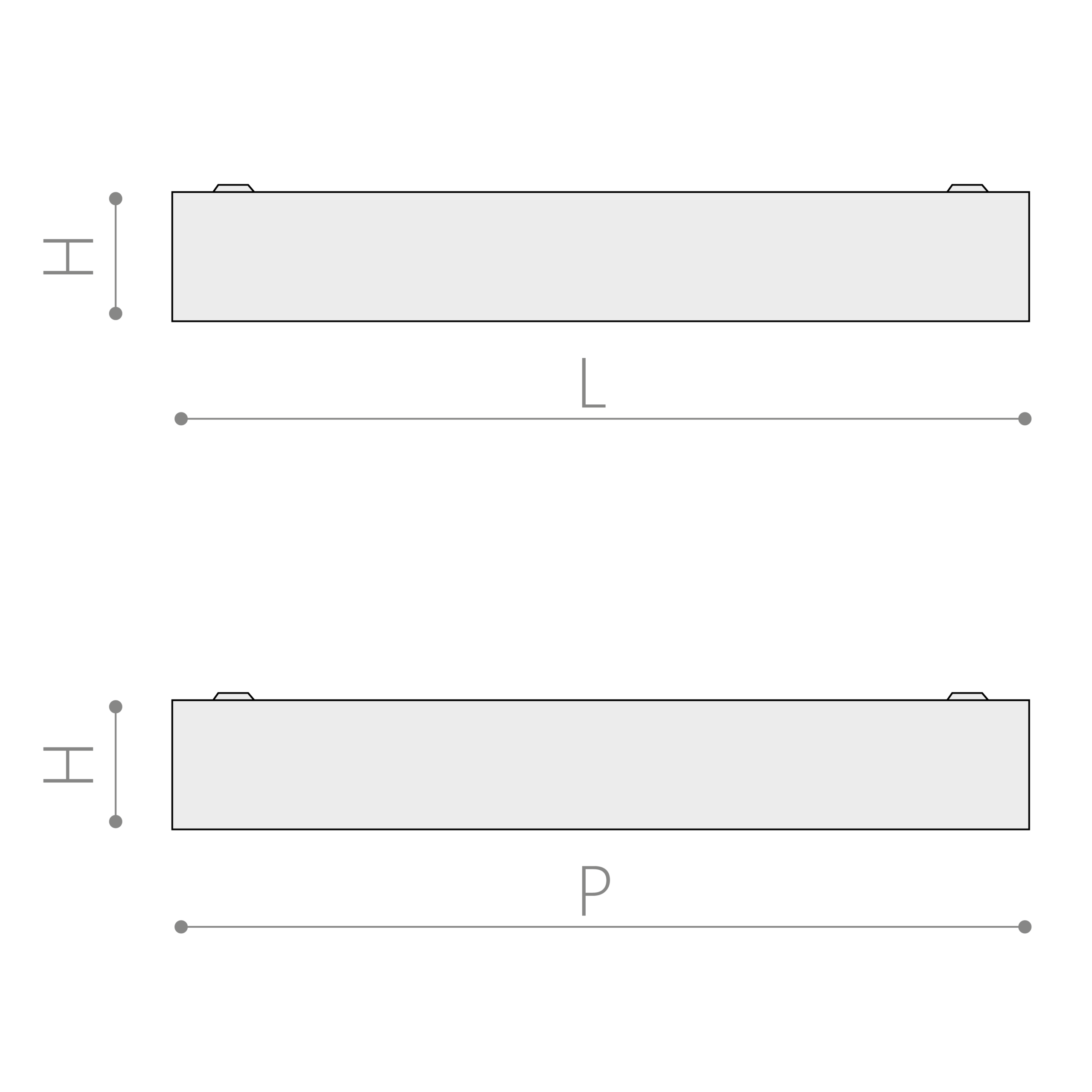

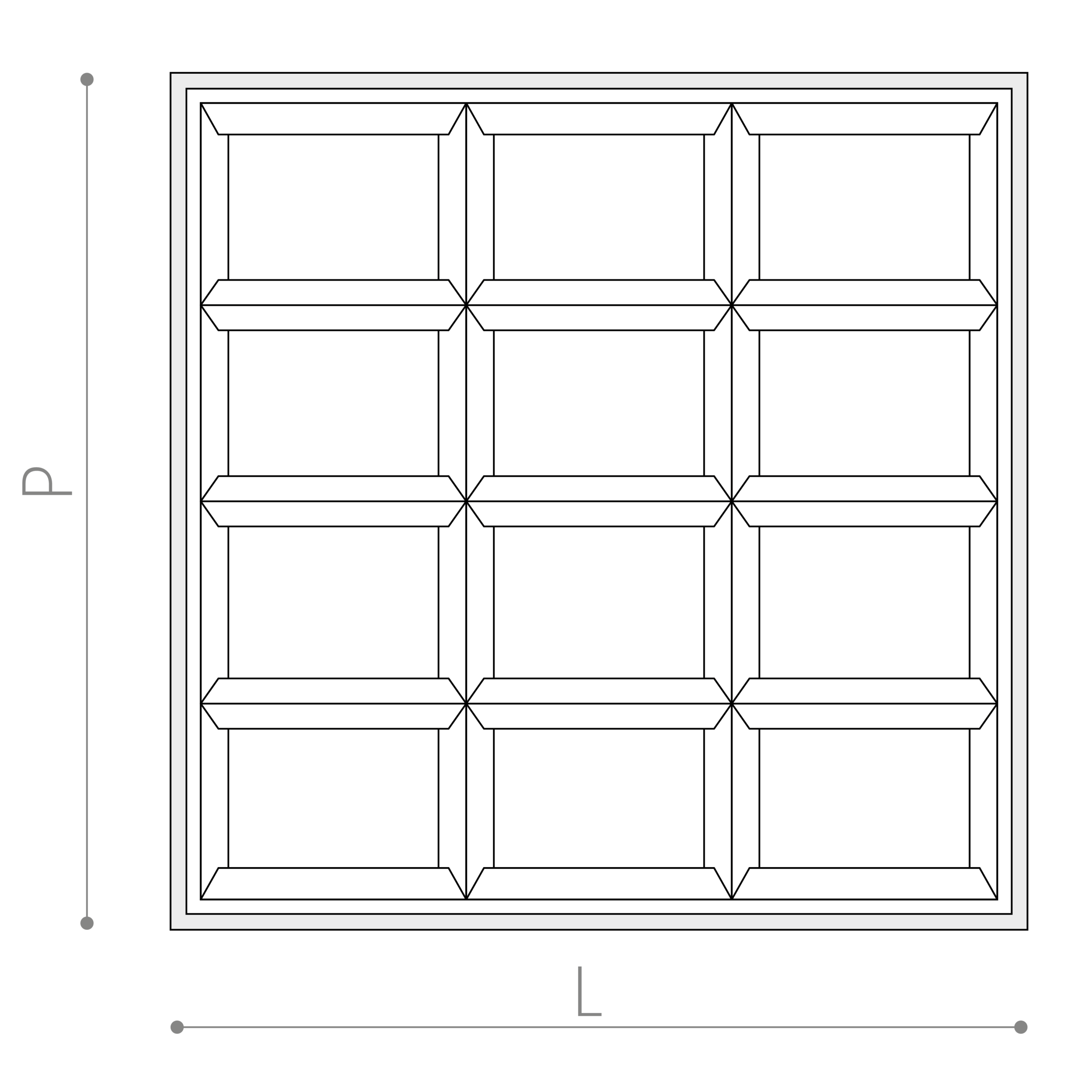

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
2020Q20423EL	23	-	4000°K - CRI>80	on/off	2776	121	605	605	90	-	4.5
2020Q20424EL	24	-	4000°K - CRI>80	on/off	2856	119	605	605	90	-	4.5
2020Q20437EL	37	-	4000°K - CRI>80	on/off	3789	102	605	605	90	-	4.5
2020Q20433EL	33	-	4000°K - CRI>80	on/off	3809	115	605	605	90	-	4.5
2020Q20442EL	42	-	4000°K - CRI>80	on/off	4781	114	605	605	90	-	4.5
2020Q20445EL	45	-	4000°K - CRI>80	on/off	5332	118	605	605	90	-	4.5
2020Q20448EL	48	-	4000°K - CRI>80	on/off	5052	105	605	605	90	-	4.5
2020Q20472EL	72	-	4000°K - CRI>80	on/off	7578	105	605	605	90	-	4.5
2020Q20423LD	23	-	4000°K - CRI>80	dali 2 / dali 2 push	2776	121	605	605	90	-	4.5
2020Q20424LD	24	-	4000°K - CRI>80	dali 2 / dali 2 push	2856	119	605	605	90	-	4.5
2020Q20437LD	37	-	4000°K - CRI>80	dali 2 / dali 2 push	3789	102	605	605	90	-	4.5
2020Q20433LD	33	-	4000°K - CRI>80	dali 2 / dali 2 push	3809	115	605	605	90	-	4.5
2020Q20442LD	42	-	4000°K - CRI>80	dali 2 / dali 2 push	4781	114	605	605	90	-	4.5
2020Q20445LD	45	-	4000°K - CRI>80	dali 2 / dali 2 push	5332	118	605	605	90	-	4.5
2020Q20448LD	48	-	4000°K - CRI>80	dali 2 / dali 2 push	5052	105	605	605	90	-	4.5
2020Q20472LD	72	-	4000°K - CRI>80	dali 2 / dali 2 push	7578	105	605	605	90	-	4.5
2020Q20423D1	23	-	4000°K - CRI>80	dali 2 + em. 1h	2776	121	605	605	90	-	4.5
2020Q20424D1	24	-	4000°K - CRI>80	dali 2 + em. 1h	2856	119	605	605	90	-	4.5
2020Q20437D1	37	-	4000°K - CRI>80	dali 2 + em. 1h	3789	102	605	605	90	-	4.5
2020Q20433D1	33	-	4000°K - CRI>80	dali 2 + em. 1h	3809	115	605	605	90	-	4.5
