DIAMANTE – Mod. R2

(UGR<16)

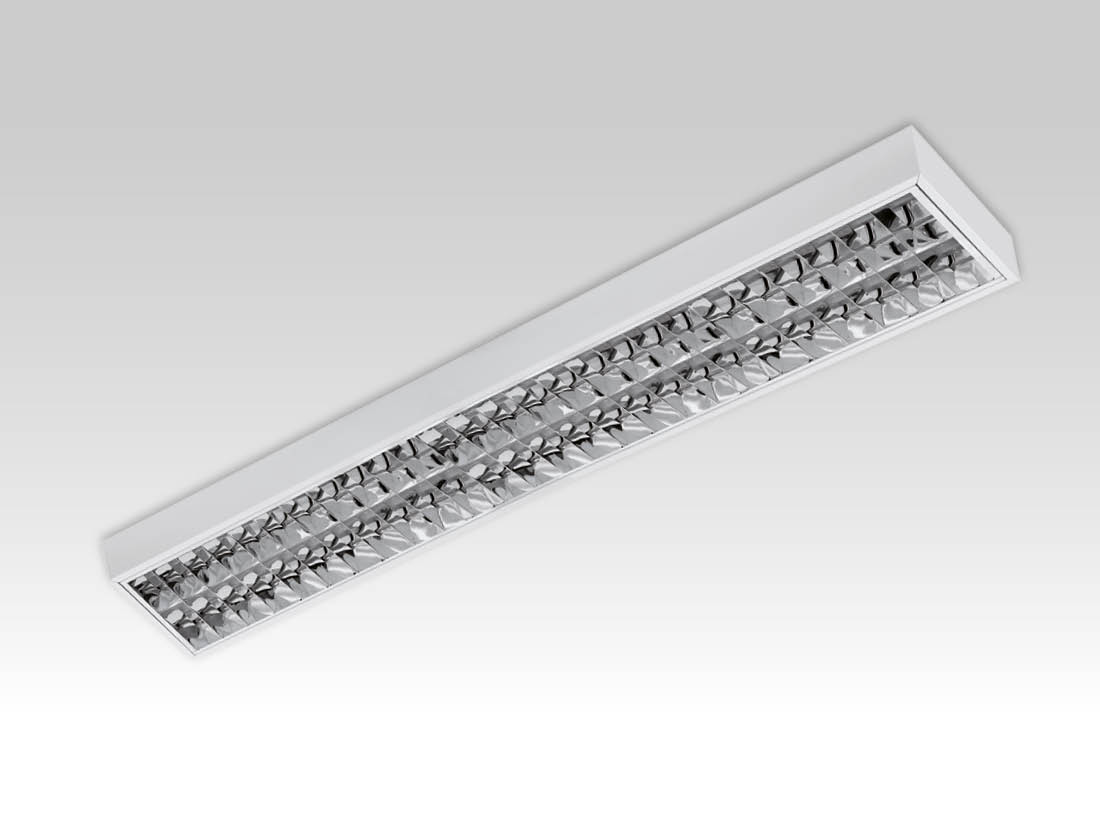

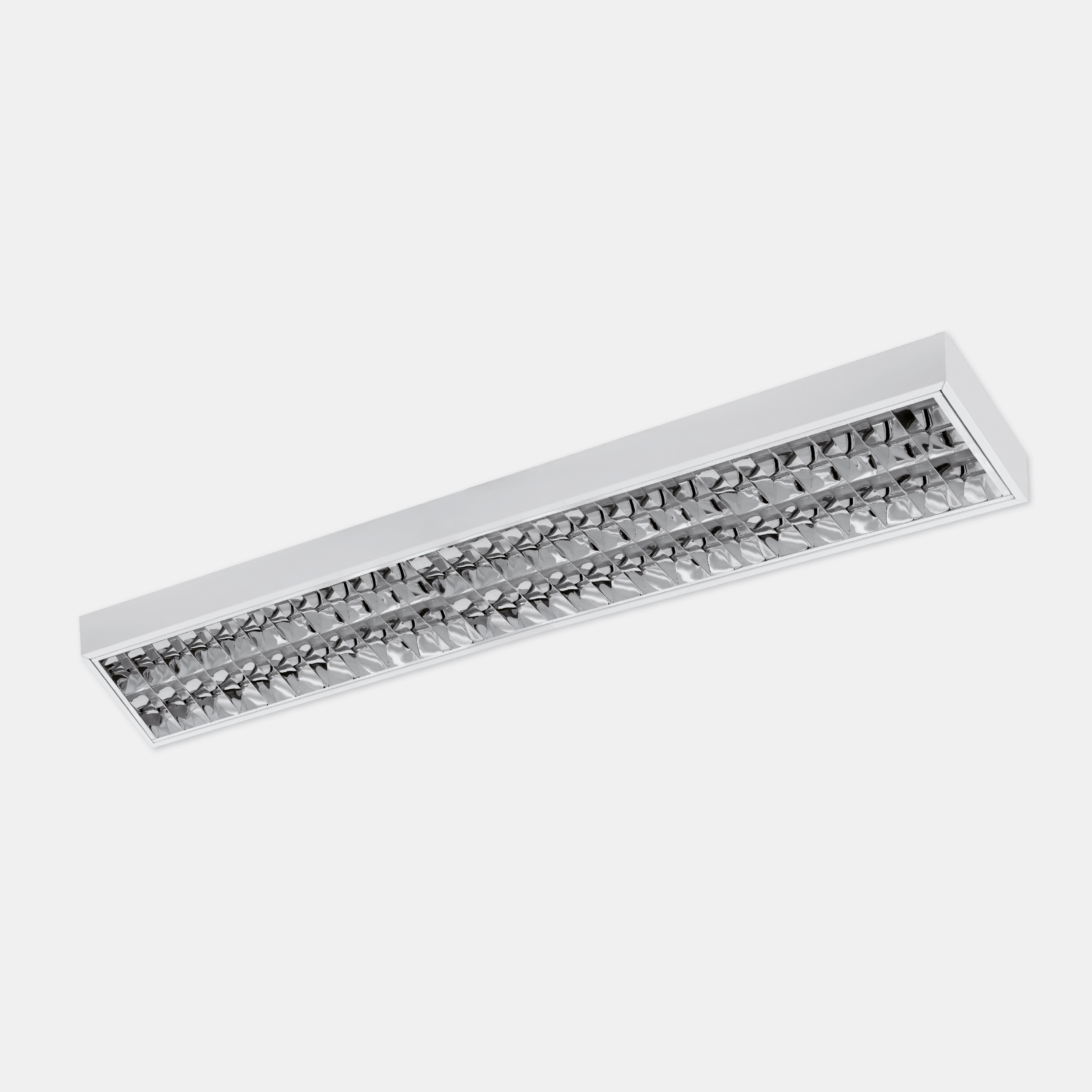

DIRECT BACKLIGHT LED fixture suitable for ceiling or suspension installation (via accessory). Sheet steel body, painted with epoxy-polyester powders in non-yellowing white with fine embossed finish, with phosphating and degreasing pretreatment. Low luminance double parabolic dark-light optics (60° 200 cd/sqm cat2) with high flux efficiency, anti-glare and antireflection microprismatic polycarbonate LED cover diffuser.
Categories: Led, DIAMANTE - 2020, Office, DIAMANTE
Models: 165
Color: Matt white
Catalogue abstract
Installation instructions

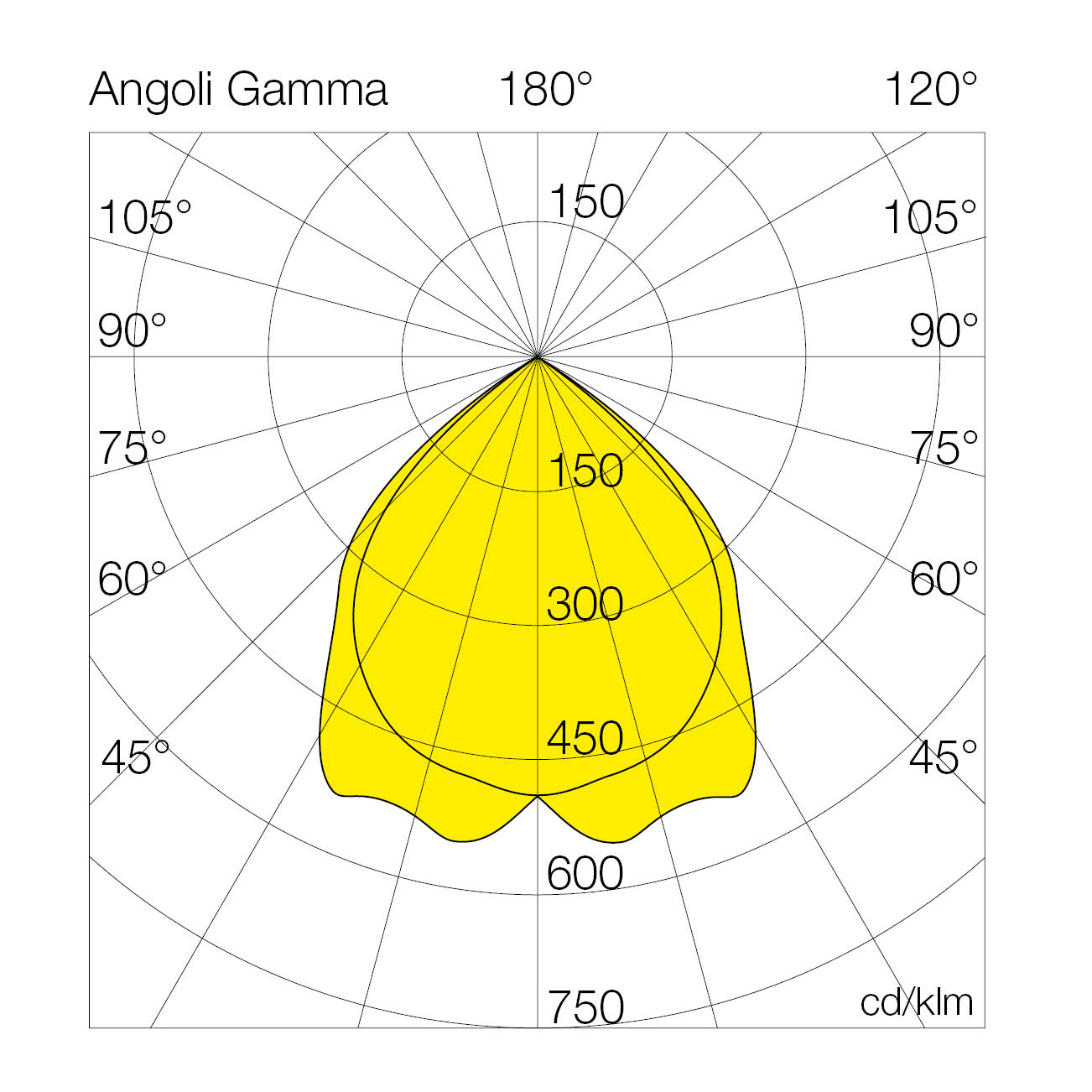

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
2020R203= 3000°K (CRI >80)12EL= on/off
04= 4000°K (CRI >80)15LD= dali 2 / dali 2 push
94= 4000°K (CRI >90)23D1= dali 2 + em.1h
28E1= em. 1h
33E3= em. 3h
38
42
48
60
66
75

Models

W tot.
°K - CRI
Options

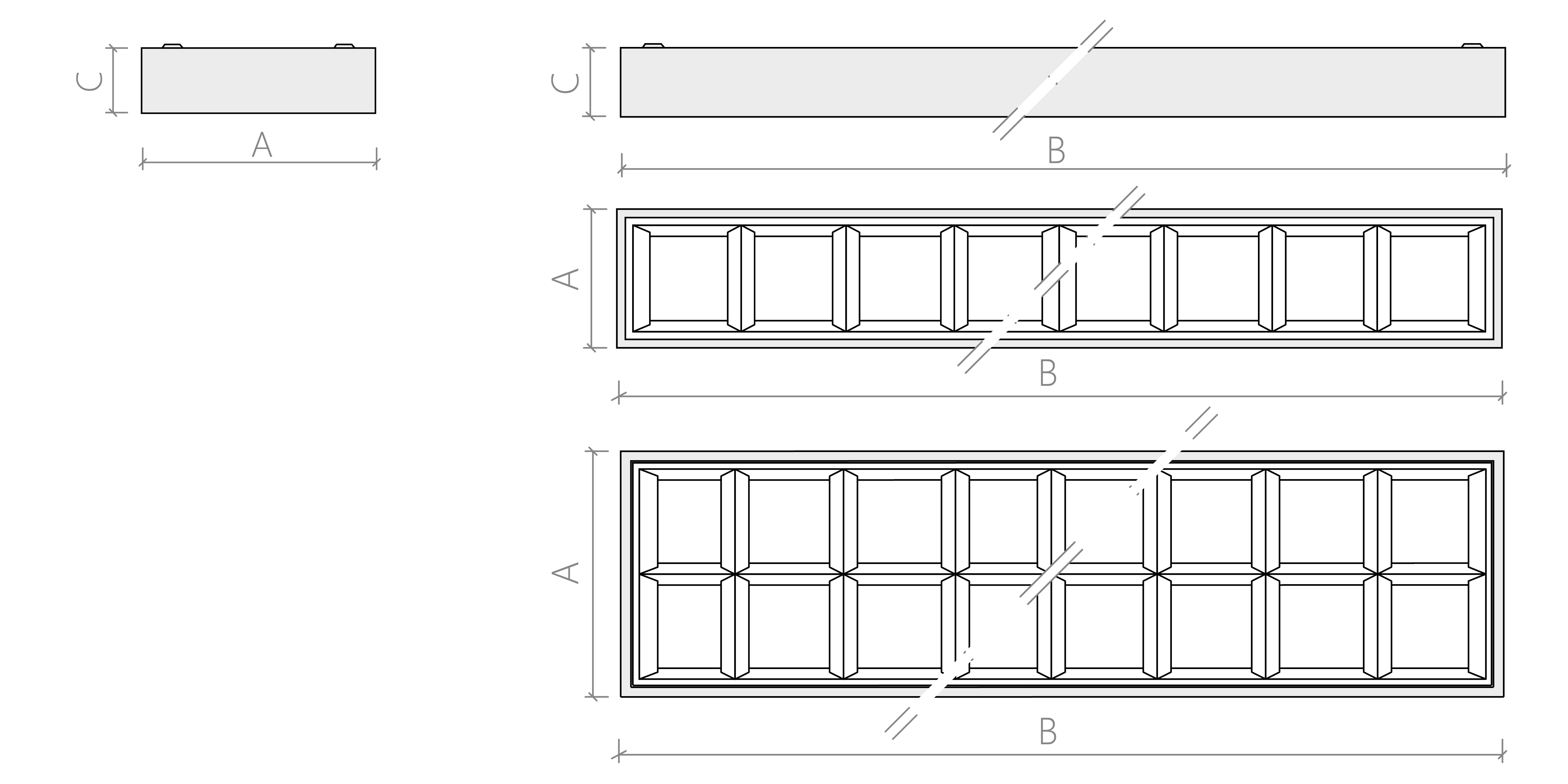

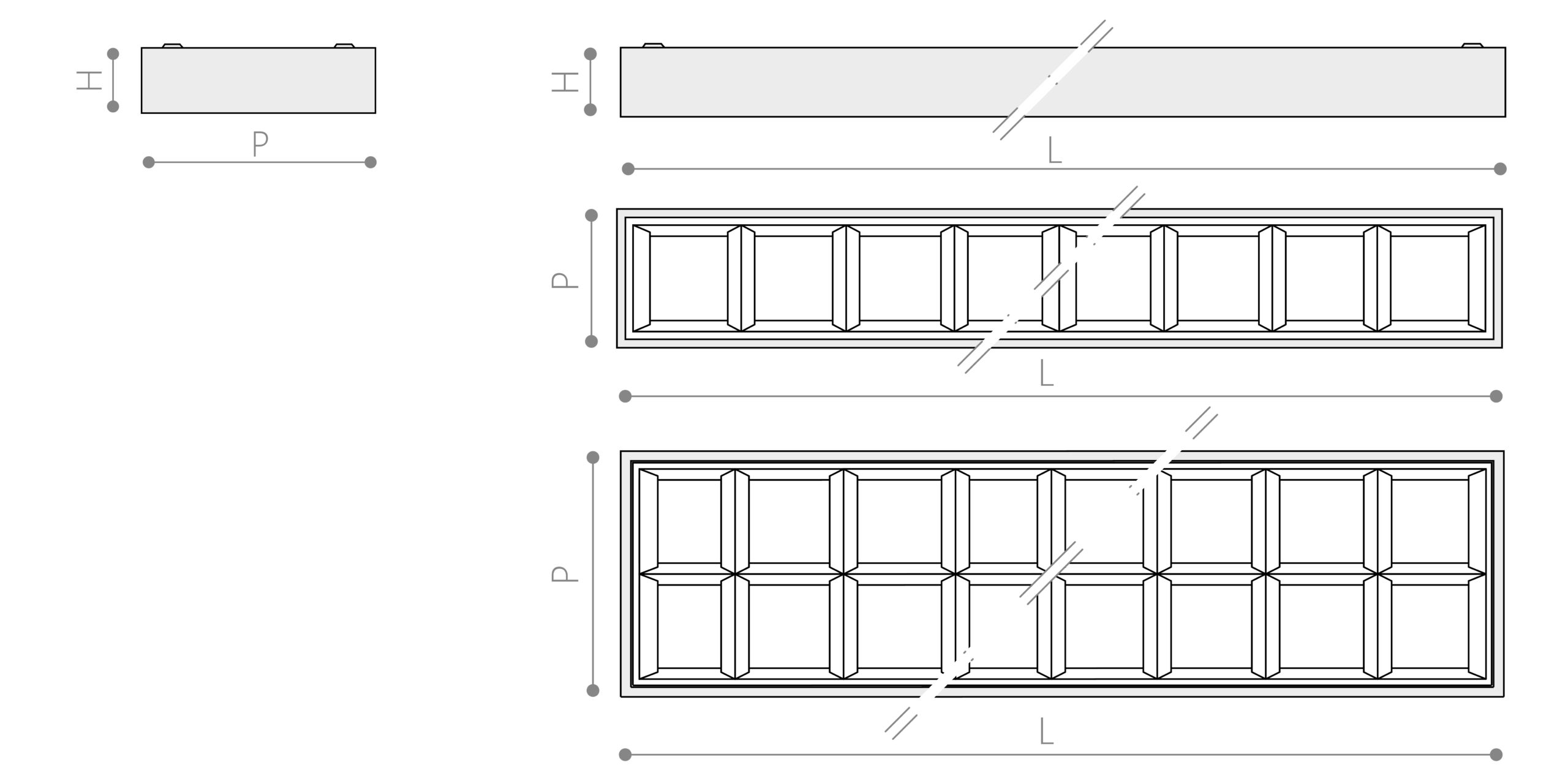

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
2020R20412EL12-4000°K - CRI>80on/off126310516560590-1.3
2020R20415EL15-4000°K - CRI>80on/off179211930560590-2.5
2020R20423EL23-4000°K - CRI>80on/off2526110165120590-2.7
2020R20433EL33-4000°K - CRI>80on/off3809115305120590-5.0
2020R20448EL48-4000°K - CRI>80on/off5052105305120590-5.0
2020R20428EL28-4000°K - CRI>80on/off3301118165150590-3.4
2020R20438EL38-4000°K - CRI>80on/off4443117305150590-6.2
2020R20442EL42-4000°K - CRI>80on/off4781114305120590-5.0
2020R20460EL60-4000°K - CRI>80on/off6315105305150590-6.2
2020R20466EL66-4000°K - CRI>80on/off7618115605120590-9.9
2020R20475EL75-4000°K - CRI>80on/off8619115605120590-9.9
2020R20412LD12-4000°K - CRI>80dali 2 / dali 2 push126310516560590-1.3
2020R20415LD15-4000°K - CRI>80dali 2 / dali 2 push179211930560590-2.5
2020R20423LD23-4000°K - CRI>80dali 2 / dali 2 push2526110165120590-2.7
2020R20433LD33-4000°K - CRI>80dali 2 / dali 2 push3809115305120590-5.0
2020R20448LD48-4000°K - CRI>80dali 2 / dali 2 push5052105305120590-5.0
2020R20428LD28-4000°K - CRI>80dali 2 / dali 2 push3301118165150590-3.4
2020R20438LD38-4000°K - CRI>80dali 2 / dali 2 push4443117305150590-6.2
2020R20442LD42-4000°K - CRI>80dali 2 / dali 2 push4781114305120590-5.0
2020R20460LD60-4000°K - CRI>80dali 2 / dali 2 push6315105305150590-6.2

Accessories
